Toyota Tacoma VZN170 RADIATOR GRILLE

VZN170L-CRPDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2004

Engine 5VZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9501-0009)

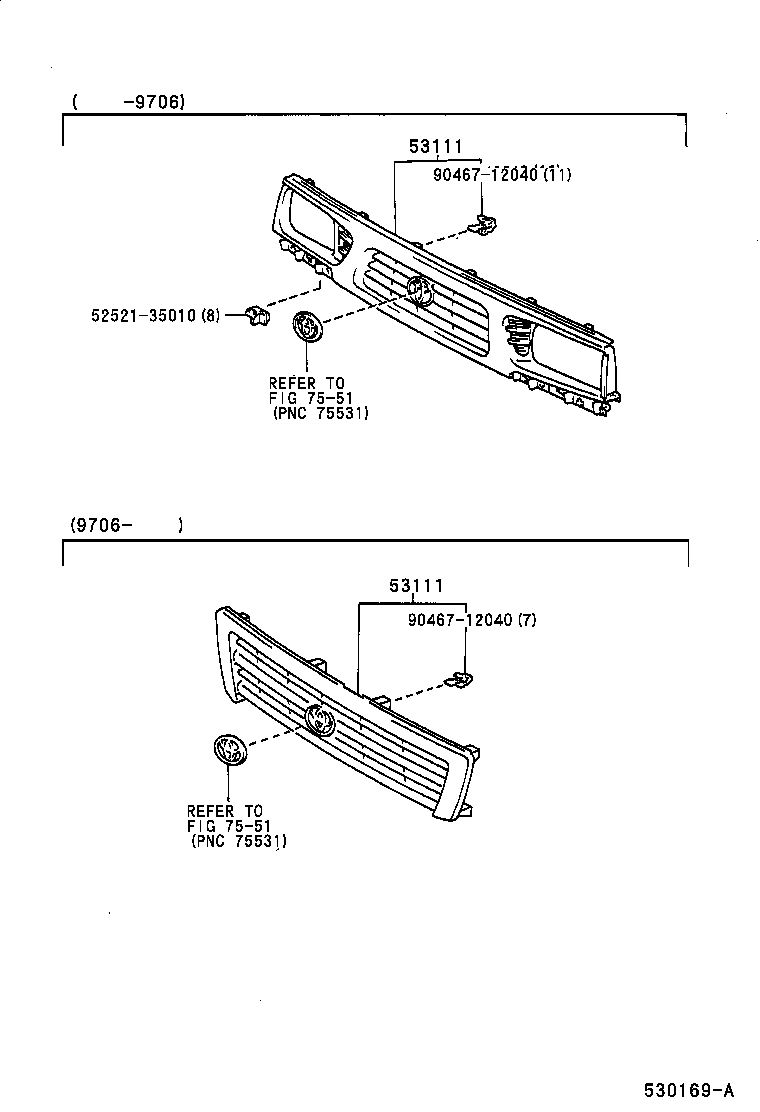

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53100-35310	RZN161,171,VZN160,170..DLX	01/1995 - 06/1997	1
53100-04110B0	RZN161,171,VZN170..DLX SLVER ME.,1C8	08/1999 - 09/2000	1
53100-04110G0	RZN161,171,VZN170..DLX GREEN ME.OP.,6P4	06/1997 - 08/1999	1
53100-04110C0	RZN161,171,VZN170 BLACK M,204	06/1997 - 08/1999	1
53100-04090	RZN161,171,VZN170..DLX	06/1997 - 09/2000	1
53100-04240	RZN161,171,VZN170 W(CHROME PLATING)	09/2000 - 09/2004	1
53100-04110C1	RZN161,171,VZN170 BLACK MC.,209	08/1999 - 09/2000	1
53100-35340	RZN161,171,VZN160,170..DLX W(CHROME PLATING)	01/1995 - 06/1997	1
53100-04250D0	RZN161,171,VZN170 RED,3L5	09/2000 - 09/2004	1
53100-04110D0	RZN161,171,VZN170 RED MM,3K4	06/1997 - 09/2000	1
53100-04250B0	RZN161,171,VZN170 SILVER ME.,1C8	09/2000 - 09/2004	1
53100-04110G1	RZN161,171,VZN170 DK.GREEN MC.,6Q7	08/1998 - 09/2000	1
53100-04230	RZN161,171,VZN170	09/2000 - 09/2004	1
53100-04250D1	RZN161,171,VZN170 RED M.M.,3P1	09/2000 - 09/2004	1
53100-04100	RZN161,171,VZN170 W(CHROME PLATING)	06/1997 - 09/2000	1
53100-04250C0	RZN161,171,VZN170 BLACK MC.,209	09/2000 - 09/2004	1
53111 - GRILLE, RADIATOR
53100-35310	RZN161,171,VZN160,170..DLX	01/1995 - 06/1997	1
53100-04110B0	RZN161,171,VZN170..DLX SLVER ME.,1C8	08/1999 - 09/2000	1
53100-04110G0	RZN161,171,VZN170..DLX GREEN ME.OP.,6P4	06/1997 - 08/1999	1
53100-04110C0	RZN161,171,VZN170 BLACK M,204	06/1997 - 08/1999	1
53100-04090	RZN161,171,VZN170..DLX	06/1997 - 09/2000	1
53100-04240	RZN161,171,VZN170 W(CHROME PLATING)	09/2000 - 09/2004	1
53100-04110C1	RZN161,171,VZN170 BLACK MC.,209	08/1999 - 09/2000	1
53100-35340	RZN161,171,VZN160,170..DLX W(CHROME PLATING)	01/1995 - 06/1997	1
53100-04250D0	RZN161,171,VZN170 RED,3L5	09/2000 - 09/2004	1
53100-04110D0	RZN161,171,VZN170 RED MM,3K4	06/1997 - 09/2000	1
53100-04250B0	RZN161,171,VZN170 SILVER ME.,1C8	09/2000 - 09/2004	1
53100-04110G1	RZN161,171,VZN170 DK.GREEN MC.,6Q7	08/1998 - 09/2000	1
53100-04230	RZN161,171,VZN170	09/2000 - 09/2004	1
53100-04250D1	RZN161,171,VZN170 RED M.M.,3P1	09/2000 - 09/2004	1
53100-04100	RZN161,171,VZN170 W(CHROME PLATING)	06/1997 - 09/2000	1
53100-04250C0	RZN161,171,VZN170 BLACK MC.,209	09/2000 - 09/2004	1
Common parts
52521-35010
90467-12040
Linked diagrams
7551

(0009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52512A - FILLER, FRONT BUMPER, RH
52512-35050	RZN161,171,VZN170	09/2000 - 12/2999	1
52513A - FILLER, FRONT BUMPER, LH
52513-35060	RZN161,171,VZN170	09/2000 - 12/2999	1
53111 - GRILLE, RADIATOR
53100-35310	RZN161,171,VZN160,170..DLX	01/1995 - 06/1997	1
53100-04110B0	RZN161,171,VZN170..DLX SLVER ME.,1C8	08/1999 - 09/2000	1
53100-04110G0	RZN161,171,VZN170..DLX GREEN ME.OP.,6P4	06/1997 - 08/1999	1
53100-04110C0	RZN161,171,VZN170 BLACK M,204	06/1997 - 08/1999	1
53100-04090	RZN161,171,VZN170..DLX	06/1997 - 09/2000	1
53100-04240	RZN161,171,VZN170 W(CHROME PLATING)	09/2000 - 09/2004	1
53100-04110C1	RZN161,171,VZN170 BLACK MC.,209	08/1999 - 09/2000	1
53100-35340	RZN161,171,VZN160,170..DLX W(CHROME PLATING)	01/1995 - 06/1997	1
53100-04250D0	RZN161,171,VZN170 RED,3L5	09/2000 - 09/2004	1
53100-04110D0	RZN161,171,VZN170 RED MM,3K4	06/1997 - 09/2000	1
53100-04250B0	RZN161,171,VZN170 SILVER ME.,1C8	09/2000 - 09/2004	1
53100-04110G1	RZN161,171,VZN170 DK.GREEN MC.,6Q7	08/1998 - 09/2000	1
53100-04230	RZN161,171,VZN170	09/2000 - 09/2004	1
53100-04250D1	RZN161,171,VZN170 RED M.M.,3P1	09/2000 - 09/2004	1
53100-04100	RZN161,171,VZN170 W(CHROME PLATING)	06/1997 - 09/2000	1
53100-04250C0	RZN161,171,VZN170 BLACK MC.,209	09/2000 - 09/2004	1
53145B - CLIP, RADIATOR GRILLE GARNISH
53145-12010	RZN161,171,VZN170	09/2000 - 12/2999	2
Common parts
90467-12040
Linked diagrams
7551

VZN170L-CRPDKAB (1995)

(9501-0009)

(0009- )
