Toyota Tacoma VZN170 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
US
TACOMA
VZN170L-CRPDKAB (1995)
5252 - FRONT BUMPER & BUMPER STAY

VZN170L-CRPDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2004

Engine 5VZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

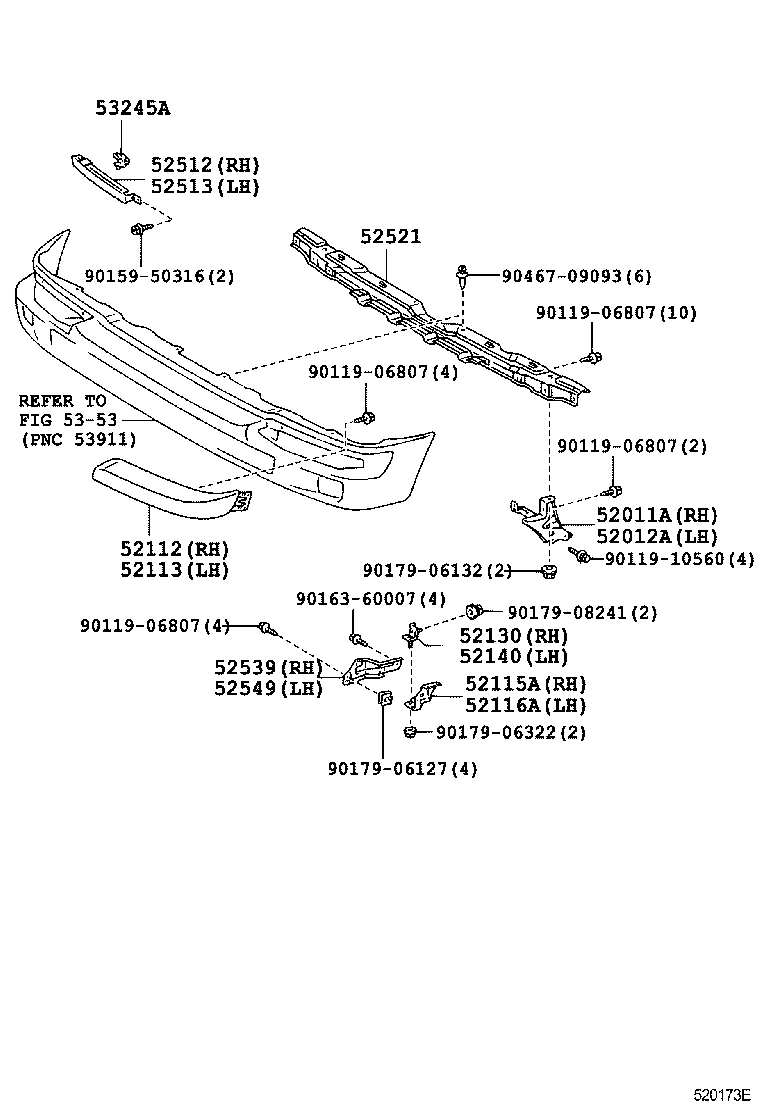

(9706-0009)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-AD010	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52011-04050	RZN161,171,VZN170	06/1997 - 09/2000	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-AD010	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52012-04050	RZN161,171,VZN170	06/1997 - 09/2000	1
52112 - BAR, FRONT BUMPER, RH
52102-04010	RZN161,171,VZN170 CHROME PLATED	06/1997 - 09/2000	1
52102-04020	RZN161,171,VZN170..DLX	06/1997 - 09/2000	1
52113 - BAR, FRONT BUMPER, LH
52103-04010	RZN161,171,VZN170 CHROME PLATED	06/1997 - 09/2000	1
52103-04020	RZN161,171,VZN170..DLX	06/1997 - 09/2000	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35080	RZN161,171,VZN170	06/1997 - 09/2000	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35070	RZN161,171,VZN170	06/1997 - 09/2000	1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52145-35010	RZN161,171,VZN160,170	01/1995 - 11/1995	1
52145-35020	RZN161,171,VZN160,170	11/1995 - 09/2000	1
52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52146-35010	RZN161,171,VZN160,170	01/1995 - 11/1995	1
52146-35020	RZN161,171,VZN160,170	11/1995 - 09/2000	1
52512 - FILLER, FRONT BUMPER, RH
52512-35020	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52512-35060	RZN161,171,VZN170	06/1997 - 09/2000	1
52513 - FILLER, FRONT BUMPER, LH
52513-35050	RZN161,171,VZN170	06/1997 - 09/2000	1
52513-35020	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52506-04020	RZN161,171,VZN170	06/1997 - 09/2000	1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-35020	RZN161,171,VZN170	06/1997 - 09/2000	1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52549-35020	RZN161,171,VZN170	06/1997 - 09/2000	1
53245A - BRACKET, HEADLAMP
53245-04010	RZN161,171,VZN170	06/1997 - 09/2000	2
Common parts
90119-06807
90119-10560
90159-50316
90163-60007
90179-06127
90179-06132
90179-06322
90179-08241
90467-09093
Linked diagrams
5353

(0009- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
52111E - BAR, FRONT BUMPER
52101-04080	RZN161,171,VZN160,170..DLX W(CHROME PLATING)	01/1995 - 06/1997	1
52101-AD020	RZN161,171,VZN170	09/2000 - 09/2004	1
52101-04070	RZN161,171,VZN160,170..DLX	01/1995 - 06/1997	1
52101-AD030	RZN161,171,VZN170 W(CHROME PLATING)	09/2000 - 09/2004	1
52101-AD900	RZN161,171,VZN170 W/O(TOPCOAT)	09/2000 - 09/2004	1
52119A - COVER, FRONT BUMPER
52119-AD010	RZN161,171,VZN170	09/2000 - 09/2004	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-AD010	RZN161,171,VZN170	09/2000 - 12/2999	1
52133B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, RH
52133-AD010	RZN161,171,VZN170	09/2000 - 12/2999	1
52134B - BRACKET, FRONT BUMPER EXTENSION MOUNTING, LH
52134-AD010	RZN161,171,VZN170	09/2000 - 12/2999	1
52141C - ARM, FRONT BUMPER, RH
52141-AD020	RZN161,171,VZN170	09/2000 - 12/2999	1
52142B - ARM, FRONT BUMPER, LH
52142-AD020	RZN161,171,VZN170	09/2000 - 12/2999	1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-AD010	RZN161,171,VZN170	09/2000 - 12/2999	1
52146B - BRACKET, FRONT BUMPER SIDE MOUNTING, LH
52146-AD010	RZN161,171,VZN170	09/2000 - 12/2999	1
52161C - PIECE, FRONT BUMPER
52161-02020	RZN161,171,VZN170	09/2000 - 12/2999	8
52533 - BRACKET, FRONT BUMPER RETAINER, NO.1
52533-AD010	RZN161,171,VZN170	09/2000 - 12/2999	1
Common parts
90084-10037
90119-10560
90178-06006
90179-06127
90179-06314
90179-08063
90179-08241
90540-08018
Linked diagrams
5353
5355
8103

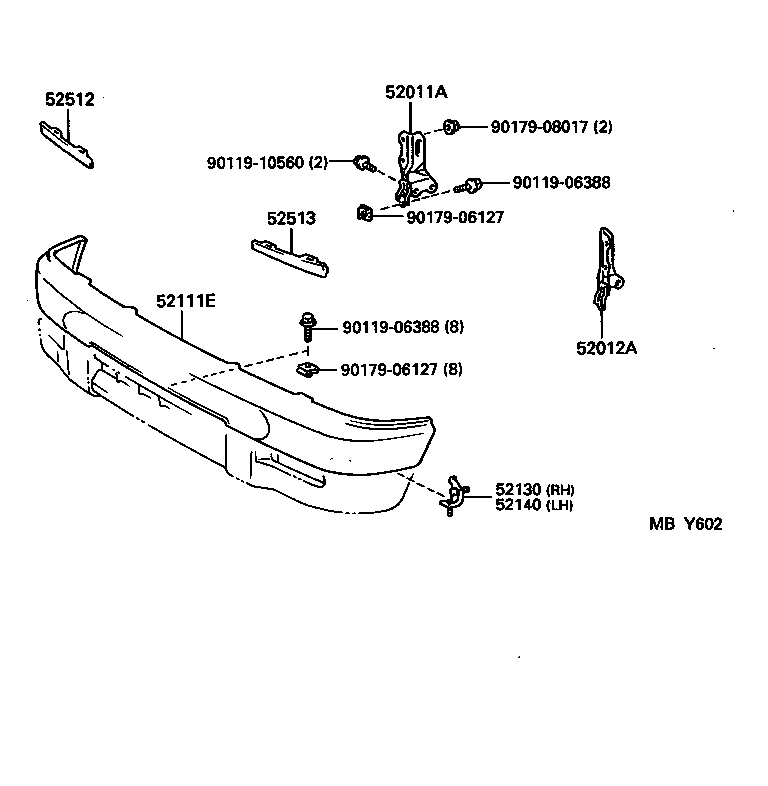

(9501-9706)

Click highlighted areas on diagram

Part #	Description	Period	Qty
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-AD010	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52011-04050	RZN161,171,VZN170	06/1997 - 09/2000	1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-AD010	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52012-04050	RZN161,171,VZN170	06/1997 - 09/2000	1
52111E - BAR, FRONT BUMPER
52101-04080	RZN161,171,VZN160,170..DLX W(CHROME PLATING)	01/1995 - 06/1997	1
52101-AD020	RZN161,171,VZN170	09/2000 - 09/2004	1
52101-04070	RZN161,171,VZN160,170..DLX	01/1995 - 06/1997	1
52101-AD030	RZN161,171,VZN170 W(CHROME PLATING)	09/2000 - 09/2004	1
52101-AD900	RZN161,171,VZN170 W/O(TOPCOAT)	09/2000 - 09/2004	1
52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH
52145-35010	RZN161,171,VZN160,170	01/1995 - 11/1995	1
52145-35020	RZN161,171,VZN160,170	11/1995 - 09/2000	1
52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH
52146-35010	RZN161,171,VZN160,170	01/1995 - 11/1995	1
52146-35020	RZN161,171,VZN160,170	11/1995 - 09/2000	1
52512 - FILLER, FRONT BUMPER, RH
52512-35020	RZN161,171,VZN160,170	01/1995 - 06/1997	1
52512-35060	RZN161,171,VZN170	06/1997 - 09/2000	1
52513 - FILLER, FRONT BUMPER, LH
52513-35050	RZN161,171,VZN170	06/1997 - 09/2000	1
52513-35020	RZN161,171,VZN160,170	01/1995 - 06/1997	1
Common parts
90119-06388
90119-10560
90179-06127
90179-08017

VZN170L-CRPDKAB (1995)

(9706-0009)

(0009- )

(9501-9706)
