Toyota Tacoma VZN170 CONSOLE BOX & BRACKET

Manufacturers Home
Toyota
US
TACOMA
VZN170L-CRMGKAB (1995)
5855 - CONSOLE BOX & BRACKET

VZN170L-CRMGKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000

Engine 5VZFE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

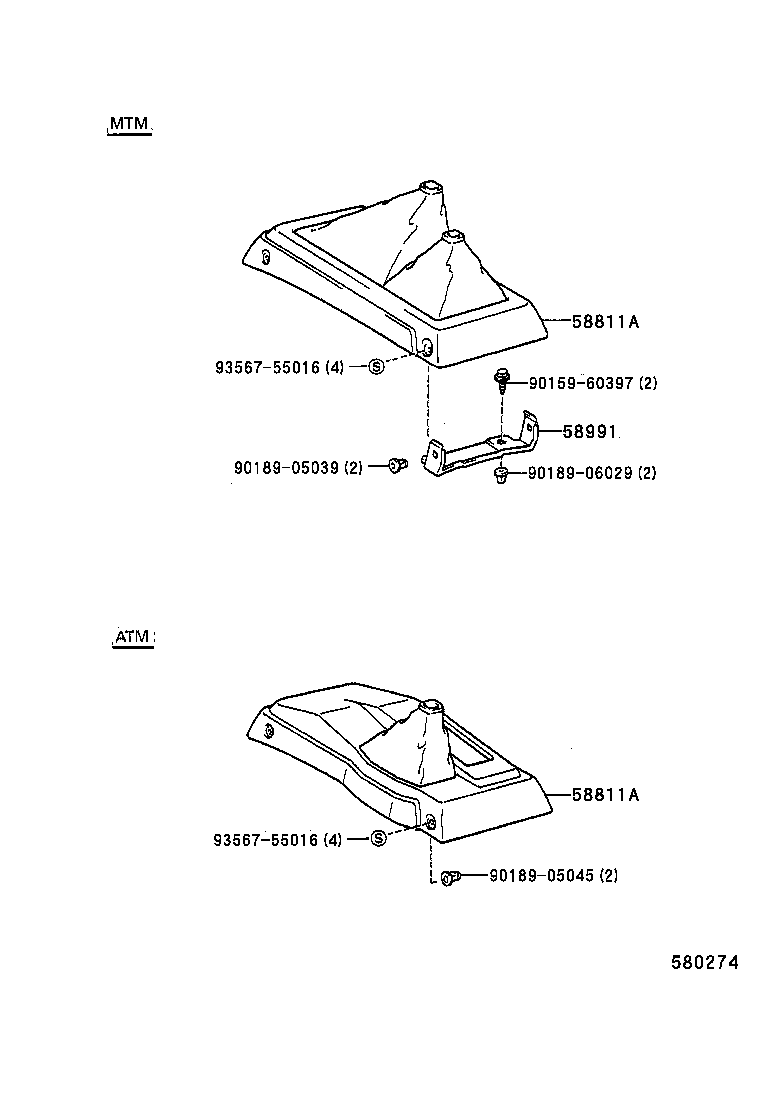

ILLUST NO. 1 OF 2(9501-9706)

Click highlighted areas on diagram

Part #	Description	Period	Qty
58811A - BOX, CONSOLE, FRONT
58802-35080E0	RZN161,171,VZN160,170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35090B0	VZN170..R..SR5 W(2-4 SELECTOR),BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35080B0	RZN161,171,VZN160,170..5F BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35090E0	VZN170..R..SR5 W(2-4 SELECTOR),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35080B1	RZN161,171,VZN170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58802-35090B1	VZN170..R..SR5 W(2-4 SELECTOR),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58811A - BOX, CONSOLE, FRONT
58802-35080E0	RZN161,171,VZN160,170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35090B0	VZN170..R..SR5 W(2-4 SELECTOR),BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35080B0	RZN161,171,VZN160,170..5F BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35090E0	VZN170..R..SR5 W(2-4 SELECTOR),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35080B1	RZN161,171,VZN170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58802-35090B1	VZN170..R..SR5 W(2-4 SELECTOR),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-35020	RZN161,171,VZN160,170..5F	01/1995 - 06/1997	1
58991-04020	RZN161,171,VZN170..5F	06/1997 - 09/2000	1
Common parts
90159-60397
90189-05039
90189-05045
90189-06029
93567-55016

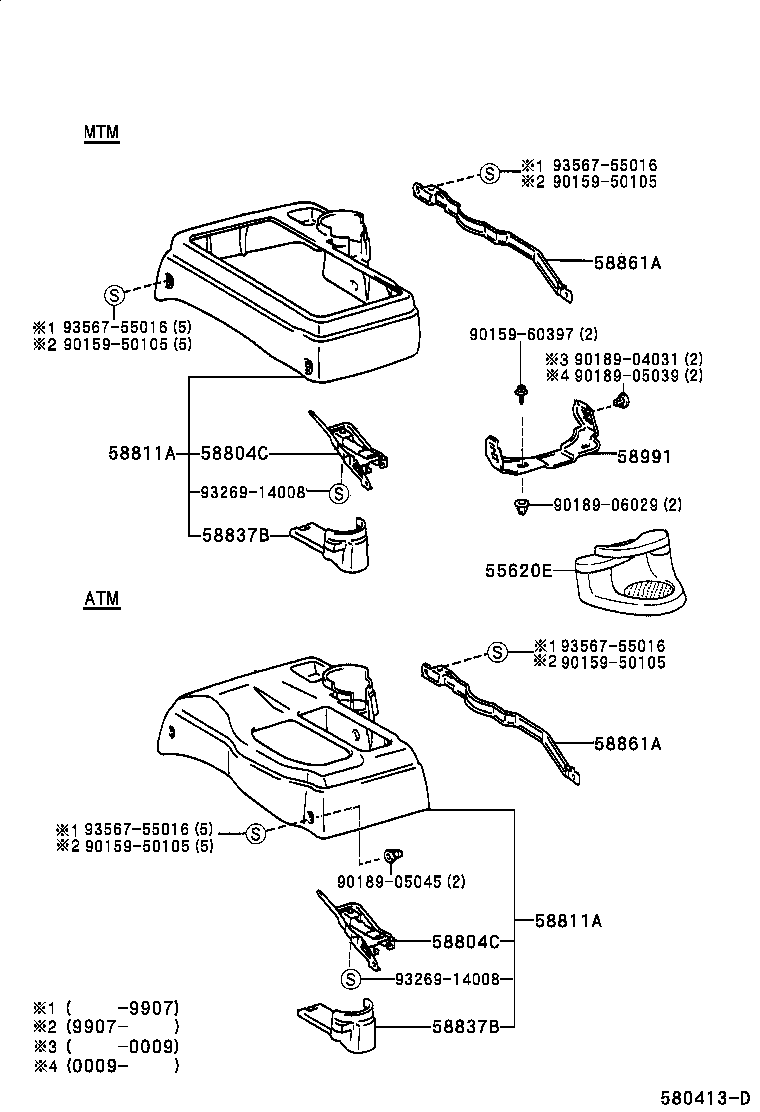

ILLUST NO. 1 OF 2(9706- )RCB,XTR

Click highlighted areas on diagram

Part #	Description	Period	Qty
58811A - BOX, CONSOLE, FRONT
58802-35080E0	RZN161,171,VZN160,170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35090B0	VZN170..R..SR5 W(2-4 SELECTOR),BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35080B0	RZN161,171,VZN160,170..5F BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35090E0	VZN170..R..SR5 W(2-4 SELECTOR),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35080B1	RZN161,171,VZN170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58802-35090B1	VZN170..R..SR5 W(2-4 SELECTOR),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58811A - BOX, CONSOLE, FRONT
58802-35080E0	RZN161,171,VZN160,170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35090B0	VZN170..R..SR5 W(2-4 SELECTOR),BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35080B0	RZN161,171,VZN160,170..5F BLUISH GRAY,TRIM1#	01/1995 - 06/1997	1
58802-35090E0	VZN170..R..SR5 W(2-4 SELECTOR),OAK,TRIM4#	01/1995 - 09/2000	1
58802-35080B1	RZN161,171,VZN170..5F W(REAR CONSOLE BOX & SEPARATE SEAT),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58802-35090B1	VZN170..R..SR5 W(2-4 SELECTOR),MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-35020	RZN161,171,VZN160,170..5F	01/1995 - 06/1997	1
58991-04020	RZN161,171,VZN170..5F	06/1997 - 09/2000	1
Common parts
90159-50105
90159-60397
90189-04031
90189-05039
90189-05045
90189-06029
93269-14008
93567-55016

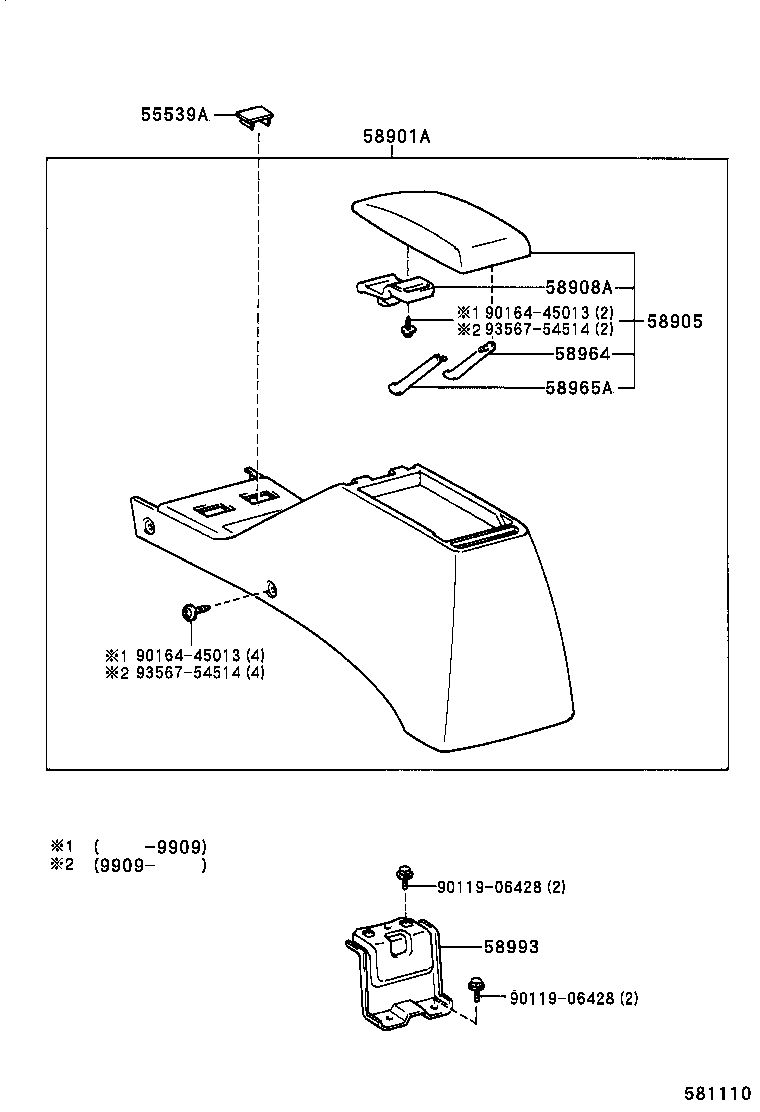

ILLUST NO. 2 OF 2(9501-0009)

Click highlighted areas on diagram

Part #	Description	Period	Qty
55539A - COVER, SPARE SWITCH HOLE
55539-04040E0	VZN170..SR5;RZN161,VZN160 OAK,TRIM4#	01/1995 - 06/1997	2
55539-04040B0	VZN170..SR5;RZN161,VZN160 BLUISH GRAY,TRIM1#	01/1995 - 06/1997	2
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-35130E1	RZN161,171,VZN170 OAK,TRIM4#	06/1997 - 09/2000	1
58901-35090E0	VZN170..SR5;RZN161,VZN160 OAK,TRIM4#	01/1995 - 06/1996	1
58901-35090B0	RZN161,171,VZN160,170 BLUISH GRAY,TRIM1#	06/1996 - 06/1997	1
58901-35090B0	VZN170..SR5;RZN161,VZN160 BLUISH GRAY,TRIM1#	01/1995 - 06/1996	1
58901-35130B1	RZN161,171,VZN170 MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58901-35090E0	RZN161,171,VZN160,170 OAK,TRIM4#	06/1996 - 06/1997	1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-35040B0	VZN170..SR5;RZN161,VZN160 BLUISH GRAY,TRIM1#	01/1995 - 06/1996	1
58905-35040E0	VZN170..SR5;RZN161,VZN160 OAK,TRIM4#	01/1995 - 06/1996	1
58905-35040B1	RZN161,171,VZN170 MD.MOON MIST,TRIM1#	06/1997 - 09/2000	1
58905-35040B0	RZN161,171,VZN160,170 BLUISH GRAY,TRIM1#	06/1996 - 06/1997	1
58905-35040E0	RZN161,171,VZN160,170 OAK,TRIM4#	06/1996 - 09/2000	1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32050	RZN161,171,VZN160,170	01/1995 - 06/1997	1
58908-32040	RZN161,171,VZN170	06/1997 - 09/1999	1
58908-32050	RZN161,171,VZN170	09/1999 - 09/2000	1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-16010	RZN161,171,VZN160,170	06/1996 - 09/2000	1
58964-16010	VZN170..SR5;RZN161,VZN160	01/1995 - 06/1996	1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-16010	VZN170..SR5;RZN161,VZN160	01/1995 - 06/1996	1
58965-16010	RZN161,171,VZN160,170	06/1996 - 09/2000	1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-35020	RZN161,171,VZN160,170	06/1996 - 09/2000	1
58993-35020	VZN170..SR5;RZN161,VZN160	01/1995 - 06/1996	1
Common parts
90119-06428
90164-45013
93567-54514

VZN170L-CRMGKAB (1995)

ILLUST NO. 1 OF 2(9501-9706)

ILLUST NO. 1 OF 2(9706- )RCB,XTR

ILLUST NO. 2 OF 2(9501-0009)
