VZN170L-CRMGKAB (1995)
Toyota Tacoma

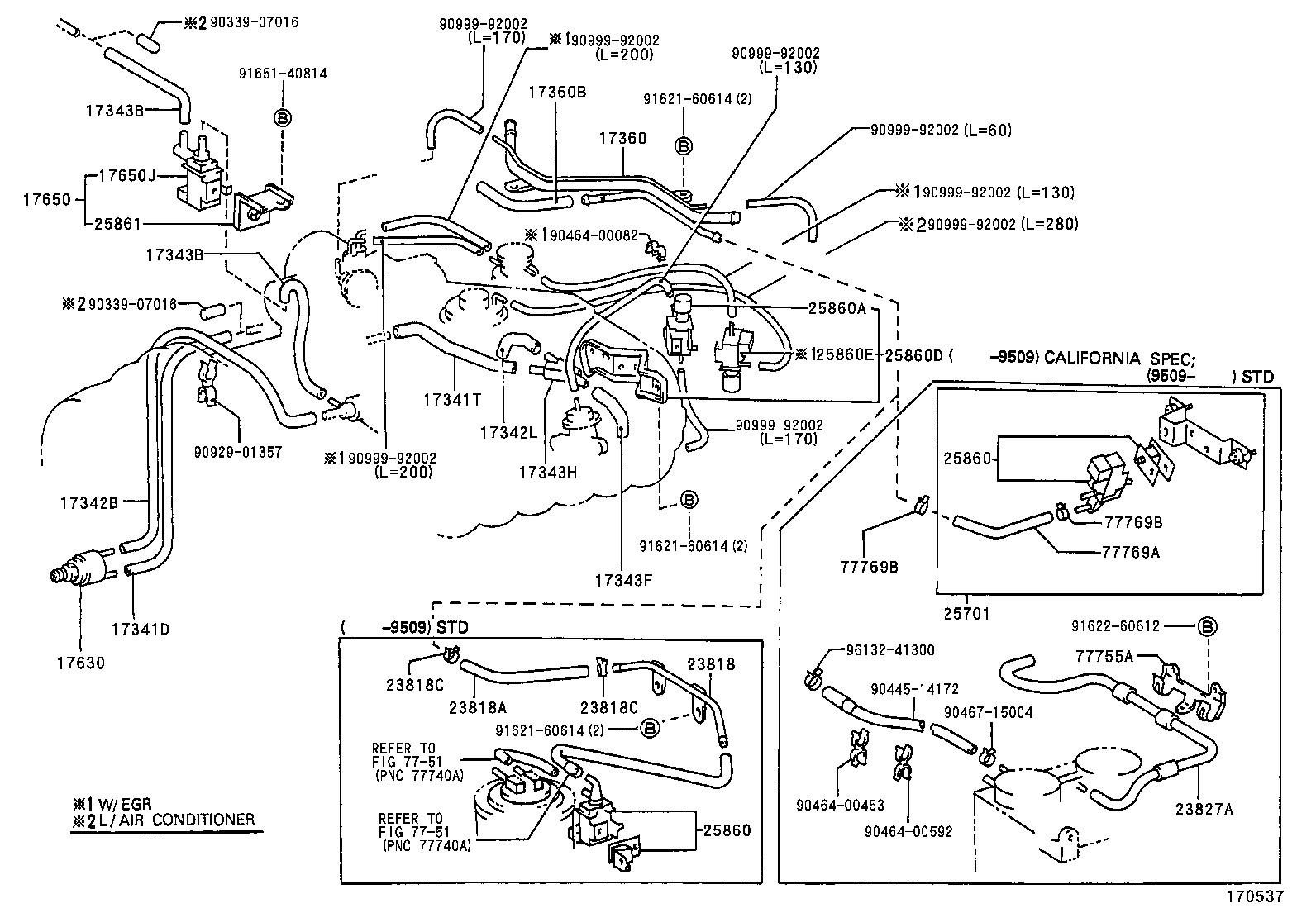

(9501-9509)5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-62050 |
5VZFE..VZN160,170 |
1 | ||
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-62060 |
5VZFE..VZN160,170 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-62070 |
5VZFE..VZN160,170 |
1 | ||
| 17342-62110 |
5VZFE..VZN160,170 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-62080 |
5VZFE..VZN160,170 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 90445-13014 |
5VZFE..VZN160,170 |
2 | ||
| 17343-62090 |
5VZFE..VZN160,170 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 90445-13014 |
5VZFE..VZN160,170 |
2 | ||
| 17343-62090 |
5VZFE..VZN160,170 |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-62080 |
5VZFE..VZN160,170 |
1 | ||
| 17343H - WAY, 3(FOR AIR HOSE) | ||||
| 90904-13015 |
5VZFE..VZN160,170 |
1 | ||
| 17360 - TUBE ASSY, AIR | ||||
| 17360-62010 |
5VZFE..VZN160,170 |
1 | ||
| 17360-62011 |
5VZFE..VZN170 |
1 | ||
| 17360B - HOSE(FOR AIR PIPE) | ||||
| 90445-12284 |
5VZFE..VZN160,170 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
5VZFE..VZN160,170 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-62050 |
5VZFE..VZN160;5VZFE..VZN170..SR5 |
1 | ||
| 25860-62050 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75160 |
5VZFE..VZN160,170 |
1 | ||
| 17650J - VALVE, SOLENOID W/ADJUST SCREW | ||||
| 90910-13001 |
5VZFE..VZN160,170 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-62010 |
5VZFE..VZN160,170 |
1 | ||
| 23818A - HOSE(FOR FUEL VAPOR FEED PIPE) | ||||
| 90445-12279 |
5VZFE..VZN160,170 |
1 | ||
| 23818C - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41100 |
5VZFE..VZN160,170 |
2 | ||
| 23818C - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-41100 |
5VZFE..VZN160,170 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-75030 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 23827-75030 |
5VZFE..VZN160,170 |
1 | ||
| 23827-62030 |
5VZFE..VZN160,170 |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-62020 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25701-62020 |
5VZFE..VZN160,170 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75100 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25860-62060 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75100 |
5VZFE..VZN160,170 NO.2 |
1 | ||
| 25860-75140 |
5VZFE..VZN170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75100 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25860-62060 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75100 |
5VZFE..VZN160,170 NO.2 |
1 | ||
| 25860-75140 |
5VZFE..VZN170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 NO.1 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12074 |
5VZFE..VZN160,170 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-62080 |
5VZFE..VZN170 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-62010 |
5VZFE..VZN160,170 |
1 | ||
| 77755A - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-35011 |
VZN160,170 |
1 | ||
| 77755-35010 |
VZN160,170 CALIFORNIA SPEC |
1 | ||
| 77769A - HOSE(FOR VAPOR GUIDE PIPE) | ||||
| 90445-12280 |
VZN160,170 |
1 | ||
| 90445-12280 |
VZN160,170 CALIFORNIA SPEC |
1 | ||
| 77769B - CLIP(FOR VAPOR GUIDE PIPE HOSE) | ||||
| 96132-41100 |
VZN160,170 CALIFORNIA SPEC |
2 | ||
| 96132-41100 |
VZN160,170 |
2 | ||
| 77769B - CLIP(FOR VAPOR GUIDE PIPE HOSE) | ||||
| 96132-41100 |
VZN160,170 CALIFORNIA SPEC |
2 | ||
| 96132-41100 |
VZN160,170 |
2 | ||
| Common parts | ||||
| 90339-07016 | ||||
| 90445-14172 | ||||
| 90464-00082 | ||||
| 90464-00453 | ||||
| 90464-00592 | ||||
| 90467-15004 | ||||
| 90929-01357 | ||||
| 90999-92002 | ||||
| 91621-60614 | ||||
| 91622-60612 | ||||
| 91651-40814 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 7751 | ||||

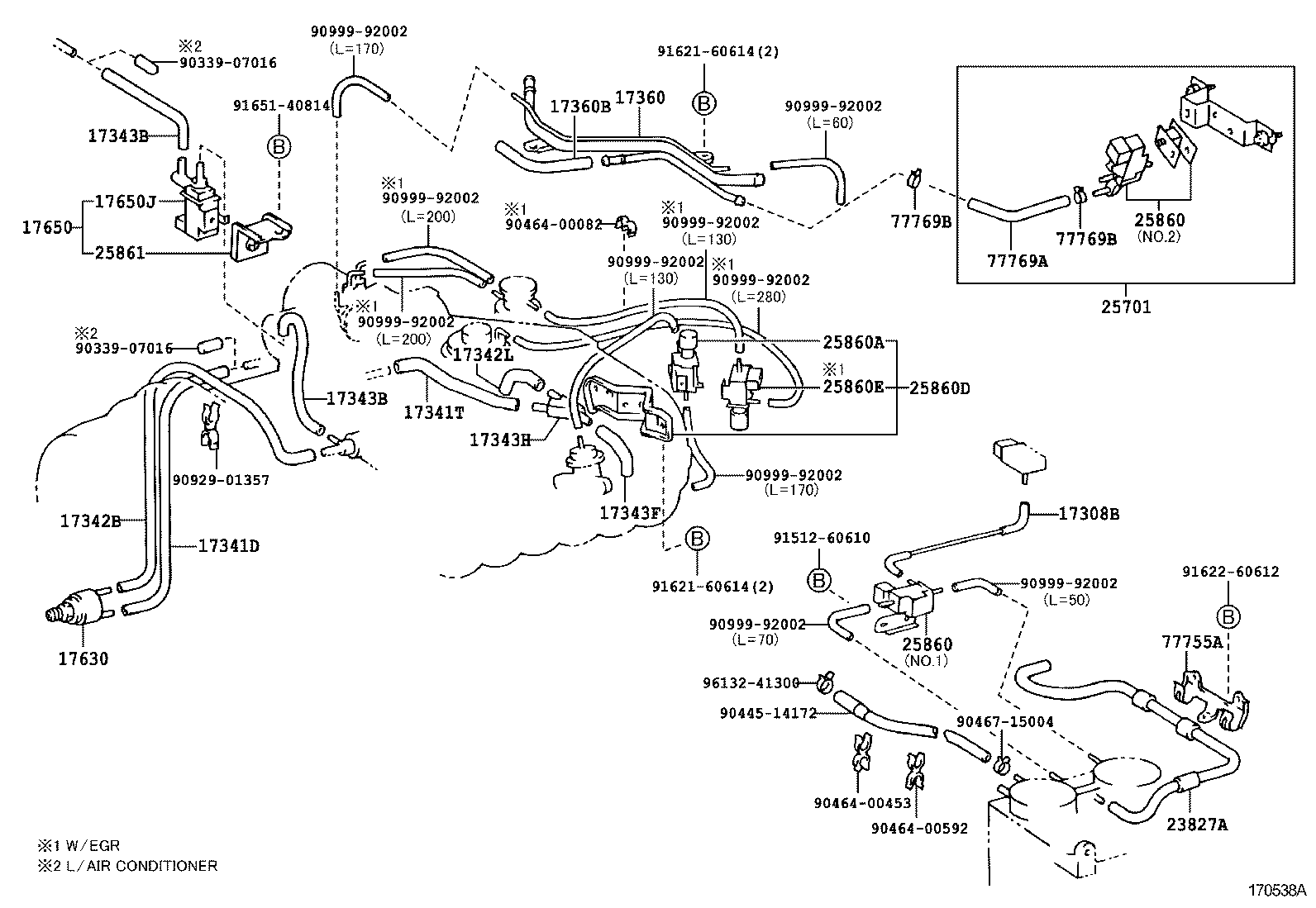

(9509-9609)5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 17308-75010 |
5VZFE..VZN160,170 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-62050 |
5VZFE..VZN160,170 |
1 | ||
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-62060 |
5VZFE..VZN160,170 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-62070 |
5VZFE..VZN160,170 |
1 | ||
| 17342-62110 |
5VZFE..VZN160,170 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-62080 |
5VZFE..VZN160,170 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 90445-13014 |
5VZFE..VZN160,170 |
2 | ||
| 17343-62090 |
5VZFE..VZN160,170 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 90445-13014 |
5VZFE..VZN160,170 |
2 | ||
| 17343-62090 |
5VZFE..VZN160,170 |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-62080 |
5VZFE..VZN160,170 |
1 | ||
| 17343H - WAY, 3(FOR AIR HOSE) | ||||
| 90904-13015 |
5VZFE..VZN160,170 |
1 | ||
| 17360 - TUBE ASSY, AIR | ||||
| 17360-62010 |
5VZFE..VZN160,170 |
1 | ||
| 17360-62011 |
5VZFE..VZN170 |
1 | ||
| 17360B - HOSE(FOR AIR PIPE) | ||||
| 90445-12284 |
5VZFE..VZN160,170 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
5VZFE..VZN160,170 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-62050 |
5VZFE..VZN160;5VZFE..VZN170..SR5 |
1 | ||
| 25860-62050 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75160 |
5VZFE..VZN160,170 |
1 | ||
| 17650J - VALVE, SOLENOID W/ADJUST SCREW | ||||
| 90910-13001 |
5VZFE..VZN160,170 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-75030 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 23827-75030 |
5VZFE..VZN160,170 |
1 | ||
| 23827-62030 |
5VZFE..VZN160,170 |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-62020 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25701-62020 |
5VZFE..VZN160,170 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75100 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25860-62060 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75100 |
5VZFE..VZN160,170 NO.2 |
1 | ||
| 25860-75140 |
5VZFE..VZN170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 NO.1 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75100 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25860-62060 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75100 |
5VZFE..VZN160,170 NO.2 |
1 | ||
| 25860-75140 |
5VZFE..VZN170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 NO.1 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12074 |
5VZFE..VZN160,170 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-62080 |
5VZFE..VZN170 |
1 | ||
| 25861 - BRACKET, VACUUM SWITCHING VALVE | ||||
| 25861-62010 |
5VZFE..VZN160,170 |
1 | ||
| 77755A - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-35011 |
VZN160,170 |
1 | ||
| 77755-35010 |
VZN160,170 CALIFORNIA SPEC |
1 | ||
| 77769A - HOSE(FOR VAPOR GUIDE PIPE) | ||||
| 90445-12280 |
VZN160,170 |
1 | ||
| 90445-12280 |
VZN160,170 CALIFORNIA SPEC |
1 | ||
| 77769B - CLIP(FOR VAPOR GUIDE PIPE HOSE) | ||||
| 96132-41100 |
VZN160,170 CALIFORNIA SPEC |
2 | ||
| 96132-41100 |
VZN160,170 |
2 | ||
| 77769B - CLIP(FOR VAPOR GUIDE PIPE HOSE) | ||||
| 96132-41100 |
VZN160,170 CALIFORNIA SPEC |
2 | ||
| 96132-41100 |
VZN160,170 |
2 | ||
| Common parts | ||||
| 90339-07016 | ||||
| 90445-14172 | ||||
| 90464-00082 | ||||
| 90464-00453 | ||||
| 90464-00592 | ||||
| 90467-15004 | ||||
| 90929-01357 | ||||
| 90999-92002 | ||||
| 91512-60610 | ||||
| 91621-60614 | ||||
| 91622-60612 | ||||
| 91651-40814 | ||||
| 96132-41300 | ||||
(9609-9706)5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-62020 |
5VZFE..VZN160,170 |
1 | ||
| 17308B - HOSE SUB-ASSY, VACUUM | ||||
| 17308-75010 |
5VZFE..VZN160,170 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-62050 |
5VZFE..VZN160,170 |
1 | ||
| 17341T - HOSE, AIR, NO.1 | ||||
| 17341-62060 |
5VZFE..VZN160,170 |
1 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-62070 |
5VZFE..VZN160,170 |
1 | ||
| 17342-62110 |
5VZFE..VZN160,170 |
1 | ||
| 17342L - HOSE, AIR, NO.2 | ||||
| 17342-62080 |
5VZFE..VZN160,170 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 90445-13014 |
5VZFE..VZN160,170 |
2 | ||
| 17343-62090 |
5VZFE..VZN160,170 |
1 | ||
| 17343F - HOSE, AIR, NO.3 | ||||
| 17343-62080 |
5VZFE..VZN160,170 |
1 | ||
| 17343H - WAY, 3(FOR AIR HOSE) | ||||
| 90904-13015 |
5VZFE..VZN160,170 |
1 | ||
| 17360 - TUBE ASSY, AIR | ||||
| 17360-62010 |
5VZFE..VZN160,170 |
1 | ||
| 17360-62011 |
5VZFE..VZN170 |
1 | ||
| 17360B - HOSE(FOR AIR PIPE) | ||||
| 90445-12284 |
5VZFE..VZN160,170 |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
5VZFE..VZN160,170 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-62050 |
5VZFE..VZN160;5VZFE..VZN170..SR5 |
1 | ||
| 25860-62050 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75160 |
5VZFE..VZN160,170 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-75030 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 23827-75030 |
5VZFE..VZN160,170 |
1 | ||
| 23827-62030 |
5VZFE..VZN160,170 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
5VZFE..VZN160,170 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-75130 |
5VZFE..VZN160,170 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-75100 |
5VZFE..VZN160,170 CALIFORNIA SPEC |
1 | ||
| 25860-62060 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75100 |
5VZFE..VZN160,170 NO.2 |
1 | ||
| 25860-75140 |
5VZFE..VZN170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 |
1 | ||
| 25860-75140 |
5VZFE..VZN160,170 NO.1 |
1 | ||
| 25860D - VALVE ASSY, VACUUM SWITCHING, NO.2 | ||||
| 25860-62080 |
5VZFE..VZN170 |
1 | ||
| Common parts | ||||
| 90445-14172 | ||||
| 90464-00082 | ||||
| 90464-00483 | ||||
| 90467-15004 | ||||
| 90929-01357 | ||||
| 90929-01362 | ||||
| 90999-92002 | ||||
| 91511-B0610 | ||||
| 91621-60614 | ||||
| 91621-J0814 | ||||
| 96132-41300 | ||||
| Linked diagrams | ||||
| 7751 | ||||
