VZN170L-CRMDKAB (1995)
Toyota Tacoma
Production
Jan 1995
-
Sep 2004
Engine
5VZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9501- )

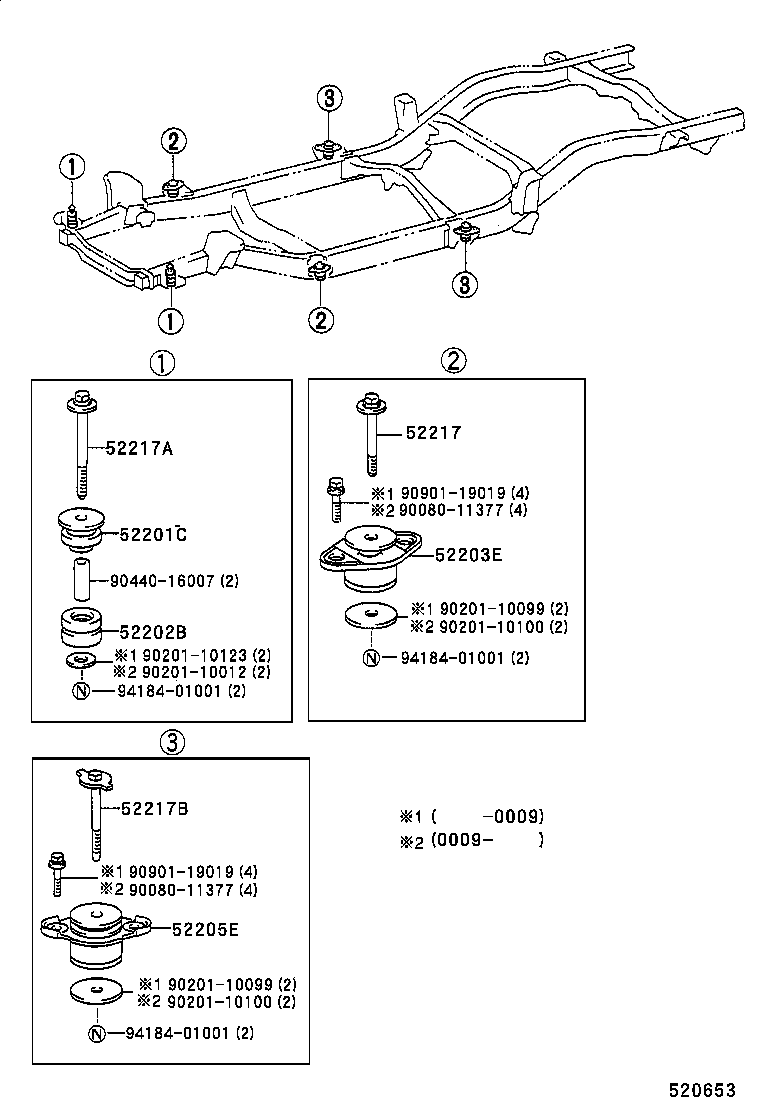

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER | ||||
| 52201-04010 |
RZN161,171,VZN170 |
2 | ||
| 52201-35080 |
RZN161,171,VZN160,170 |
2 | ||
| 52201-04010 |
RZN161,171,VZN170 |
2 | ||
| 52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER | ||||
| 52202-04010 |
RZN161,171,VZN170 |
2 | ||
| 52202-35070 |
RZN161,171,VZN160,170 |
2 | ||
| 52202-04010 |
RZN161,171,VZN170 |
2 | ||
| 52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 | ||||
| 52203-35190 |
RZN171,VZN170 |
2 | ||
| 52203-04020 |
RZN171,VZN170 |
2 | ||
| 52203-04060 |
RZN171,VZN170..XTR |
2 | ||
| 52205E - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 52205-35110 |
RZN171,VZN170 |
2 | ||
| 52205-35140 |
RZN171,VZN170 |
2 | ||
| 52205-35140 |
RZN171,VZN170 (J) |
2 | ||
| 52205-04040 |
RZN171,VZN170..XTR |
2 | ||
| 52205-04040 |
RZN171,VZN170 (L) |
2 | ||
| 52217 - BOLT, BODY MOUNTING | ||||
| 52217-35020 |
RZN161,171,VZN160,170 |
2 | ||
| 52217-04010 |
RZN161,171,VZN170 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-35010 |
RZN161,171,VZN160,170 |
2 | ||
| 52217-04010 |
RZN161,171,VZN170 |
2 | ||
| 52217B - BOLT, BODY MOUNTING | ||||
| 90109-10124 |
RZN161,171,VZN160,170 |
2 | ||
| 52217-04020 |
RZN161,171,VZN170..RCB,XTR |
2 | ||
| Common parts | ||||
| 90080-11377 | ||||
| 90201-10012 | ||||
| 90201-10099 | ||||
| 90201-10100 | ||||
| 90201-10123 | ||||
| 90440-16007 | ||||
| 90901-19019 | ||||
| 94184-01001 | ||||
