VZN160L-TRMDKAB (1995)
Toyota Tacoma

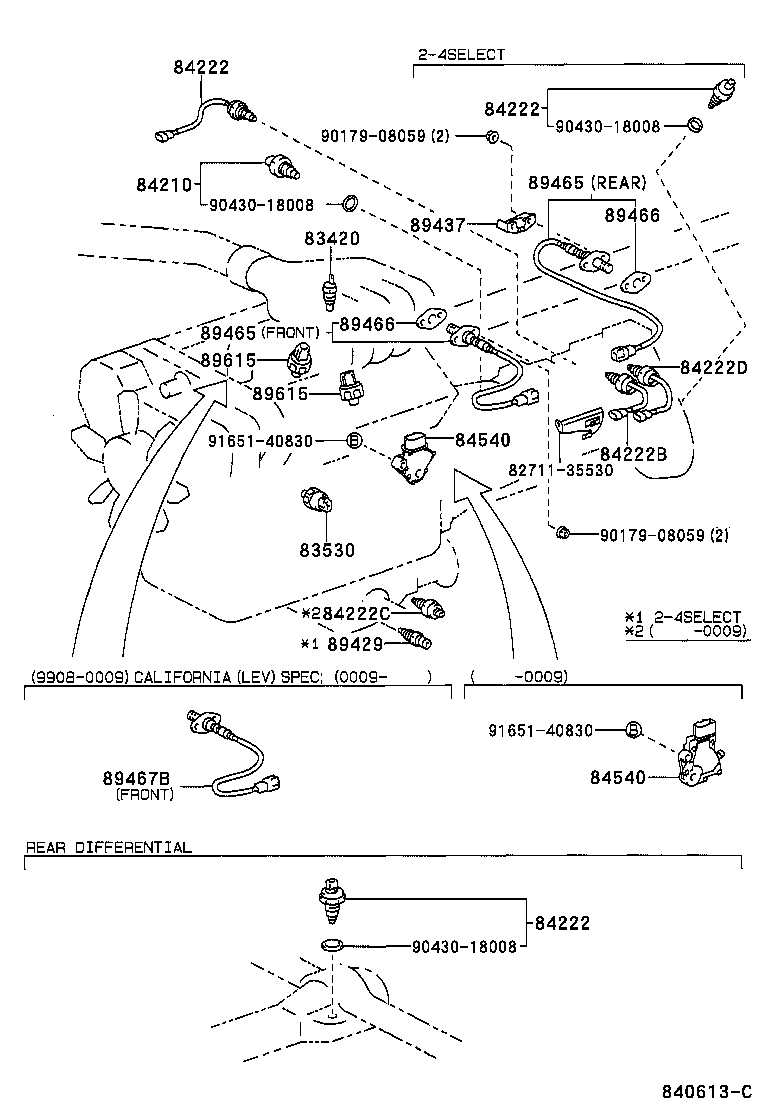

ILLUST NO. 1 OF 6(9501-0409)VZN160,170
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
VZN160,170 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
RZN161,171,VZN160,170 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
RZN161,171,VZN160,170..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
RZN161,VZN160..5F W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 84222-35100 |
RZN161,171,VZN160,170 |
1 | ||
| 84222-12010 |
RZN161,VZN160..5F OFF ROAD PACKAGE |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
RZN161,VZN160..5F W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 84222-35100 |
RZN161,171,VZN160,170 |
1 | ||
| 84222-12010 |
RZN161,VZN160..5F OFF ROAD PACKAGE |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
RZN161,VZN160..5F W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 84222-35100 |
RZN161,171,VZN160,170 |
1 | ||
| 84222-12010 |
RZN161,VZN160..5F OFF ROAD PACKAGE |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35080 |
RZN161,VZN160;VZN170..R..SR5;RZN171,VZN170..4FC |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-35070 |
RZN161,171,VZN160,170 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39895 |
VZN160,170..R FRONT |
1 | ||
| 89465-39855 |
VZN160,170..R REAR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39895 |
VZN160,170..R FRONT |
1 | ||
| 89465-39855 |
VZN160,170..R REAR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
RZN161,171,VZN160,170 |
2 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
RZN161,171,VZN160,170 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
VZN160,170 MATSUSHITA |
2 | ||
| 89615-12050 |
VZN160,170 NIPPONDENSO |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
VZN160,170 MATSUSHITA |
2 | ||
| 89615-12050 |
VZN160,170 NIPPONDENSO |
2 | ||
| Common parts | ||||
| 82711-35530 | ||||
| 90179-08059 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||

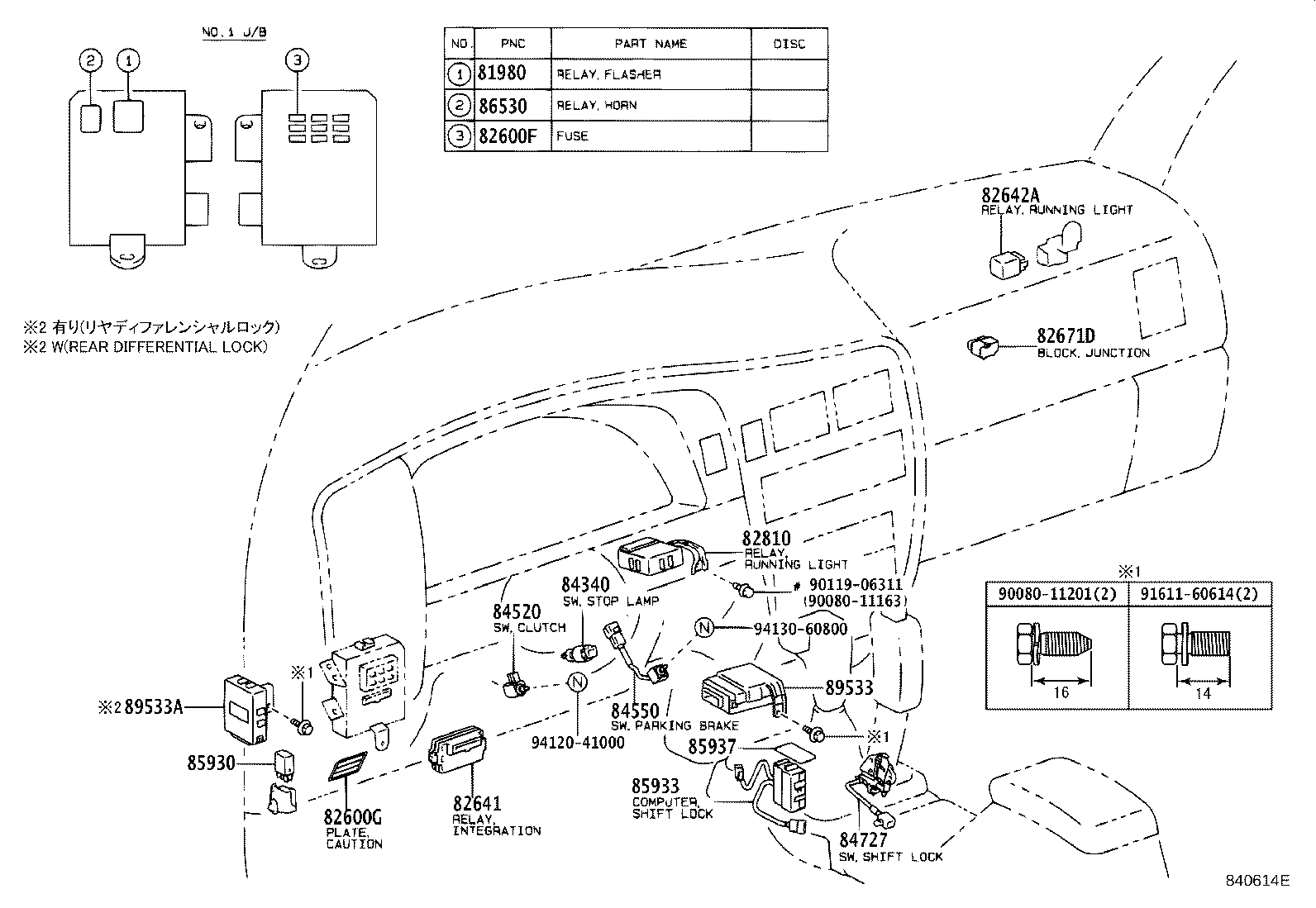

ILLUST NO. 4 OF 6(9501-0009)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02010 |
RZN161,171,VZN160,170 TRIDON |
1 | ||
| 81980-12070 |
RZN161,171,VZN160,170 DENSO |
1 | ||
| 81980-AC020 |
RZN161,171,VZN160,170 TRIDON |
1 | ||
| 81980-AC010 |
RZN161,171,VZN160,170 |
1 | ||
| 81980-AC010 |
RZN161,171,VZN160,170 TRIDON |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
RZN161,171,VZN160,170 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
RZN161,171,VZN160,170 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
RZN161,171,VZN160,170 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
RZN161,171,VZN160,170 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-35040 |
RZN161,171,VZN160,170 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-35130 |
RZN161,171,VZN160,170 |
1 | ||
| 82671D - BLOCK, JUNCTION | ||||
| 82671-30370 |
VZN160;VZN170..4FC |
2 | ||
| 82671-30360 |
VZN160 OFF ROAD PACKAGE & W(*ADD),NO.6 J/B |
1 | ||
| 82671-30370 |
VZN160 OFF ROAD PACKAGE & W(*ADD),NO.7 J/B |
1 | ||
| 82671-30370 |
VZN160,170..R..DLX W(*66 & *PW) OR W(*66 & *CRC) OR W(*PW) OR W(*CRC) OR W(*ADD & *PW) OR W(*ADD & *CRC) |
2 | ||
| 82671-30370 |
VZN160,170..R..DLX W(*66) OR W(*ADD) |
1 | ||
| 82671-30370 |
VZN160 W(REAR DIFFERENTIAL LOCK & *ADD),NO.7 J/B |
1 | ||
| 82671-30360 |
VZN160 W(REAR DIFFERENTIAL LOCK & *ADD),NO.6 J/B |
1 | ||
| 82671-30360 |
VZN160,170..DLX W(REAR DIFFERENTIAL LOCK & *ADD),NO.6 J/B |
1 | ||
| 82671-30370 |
VZN160,170..R;RZN161,171..4FC |
1 | ||
| 82671-30370 |
VZN160,170..R;RZN161,171..4FC W(*66) OR W(*PW) OR W(*CRC) |
2 | ||
| 82671-30370 |
VZN160,170..R..DLX W(REAR DIFFERENTIAL LOCK & *ADD),NO.7 J/B |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32070 |
RZN161,171,VZN160,170 W(CRUISE CONTROL) |
1 | ||
| 84340-32050 |
RZN161,171,VZN160,170 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-24010 |
RZN161,171,VZN160,170..5F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-34010 |
RZN161,171,VZN160,170 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
RZN161,171,VZN160,170 |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-35060 |
RZN161,VZN160..5F OFF ROAD PACKAGE |
1 | ||
| Common parts | ||||
| 90080-11163 | ||||
| 90080-11201 | ||||
| 90119-06311 | ||||
| 91611-60614 | ||||
| 94120-41000 | ||||
| 94130-60800 | ||||

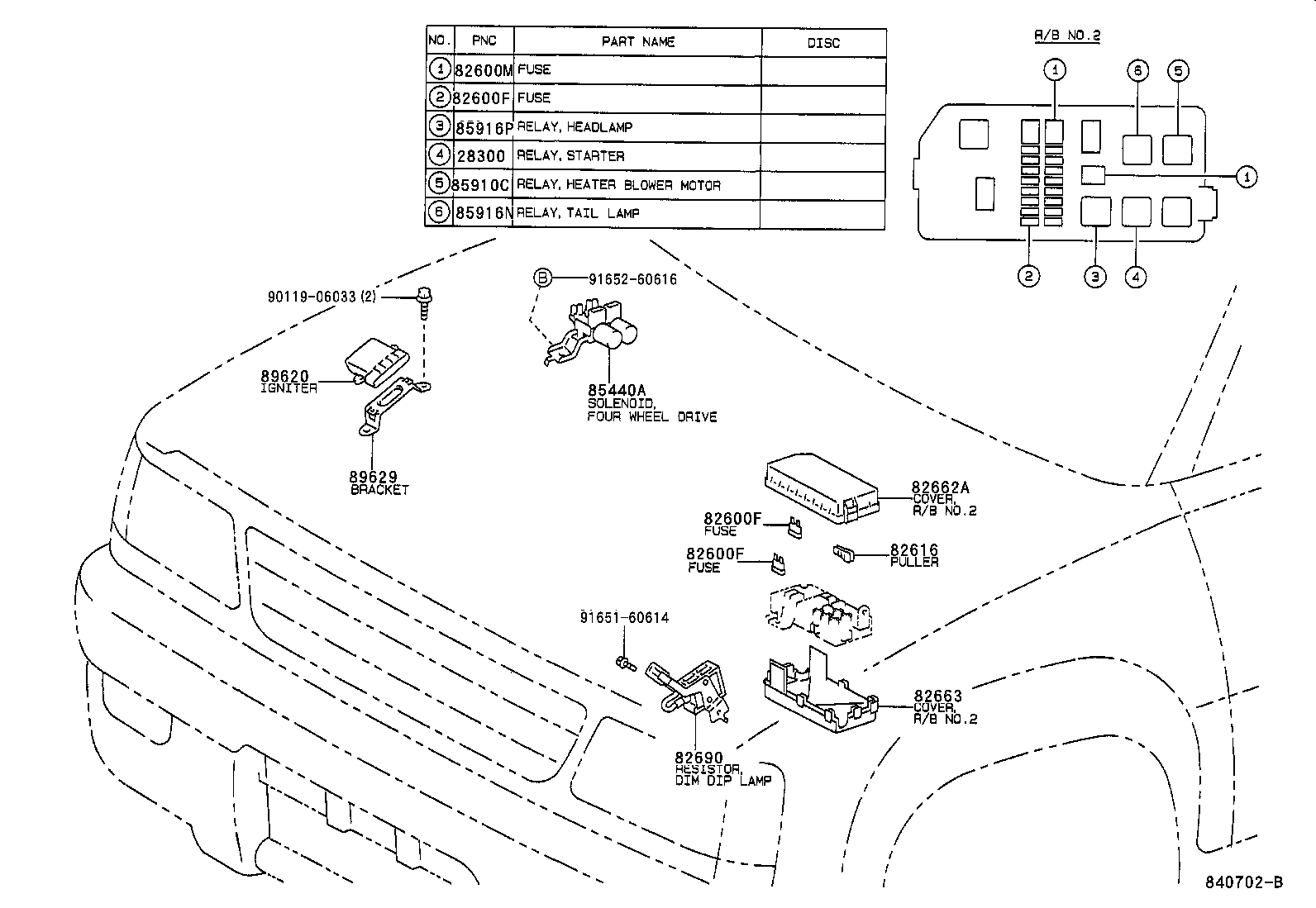

ILLUST NO. 2 OF 6(9501-9706)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
3RZFE,5VZFE..RZN161,171,VZN160,170 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
RZN161,171,VZN160,170 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
RZN161,171,VZN160,170 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
RZN161,171,VZN160,170 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
RZN161,171,VZN160,170 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
RZN161,171,VZN160,170 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
RZN161,171,VZN160,170 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
RZN161,171,VZN160,170 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
RZN161,171,VZN160,170 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90080-82023 |
RZN161,171,VZN160,170 20A,MINI FUSE,YELLOW |
1 | ||
| 90080-82022 |
RZN161,171,VZN160,170 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82021 |
RZN161,171,VZN160,170 10A,MINI FUSE,RED |
1 | ||
| 90080-82020 |
RZN161,171,VZN160,170 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600M - FUSE, MEDIUM CURRENT | ||||
| 90982-10001 |
RZN161,171,VZN160,170 30A,PINK |
1 | ||
| 90982-10002 |
RZN161,171,VZN160,170 40A,GREEN |
2 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
RZN161,171,VZN160,170 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-35350 |
RZN161,171,VZN160,170 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35040 |
RZN161,171,VZN160,170 |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-35040 |
RZN161,171,VZN160,170 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RZN161,171,VZN160,170 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90084-98009 |
RZN161,171,VZN160,170 |
1 | ||
| 90987-02009 |
RZN161,171,VZN160,170 MARUKO |
1 | ||
| 90084-98009 |
RZN161,171,VZN160,170 MATSUSHITA |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
RZN161,171,VZN160,170 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-35011 |
VZN160,170 |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-35030 |
VZN160,170 |
1 | ||
| Common parts | ||||
| 90119-06033 | ||||
| 91651-60614 | ||||
| 91652-60616 | ||||
ILLUST NO. 6 OF 6(9501-0409)RCB,XTR
DOOR & FLOOR SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80308 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-04010 |
RZN161,171,VZN160,170 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-04010 |
RZN161,171,VZN160,170 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-35010 |
RZN161,171,VZN160,170 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-35010 |
RZN161,171,VZN160,170 |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-30040 |
RZN161,171,VZN160,170 RH |
1 | ||
| 84931-30050 |
RZN161,171,VZN160,170 LH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-30040 |
RZN161,171,VZN160,170 RH |
1 | ||
| 84931-30050 |
RZN161,171,VZN160,170 LH |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-35050 |
RZN161,171,VZN160,170 |
1 | ||
| Common parts | ||||
| 91611-60614 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||

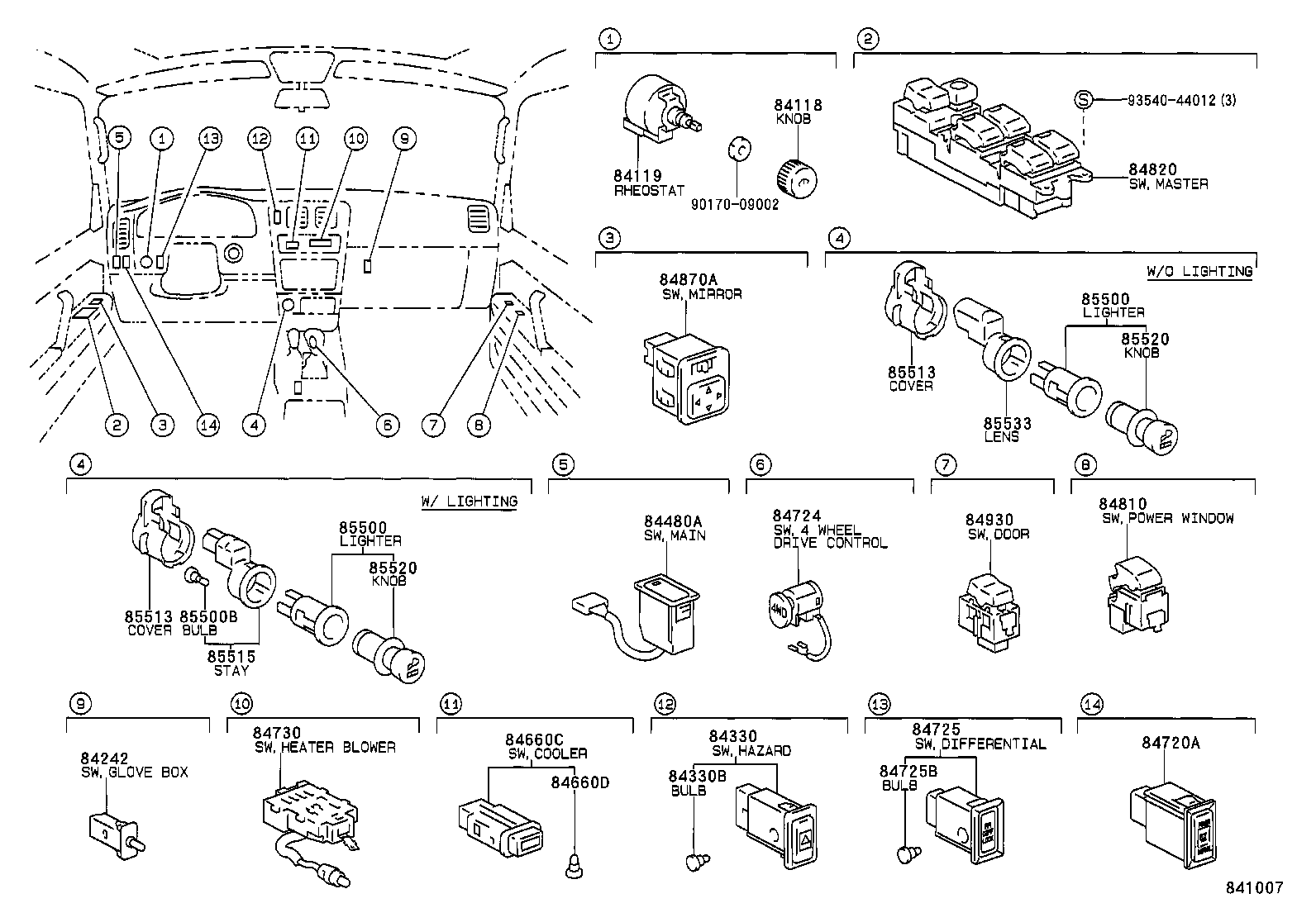

ILLUST NO. 3 OF 6(9501-9706)
INSTRUMENT PANEL SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-04010 |
RZN161,171,VZN160,170..5F..DLX W(TACHOMETER) |
1 | ||
| 84119-35020 |
RZN161,171,VZN160,170..5F..DLX |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-04020 |
RZN161,171,VZN160,170 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-04010 |
RZN161,171,VZN160,170 14V 0.84W |
1 | ||
| 84480A - SWITCH ASSY, CLUTCH START CANCEL | ||||
| 84480-35020 |
RZN161,171,VZN160,170..5F |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-35010 |
RZN161,171,VZN160,170 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
RZN161,171,VZN160,170 14V 0.065A |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-35010 |
RZN161,VZN160..5F |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 84999-10320 |
RZN161,VZN160..5F 14V 0.84W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-89113 |
RZN161,171,VZN160,170 |
1 | ||
| 84732-35030 |
RZN161,171,VZN160,170 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
RZN161,171,VZN160,170 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-89105 |
RZN161,171,VZN160,170 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-12120 |
RZN161,171,VZN160,170 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
RZN161,171,VZN160,170 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
RZN161,171,VZN160,170 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
RZN161,171,VZN160,170 |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
RZN161,171,VZN160,170 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
RZN161,171,VZN160,170 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
RZN161,171,VZN160,170 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
RZN161,171,VZN160,170..DLX |
1 | ||
| Common parts | ||||
| 90170-09002 | ||||
| 93540-44012 | ||||

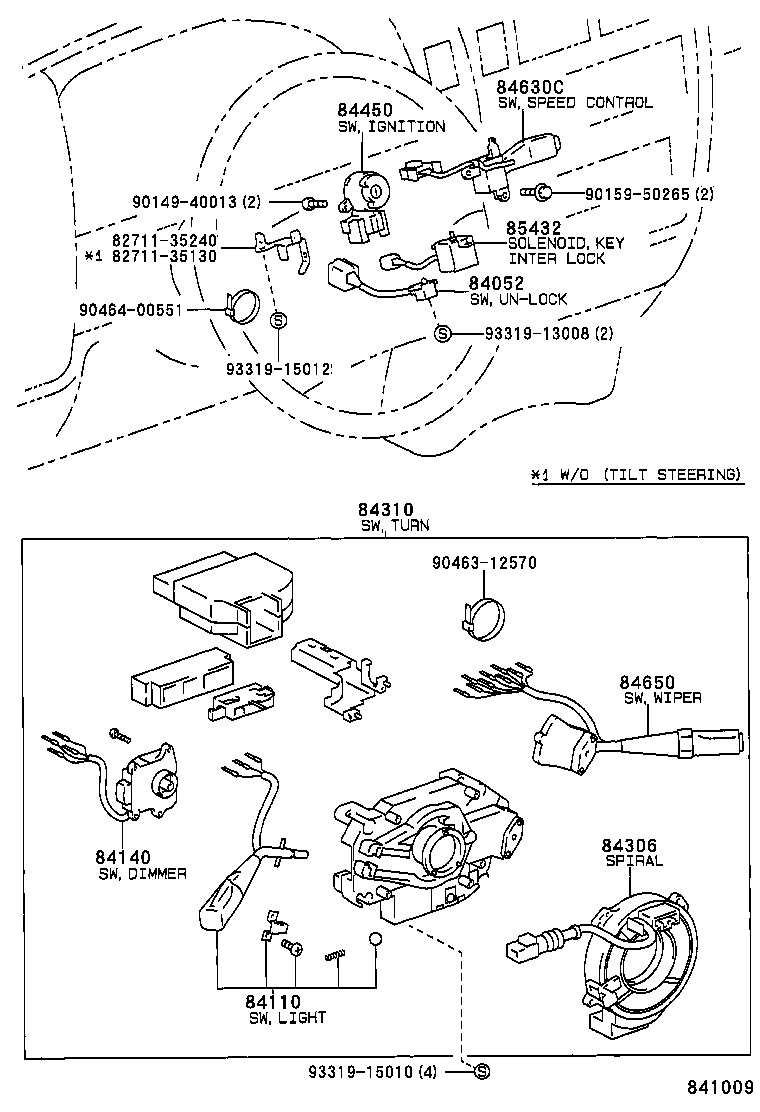

ILLUST NO. 5 OF 6(9501-9706)
COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-20030 |
RZN161,171,VZN160,170..5F |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-09080 |
RZN161,171,VZN160,170 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-04030 |
RZN161,171,VZN160,170 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 84306-04030 |
RZN161,171,VZN160,170..DLX W(TILT STEERING & *CRC) |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 84310-04060 |
RZN161,171,VZN160,170..DLX W(TILT STEERING) |
1 | ||
| 84310-04080 |
RZN161,171,VZN160,170..DLX W(TILT STEERING & *CRC) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-41010 |
RZN161,171,VZN160,170 |
1 | ||
| 84630C - SWITCH ASSY, SPEED CONTROL MAIN | ||||
| 84630-35060 |
RZN161,171,VZN160,170 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-04040 |
RZN161,171,VZN160,170..DLX |
1 | ||
| 84652-04060 |
RZN161,171,VZN160,170..DLX W(TILT STEERING) |
1 | ||
| Common parts | ||||
| 82711-35130 | ||||
| 82711-35240 | ||||
| 90149-40013 | ||||
| 90159-50265 | ||||
| 90463-12570 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-15010 | ||||
| 93319-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
