VZN160L-TRMDKAB (1995)
Toyota Tacoma
ILLUST NO. 2 OF 3(9501-0009)DLX ; (0009- )RZN161 ; (0009- )RZN171..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-04010E0 |
RZN161,171,VZN160,170 MD.OAK,TRIM4# |
1 | ||
| 71811-04010B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-04010E0 |
RZN161,VZN160 MD.OAK,TRIM4# |
1 | ||
| 71812-04010B0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71812-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-04010B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-04010E0 |
RZN161,171,VZN160,170 MD.OAK,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-04010E0 |
RZN161,VZN160 MD.OAK,TRIM4# |
1 | ||
| 71862-04010B0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71862-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-04010B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 71867-04010E0 |
RZN161,171,VZN160,170 MD.OAK,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71868-04010B0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71868-04010E0 |
RZN161,VZN160 MD.OAK,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-04010E0 |
RZN161,171,VZN160,170 MD.OAK,TRIM4# |
1 | ||
| 71875-04010B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71876-04010E0 |
RZN161,VZN160 MD.OAK,TRIM4# |
1 | ||
| 71876-04010B0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-04010 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-04010 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-04010 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-04010 |
RZN161,VZN160 |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-04010 |
RZN161,VZN160 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-04010 |
RZN161,VZN160 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-04020E0 |
RZN161,171,VZN160,170 OAK,TRIM4# |
1 | ||
| 72137-04020B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72137-04020B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 72137-04020E0 |
RZN161,171,VZN160,170 OAK,TRIM4# |
1 | ||
| 72210 - CABLE ASSY, SEAT TRACK CONTROL | ||||
| 72210-35010 |
RZN161,VZN160 |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-04010 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 72501C - PIPE SUB-ASSY, RECLINING CONNECTING | ||||
| 72501-04010 |
RZN161,171,VZN160,170 |
1 | ||
| 72501E - PIPE SUB-ASSY, RECLINING CONNECTING, LH | ||||
| 72501-04010 |
RZN161,VZN160 |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-04040E0 |
RZN161,171,VZN160,170 MD.OAK,TRIM4# |
1 | ||
| 72525-04040B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-04010E0 |
RZN161,171,VZN160,170 MD.OAK,TRIM4# |
1 | ||
| 72526-04010B0 |
RZN161,171,VZN160,170 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-11104 | ||||
| 90080-15064 | ||||
| 90080-16042 | ||||
| 90080-17130 | ||||
| 90080-46136 | ||||
| 90084-10011 | ||||
| 90119-10381 | ||||
| 90119-10914 | ||||
| 90468-05076 | ||||
| 91655-61045 | ||||
| 91665-61045 | ||||
ILLUST NO. 1 OF 3(9501- )RZN161,VZN160
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071B - COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71071-04050B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71071-04050E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71073B - COVER, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71073-04060E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71073-04060B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-04030 |
RZN161,VZN160 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 71311-04020 |
RZN161,VZN160 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 71311 - PIN, FRONT SEAT HINGE | ||||
| 71311-04030 |
RZN161,VZN160 TYPE B:REFER TO ILLUSTRATION |
2 | ||
| 71311-04020 |
RZN161,VZN160 TYPE A:REFER TO ILLUSTRATION |
2 | ||
| 71410B - CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71410-04080B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71410-04080E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71430B - BACK ASSY, FRONT SEAT(FOR BENCH TYPE) | ||||
| 71430-04140E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71430-04140B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71511B - PAD, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71511-04070 |
RZN161,VZN160 |
1 | ||
| 71551B - PAD, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71551-04040 |
RZN161,VZN160 |
1 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-04050 |
RZN161,VZN160 |
2 | ||
| 71561B - PAD, FRONT SEAT BACK, UPPER | ||||
| 71561-04050 |
RZN161,VZN160 |
2 | ||
| 71610B - SPRING ASSY, FRONT SEAT CUSHION(FOR BENCH TYPE) | ||||
| 71610-04020 |
RZN161,VZN160 |
1 | ||
| 71630B - SPRING ASSY, FRONT SEAT BACK(FOR BENCH TYPE) | ||||
| 71630-04010 |
RZN161,VZN160 |
1 | ||
| 71739 - CUSHION, SEAT SUPPORT | ||||
| 71739-04030 |
RZN161,VZN160 |
2 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-04010E1 |
RZN161,VZN160 MD.OAK,TRIM4# |
1 | ||
| 71831-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-04010E1 |
RZN161,VZN160 MD.OAK,TRIM4# |
1 | ||
| 71832-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 71318-04010 | ||||
| 71389-04010 | ||||
| 71389-04020 | ||||
| 90080-16073 | ||||
| 90080-46007 | ||||
| 90082-35008 | ||||
| 90468-18071 | ||||
| 93560-15025 | ||||

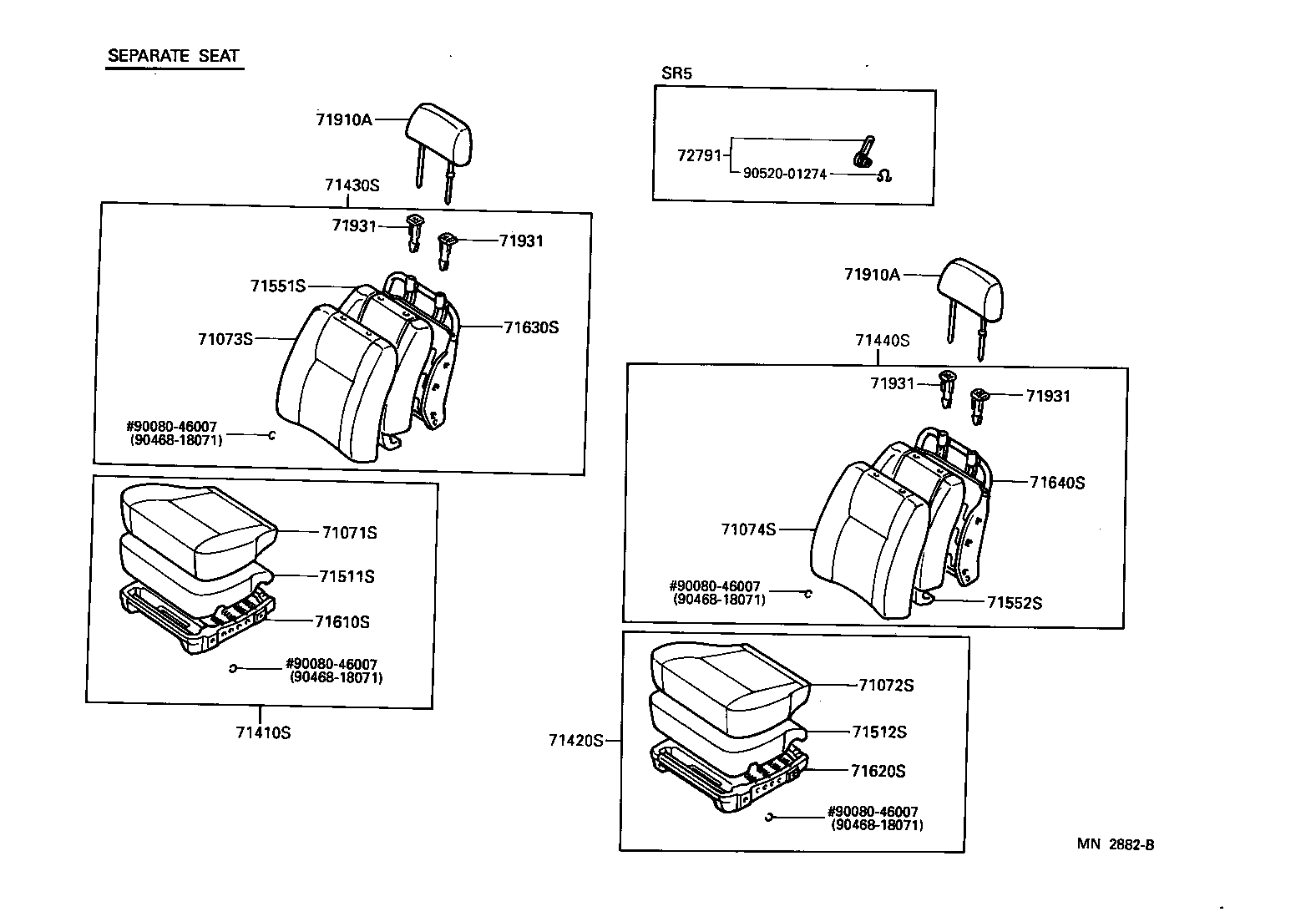

ILLUST NO. 1 OF 3(9501-0009)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-04060B0 |
RZN161,VZN160 W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71071-04060E0 |
RZN161,VZN160 W(SEPARATE SEAT),OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71072-04010E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-04100E0 |
RZN161,171,VZN160,170..DLX OAK,TRIM4# |
1 | ||
| 71073-04100B0 |
RZN161,171,VZN160,170..DLX BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-04010B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71074-04010E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71074-04010E0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),OAK,TRIM4# |
1 | ||
| 71074-04010B0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-04090B0 |
RZN161,VZN160 BLUISH GRAY,TRIM1# |
1 | ||
| 71410-04090E0 |
RZN161,VZN160 OAK,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-04010B0 |
RZN161,VZN160 W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71420-04010E0 |
RZN161,VZN160 W(SEPARATE SEAT),OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-04160B1 |
RZN161,171,VZN160,170..DLX BLUISH GRAY,TRIM1# |
1 | ||
| 71430-04160E1 |
RZN161,171,VZN160,170..DLX OAK,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-04030E0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),OAK,TRIM4# |
1 | ||
| 71440-04030B0 |
RZN161,171,VZN160,170..DLX W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-04080 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-04080 |
RZN161,VZN160 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-04060 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-04060 |
RZN161,VZN160 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-04050 |
RZN161,171,VZN160,170 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71610-04050 |
RZN161,VZN160 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-04040 |
RZN161,VZN160 W(SEPARATE SEAT) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-04040 |
RZN161,VZN160 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04030B1 |
RZN161,VZN160 W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-04030E1 |
RZN161,VZN160 W(SEPARATE SEAT),MEDIUM OAK,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-04030B1 |
RZN161,VZN160 W(SEPARATE SEAT),BLUISH GRAY,TRIM1# |
2 | ||
| 71910-04030E1 |
RZN161,VZN160 W(SEPARATE SEAT),MEDIUM OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010E3 |
RZN161,171,VZN160,170 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-02010B2 |
RZN161,171,VZN160,170 W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010B2 |
RZN161,171,VZN160,170 W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010E3 |
RZN161,171,VZN160,170 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010E3 |
RZN161,171,VZN160,170 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-02010B2 |
RZN161,171,VZN160,170 W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010B2 |
RZN161,171,VZN160,170 W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010E3 |
RZN161,171,VZN160,170 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010E3 |
RZN161,171,VZN160,170 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-02010B2 |
RZN161,171,VZN160,170 W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010B2 |
RZN161,171,VZN160,170 W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010E3 |
RZN161,171,VZN160,170 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02010E3 |
RZN161,171,VZN160,170 W(LOCK),MD.OAK,TRIM4# |
2 | ||
| 71930-02010B2 |
RZN161,171,VZN160,170 W(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010B2 |
RZN161,171,VZN160,170 W/O(LOCK),LT.BLUISH GRAY,TRIM1# |
2 | ||
| 71931-02010E3 |
RZN161,171,VZN160,170 W/O(LOCK),MD.OAK,TRIM4# |
2 | ||
| Common parts | ||||
| 90080-46007 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
