VZN160L-TRMDKAB (1995)
Toyota Tacoma
Production
Jan 1995
-
Jun 1997
Engine
5VZFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9501-0409)5F

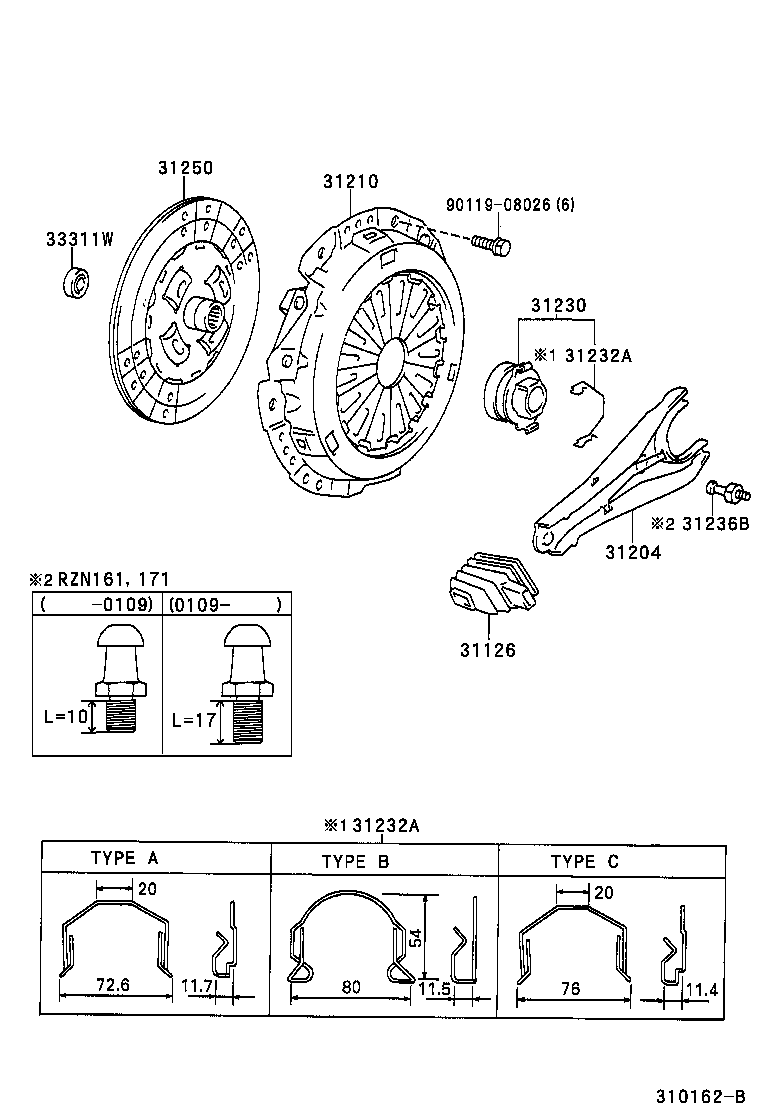

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31126 - BOOT, CLUTCH RELEASE FORK | ||||
| 31126-34010 |
VZN160,170..R |
1 | ||
| 31204 - FORK SUB-ASSY, CLUTCH RELEASE | ||||
| 31204-35031 |
VZN160,170..R |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-35210 |
VZN160,170..R |
1 | ||
| 31230 - BEARING ASSY, CLUTCH RELEASE | ||||
| 31230-35110 |
VZN160,170..R |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35020 |
RZN161,171,VZN160,170..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31232-35030 |
VZN160,170..R TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31232A - CLIP, RELEASE BEARING HUB | ||||
| 31232-35020 |
RZN161,171,VZN160,170..5F TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 31232-35030 |
VZN160,170..R TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 31236B - SUPPORT, RELEASE FORK | ||||
| 31236-35030 |
VZN160,170..R |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-35350 |
VZN160,170..R |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12002 |
RZN161,171,VZN160,170..5F |
1 | ||
| Common parts | ||||
| 90119-08026 | ||||
