VZN150L-CRSDKAB (1995)
Toyota Tacoma

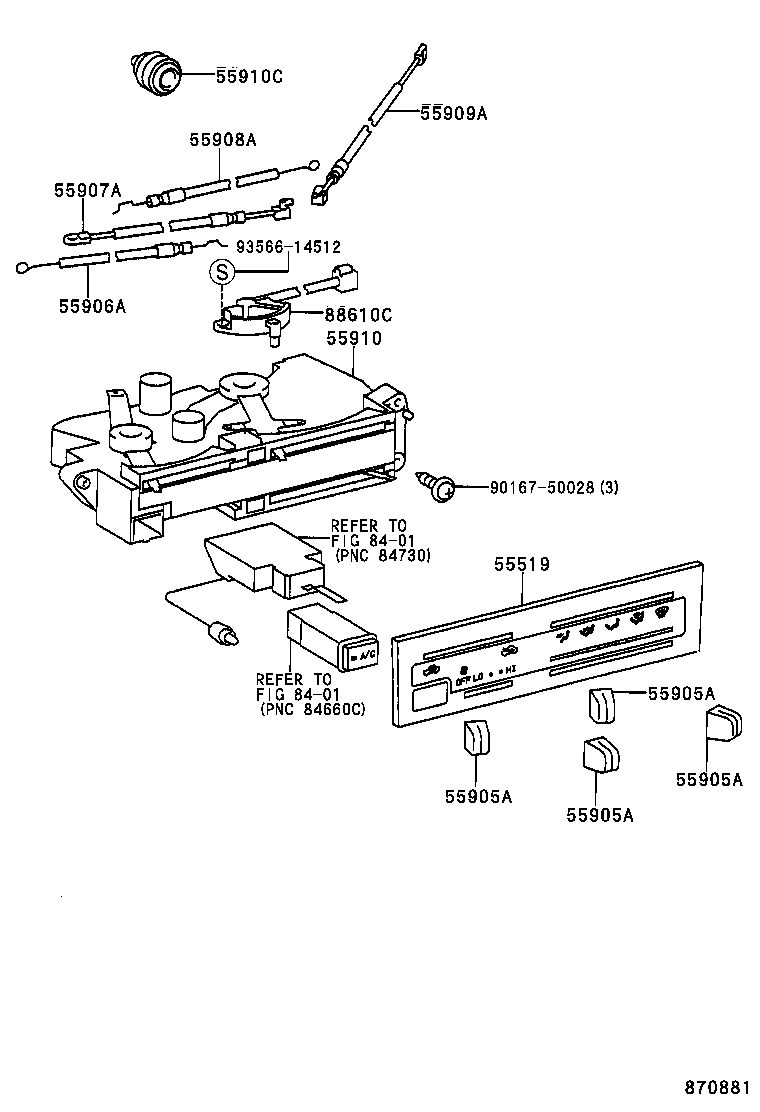

ILLUST NO. 1 OF 2(9501-9706)
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-35120 |
RZN140,150,19#,VZN150,195 W(AIR CONDITIONER) |
1 | ||
| 55519-35141 |
RZN140,150,19#,VZN150 |
1 | ||
| 55519-35070 |
RZN140,150,VZN150 |
1 | ||
| 55519-35140 |
RZN140,150,19#,VZN150 |
1 | ||
| 55519-35121 |
RZN140,150,19#,VZN150,195 W(AIR CONDITIONER) |
1 | ||
| 55519-35050 |
RZN140,150,VZN150 W(AIR CONDITIONER) |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
RZN140,150,VZN150 |
4 | ||
| 55905-89115 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
RZN140,150,VZN150 |
4 | ||
| 55905-89115 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
RZN140,150,VZN150 |
4 | ||
| 55905-89115 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
RZN140,150,VZN150 |
4 | ||
| 55905-89115 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-35030 |
RZN140,150,VZN150 |
1 | ||
| 55906-35071 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-35020 |
RZN140,150,VZN150 |
1 | ||
| 55908-35060 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-35040 |
RZN140,150,VZN150 |
1 | ||
| 55909-35090 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-35121 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55910-35120 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55910-35090 |
RZN140,150,VZN150 |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-13024 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-35010 |
RZN140,150,VZN150 |
1 | ||
| Common parts | ||||
| 90167-50028 | ||||
| 93566-14512 | ||||
| Linked diagrams | ||||
| 8401 | ||||

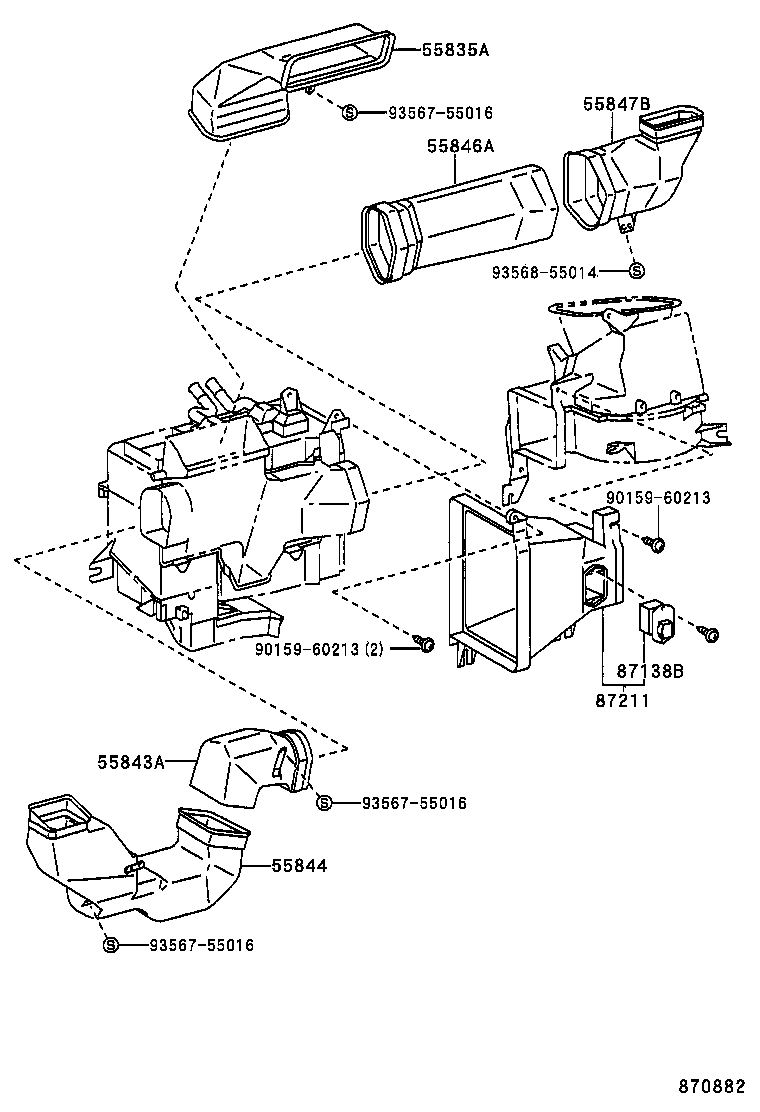

ILLUST NO. 2 OF 2(9501- )RCB,XTR
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-04040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55835-04030 |
RZN140,150,VZN150 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-04040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-04060 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55846A - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-04040 |
RZN140,150,19#,VZN150,195 W(AIR CONDITIONER) |
1 | ||
| 55846-04030 |
RZN140,150,19#,VZN150 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-04061 |
RZN140,150,19#,VZN150 |
1 | ||
| 87211-04060 |
RZN140,150,VZN150 |
1 | ||
| Common parts | ||||
| 90159-60213 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||

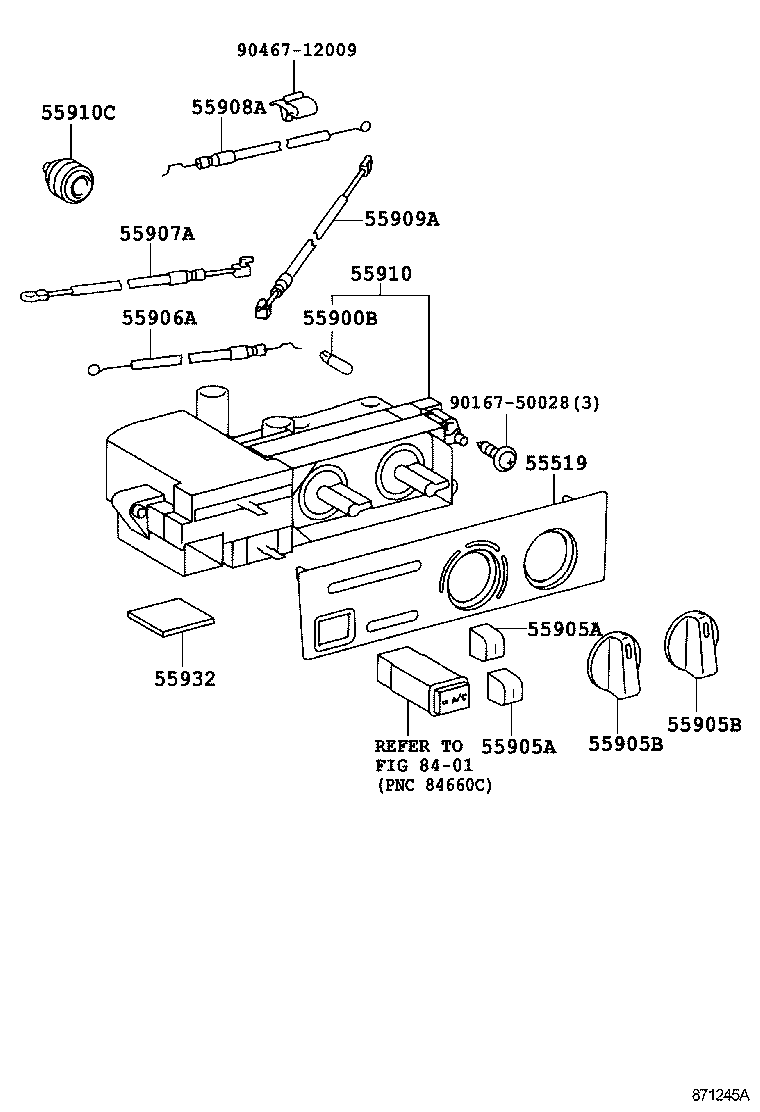

ILLUST NO. 1 OF 2(9706-0009)
CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-35120 |
RZN140,150,19#,VZN150,195 W(AIR CONDITIONER) |
1 | ||
| 55519-35141 |
RZN140,150,19#,VZN150 |
1 | ||
| 55519-35070 |
RZN140,150,VZN150 |
1 | ||
| 55519-35140 |
RZN140,150,19#,VZN150 |
1 | ||
| 55519-35121 |
RZN140,150,19#,VZN150,195 W(AIR CONDITIONER) |
1 | ||
| 55519-35050 |
RZN140,150,VZN150 W(AIR CONDITIONER) |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05152 |
RZN140,150,19#,VZN150,195 14V 1.4W |
2 | ||
| 90010-05152 |
RZN140,150,19#,VZN150,195 14V 1.4W |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
RZN140,150,VZN150 |
4 | ||
| 55905-89115 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
RZN140,150,VZN150 |
4 | ||
| 55905-89115 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35160 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-35160 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-35030 |
RZN140,150,VZN150 |
1 | ||
| 55906-35071 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-35020 |
RZN140,150,VZN150 |
1 | ||
| 55908-35060 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-35040 |
RZN140,150,VZN150 |
1 | ||
| 55909-35090 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-35121 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55910-35120 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55910-35090 |
RZN140,150,VZN150 |
1 | ||
| 55910C - GROMMET(FOR HEATER CONTROL CABLE) | ||||
| 90480-13024 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 55932 - GUIDE, LEVER, NO.1 | ||||
| 55932-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 90167-50028 | ||||
| 90467-12009 | ||||
| Linked diagrams | ||||
| 8401 | ||||
