Toyota Tacoma VZN150 CRUISE CONTROL (AUTO DRIVE)

VZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000

Engine 5VZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

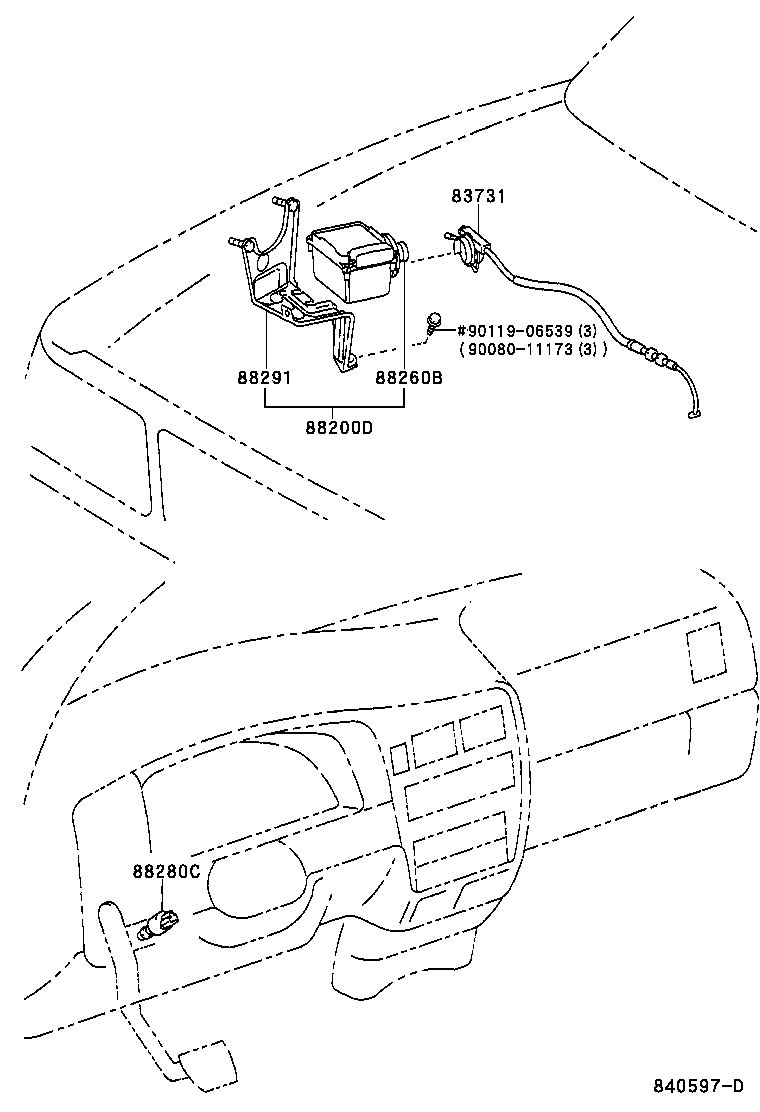

Click highlighted areas on diagram

Part #	Description	Period	Qty
83731 - CABLE, CRUISE CONTROL
83731-35221	VZN150,195	09/1996 - 09/2000	1
83731-35200	VZN150	01/1995 - 09/1996	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88002-35050	VZN150	01/1995 - 09/1996	1
88001-04030	VZN150,195	08/1998 - 09/2000	1
88200-35260	RZN140,150	01/1995 - 06/1997	1
88200-35290	RZN140,150,19#	06/1997 - 09/2000	1
88001-04020	VZN150,195	03/1998 - 08/1998	1
88001-0W010	VZN150,195	09/1996 - 03/1998	1
88260B - ACTUATOR ASSY, CRUISE CONTROL W/COMPUTER
88260-0W030	VZN150,195	08/1998 - 09/2000	1
88260-0W010	VZN150,195	09/1996 - 08/1998	1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-0W010	VZN150,195	09/1996 - 03/1998	1
88291-04020	VZN150,195	03/1998 - 09/2000	1
Common parts
90080-11173
90119-06539

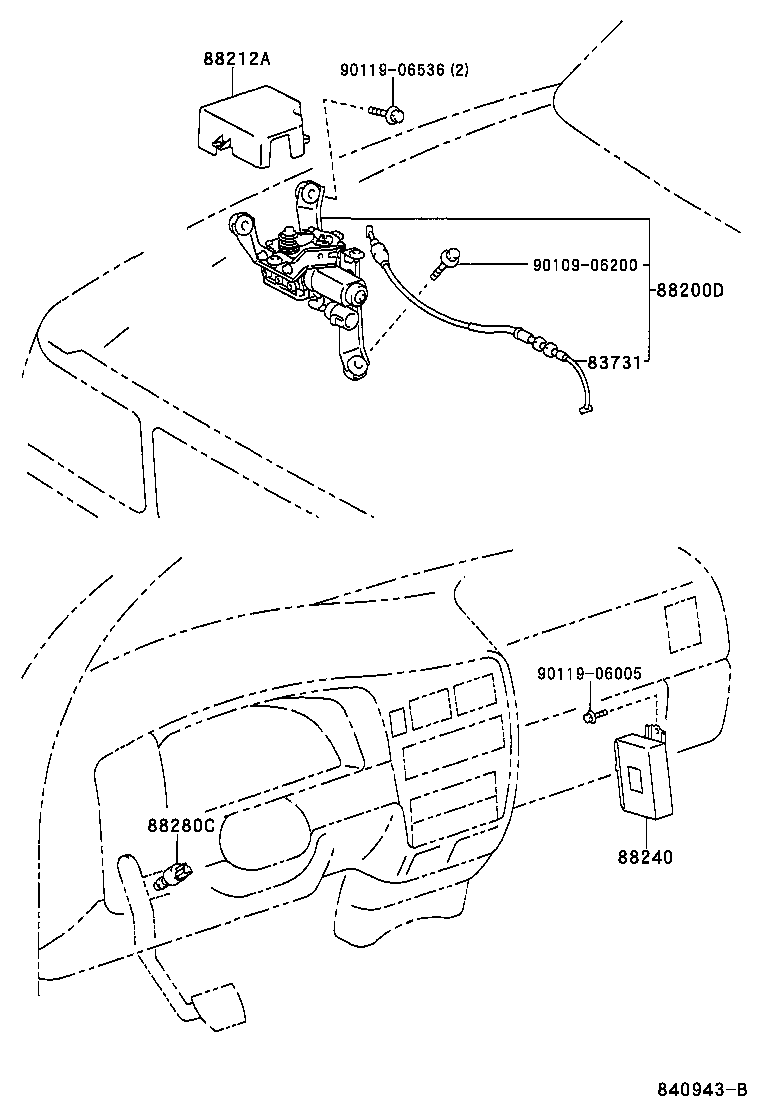

Click highlighted areas on diagram

Part #	Description	Period	Qty
83731 - CABLE, CRUISE CONTROL
83731-35221	VZN150,195	09/1996 - 09/2000	1
83731-35200	VZN150	01/1995 - 09/1996	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88002-35050	VZN150	01/1995 - 09/1996	1
88001-04030	VZN150,195	08/1998 - 09/2000	1
88200-35260	RZN140,150	01/1995 - 06/1997	1
88200-35290	RZN140,150,19#	06/1997 - 09/2000	1
88001-04020	VZN150,195	03/1998 - 08/1998	1
88001-0W010	VZN150,195	09/1996 - 03/1998	1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-35090	VZN150	01/1995 - 09/1996	1
88212-06010	RZN140,150,19#	06/1997 - 09/2000	1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-35280	RZN140,150,196..ATM	06/1997 - 08/1998	1
88240-35231	RZN140,150	09/1996 - 06/1997	1
88240-35281	RZN140,150..4HC	08/1998 - 09/2000	1
88240-35230	RZN140,150,VZN150	01/1995 - 09/1996	1
Common parts
90109-06200
90119-06005
90119-06536

Click highlighted areas on diagram

Part #	Description	Period	Qty
88200D - ACTUATOR ASSY, CRUISE CONTROL
88002-35050	VZN150	01/1995 - 09/1996	1
88001-04030	VZN150,195	08/1998 - 09/2000	1
88200-35260	RZN140,150	01/1995 - 06/1997	1
88200-35290	RZN140,150,19#	06/1997 - 09/2000	1
88001-04020	VZN150,195	03/1998 - 08/1998	1
88001-0W010	VZN150,195	09/1996 - 03/1998	1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88002-35050	VZN150	01/1995 - 09/1996	1
88001-04030	VZN150,195	08/1998 - 09/2000	1
88200-35260	RZN140,150	01/1995 - 06/1997	1
88200-35290	RZN140,150,19#	06/1997 - 09/2000	1
88001-04020	VZN150,195	03/1998 - 08/1998	1
88001-0W010	VZN150,195	09/1996 - 03/1998	1
88212A - COVER, CRUISE CONTROL ACTUATOR
88212-35090	VZN150	01/1995 - 09/1996	1
88212-06010	RZN140,150,19#	06/1997 - 09/2000	1
88220A - RELAY ASSY, SPEED CONTROL MAIN
88220-35020	RZN140,150..4HC	09/1996 - 09/2000	1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-35280	RZN140,150,196..ATM	06/1997 - 08/1998	1
88240-35231	RZN140,150	09/1996 - 06/1997	1
88240-35281	RZN140,150..4HC	08/1998 - 09/2000	1
88240-35230	RZN140,150,VZN150	01/1995 - 09/1996	1
Common parts
90080-11173
90080-11324
90109-06200
90119-06005
90119-06536
90119-06539
93219-15008
Linked diagrams
7851
