VZN150L-CRSDKAB (1995)
Toyota Tacoma
ILLUST NO. 1 OF 2(9501-0009)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-04030 |
RZN150,VZN150 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 77259-35280 |
RZN140,150,19#,VZN150,195 L=185 |
1 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-35040 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35150 |
RZN140,150,VZN150 |
1 | ||
| 77161C - PROTECTOR, FUEL TANK, LOWER | ||||
| 77161-35150 |
RZN140,150,VZN150 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-26010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-35470 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77290-YY010 |
RZN140,150,19#,VZN150,195 W(STEP SIDE DECK) |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77305-YY010 |
RZN140,150,19#,VZN150,195 W(STEP SIDE DECK) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-06020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77300-YY010 |
RZN140,150,19#,VZN150,195 W(STEP SIDE DECK) |
1 | ||
| 77310-04020 |
RZN140,150,196,VZN150,195 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-YY010 |
RZN140,150,19#,VZN150,195 W(STEP SIDE DECK) |
1 | ||
| 77358-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77603-35030 |
RZN140,150,VZN150 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-35040 |
RZN140,150,19#,VZN150,195 95 X 50 |
1 | ||
| 77652-35020 |
RZN140,150,19#,VZN150,195 125 X 200 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-35040 |
RZN140,150,19#,VZN150,195 95 X 50 |
1 | ||
| 77652-35020 |
RZN140,150,19#,VZN150,195 125 X 200 |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-35030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77681B - SEAT, FUEL TANK BAND | ||||
| 77681-35010 |
RZN140,150,VZN150 |
1 | ||
| Common parts | ||||
| 90080-11180 | ||||
| 90080-11376 | ||||
| 90119-10536 | ||||
| 90149-50057 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-50339 | ||||
| 90179-08233 | ||||
| 90240-08060 | ||||
| 90460-22002 | ||||
| 90468-14011 | ||||
| 90468-14033 | ||||
| 90541-06018 | ||||
| 91641-80814 | ||||
| Linked diagrams | ||||
| 2211 | ||||
ILLUST NO. 2 OF 2(9501-0009)RZN140,150,19#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-75020 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-04090 |
VZN150,195 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-04060 |
RZN150,196,VZN150,195 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06030 |
RZN140,150 *H,L=240 |
1 | ||
| 77279-35030 |
VZN150 L=240 |
1 | ||
| 77279-35030 |
RZN140,150,19#,VZN150,195 L=240 |
1 | ||
| 95333-06030 |
RZN140,150,VZN150 *H,L=240 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-04050 |
RZN150,196,VZN150,195 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZN140,150 *H,L=200 |
1 | ||
| 95333-06020 |
RZN140,150,VZN150 *H,L=200 |
1 | ||
| 77279-35010 |
VZN150 L=160 |
1 | ||
| 77279-35010 |
RZN140,150,19#,VZN150,195 L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
RZN140,150 *H,L=280 |
1 | ||
| 77279-35020 |
RZN140,150,19#,VZN150,195 L=280 |
1 | ||
| 95333-06030 |
RZN140,150,VZN150 *H,L=280 |
1 | ||
| 77279-35020 |
VZN150 L=280 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35230 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35250 |
RZN140,150,VZN150..4HC |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35250 |
RZN140,150,VZN150..4HC |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
RZN140,150,19#,VZN150,195 |
4 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-35010 |
RZN150,196,VZN150,195 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35110 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35130 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-35030 |
RZN140,150,VZN150 |
1 | ||
| 77707-35030 |
RZN140,150 |
1 | ||
| 77707-35020 |
VZN150 |
1 | ||
| 77707-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35350 |
RZN140,150,VZN150 |
1 | ||
| 77740-35370 |
RZN140,150 SALT & SNOW AREA PACKAGE |
1 | ||
| 77740-35350 |
RZN140,150 |
1 | ||
| 77740-35370 |
RZN140,150,VZN150 SALT & SNOW AREA PACKAGE |
1 | ||
| 77740-35392 |
VZN150 |
1 | ||
| 77740-35392 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-62010 |
RZN140,150,VZN150 L=150 |
1 | ||
| 77795-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90445-12280 |
VZN150 L=220 |
1 | ||
| 23829-62010 |
RZN140,150 L=150 |
1 | ||
| 77795-35010 |
VZN150 |
1 | ||
| 23829-75050 |
RZN140,150 L=230 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-62010 |
RZN140,150,VZN150 L=150 |
1 | ||
| 77795-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90445-12280 |
VZN150 L=220 |
1 | ||
| 23829-62010 |
RZN140,150 L=150 |
1 | ||
| 77795-35010 |
VZN150 |
1 | ||
| 23829-75050 |
RZN140,150 L=230 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35310 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90929-01324 | ||||
| 90929-01344 | ||||
| 90950-01862 | ||||
| 91111-B0622 | ||||
| 91635-60616 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 1708 | ||||

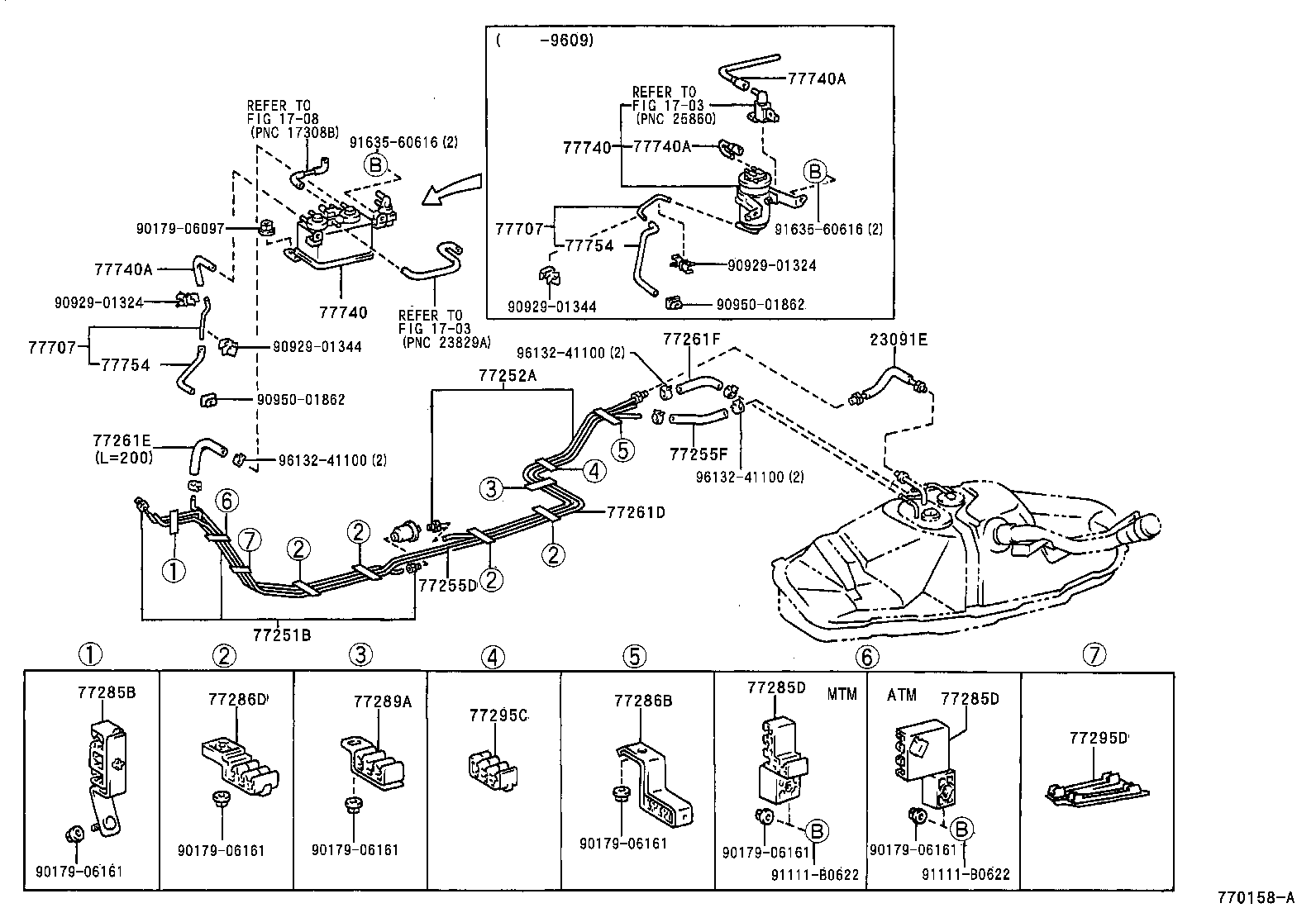

ILLUST NO. 2 OF 2(9501-0009)VZN150,195
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23091E - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-75020 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-04090 |
VZN150,195 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-04040 |
VZN150,195 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-04060 |
RZN150,196,VZN150,195 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95333-06030 |
RZN140,150 *H,L=240 |
1 | ||
| 77279-35030 |
VZN150 L=240 |
1 | ||
| 77279-35030 |
RZN140,150,19#,VZN150,195 L=240 |
1 | ||
| 95333-06030 |
RZN140,150,VZN150 *H,L=240 |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-04050 |
RZN150,196,VZN150,195 |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06020 |
RZN140,150 *H,L=200 |
1 | ||
| 95333-06020 |
RZN140,150,VZN150 *H,L=200 |
1 | ||
| 77279-35010 |
VZN150 L=160 |
1 | ||
| 77279-35010 |
RZN140,150,19#,VZN150,195 L=160 |
1 | ||
| 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95333-06030 |
RZN140,150 *H,L=280 |
1 | ||
| 77279-35020 |
RZN140,150,19#,VZN150,195 L=280 |
1 | ||
| 95333-06030 |
RZN140,150,VZN150 *H,L=280 |
1 | ||
| 77279-35020 |
VZN150 L=280 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-35230 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35250 |
RZN140,150,VZN150..4HC |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-35250 |
RZN140,150,VZN150..4HC |
1 | ||
| 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 | ||||
| 77286-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-35020 |
RZN140,150,19#,VZN150,195 |
4 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-35010 |
RZN150,196,VZN150,195 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-35110 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77295D - GROMMET, FUEL TUBE | ||||
| 77295-35130 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-35030 |
RZN140,150,VZN150 |
1 | ||
| 77707-35030 |
RZN140,150 |
1 | ||
| 77707-35020 |
VZN150 |
1 | ||
| 77707-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-35030 |
RZN140,150,VZN150 |
1 | ||
| 77707-35030 |
RZN140,150 |
1 | ||
| 77707-35020 |
VZN150 |
1 | ||
| 77707-35020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35350 |
RZN140,150,VZN150 |
1 | ||
| 77740-35370 |
RZN140,150 SALT & SNOW AREA PACKAGE |
1 | ||
| 77740-35350 |
RZN140,150 |
1 | ||
| 77740-35370 |
RZN140,150,VZN150 SALT & SNOW AREA PACKAGE |
1 | ||
| 77740-35392 |
VZN150 |
1 | ||
| 77740-35392 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-35350 |
RZN140,150,VZN150 |
1 | ||
| 77740-35370 |
RZN140,150 SALT & SNOW AREA PACKAGE |
1 | ||
| 77740-35350 |
RZN140,150 |
1 | ||
| 77740-35370 |
RZN140,150,VZN150 SALT & SNOW AREA PACKAGE |
1 | ||
| 77740-35392 |
VZN150 |
1 | ||
| 77740-35392 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-62010 |
RZN140,150,VZN150 L=150 |
1 | ||
| 77795-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90445-12280 |
VZN150 L=220 |
1 | ||
| 23829-62010 |
RZN140,150 L=150 |
1 | ||
| 77795-35010 |
VZN150 |
1 | ||
| 23829-75050 |
RZN140,150 L=230 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-62010 |
RZN140,150,VZN150 L=150 |
1 | ||
| 77795-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90445-12280 |
VZN150 L=220 |
1 | ||
| 23829-62010 |
RZN140,150 L=150 |
1 | ||
| 77795-35010 |
VZN150 |
1 | ||
| 23829-75050 |
RZN140,150 L=230 |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 23829-62010 |
RZN140,150,VZN150 L=150 |
1 | ||
| 77795-35010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 90445-12280 |
VZN150 L=220 |
1 | ||
| 23829-62010 |
RZN140,150 L=150 |
1 | ||
| 77795-35010 |
VZN150 |
1 | ||
| 23829-75050 |
RZN140,150 L=230 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35310 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-35310 |
RZN140,150,19#,VZN150,195 |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 90179-06161 | ||||
| 90929-01324 | ||||
| 90929-01344 | ||||
| 90950-01862 | ||||
| 91111-B0622 | ||||
| 91635-60616 | ||||
| 96132-41100 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
