VZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

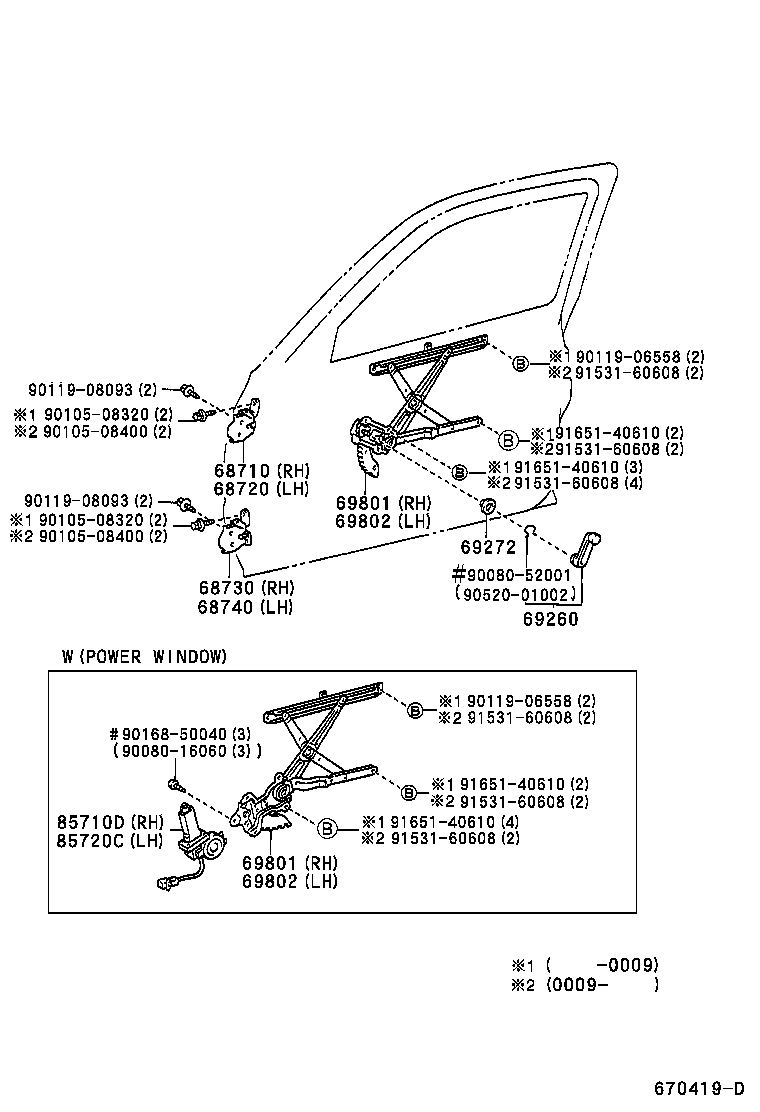

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69272 69801 69801 69802 69802 85710D 85720C 9008016060 9008052001 9010508320 9010508320 9010508400 9010508400 9011906558 9011906558 9011908093 9011908093 9016850040 9052001002 9153160608 9153160608 9153160608 9153160608 9153160608 9153160608 9165140610 9165140610 9165140610 9165140610
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-04010

RZN140,150,19#,VZN150,195

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68710-04010

RZN140,150,19#,VZN150,195

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-04010

RZN140,150,19#,VZN150,195

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68730-04010

RZN140,150,19#,VZN150,195

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-04020E0

RZN140,150,19#,VZN150,195

OAK,TRIM4#

 2
69260-04020B1

RZN140,150,VZN150

BLUISH GRAY,TRIM1#

 2
69260-04020B2

RZN140,150,19#,VZN150,195

MD.MOON MIST,TRIM1#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

RZN140,150,19#,VZN150,195

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-35100

RZN140,150,19#,VZN150,195

W(POWER WINDOW)

 1
69810-04050

RZN140,150,19#,VZN150,195

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-35100

RZN140,150,19#,VZN150,195

W(POWER WINDOW)

 1
69810-04050

RZN140,150,19#,VZN150,195

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-35090

RZN140,150,19#,VZN150,195

W(POWER WINDOW)

 1
69820-04050

RZN140,150,19#,VZN150,195

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-35090

RZN140,150,19#,VZN150,195

W(POWER WINDOW)

 1
69820-04050

RZN140,150,19#,VZN150,195

 1
85710D - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-35080

RZN140,150,19#,VZN150,195

 1
85720C - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-35040

RZN140,150,19#,VZN150,195

 1
Common parts
90080-16060
90080-52001
90105-08320
90105-08400
90119-06558
90119-08093
90168-50040
90520-01002
91531-60608
91651-40610
