VZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

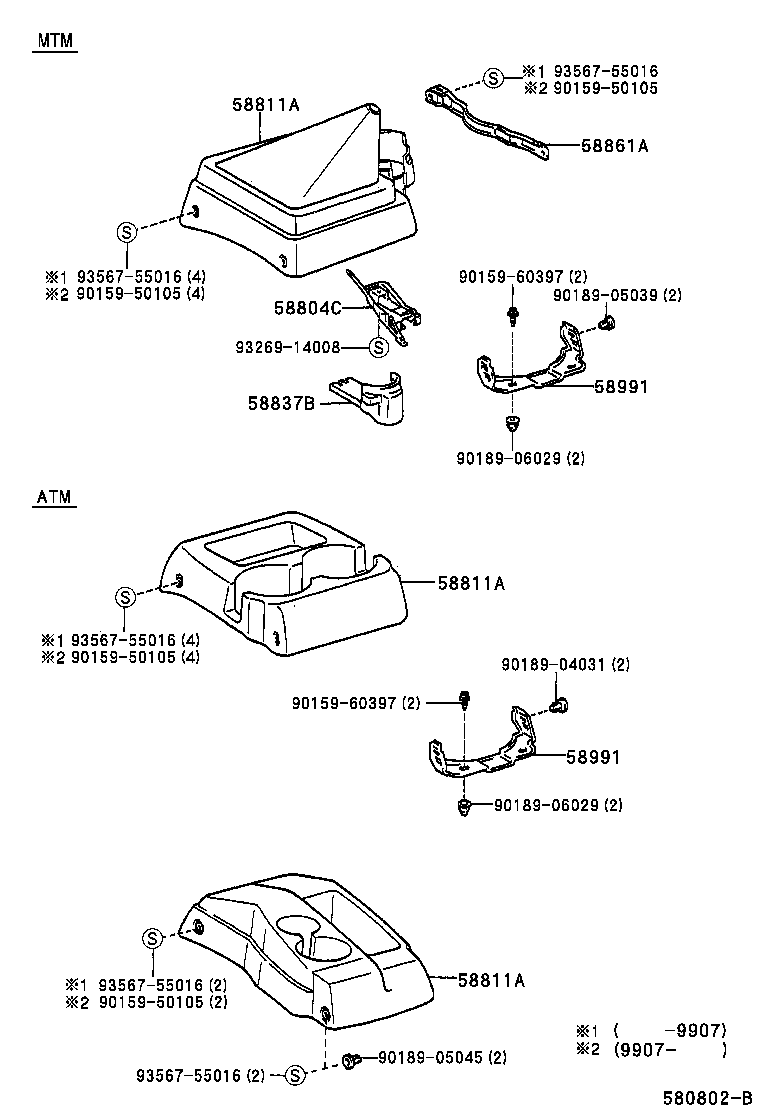

ILLUST NO. 1 OF 2(9706-0009)

Click highlighted areas on diagram

diagram 58804C 58811A 58811A 58811A 58837B 58861A 58991 58991 9015950105 9015950105 9015950105 9015950105 9015960397 9015960397 9018904031 9018905039 9018905045 9018906029 9018906029 9326914008 9356755016 9356755016 9356755016 9356755016 9356755016
Part # Description Qty Price
58811A - BOX, CONSOLE, FRONT
58811-04020B0

RZN140,150,VZN150..4HC

MD.MOON MIST,TRIM1#

 1
58811-04020E0

RZN140,150,VZN150..4HC

OAK,TRIM4#

 1
58811A - BOX, CONSOLE, FRONT
58811-04020B0

RZN140,150,VZN150..4HC

MD.MOON MIST,TRIM1#

 1
58811-04020E0

RZN140,150,VZN150..4HC

OAK,TRIM4#

 1
58811A - BOX, CONSOLE, FRONT
58811-04020B0

RZN140,150,VZN150..4HC

MD.MOON MIST,TRIM1#

 1
58811-04020E0

RZN140,150,VZN150..4HC

OAK,TRIM4#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-04020

RZN140,150,VZN150

 1
58991-04020

RZN140,150,VZN150..4HC

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-04020

RZN140,150,VZN150

 1
58991-04020

RZN140,150,VZN150..4HC

 1
Common parts
90159-50105
90159-60397
90189-04031
90189-05039
90189-05045
90189-06029
93269-14008
93567-55016

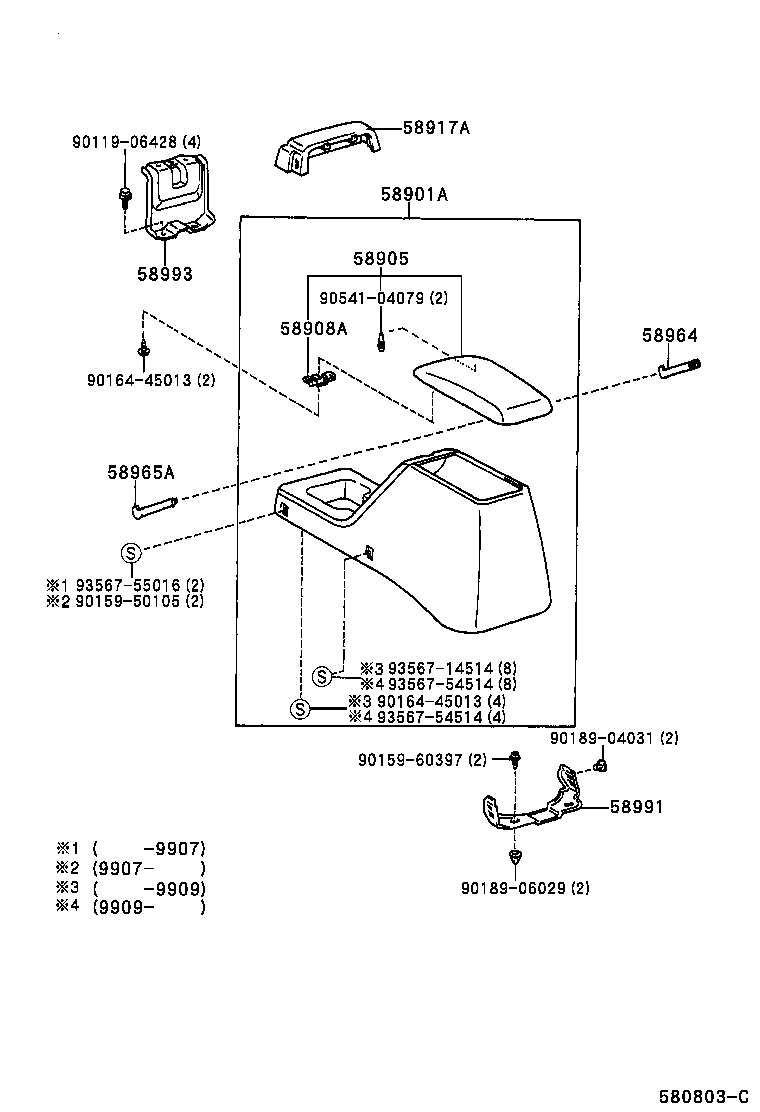

ILLUST NO. 2 OF 2(9501-0009)

Click highlighted areas on diagram

diagram 58901A 58905 58908A 58917A 58964 58965A 58991 58993 9011906428 9015950105 9015960397 9016445013 9016445013 9018904031 9018906029 9054104079 9356714514 9356754514 9356754514 9356755016
Part # Description Qty Price
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-35130B1

RZN140,150,19#,VZN150,195

MD.MOON MIST,TRIM1#

 1
58901-35090B0

RZN140,150,VZN150

BLUISH GRAY,TRIM1#

 1
58901-35090E0

RZN140,150,VZN150

OAK,TRIM4#

 1
58901-35130E1

RZN140,150,19#,VZN150,195

OAK,TRIM4#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-35040B1

RZN140,150,19#,VZN150,195

MD.MOON MIST,TRIM1#

 1
58905-35040E0

RZN140,150,19#,VZN150,195

OAK,TRIM4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32050

RZN140,150,VZN150

 1
58908-32040

RZN150,VZN150

W(REAR CONSOLE BOX & FRONT SEPARATE SEAT)

 1
58908-32050

RZN140,150,19#,VZN150,195

 1
58917A - COVER, CONSOLE BOX, REAR
58917-35010E0

RZN140,150,VZN150

OAK,TRIM4#

 1
58917-35010B0

RZN140,150,VZN150

MD.MOON MIST,TRIM1#

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-16010

RZN140,150,19#,VZN150,195

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-16010

RZN140,150,19#,VZN150,195

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-04020

RZN140,150,VZN150

 1
58991-04020

RZN140,150,VZN150..4HC

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-35020

RZN140,150,19#,VZN150,195

 1
Common parts
90119-06428
90159-50105
90159-60397
90164-45013
90189-04031
90189-06029
90541-04079
93567-14514
93567-54514
93567-55016
