Toyota Tacoma VZN150 POWER STEERING TUBE

VZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000

Engine 5VZFE

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

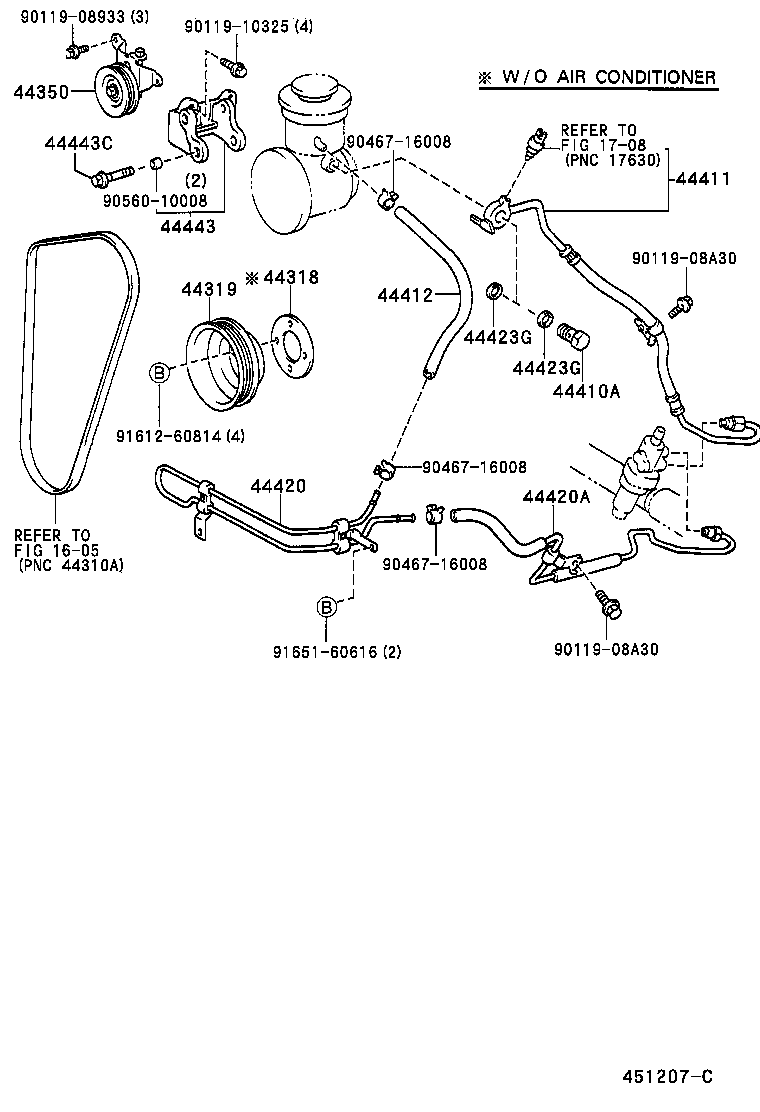

Click highlighted areas on diagram

Part #	Description	Period	Qty
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020	RZN140,150,19#	01/1995 - 09/2000	1
44319 - PULLEY, VANE PUMP DRIVE
44319-34010	RZN140,150	01/1995 - 06/1997	1
44319-34010	RZN140,150,19# (J)	06/1997 - 09/2000	1
44319-04010	RZN140,150,19# (L)	06/1997 - 09/2000	1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-34010	RZN140,150,19#	01/1995 - 09/2000	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
44411 - HOSE, PRESSURE FEED
44411-04010	RZN140,150	09/1996 - 06/1997	1
44411-04020	RZN140,150	06/1997 - 09/2000	1
44411-35400	RZN140,150	01/1995 - 09/1996	1
44411-04090	RZN140,150 CALIFORNIA(LEV) SPEC	08/1999 - 09/2000	1
44412 - HOSE, RETURN
90445-18125	RZN140,150	01/1995 - 09/1996	1
44420 - COOLER ASSY, OIL
44420-35120	RZN140,150	01/1995 - 09/1996	1
44420A - TUBE ASSY, RETURN
44420-35110	RZN140,150	01/1995 - 09/1996	1
44420-04010	RZN140,150	09/1996 - 06/1997	1
44420-04020	RZN140,150	06/1997 - 09/2000	1
44423G - GASKET, UNION BOLT
90430-16242	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	2
44423G - GASKET, UNION BOLT
90430-16242	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	2
44443 - BRACKET, PUMP
44443-34010	RZN140,150,19#	01/1995 - 09/2000	1
44443-34030	VZN150,195	08/1999 - 09/2000	1
44443-35030	VZN150,195	01/1995 - 08/1999	1
44443C - BOLT(FOR VANE PUMP BRACKET SETTINNG)
90105-10382	RZN140,150,19#	01/1995 - 09/2000	2
90105-10390	VZN150,195	01/1995 - 09/2000	1
Common parts
90119-08933
90119-08A30
90119-10325
90467-16008
90560-10008
91612-60814
91651-60616
Linked diagrams
1605
1708

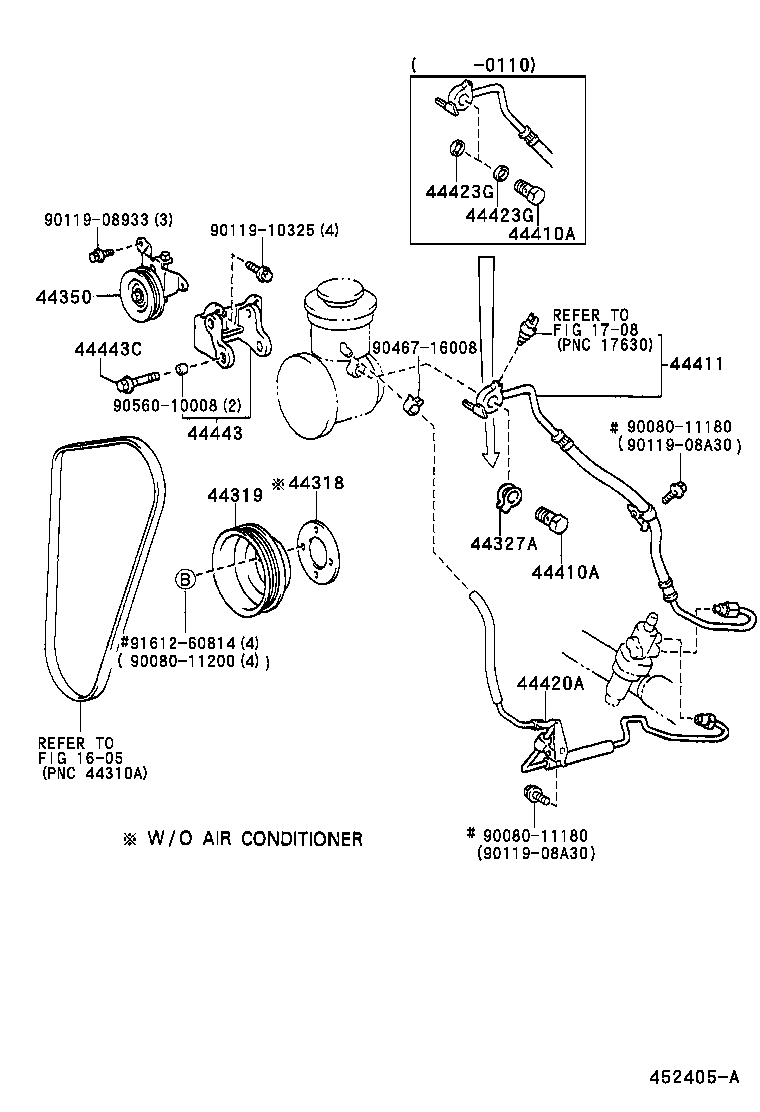

Click highlighted areas on diagram

Part #	Description	Period	Qty
44410 - TUBE ASSY, PRESSURE FEED
44410-04020	VZN150	06/1997 - 09/2000	1
44410-35390	VZN150	01/1995 - 09/1996	1
44410-04010	VZN150	09/1996 - 06/1997	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44406-35010	VZN150	01/1995 - 09/1996	1
44406-04010	VZN150	09/1996 - 06/1997	1
44406-04020	VZN150	06/1997 - 09/2000	1
44423G - GASKET, UNION BOLT
90430-16242	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	2
44423G - GASKET, UNION BOLT
90430-16242	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	2
44443 - BRACKET, PUMP
44443-34010	RZN140,150,19#	01/1995 - 09/2000	1
44443-34030	VZN150,195	08/1999 - 09/2000	1
44443-35030	VZN150,195	01/1995 - 08/1999	1
44443 - BRACKET, PUMP
44443-34010	RZN140,150,19#	01/1995 - 09/2000	1
44443-34030	VZN150,195	08/1999 - 09/2000	1
44443-35030	VZN150,195	01/1995 - 08/1999	1
44443C - BOLT(FOR VANE PUMP BRACKET SETTINNG)
90105-10382	RZN140,150,19#	01/1995 - 09/2000	2
90105-10390	VZN150,195	01/1995 - 09/2000	1
44446 - STRUT, ADJUSTING
44446-35010	VZN150,195	01/1995 - 09/2000	1
44469 - SLIDER, POWER STEERING BELT ADJUSTING
44469-35010	VZN150,195	01/1995 - 09/2000	1
Common parts
90080-11180
90119-08A30
90119-08A31
90179-10209
90467-16008
91512-61030
Linked diagrams
1605
1708

Click highlighted areas on diagram

Part #	Description	Period	Qty
44318 - SPACER, VANE PUMP DRIVE PULLEY
44318-26020	RZN140,150,19#	01/1995 - 09/2000	1
44319 - PULLEY, VANE PUMP DRIVE
44319-34010	RZN140,150	01/1995 - 06/1997	1
44319-34010	RZN140,150,19# (J)	06/1997 - 09/2000	1
44319-04010	RZN140,150,19# (L)	06/1997 - 09/2000	1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-34010	RZN140,150,19#	01/1995 - 09/2000	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	1
44411 - HOSE, PRESSURE FEED
44411-04010	RZN140,150	09/1996 - 06/1997	1
44411-04020	RZN140,150	06/1997 - 09/2000	1
44411-35400	RZN140,150	01/1995 - 09/1996	1
44411-04090	RZN140,150 CALIFORNIA(LEV) SPEC	08/1999 - 09/2000	1
44420A - TUBE ASSY, RETURN
44420-35110	RZN140,150	01/1995 - 09/1996	1
44420-04010	RZN140,150	09/1996 - 06/1997	1
44420-04020	RZN140,150	06/1997 - 09/2000	1
44423G - GASKET, UNION BOLT
90430-16242	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	2
44423G - GASKET, UNION BOLT
90430-16242	RZN140,150,19#,VZN150,195	01/1995 - 09/2000	2
44443 - BRACKET, PUMP
44443-34010	RZN140,150,19#	01/1995 - 09/2000	1
44443-34030	VZN150,195	08/1999 - 09/2000	1
44443-35030	VZN150,195	01/1995 - 08/1999	1
44443C - BOLT(FOR VANE PUMP BRACKET SETTINNG)
90105-10382	RZN140,150,19#	01/1995 - 09/2000	2
90105-10390	VZN150,195	01/1995 - 09/2000	1
Common parts
90080-11180
90080-11200
90119-08933
90119-08A30
90119-10325
90467-16008
90560-10008
91612-60814
Linked diagrams
1605
1708
