VZN150L-CRSDKAB (1995)
Toyota Tacoma

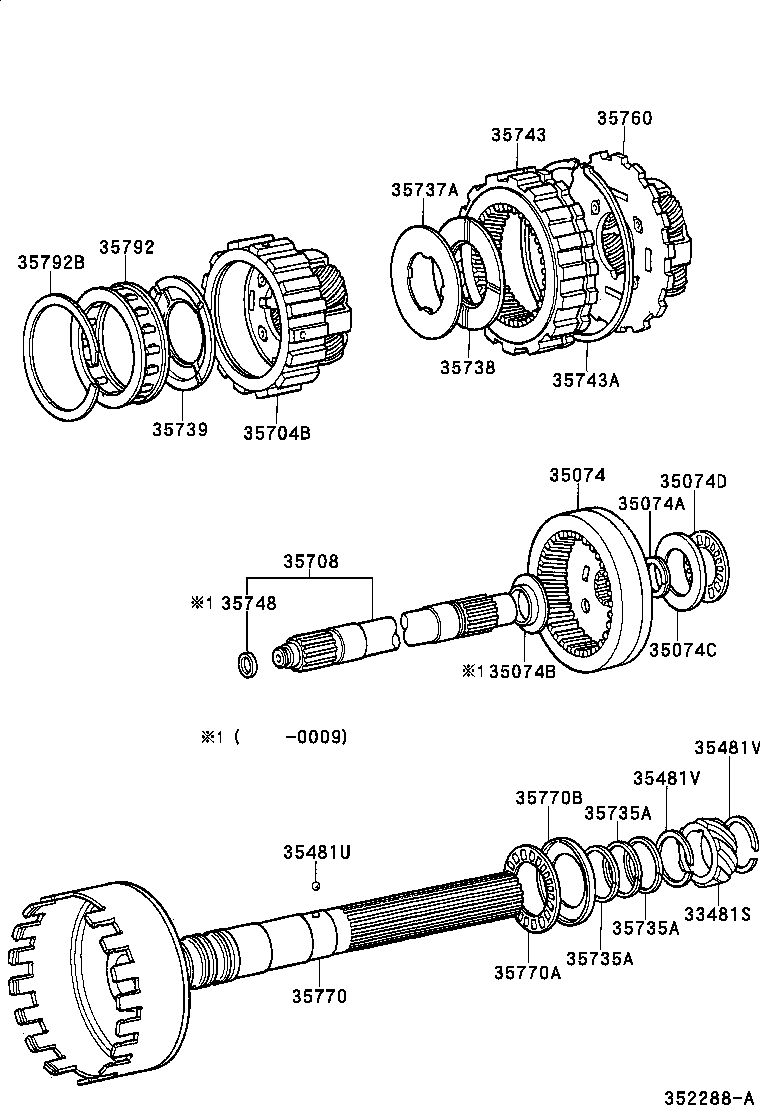

(9501- )RZN140,150..ATM
A43D,A44D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-20101 |
RZN140,150..4HC |
1 | ||
| 33481-40030 |
VZN150..4HC |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30030 |
RZN140,150..4HC |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
RZN140,150..4HC |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-30180 |
RZN140,150..4HC |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
RZN140,150..4HC |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
RZN140,150..4HC |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
RZN140,150,VZN150..4HC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
VZN150..4HC T=1.50,OD=33.8 |
1 | ||
| 90520-28009 |
RZN140,150..4HC T=1.50,OD=33.8 |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
VZN150..4HC T=1.50,OD=33.8 |
1 | ||
| 90520-28009 |
RZN140,150..4HC T=1.50,OD=33.8 |
2 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-30030 |
RZN140,150..4HC |
1 | ||
| 35708 - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30041 |
RZN140,150..4HC |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-30020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35735-22010 |
RZN140,150..4HC |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-30020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35735-22010 |
RZN140,150..4HC |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-30020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35735-22010 |
RZN140,150..4HC |
3 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30020 |
RZN140,150..4HC |
1 | ||
| 35737-30030 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35739-30030 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35738-30010 |
RZN140,150..4HC |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30010 |
RZN140,150..4HC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30010 |
RZN140,150..4HC |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
RZN140,150..4HC |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
RZN140,150..4HC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35705-30010 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35760-30030 |
RZN140,150..4HC |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-30010 |
RZN140,150..4HC |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
RZN140,150..4HC |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
RZN140,150..4HC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30011 |
RZN140,150..4HC |
1 | ||
| 35792-14020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-87001 |
RZN19#,VZN150,195..ATM |
1 | ||
| 90521-79148 |
RZN140,150..4HC |
1 | ||

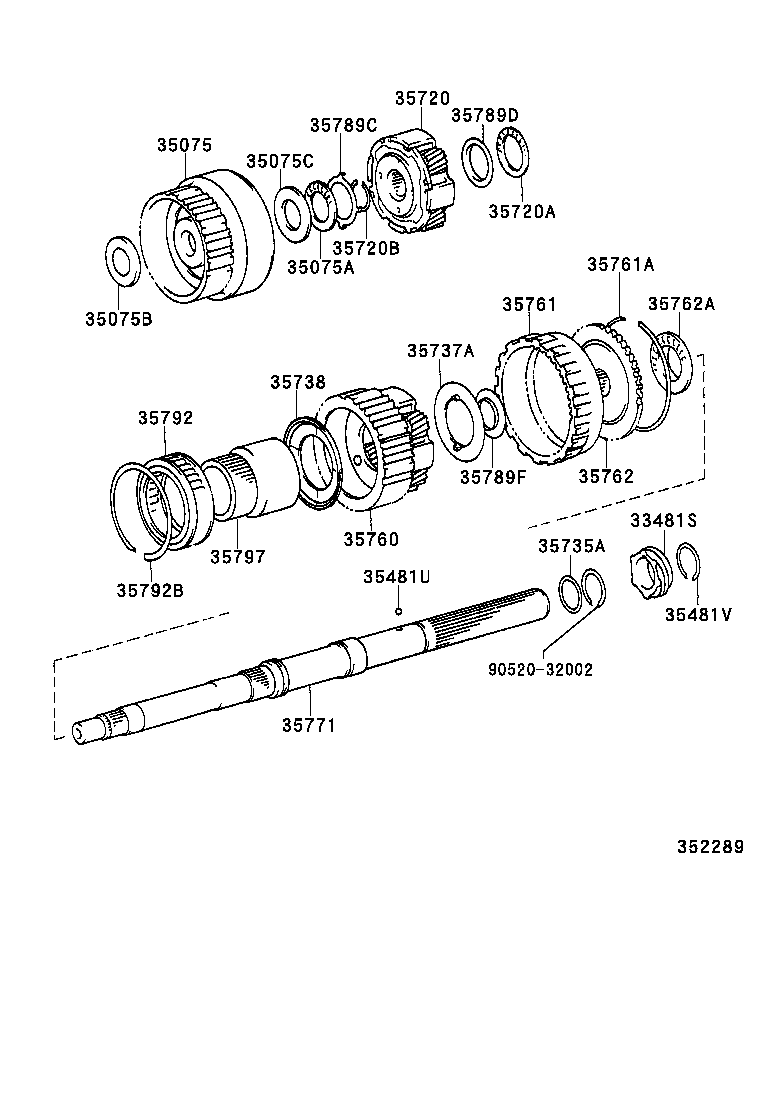

(9501-0009)VZN150..4HC
A340E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-20101 |
RZN140,150..4HC |
1 | ||
| 33481-40030 |
VZN150..4HC |
1 | ||
| 35075 - GEAR SUB-ASSY, FRONT PLANETARY RING | ||||
| 35075-30011 |
VZN150..4HC |
1 | ||
| 35075-50010 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35075A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY RING | ||||
| 90374-32004 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35075B - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR FRO | ||||
| 35789-30120 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35075C - RACE, THRUST BEARING (FOR FRONT PLANETARY RING GEAR RR) | ||||
| 35789-30130 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
RZN140,150,VZN150..4HC |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
VZN150..4HC T=1.50,OD=33.8 |
1 | ||
| 90520-28009 |
RZN140,150..4HC T=1.50,OD=33.8 |
2 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-30080 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-35001 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35720B - RING, SHAFT SNAP (FOR FRONT PLANETARY GEAR) | ||||
| 90520-24026 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-30020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35735-22010 |
RZN140,150..4HC |
3 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-30020 |
RZN140,150..4HC |
1 | ||
| 35737-30030 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35739-30030 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35738-30010 |
RZN140,150..4HC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35705-30010 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35760-30030 |
RZN140,150..4HC |
1 | ||
| 35761 - GEAR, REAR PLANETARY RING | ||||
| 35761-30020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR) | ||||
| 90521-99024 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35762 - FLANGE, REAR PLANETARY RING GEAR | ||||
| 35762-30040 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG | ||||
| 90374-39001 |
RZN19#,VZN150,195..ATM |
1 | ||
| 90374-38003 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35771 - SHAFT, OUTPUT | ||||
| 35771-30040 |
VZN150..4HC |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-30080 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35789D - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR REAR) | ||||
| 35789-30100 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35789F - RACE, THRUST BEARING (FOR REAR PLANETARY FLANGE) | ||||
| 35789-30160 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30011 |
RZN140,150..4HC |
1 | ||
| 35792-14020 |
RZN19#,VZN150,195..ATM |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-87001 |
RZN19#,VZN150,195..ATM |
1 | ||
| 90521-79148 |
RZN140,150..4HC |
1 | ||
| 35797 - RACE, 1 WAY CLUTCH INNER | ||||
| 35797-50010 |
RZN19#,VZN150,195..ATM |
1 | ||
| Common parts | ||||
| 90520-32002 | ||||
