VZN150L-CRSDKAB (1995)
Toyota Tacoma
Production
Jan 1995
-
Sep 2000
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)

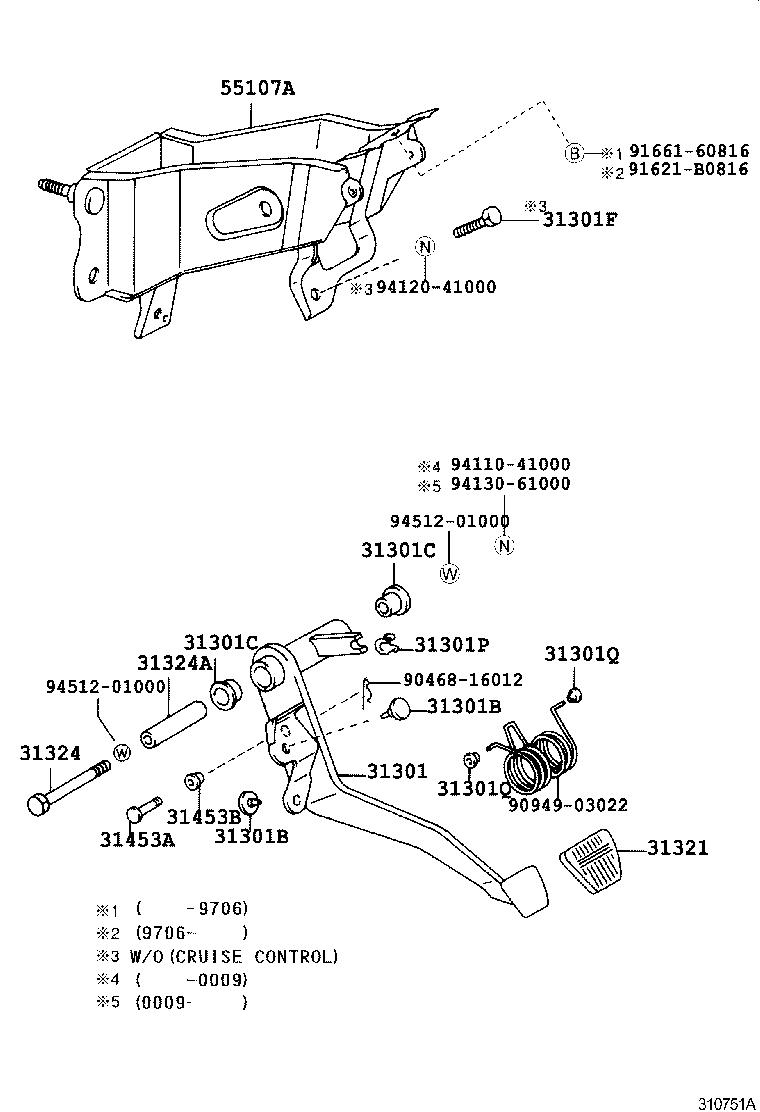

ILLUST NO. 1 OF 2(9501- )R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31310-35050 |
VZN150..R |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-05017 |
VZN150..R |
1 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-05018 |
VZN150..R |
2 | ||
| 31301Q - BUSH(FOR CLUTCH PEDAL SPRING) | ||||
| 90386-05018 |
VZN150..R |
2 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51090 |
VZN150..R |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10121 |
VZN150..R |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-35050 |
VZN150..R |
1 | ||
| Common parts | ||||
| 90468-16012 | ||||
| 90949-03022 | ||||
| 91621-B0816 | ||||
| 91661-60816 | ||||
| 94110-41000 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||
| 94512-01000 | ||||

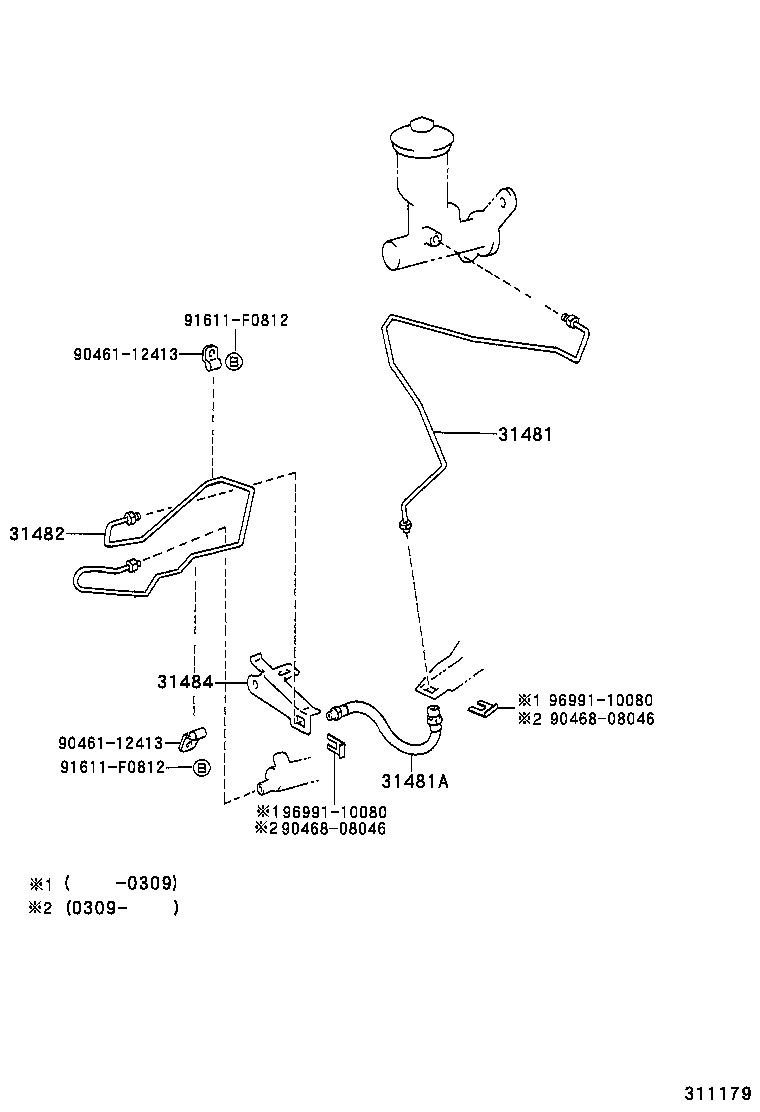

ILLUST NO. 2 OF 2(9501- )R
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 90931-01132 |
VZN150..R |
1 | ||
| 90931-01112 |
VZN150..R |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-04040 |
VZN150..R |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-35240 |
VZN150..R |
1 | ||
| Common parts | ||||
| 90461-12413 | ||||
| 90468-08046 | ||||
| 91611-F0812 | ||||
| 96991-10080 | ||||
