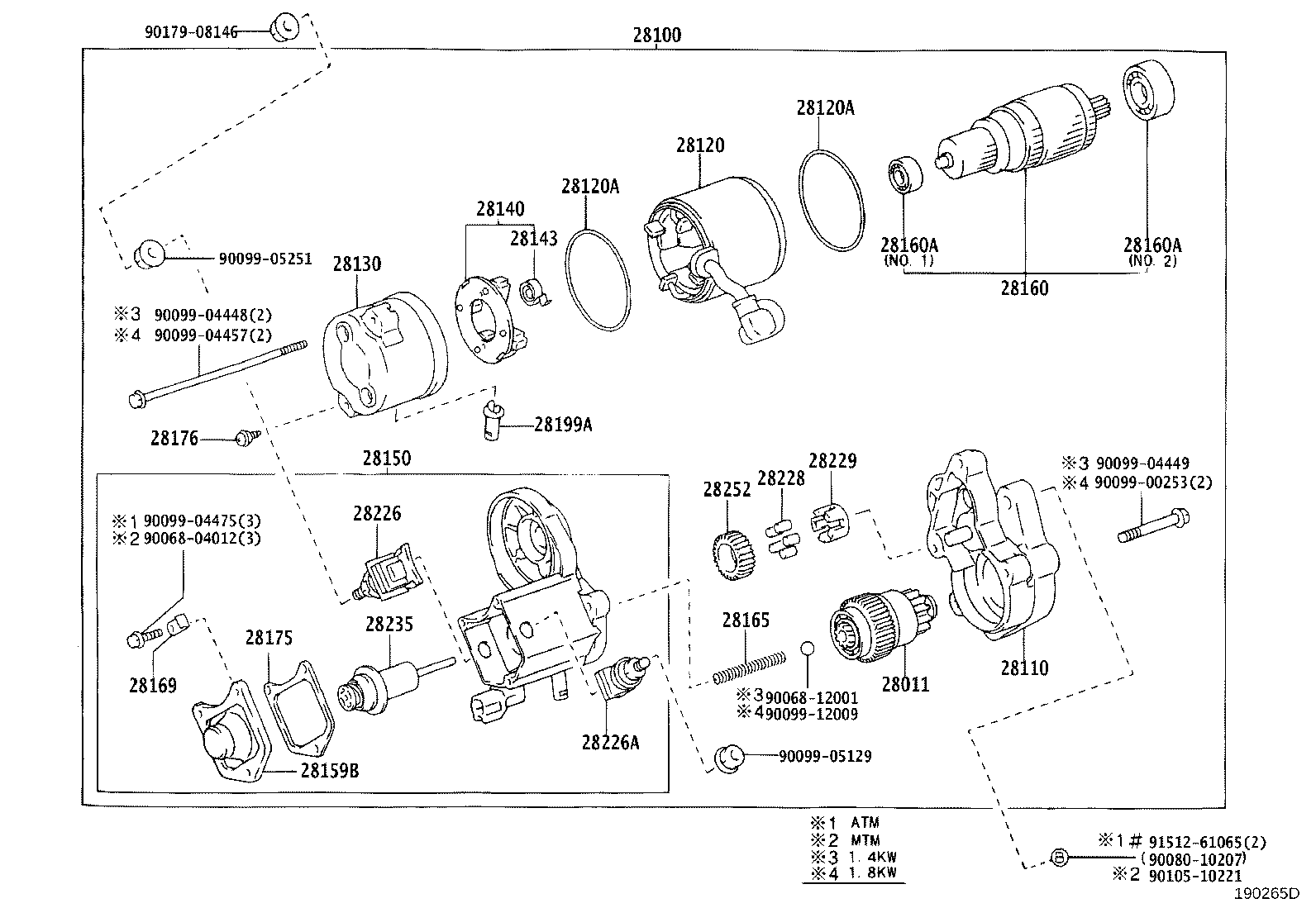

VZN150L-CRSDKAB (1995)
Toyota Tacoma
(9501- )5VZFE
12V 1.4KW,12V 1.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-75120 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28011-01020 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28011-01020 |
5VZFE..VZN150 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-07010 |
5VZFE..VZN150,195 12V 1.4KW |
1 | ||
| 28100-62030 |
5VZFE..VZN150..4HC 12V 1.8KW,COLD SPEC |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-07020 |
5VZFE..VZN150,195 |
1 | ||
| 28110-62030 |
5VZFE..VZN150,195..ATM COLD SPEC |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-75110 |
5VZFE..VZN150,195..ATM COLD SPEC |
1 | ||
| 28120-01030 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28120-01030 |
5VZFE..VZN150,195 |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
2 | ||
| 90099-14064 |
5VZFE..VZN150 |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
2 | ||
| 90099-14064 |
5VZFE..VZN150 |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-07010 |
5VZFE..VZN150,195 |
1 | ||
| 28130-62030 |
5VZFE..VZN150,195..ATM COLD SPEC |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-08010 |
5VZFE..VZN150 |
1 | ||
| 28140-08010 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28140-62030 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
4 | ||
| 90099-17112 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-07020 |
5VZFE..VZN150,195 |
1 | ||
| 28150-62030 |
5VZFE..VZN150,195..ATM COLD SPEC |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-54380 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-75110 |
5VZFE..VZN150,195..ATM COLD SPEC |
1 | ||
| 28160-01020 |
5VZFE..VZN150 |
1 | ||
| 28160-01020 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90068-10004 |
5VZFE..VZN150 NO.2 |
1 | ||
| 90068-10003 |
5VZFE..VZN150 NO.1 |
1 | ||
| 90068-10004 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90068-10003 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 90099-10197 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC,NO.2 |
1 | ||
| 90099-10208 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90068-10004 |
5VZFE..VZN150 NO.2 |
1 | ||
| 90068-10003 |
5VZFE..VZN150 NO.1 |
1 | ||
| 90068-10004 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 NO.2 |
1 | ||
| 90068-10003 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 NO.1 |
1 | ||
| 90099-10197 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC,NO.2 |
1 | ||
| 90099-10208 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
5VZFE..VZN150 |
1 | ||
| 28165-76070 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
5VZFE..VZN150..4HC COLD SPEC |
1 | ||
| 28175 - PACKING, STARTER BEARING COVER | ||||
| 28175-54380 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 28176-54380 |
5VZFE..VZN150..4HC COLD SPEC |
2 | ||
| 90099-00271 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
2 | ||
| 28176-15090 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
2 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-74110 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-54380 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28226-64200 |
5VZFE..VZN150,195 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28226-74070 |
5VZFE..VZN150 |
1 | ||
| 28226-74070 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28229-01020 |
5VZFE..VZN150 |
1 | ||
| 28229-01020 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-54380 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| 28235-07010 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-03010 |
5VZFE..VZN150 |
1 | ||
| 28254-03010 |
2RZFE,3RZFE,5VZFE..RZN140,150,19#,VZN150,195 |
1 | ||
| 28254-64130 |
3RZFE,5VZFE..RZN19#,VZN150,195..ATM COLD SPEC |
1 | ||
| Common parts | ||||
| 90068-04012 | ||||
| 90068-12001 | ||||
| 90080-10207 | ||||
| 90099-00253 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04457 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90105-10221 | ||||
| 90179-08146 | ||||
| 91512-61065 | ||||
