VZN150L-CRSDKAB (1995)
Toyota Tacoma

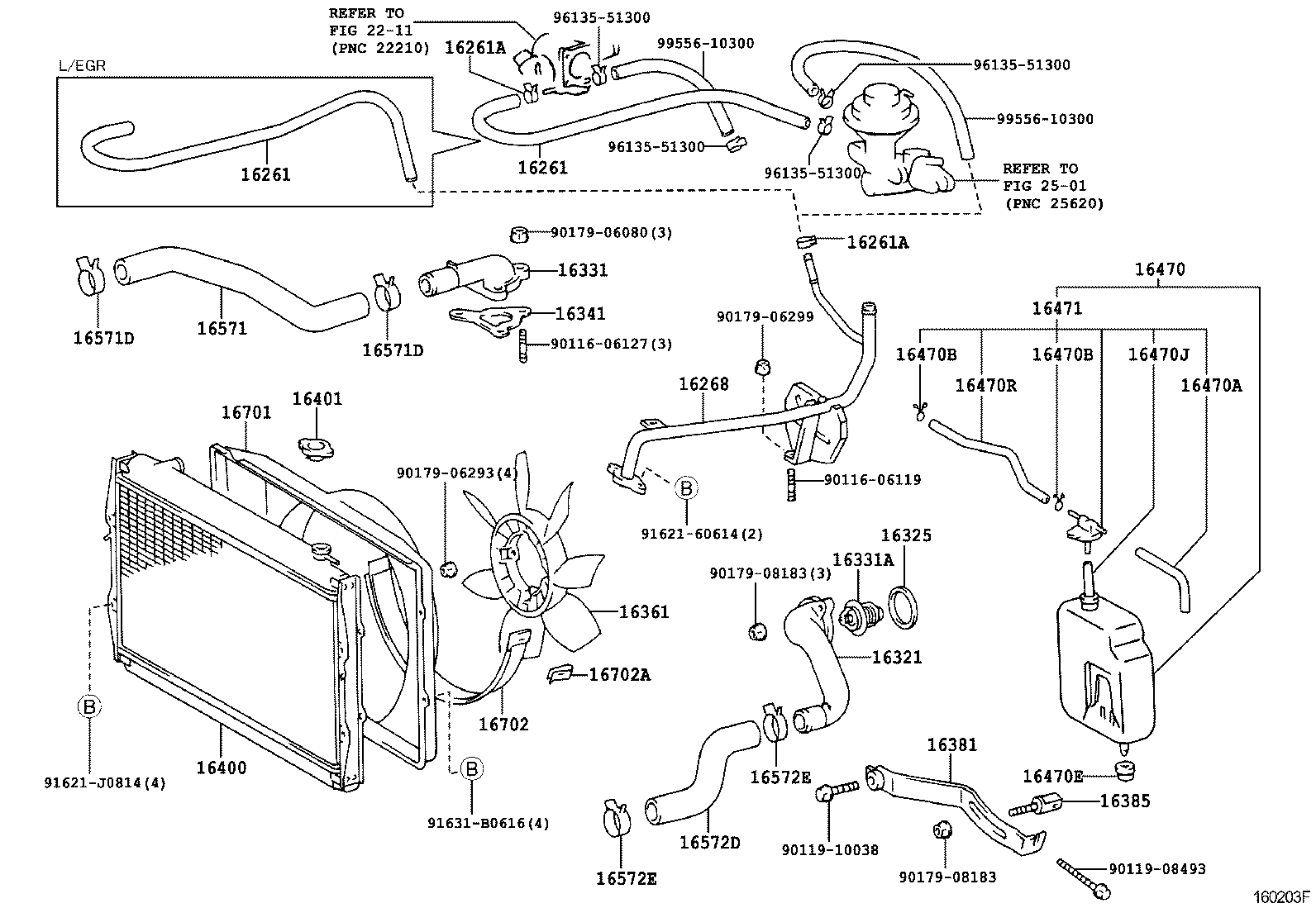

ILLUST NO. 1 OF 3(9501-0209)5VZFE ; (0209-0409)5VZFE..VZN150
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62050 |
5VZFE..VZN150 |
1 | ||
| 16261-62060 |
5VZFE..VZN150,195 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-62050 |
5VZFE..VZN150 |
1 | ||
| 16261-62060 |
5VZFE..VZN150,195 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
5VZFE..VZN150,195 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96135-41300 |
5VZFE..VZN150,195 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-62060 |
5VZFE..VZN150,195 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-62020 |
5VZFE..VZN150,195 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
5VZFE..VZN150,195 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-62040 |
5VZFE..VZN150,195 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03075 |
5VZFE..VZN150,195 *WAX 82-95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-62040 |
5VZFE..VZN150,195 |
1 | ||
| 16361 - FAN | ||||
| 16361-62010 |
5VZFE..VZN150,195 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-62041 |
5VZFE..VZN150,195 |
1 | ||
| 16381-62040 |
5VZFE..VZN150 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-62020 |
5VZFE..VZN150,195 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-0C030 |
5VZFE..VZN150..R |
1 | ||
| 16410-07060 |
5VZFE..VZN150..4HC |
1 | ||
| 16410-07061 |
5VZFE..VZN150..4HC |
1 | ||
| 16410-0C031 |
5VZFE..VZN150..R |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0C010 |
5VZFE..VZN150,195 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C010 |
5VZFE..VZN150 |
1 | ||
| 16470-0C011 |
5VZFE..VZN150,195 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0C010 |
5VZFE..VZN150,195 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90069-19002 |
5VZFE..VZN150,195 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90069-19002 |
5VZFE..VZN150,195 |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-25025 |
5VZFE..VZN150,195 |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0C030 |
5VZFE..VZN150,195 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0C020 |
5VZFE..VZN150 |
1 | ||
| 16472-0C021 |
5VZFE..VZN150,195 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C010 |
5VZFE..VZN150,195 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-07030 |
5VZFE..VZN150,195 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37002 |
5VZFE..VZN150 |
2 | ||
| 90467-37005 |
5VZFE..VZN150,195 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37002 |
5VZFE..VZN150 |
2 | ||
| 90467-37005 |
5VZFE..VZN150,195 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-07030 |
5VZFE..VZN150 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
5VZFE..VZN150,195 |
2 | ||
| 90467-37002 |
5VZFE..VZN150 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-37005 |
5VZFE..VZN150,195 |
2 | ||
| 90467-37002 |
5VZFE..VZN150 |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-62030 |
5VZFE..VZN150 |
1 | ||
| 16711-07020 |
5VZFE..VZN150 |
1 | ||
| 16702 - SHROUD SUB-ASSY, FAN, NO.2 | ||||
| 16712-07010 |
5VZFE..VZN150,195 |
1 | ||
| 16702-62010 |
5VZFE..VZN150 |
1 | ||
| 16702A - CLIP(FOR FAN SHROUD NO.2) | ||||
| 90468-06013 |
5VZFE..VZN150 |
2 | ||
| 90468-06092 |
5VZFE..VZN150,195 |
2 | ||
| Common parts | ||||
| 90116-06119 | ||||
| 90116-06127 | ||||
| 90119-08493 | ||||
| 90119-10038 | ||||
| 90179-06080 | ||||
| 90179-06293 | ||||
| 90179-06299 | ||||
| 90179-08183 | ||||
| 91621-60614 | ||||
| 91621-J0814 | ||||
| 91631-B0616 | ||||
| 96135-51300 | ||||
| 99556-10300 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 2501 | ||||

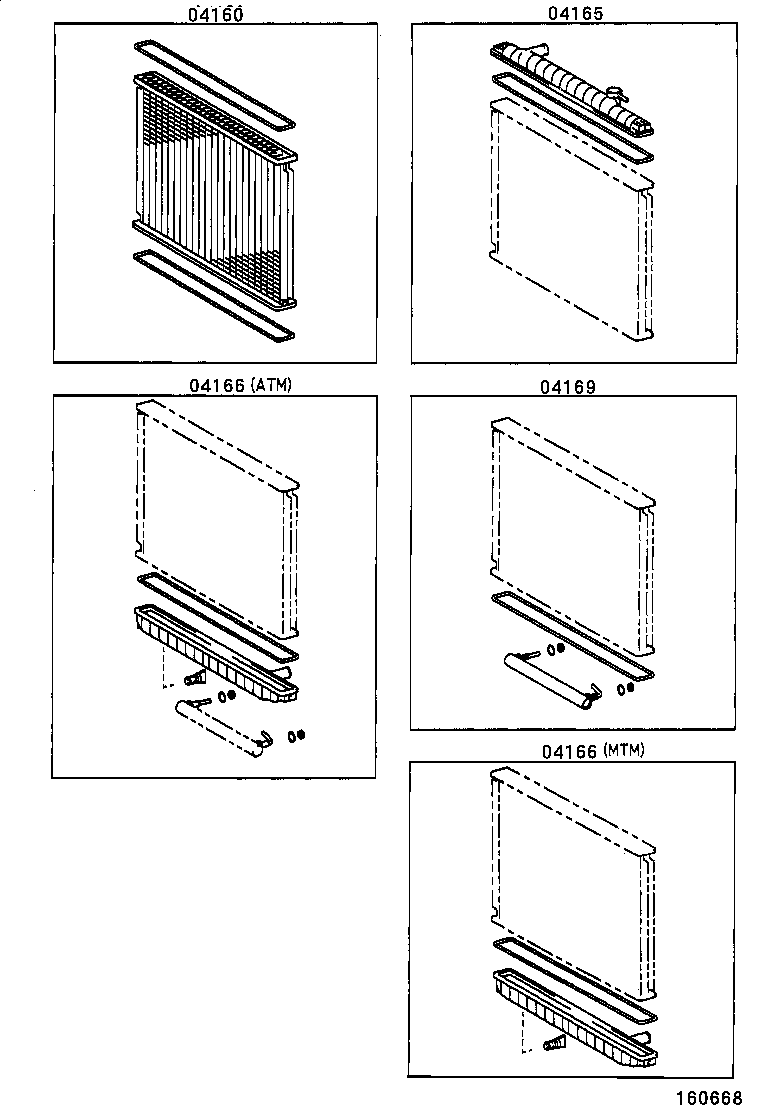

ILLUST NO. 3 OF 3(9501-0409)5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04160 - CORE KIT, RADIATOR | ||||
| 04160-04020 |
5VZFE..VZN150 |
1 | ||
| 04160-04020 |
5VZFE..VZN150 |
1 | ||
| 04165 - TANK KIT, RADIATOR, UPPER | ||||
| 04165-04010 |
5VZFE..VZN150,195 |
1 | ||
| 04165-04010 |
5VZFE..VZN150,195 |
1 | ||
| 04166 - TANK KIT, RADIATOR, LOWER | ||||
| 04166-04030 |
5VZFE..VZN150,195..ATM |
1 | ||
| 04166-04030 |
5VZFE..VZN150,195..ATM |
1 | ||
| 04166-04010 |
5VZFE..VZN150..R |
1 | ||
| 04166-04010 |
5VZFE..VZN150..R |
1 | ||
| 04166 - TANK KIT, RADIATOR, LOWER | ||||
| 04166-04030 |
5VZFE..VZN150,195..ATM |
1 | ||
| 04166-04030 |
5VZFE..VZN150,195..ATM |
1 | ||
| 04166-04010 |
5VZFE..VZN150..R |
1 | ||
| 04166-04010 |
5VZFE..VZN150..R |
1 | ||
| 04169 - COOLER KIT, OIL(FOR ATM) | ||||
| 04169-04020 |
5VZFE..VZN150,195..ATM |
1 | ||
| 04169-04020 |
5VZFE..VZN150,195..ATM |
1 | ||

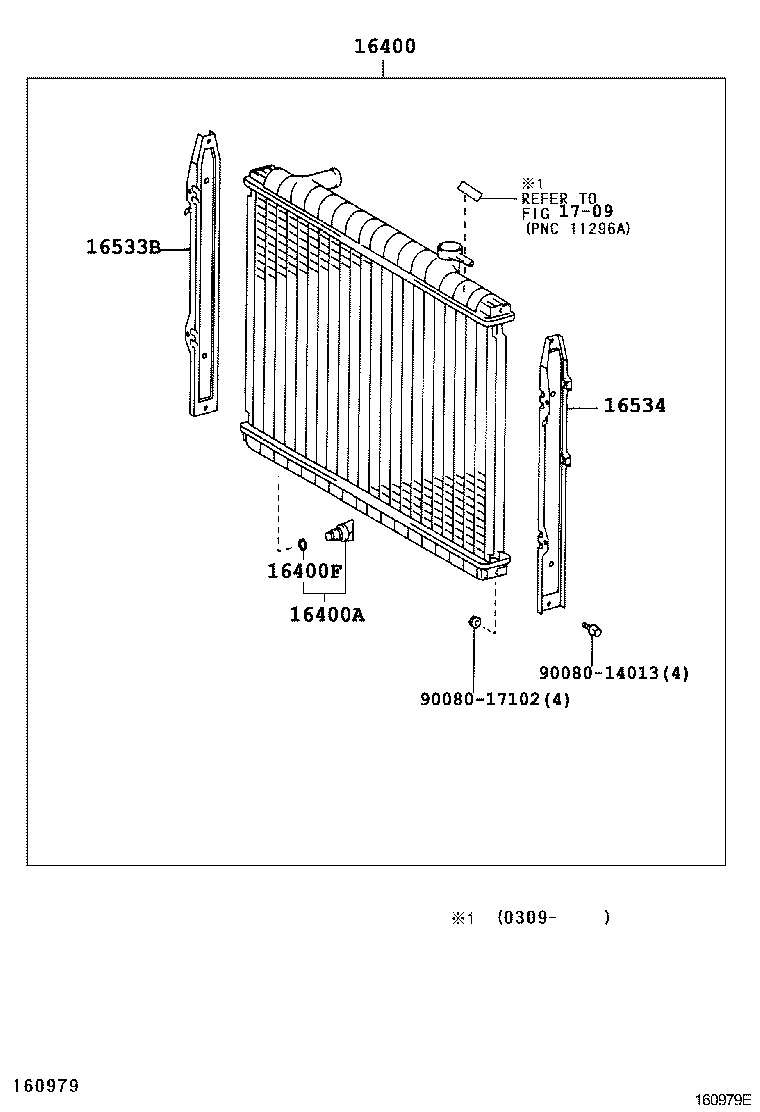

ILLUST NO. 2 OF 3(9501-0409)5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16410-0C030 |
5VZFE..VZN150..R |
1 | ||
| 16410-07060 |
5VZFE..VZN150..4HC |
1 | ||
| 16410-07061 |
5VZFE..VZN150..4HC |
1 | ||
| 16410-0C031 |
5VZFE..VZN150..R |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 90080-34011 |
5VZFE..VZN150,195 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90069-08019 |
5VZFE..VZN150,195 |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-0C020 |
5VZFE..VZN150 |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-0C020 |
5VZFE..VZN150 |
1 | ||
| Common parts | ||||
| 90080-14013 | ||||
| 90080-17102 | ||||
| Linked diagrams | ||||
| 1709 | ||||
