VZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-0409)5VZFE

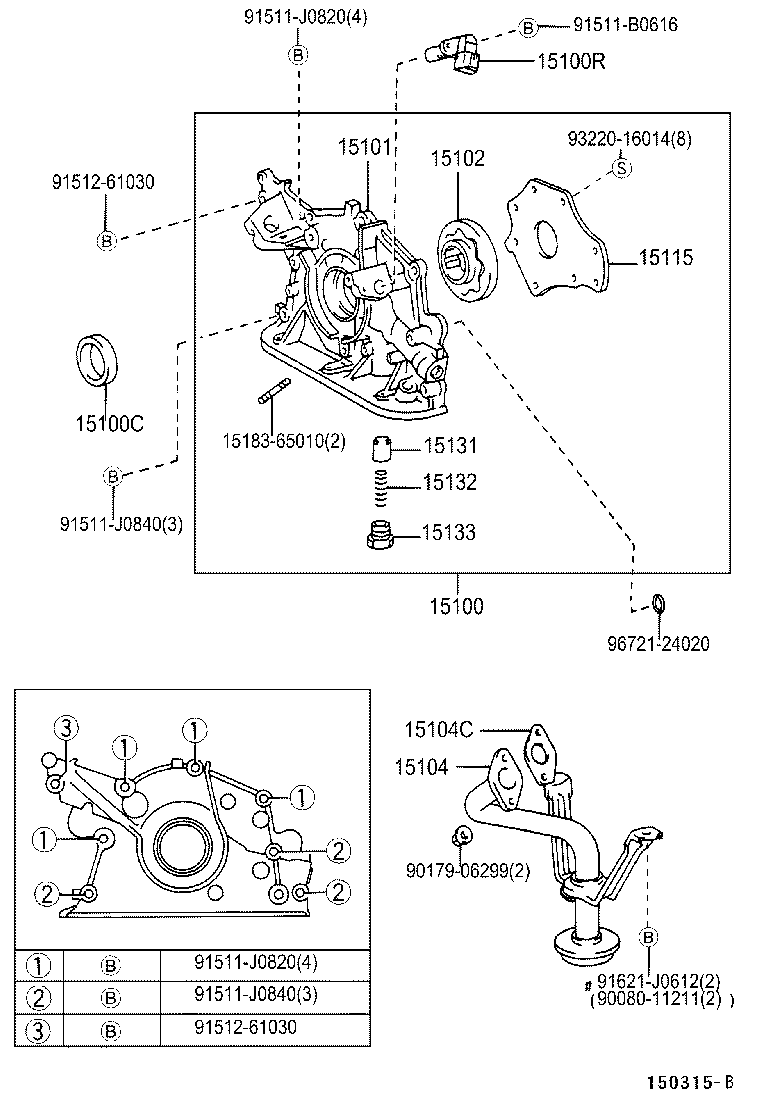

Click highlighted areas on diagram

diagram 15100 15100C 15100R 15101 15102 15104 15104C 15115 15131 15132 15133 1518365010 9008011211 9017906299 91511B0616 91511J0820 91511J0820 91511J0840 91511J0840 9151261030 9151261030 91621J0612 9322016014 9672124020
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-62050

5VZFE..VZN150,195

 1
15100C - SEAL(FOR OIL PUMP)
90311-40013

5VZFE..VZN150

 1
90311-40022

5VZFE..VZN150,195

 1
15100R - SENSOR, CRANK POSITION
90919-05020

5VZFE..VZN150,195

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-62050

5VZFE..VZN150,195

 1
15102 - ROTOR SET, OIL PUMP
15103-62030

5VZFE..VZN150,195

 1
15104 - STRAINER SUB-ASSY, OIL
15104-62050

5VZFE..VZN150

 1
15104C - GASKET(FOR OIL STRAINER)
15147-62020

5VZFE..VZN150,195

 1
15115 - COVER, OIL PUMP
15115-62040

5VZFE..VZN150,195

 1
15131 - VALVE, OIL PUMP RELIEF
15131-24010

5VZFE..VZN150,195

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-20020

5VZFE..VZN150,195

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-24010

5VZFE..VZN150,195

 1
Common parts
15183-65010
90080-11211
90179-06299
91511-B0616
91511-J0820
91511-J0840
91512-61030
91621-J0612
93220-16014
96721-24020
