VZN150L-CRSDKAB (1995)
Toyota Tacoma
Production
Jan 1995
-
Sep 2000
Engine
5VZFE
Transmission
4HC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9501- )5VZFE

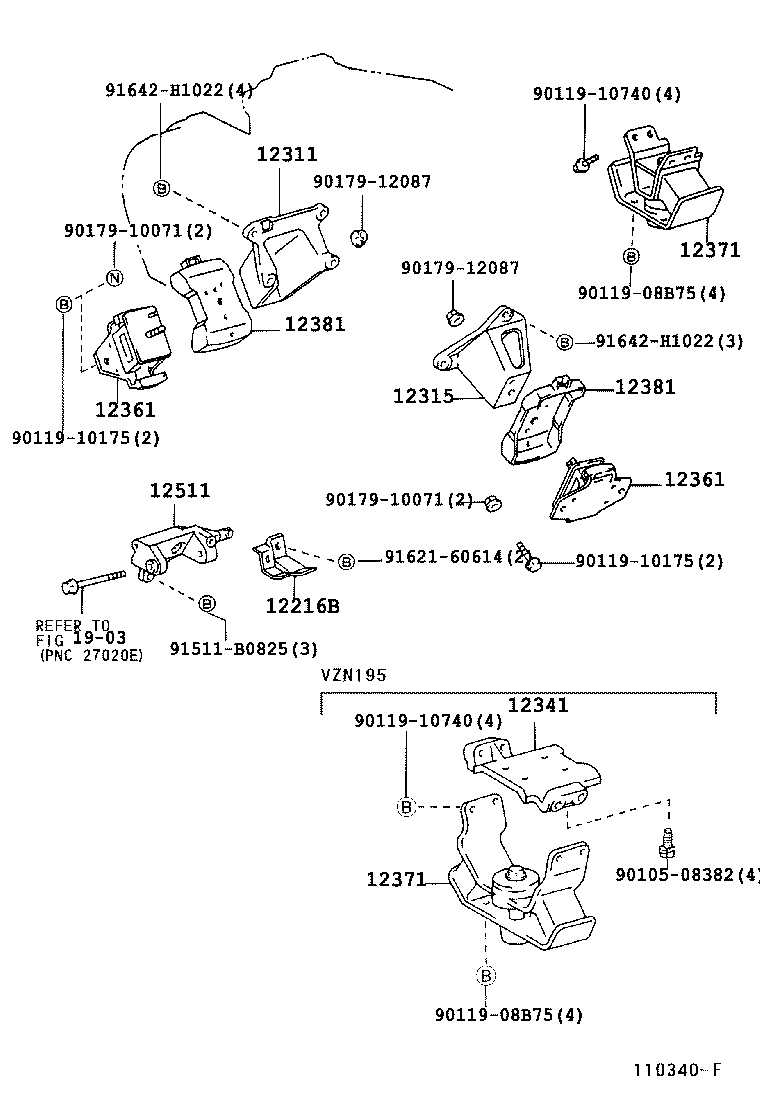

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12216B - PLATE, OIL BAFFLE | ||||
| 12216-62030 |
5VZFE..VZN150,195 |
1 | ||
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-62060 |
5VZFE..VZN150,195 |
1 | ||
| 12311-62030 |
5VZFE..VZN150,195 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-62040 |
5VZFE..VZN150,195 |
1 | ||
| 12315-62070 |
5VZFE..VZN150,195 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-62090 |
5VZFE..VZN150,195 |
2 | ||
| 12361-62140 |
5VZFE..VZN150,195 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-62090 |
5VZFE..VZN150,195 |
2 | ||
| 12361-62140 |
5VZFE..VZN150,195 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-62070 |
5VZFE..VZN150 |
1 | ||
| 12371-0C010 |
5VZFE..VZN150 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-62070 |
5VZFE..VZN150 |
1 | ||
| 12371-0C010 |
5VZFE..VZN150 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-62020 |
5VZFE..VZN150,195 RH |
1 | ||
| 12381-65030 |
5VZFE..VZN150,195 |
2 | ||
| 12382-62010 |
5VZFE..VZN150,195 LH |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-62020 |
5VZFE..VZN150,195 RH |
1 | ||
| 12381-65030 |
5VZFE..VZN150,195 |
2 | ||
| 12382-62010 |
5VZFE..VZN150,195 LH |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-62010 |
5VZFE..VZN150,195 |
1 | ||
| Common parts | ||||
| 90105-08382 | ||||
| 90119-08B75 | ||||
| 90119-10175 | ||||
| 90119-10740 | ||||
| 90179-10071 | ||||
| 90179-12087 | ||||
| 91511-B0825 | ||||
| 91621-60614 | ||||
| 91642-H1022 | ||||
| Linked diagrams | ||||
| 1903 | ||||
