VZN150L-CRSDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2000
Engine 5VZFE
Transmission 4HC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501-0409)5VZFE

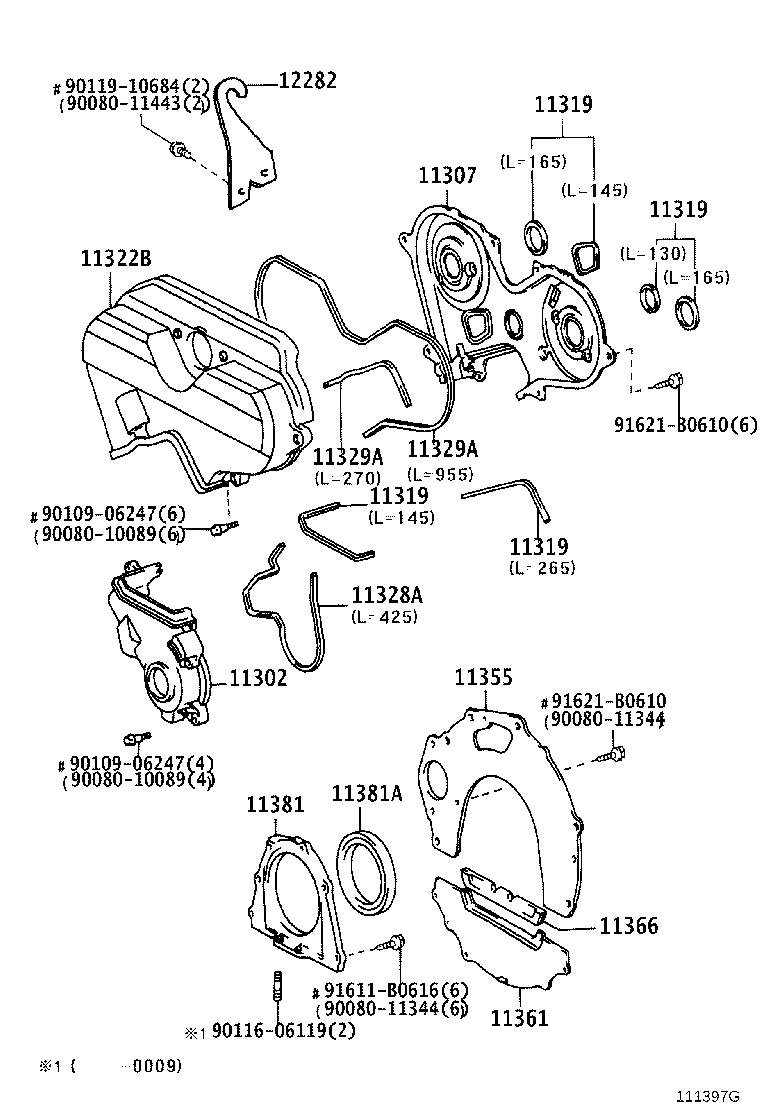

Click highlighted areas on diagram

diagram 11302 11307 11319 11319 11319 11319 11322B 11328A 11329A 11329A 11355 11361 11366 11381 11381A 12282 9008010089 9008010089 9008011344 9008011344 9008011443 9010906247 9010906247 9011606119 9011910684 91611B0616 91621B0610 91621B0610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-62900

5VZFE..VZN150,195

 1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-62900

5VZFE..VZN150

 1
11323-62050

5VZFE..VZN150,195

 1
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

5VZFE..VZN150,195

 4
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

5VZFE..VZN150,195

 4
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

5VZFE..VZN150,195

 4
11319 - GASKET, TIMING BELT COVER, NO.3
11319-20010

5VZFE..VZN150,195

 4
11322B - COVER, TIMING BELT, NO.2
11322-62901

5VZFE..VZN150,195

 1
11328A - GASKET, TIMING BELT COVER, NO.1
11328-20020

5VZFE..VZN150,195

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-20010

5VZFE..VZN150,195

 1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-20010

5VZFE..VZN150,195

 1
11355 - PLATE, REAR END
11355-65011

5VZFE..VZN150,195

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-62010

5VZFE..VZN150,195

 1
11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST
11366-65010

5VZFE..VZN150,195

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-62010

5VZFE..VZN150,195

 1
11381A - SEAL, ENGINE REAR OIL
90311-92006

5VZFE..VZN150,195

 1
12282 - HANGER, ENGINE, NO.2
12282-62070

5VZFE..VZN150,195

 1
Common parts
90080-10089
90080-11344
90080-11443
90109-06247
90116-06119
90119-10684
91611-B0616
91621-B0610
