VZN150L-CRMDKAB (1995)
Toyota Tacoma

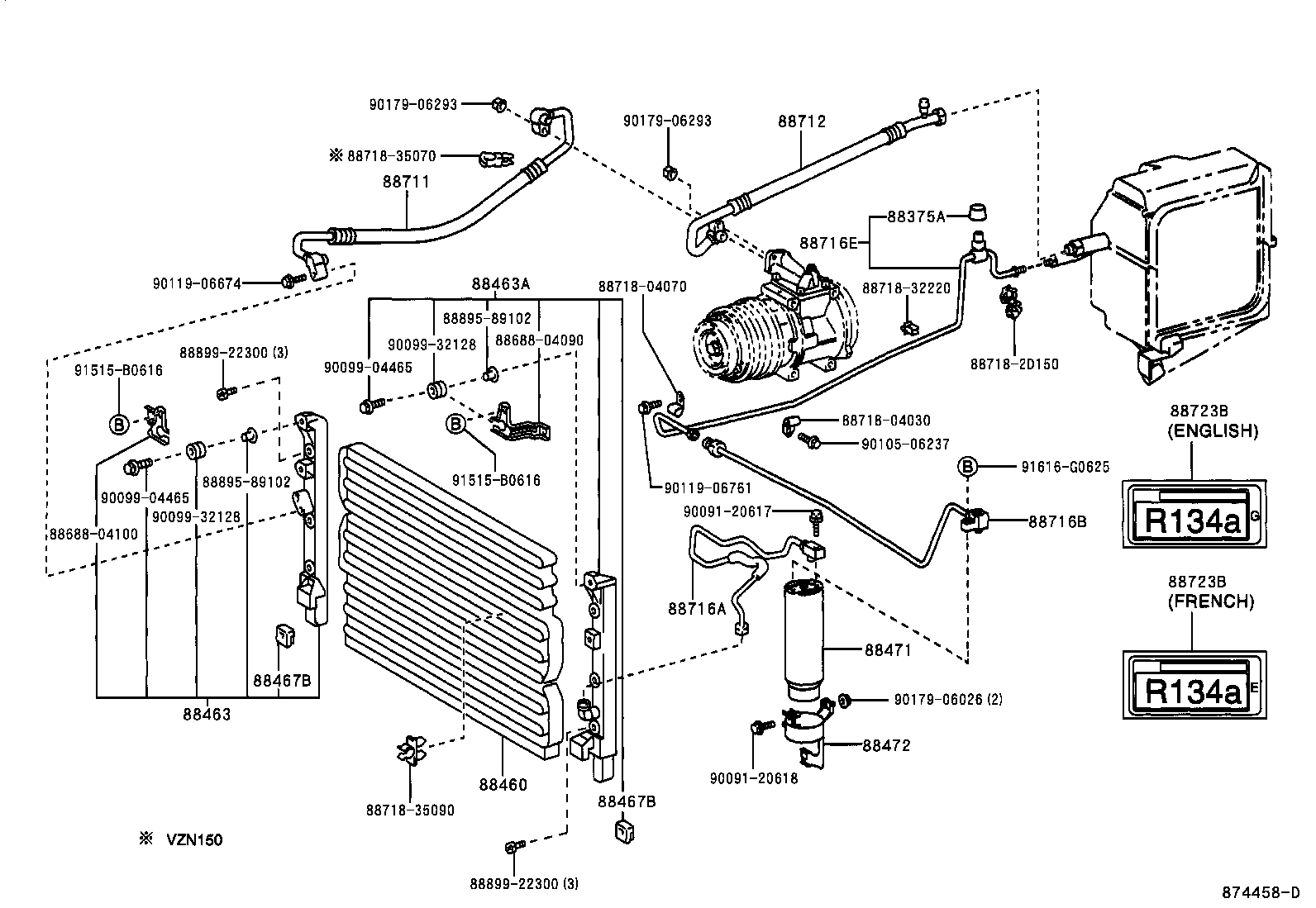

ILLUST NO. 1 OF 2(9501-0009)RZN140,150,19#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375-30290 |
VZN150 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04060 | ||||
| 88718-04030 | ||||
| 88718-04040 | ||||
| 88718-32220 | ||||
| 88718-87718 | ||||
| 88895-89102 | ||||
| 90080-11159 | ||||
| 90080-11202 | ||||
| 90080-11219 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90119-06159 | ||||
| 90119-06674 | ||||
| 90179-06026 | ||||
| 91616-G0616 | ||||
| 91616-G0625 | ||||
| 91626-60616 | ||||
| 91635-B0635 | ||||

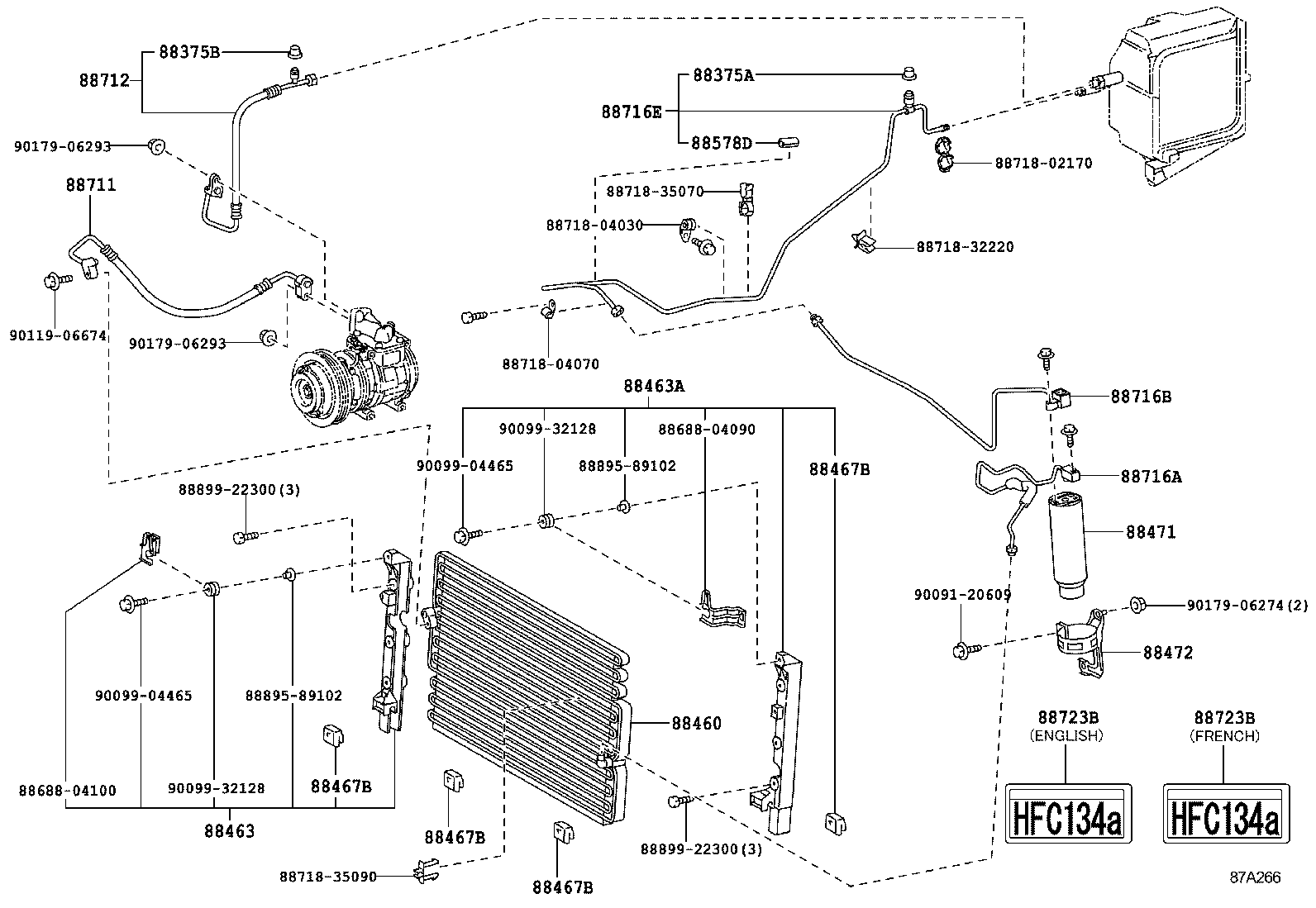

ILLUST NO. 1 OF 2(9501-0409)RZN140,150,19#
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375-30290 |
VZN150 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-50250 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-04250 |
RZN140,150,19# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04060 | ||||
| 88688-04090 | ||||
| 88688-04100 | ||||
| 88718-04040 | ||||
| 88718-32220 | ||||
| 88718-87718 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 91511-60630 | ||||
| 91651-G0614 | ||||
| 91652-B0635 | ||||
| 93385-56025 | ||||
ILLUST NO. 1 OF 2(9501-0009)VZN150,195
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375-30290 |
VZN150 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04060 | ||||
| 88718-04030 | ||||
| 88718-04040 | ||||
| 88718-32220 | ||||
| 88718-87718 | ||||
| 88895-89102 | ||||
| 90080-11159 | ||||
| 90080-11202 | ||||
| 90080-11219 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90119-06159 | ||||
| 90119-06674 | ||||
| 90179-06026 | ||||
| 91616-G0616 | ||||
| 91616-G0625 | ||||
| 91626-60616 | ||||
| 91635-B0635 | ||||
ILLUST NO. 1 OF 2(9501-0009)VZN150,195
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375-30290 |
VZN150 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-50250 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04060 | ||||
| 88688-04090 | ||||
| 88688-04100 | ||||
| 88718-04040 | ||||
| 88718-32220 | ||||
| 88718-35070 | ||||
| 88718-87718 | ||||
| 88895-89102 | ||||
| 90091-20609 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90119-06674 | ||||
| 90179-06032 | ||||
| 91511-60630 | ||||
| 91651-G0614 | ||||
| 91652-B0635 | ||||
| 93385-56025 | ||||
ILLUST NO. 2 OF 2(9501-0409)
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90069-08007 | ||||
| 90069-08009 | ||||
| 90069-08011 | ||||
| 90069-08012 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
ILLUST NO. 1 OF 2(0009-0409)RZN140,150,19#
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-04250 |
RZN140,150,19# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04090 | ||||
| 88688-04100 | ||||
| 88718-04030 | ||||
| 88718-04070 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-35090 | ||||
| 88895-89102 | ||||
| 88899-22300 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90105-06237 | ||||
| 90119-06674 | ||||
| 90119-06761 | ||||
| 90179-06026 | ||||
| 90179-06293 | ||||
| 91515-B0616 | ||||
| 91616-G0625 | ||||
ILLUST NO. 1 OF 2(0009-0409)VZN150,195
MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04090 | ||||
| 88688-04100 | ||||
| 88718-04030 | ||||
| 88718-04070 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-35070 | ||||
| 88718-35090 | ||||
| 88895-89102 | ||||
| 88899-22300 | ||||
| 90091-20617 | ||||
| 90091-20618 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90105-06237 | ||||
| 90119-06674 | ||||
| 90119-06761 | ||||
| 90179-06026 | ||||
| 90179-06293 | ||||
| 91515-B0616 | ||||
| 91616-G0625 | ||||
ILLUST NO. 1 OF 2(0009-0409)VZN150,195
DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-02060 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88375-30280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88375-30290 |
VZN150 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88461-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88460-04090 |
RZN140,150,19#,VZN150 DEALER OPTION |
1 | ||
| 88461-04020 |
RZN140,150,VZN150 |
1 | ||
| 88461-04021 |
RZN140,150,19#,VZN150,195 MAKER OPTION |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-04030 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467B - INSULATOR, COOLER CONDENSER MOUNTING | ||||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88467-35010 |
RZN140,150,19#,VZN150,195 |
2 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88471-34010 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88472-04020 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-50250 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-04110 |
VZN150,195 |
1 | ||
| 88711-04100 |
RZN140,150,19# |
1 | ||
| 88711-04050 |
RZN140,150 |
1 | ||
| 88711-04050 |
RZN140,150,19# |
1 | ||
| 88711-04060 |
VZN150 |
1 | ||
| 88711-04060 |
VZN150,195 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-04061 |
VZN150,195 |
1 | ||
| 88712-04110 |
VZN150,195 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04050 |
RZN140,150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04060 |
VZN150 |
1 | ||
| 88712-04051 |
RZN140,150,19# |
1 | ||
| 88712-04100 |
RZN140,150,19# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-04100 |
VZN150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04190 |
RZN140,150 |
1 | ||
| 88716-04103 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04101 |
RZN140,150,VZN150 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-04121 |
RZN140,150,VZN150 |
1 | ||
| 88716-04122 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04120 |
RZN140,150,VZN150 |
1 | ||
| 88716-04280 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-04112 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04110 |
RZN140,150,VZN150 |
1 | ||
| 88716-04270 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88716-04111 |
RZN140,150,19#,VZN150,195 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-04020 |
RZN140,150,VZN150 MAKER OPTION |
1 | ||
| 88723-04020 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04030 |
RZN150,VZN150 CANADA SPEC & FAMILY PACKAGE & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04030 |
RZN140,150,VZN150 CANADA SPEC & MAKER OPTION,FRENCH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,19#,VZN195 CANADA SPEC & MAKER OPTION,ENGLISH LABEL |
1 | ||
| 88723-35060 |
VZN150 FRENCH LABEL |
1 | ||
| 88723-35050 |
VZN150 ENGLISH LABEL |
1 | ||
| 88723-35050 |
RZN140,150,19#,VZN150 DEALER OPTION,ENGLISH LABEL |
1 | ||
| 88723-04020 |
RZN140,150,VZN150..5F MAKER OPTION |
1 | ||
| 88723-35060 |
RZN140,150,19#,VZN150 DEALER OPTION,FRENCH LABEL |
1 | ||
| Common parts | ||||
| 88688-04090 | ||||
| 88688-04100 | ||||
| 88718-02170 | ||||
| 88718-04030 | ||||
| 88718-04070 | ||||
| 88718-32220 | ||||
| 88718-35070 | ||||
| 88718-35090 | ||||
| 88895-89102 | ||||
| 88899-22300 | ||||
| 90091-20609 | ||||
| 90099-04465 | ||||
| 90099-32128 | ||||
| 90119-06674 | ||||
| 90179-06274 | ||||
| 90179-06293 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
