VZN150L-CRMDKAB (1995)

Toyota Tacoma

Production Jan 1995 - Sep 2004
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0009)

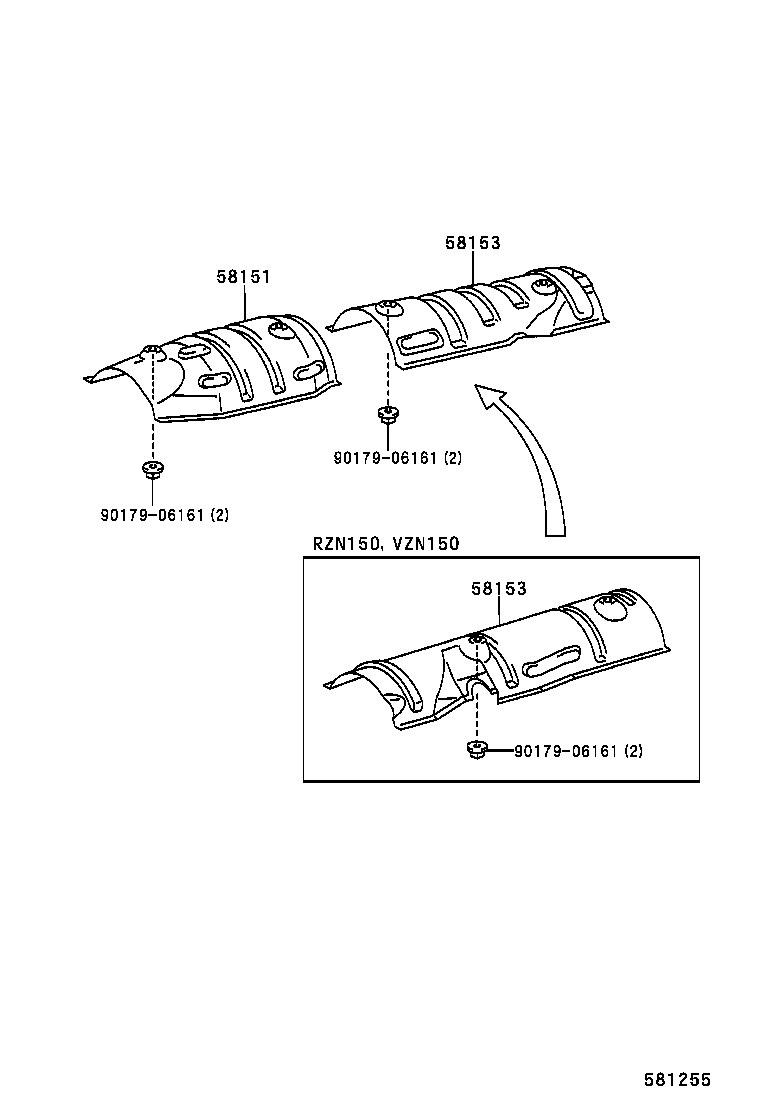

Click highlighted areas on diagram

CALIFORNIA(LEV) SPEC

diagram 58151 58153 58153 9017906161 9017906161 9017906161
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-04050

RZN140,150,19#,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58151-04051

RZN140,150,19#,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58151-35030

VZN150;RZN140,150..W

 1
58151-35030

VZN150;RZN140,150..W

 1
58151-04051

RZN140,150,19#,VZN150,195

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-04060

RZN150,196,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58153-04060

RZN150,196,VZN150,195..XTR

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-04060

RZN150,196,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58153-04060

RZN150,196,VZN150,195..XTR

 1
Common parts
90179-06161

(0009- )RZN140,150,VZN150

Click highlighted areas on diagram

diagram 58151 58153 58153 9017906161 9017906161 9017906161
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-04050

RZN140,150,19#,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58151-04051

RZN140,150,19#,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58151-35030

VZN150;RZN140,150..W

 1
58151-35030

VZN150;RZN140,150..W

 1
58151-04051

RZN140,150,19#,VZN150,195

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-04060

RZN150,196,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58153-04060

RZN150,196,VZN150,195..XTR

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-04060

RZN150,196,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58153-04060

RZN150,196,VZN150,195..XTR

 1
Common parts
90179-06161

(9501-0009)RZN140,150,VZN150

Click highlighted areas on diagram

diagram 58151 9017906161
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-04050

RZN140,150,19#,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58151-04051

RZN140,150,19#,VZN150,195

CALIFORNIA(LEV) SPEC

 1
58151-35030

VZN150;RZN140,150..W

 1
58151-35030

VZN150;RZN140,150..W

 1
58151-04051

RZN140,150,19#,VZN150,195

 1
Common parts
90179-06161
