TRN265L-PRPDKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1109- )

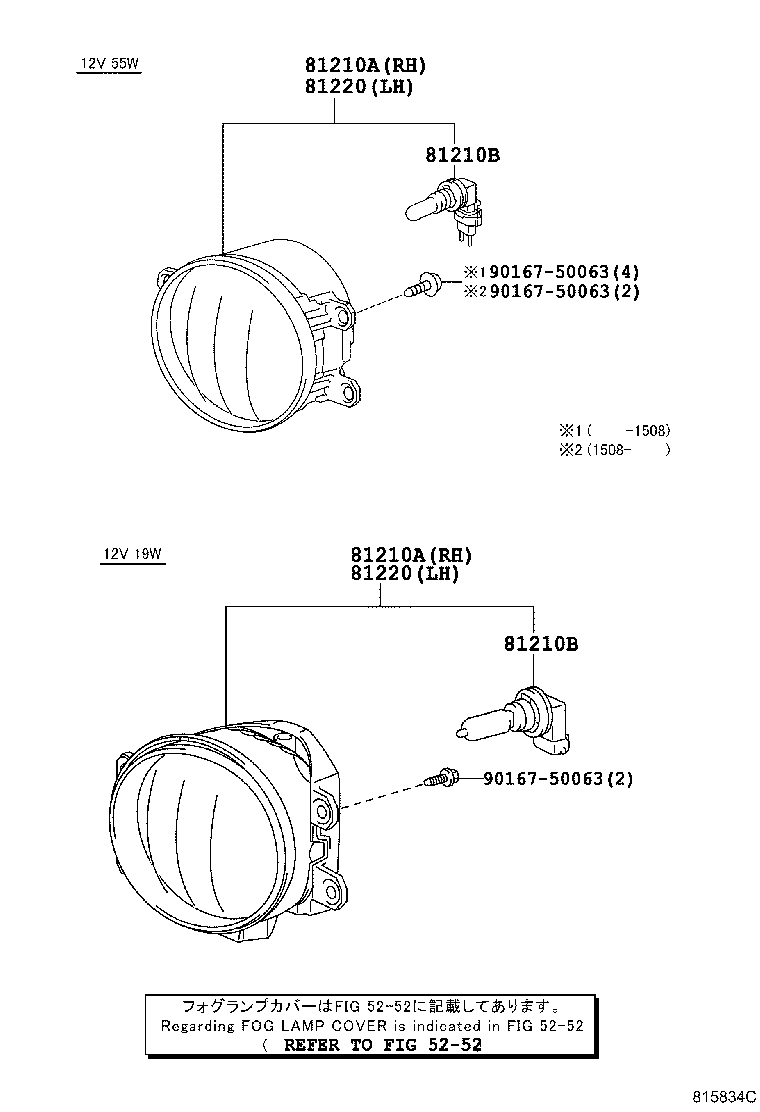

Click highlighted areas on diagram

diagram 5252 81210A 81210A 81210B 81210B 81220 81220 9016750063 9016750063 9016750063
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-08020

GRN245,250,265,270

FRONT FOG LAMP-WITH

 1
81210A - LAMP ASSY, FOG, RH
81210-08020

GRN245,250,265,270

FRONT FOG LAMP-WITH

 1
81210B - BULB, FOG LAMP
90981-AD006

GRN245,250,265,270

12V 55W,FRONT FOG LAMP-WITH

 2
81210B - BULB, FOG LAMP
90981-AD006

GRN245,250,265,270

12V 55W,FRONT FOG LAMP-WITH

 2
81220 - LAMP ASSY, FOG, LH
81220-08020

GRN245,250,265,270

FRONT FOG LAMP-WITH

 1
81220 - LAMP ASSY, FOG, LH
81220-08020

GRN245,250,265,270

FRONT FOG LAMP-WITH

 1
Common parts
90167-50063
Linked diagrams
5252
