TRN265L-PRPDKA (2010)

Toyota Tacoma

Production Jun 2010 - Sep 2011
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

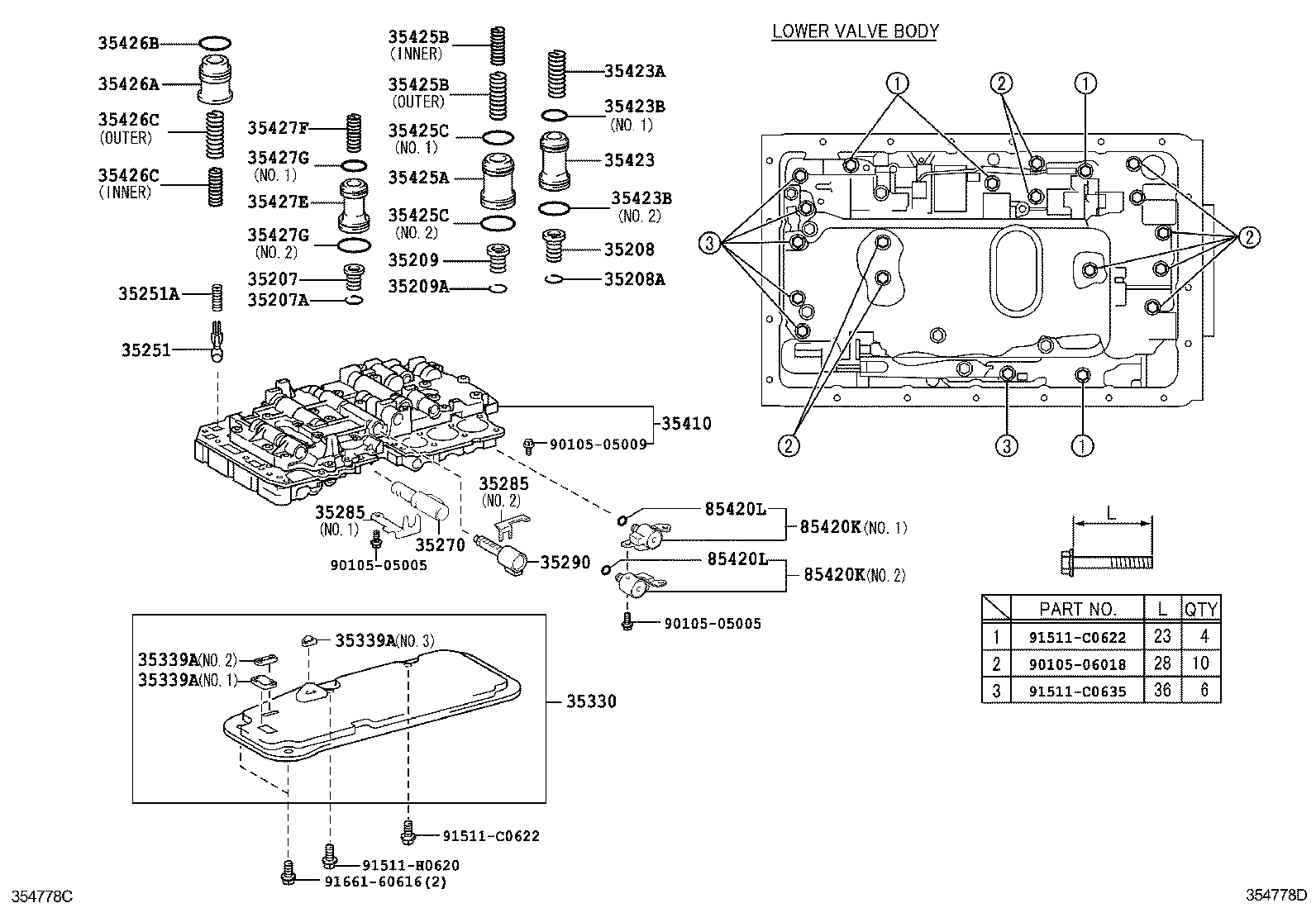

ILLUST NO. 1 OF 2(0409-1508)4FC

Click highlighted areas on diagram

A340E,A340F

diagram 35207 35207A 35208 35208A 35209 35209A 35251 35251A 35270 35285 35285 35290 35330 35339A 35339A 35339A 35410 35423 35423A 35423B 35423B 35425A 35425B 35425B 35425C 35425C 35426A 35426B 35426C 35426C 35427E 35427F 35427G 35427G 85420K 85420K 85420L 85420L 9010505005 9010505005 9010505009 9010506018 91511C0622 91511C0622 91511C0635 91511H0620 9166160616
Part # Description Qty Price
35410 - BODY ASSY, TRANSMISSION VALVE
35410-26740

TRN24#,265..4FC

 1
Common parts
90105-05005
90105-05009
90105-06018
91511-C0622
91511-C0635
91511-H0620
91661-60616

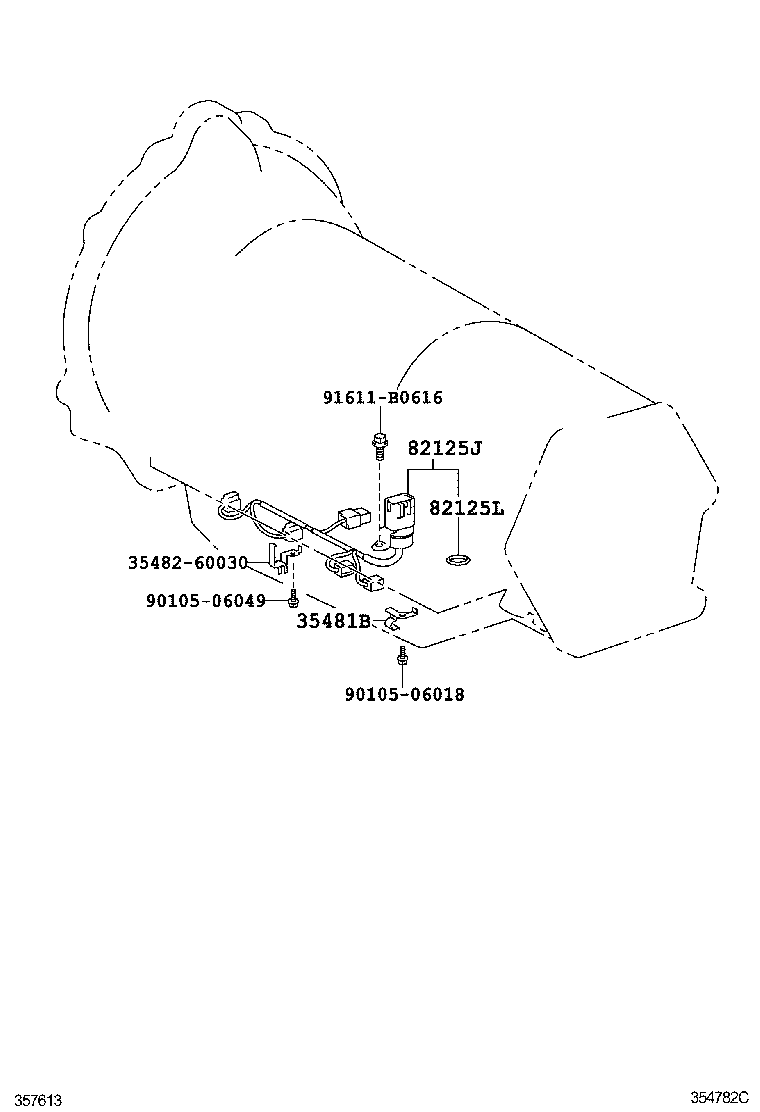

ILLUST NO. 2 OF 2(0409-1508)4FC

Click highlighted areas on diagram

A340E,A340F

diagram 35481B 3548260030 82125J 82125L 9010506018 9010506049 91611B0616
Part # Description Qty Price
Common parts
35482-60030
90105-06018
90105-06049
91611-B0616
