TRN260L-TRMDKA (2004)
Toyota Tacoma

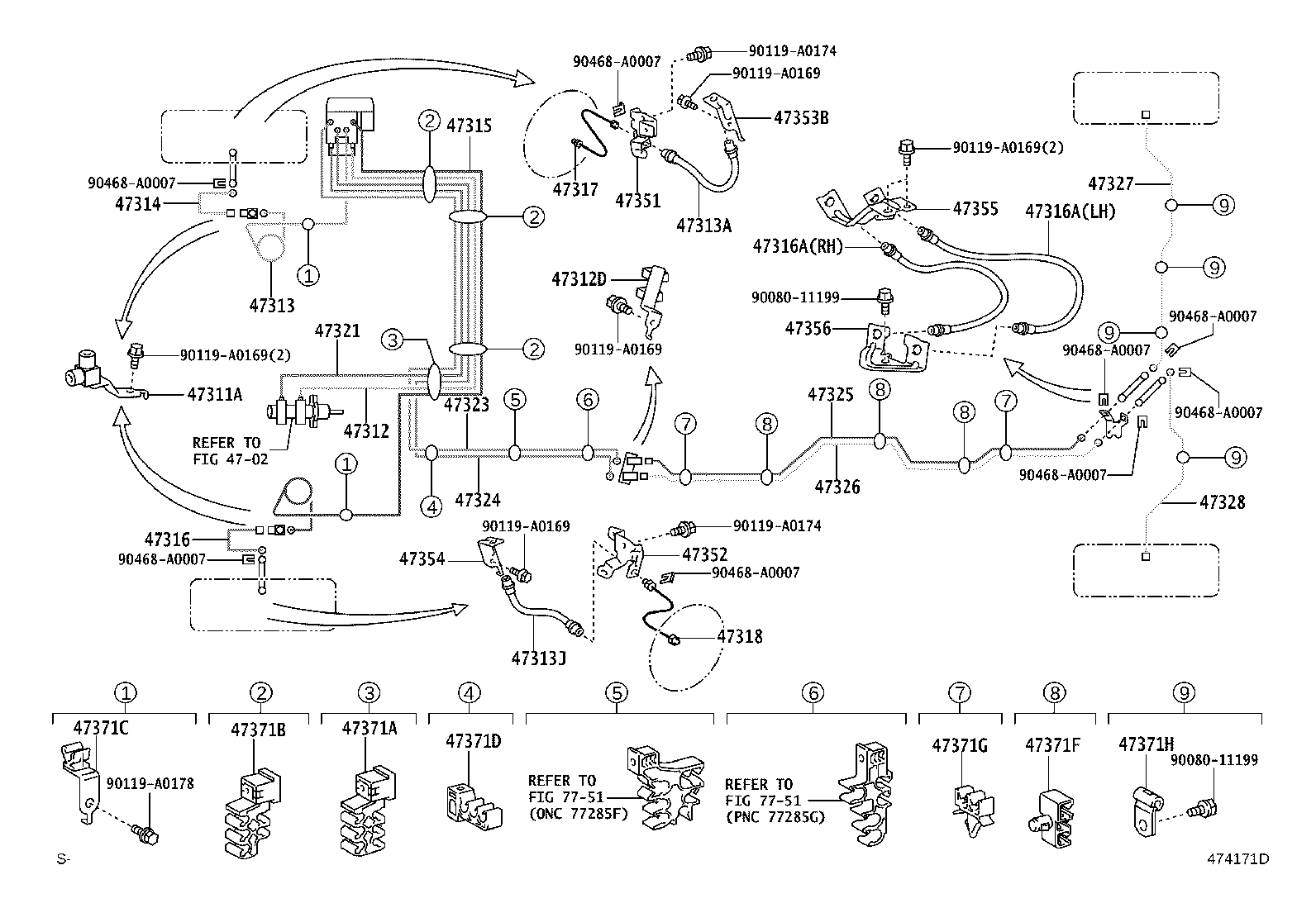

ILLUST NO. 1 OF 2(0409-0805)TRN240,260
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10247 |
GRN225,245,250,265,270,TRN22#,24#,26# |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-04140 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47312D - WAY, 2(FOR REAR BRAKE TUBE) | ||||
| 90412-10248 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-04200 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47313-04200 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47313-04190 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94073 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90080-94073 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-04150 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-04160 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47315-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47315-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-04150 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-A2004 |
GRN245,250,265,270,TRN24#,26# RH |
1 | ||
| 90947-A2003 |
GRN245,250,265,270,TRN24#,26# LH |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-A2004 |
GRN245,250,265,270,TRN24#,26# RH |
1 | ||
| 90947-A2003 |
GRN245,250,265,270,TRN24#,26# LH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-04050 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-04110 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-04110 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-04160 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47323-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47323-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-04130 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47324-04120 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47324-04130 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-04160 |
TRN220,240,260 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-04130 |
TRN220,240,260 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-04060 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-04020 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-04040 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-04040 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-04010 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-04010 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47355-04020 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-04010 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-A4002 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 90949-A4003 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 90949-A4002 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-A4004 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 90949-A4005 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 90949-A4005 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-A4008 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 90949-A4008 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 90949-A4008 |
GRN225,245,250,265,270,TRN22#,24#,26# |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01C95 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-A1006 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-A0004 |
TRN220,240,260 |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90461-08690 |
GRN225,245,250,265,270,TRN22#,24#,26# |
4 | ||
| Common parts | ||||
| 90080-11199 | ||||
| 90119-A0169 | ||||
| 90119-A0174 | ||||
| 90119-A0178 | ||||
| 90468-A0007 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||

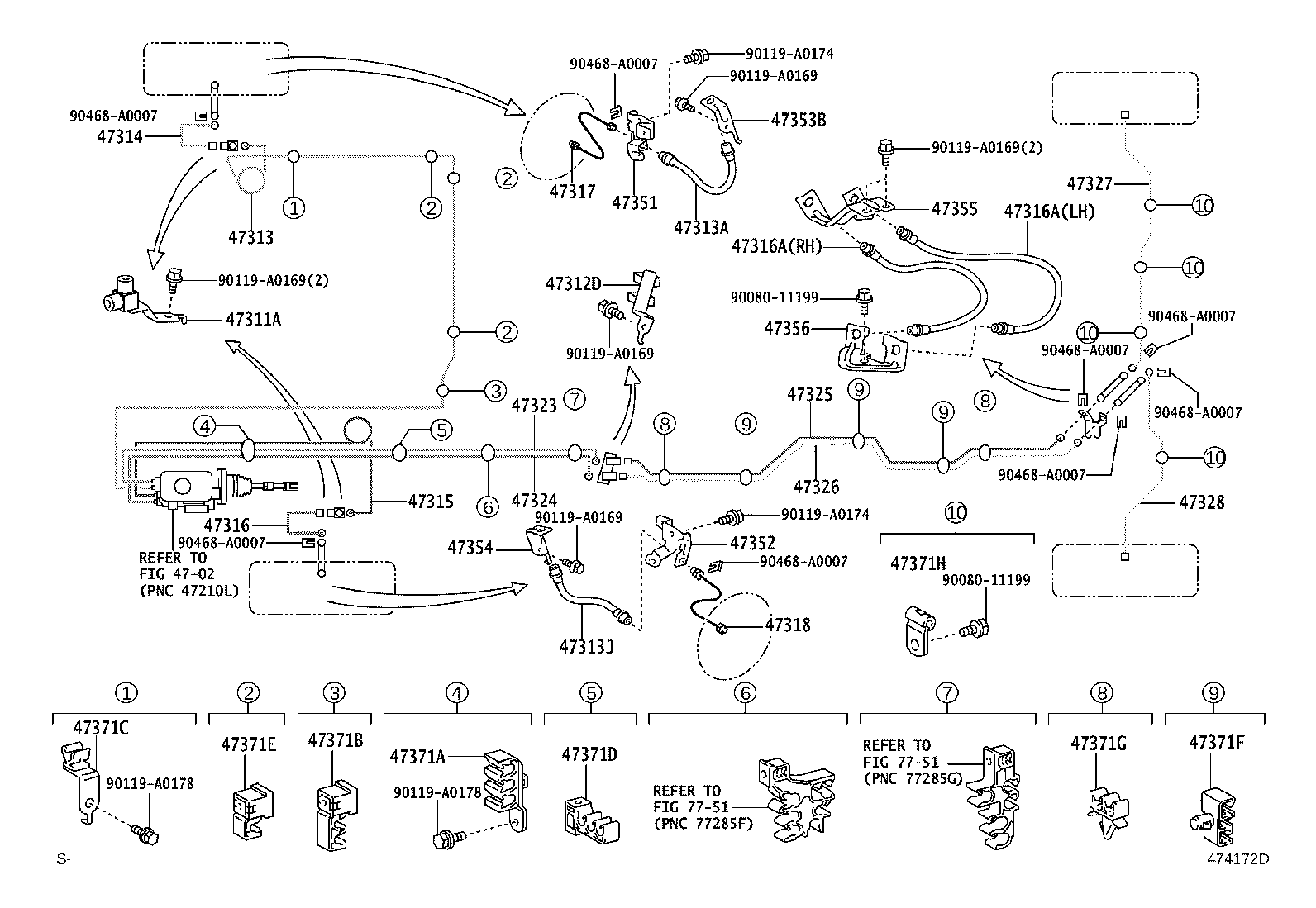

(0409-0805)TRN240,260
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10247 |
GRN225,245,250,265,270,TRN22#,24#,26# |
2 | ||
| 47312D - WAY, 2(FOR REAR BRAKE TUBE) | ||||
| 90412-10248 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-04200 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47313-04200 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47313-04190 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94073 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90080-94073 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-04150 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-04160 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47315-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47315-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-04150 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-A2004 |
GRN245,250,265,270,TRN24#,26# RH |
1 | ||
| 90947-A2003 |
GRN245,250,265,270,TRN24#,26# LH |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-A2004 |
GRN245,250,265,270,TRN24#,26# RH |
1 | ||
| 90947-A2003 |
GRN245,250,265,270,TRN24#,26# LH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-04050 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-04110 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-04160 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47323-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47323-04170 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-04130 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47324-04120 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47324-04130 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-04160 |
TRN220,240,260 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-04130 |
TRN220,240,260 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-04060 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-04020 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-04040 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-04040 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-04010 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-04010 |
GRN245,250,265,270,TRN24#,26# |
1 | ||
| 47355 - BRACKET, FLEXIBLE HOSE, NO.2(FOR FRONT) | ||||
| 47355-04020 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47356 - BRACKET, FLEXIBLE HOSE, NO.6 | ||||
| 47356-04010 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-A4002 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 90949-A4003 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 90949-A4002 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-A4004 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 90949-A4005 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 90949-A4005 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-A4008 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 90949-A4008 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 90949-A4008 |
GRN225,245,250,265,270,TRN22#,24#,26# |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-01C95 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-A4006 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD & OFF SW) |
3 | ||
| 90949-A4006 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90949-A1006 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90469-A0004 |
TRN220,240,260 |
2 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90461-08690 |
GRN225,245,250,265,270,TRN22#,24#,26# |
4 | ||
| Common parts | ||||
| 90080-11199 | ||||
| 90119-A0169 | ||||
| 90119-A0174 | ||||
| 90119-A0178 | ||||
| 90468-A0007 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
ILLUST NO. 2 OF 2(0409-0805)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-04080 |
GRN265,270,TRN26# VSC-WITH(W/AUTO LSD & OFF SW) |
1 | ||
| 44050-04080 |
GRN265,270,TRN26# |
1 | ||
| 44050-04080 |
GRN265,270,TRN26# VSC-WITH(W/AUTO LSD) |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-0C050 |
GRN225,245,250,265,270,TRN22#,24#,26# |
2 | ||
| 44545-0C050 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-0C050 |
GRN225,245,250,265,270,TRN22#,24#,26# |
2 | ||
| 44545-0C050 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0C050 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 44546-0C050 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0C050 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 44546-0C050 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-0C050 |
GRN225,245,250,265,270,TRN22#,24#,26# |
3 | ||
| 44546-0C050 |
GRN245,250,265,270,TRN22#,24#,26# VSC-WITH(W/AUTO LSD) |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-04020 |
GRN225,245,250,265,270,TRN22#,24#,26# |
1 | ||
| Common parts | ||||
| 90080-18069 | ||||
| 90178-A0064 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
