TRN245L-CRTSKA (2015)
Toyota Tacoma
Production
Aug 2015
-
Nov 2017
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

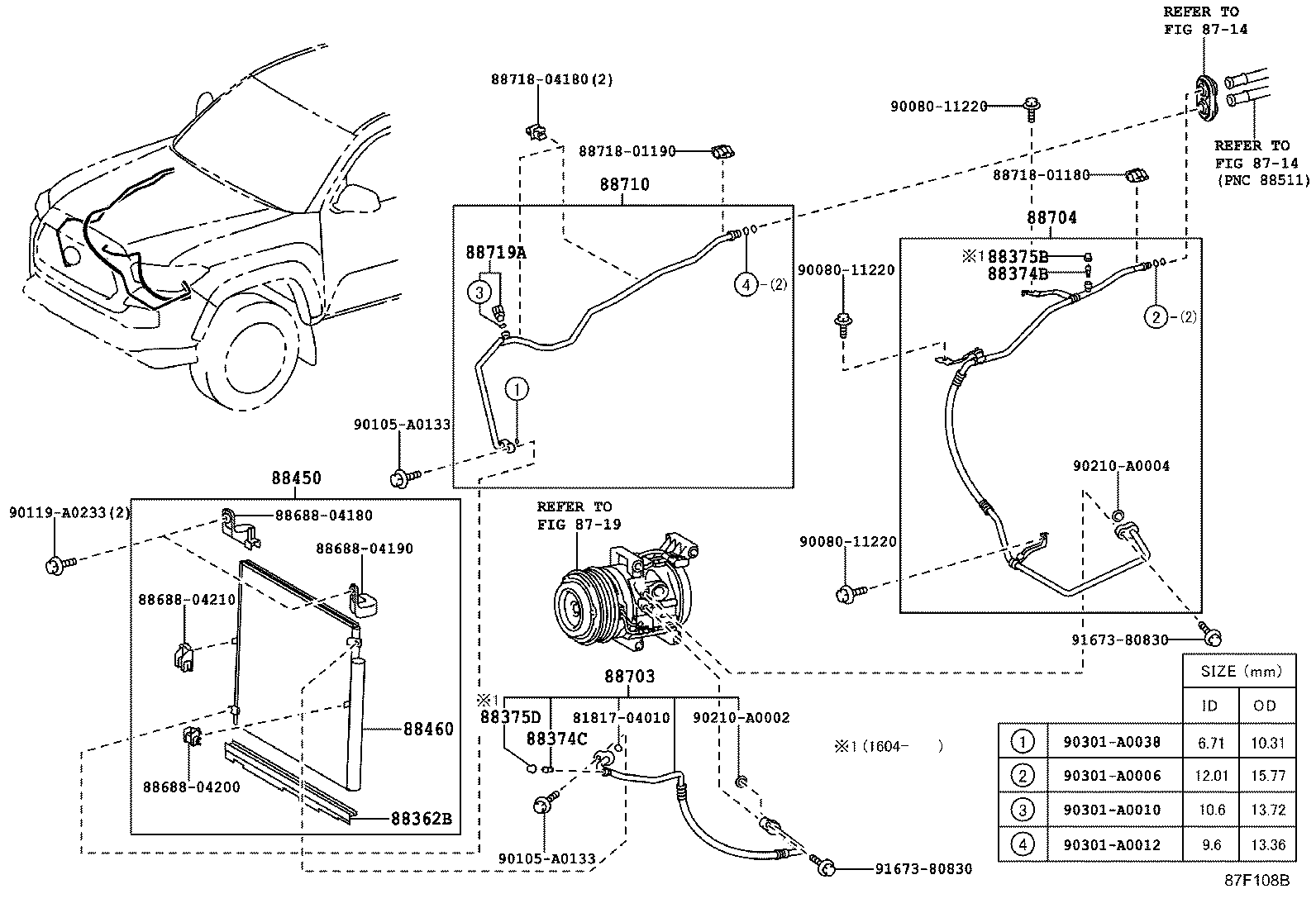

ILLUST NO. 2 OF 2(1508- )TRN245,265
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88362B - PLATE, SEAL | ||||
| 88362-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-04030 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-04011 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-04200 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-04040 |
TRN245,265 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-04050 |
TRN245,265 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-04500 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-04010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| Common parts | ||||
| 81817-04010 | ||||
| 88688-04180 | ||||
| 88688-04190 | ||||
| 88688-04200 | ||||
| 88688-04210 | ||||
| 88718-01180 | ||||
| 88718-01190 | ||||
| 88718-04180 | ||||
| 90080-11220 | ||||
| 90105-A0133 | ||||
| 90119-A0233 | ||||
| 90210-A0002 | ||||
| 90210-A0004 | ||||
| 90301-A0006 | ||||
| 90301-A0010 | ||||
| 90301-A0012 | ||||
| 90301-A0038 | ||||
| 91673-80830 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
