TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(1508- )

Click highlighted areas on diagram

AIR DUCT

diagram 55843A 55844 55845A 55950G 55971C 55972C 87212 87213 87215G 87216G 87220 87230 9008011353 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008015073 9008018013 9008018013 9008018013 9015950002
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-04080

GRN305,310,325,330,TRN245,265

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-04110

GRN305,310,325,330,TRN245,265

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-04041

GRN305,310,325,330,TRN245,265

 1
55845-04040

GRN305,310,325,330,TRN245,265

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-04040

GRN305,310,325,330,TRN245,265

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-04010

GRN305,310,325,330,TRN245,265

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-04010

GRN305,310,325,330,TRN245,265

 1
87220 - DUCT ASSY, AIR
87220-04020

GRN305,310,325,330,TRN245,265

 1
87230 - DUCT ASSY, AIR, HEATER
87230-04020

GRN305,310,325,330,TRN245,265

 1
Common parts
90080-11353
90080-15073
90080-18013
90159-50002

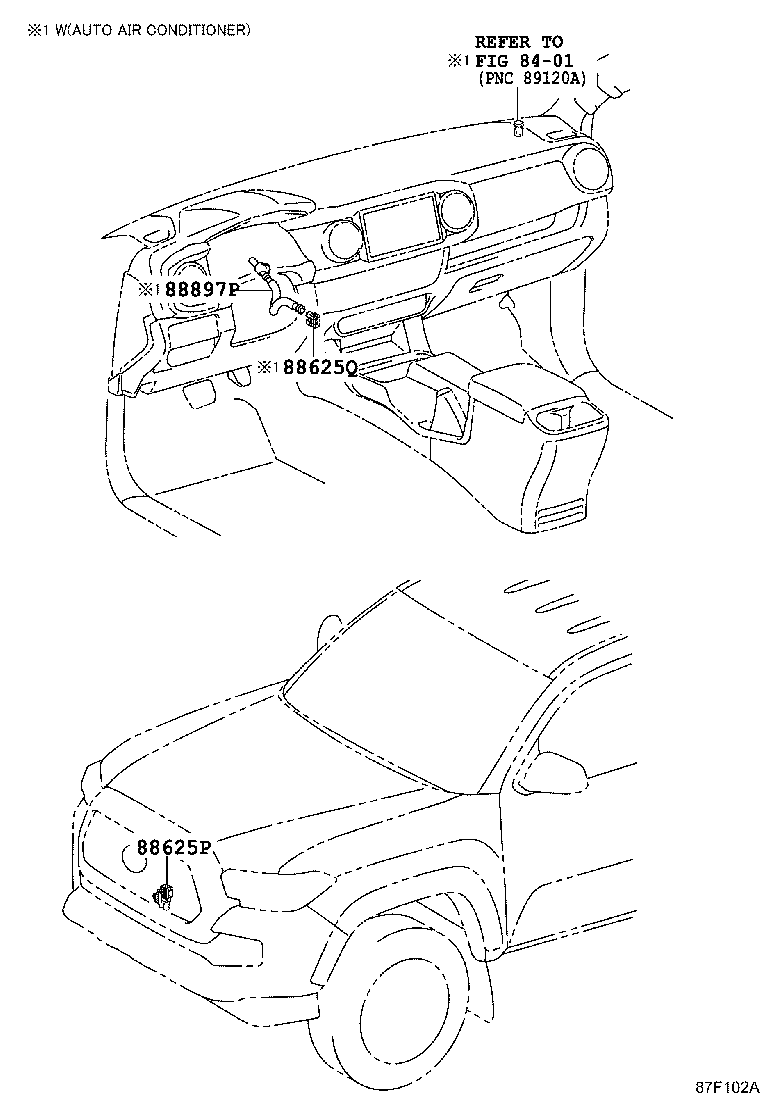

ILLUST NO. 3 OF 3(1508- )

Click highlighted areas on diagram

SENSOR

diagram 8401 88625P 88625Q 88897P
Part # Description Qty Price
88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR)
88790-06010

GRN305,310,325,330,TRN245,265

 1
Linked diagrams
8401
