TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )

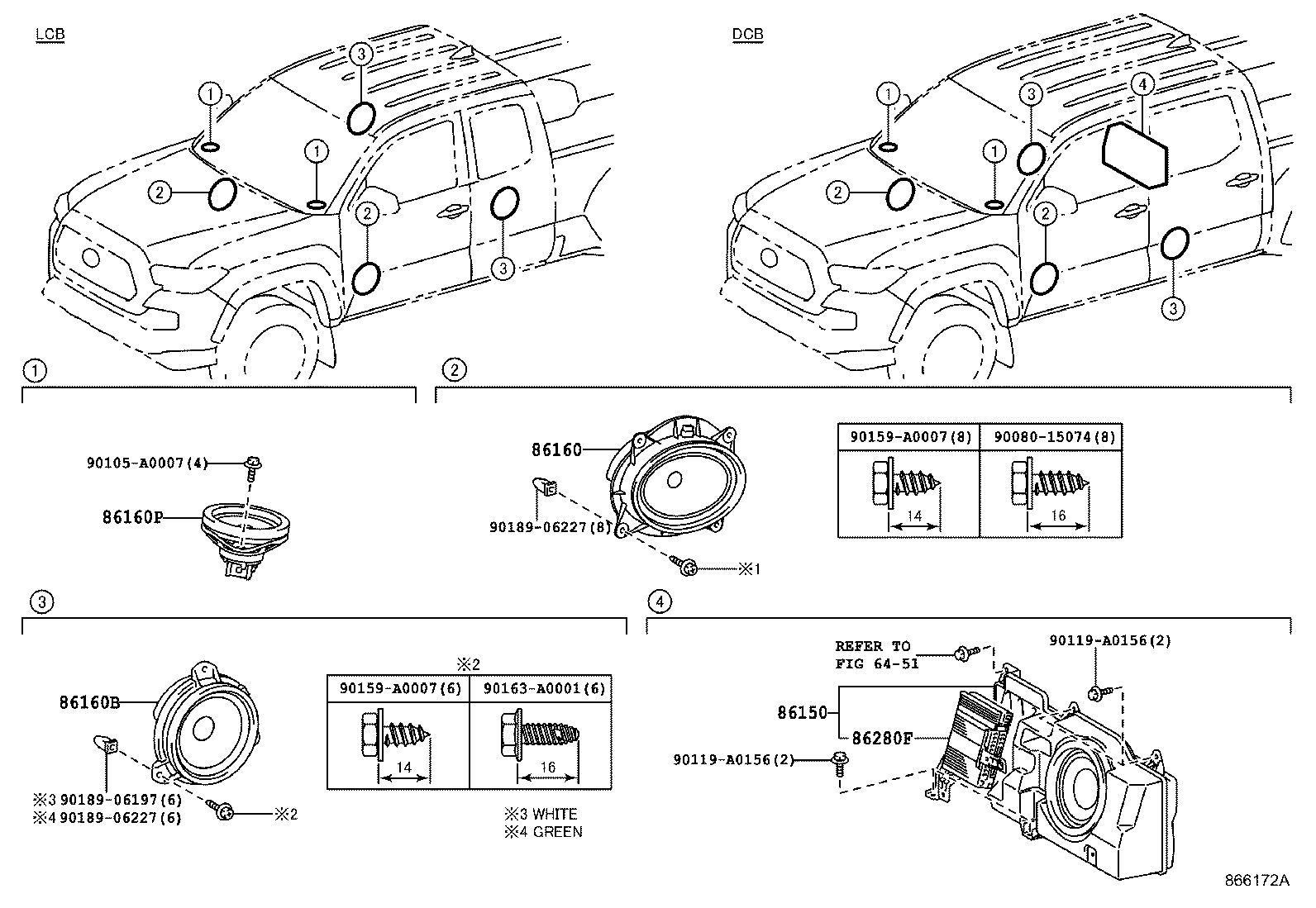

Click highlighted areas on diagram

diagram 6451 86150 86160 86160B 86160P 86280F 9008015074 90105A0007 90119A0156 90119A0156 90159A0007 90159A0007 90163A0001 9018906197 9018906227 9018906227
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-AA440

GRN305,310,325,330,TRN245,265..SR5

 2
86160B - SPEAKER ASSY, REAR
86160-0R090

GRN305,310,325,330,TRN245,265..SR5

 2
86160-0R090

GRN305,310,325,330,TRN245,265..SR5

AUDIO-*DA & 4SPEAKER

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-0WF61

GRN305,310,325,330,TRN245,265..SR5

 2
Common parts
90080-15074
90105-A0007
90119-A0156
90159-A0007
90163-A0001
90189-06197
90189-06227
Linked diagrams
6451
