TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )TRN245,265

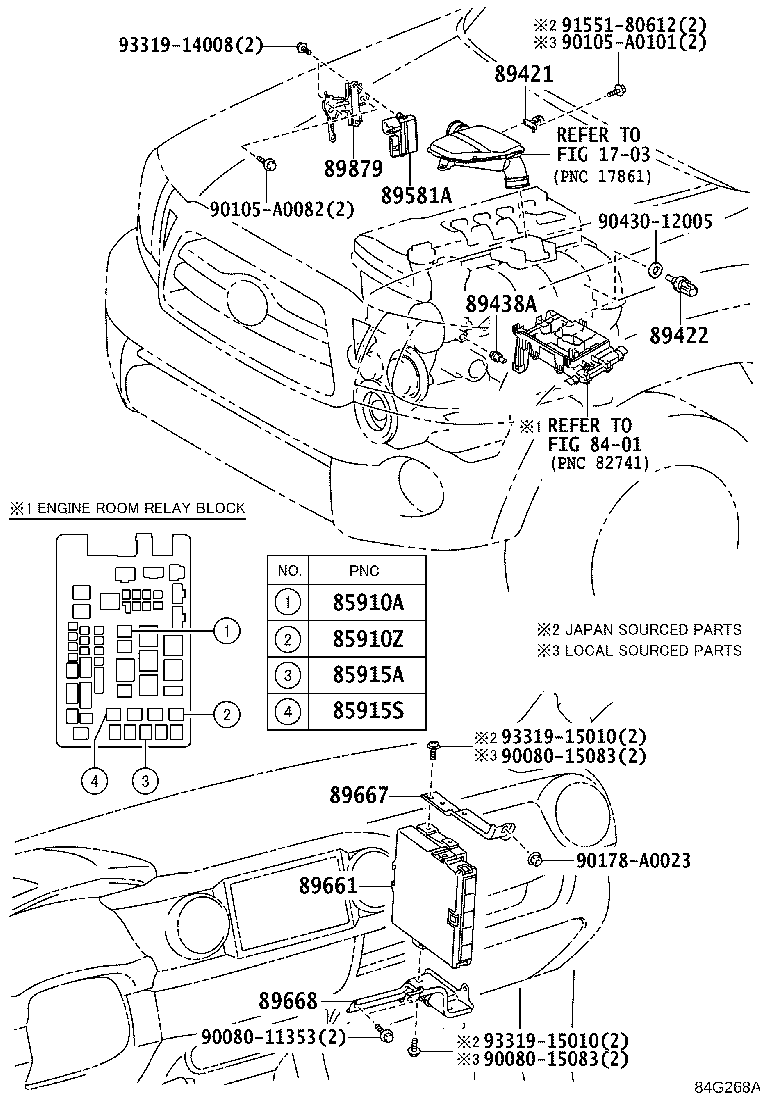

Click highlighted areas on diagram

diagram 1703 8401 85910A 85910Z 85915A 85915S 89421 89422 89438A 89581A 89661 89667 89668 89879 9008011353 9008015083 9008015083 90105A0082 90105A0101 90178A0023 9043012005 9155180612 9331914008 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87026

TRN245,265

 1
85910Z - RELAY, INJECTION (FOR EFI)
90080-87026

GRN305,310,325,330,TRN245,265

 1
85915A - RELAY, MAIN
90080-87026

TRN245,265

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90080-87026

GRN305,310,325,330,TRN245,265

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-71010

TRN245,265

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

TRN245,265

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

GRN305,310,325,330,TRN245,265

 1
89438-71010

GRN305,310,325,330,TRN245,265

 1
89581A - DRIVER, AIR INJECTION CONTROL
89581-60010

TRN245,265

 1
89661 - COMPUTER, ENGINE CONTROL
89661-04J70

TRN245,265..6FC

 1
89661-04J73

TRN245,265..6FC

DENSO

 1
89661-04J72

TRN245,265..6FC

 1
89661-04J71

TRN245,265..6FC

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-04070

GRN305,310,325,330,TRN245,265

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-04050

GRN305,310,325,330,TRN245,265

 1
89879 - BRACKET, INJECTOR DRIVER
89589-35040

TRN245,265

 1
Common parts
90080-11353
90080-15083
90105-A0082
90105-A0101
90178-A0023
90430-12005
91551-80612
93319-14008
93319-15010
Linked diagrams
1703
8401
