TRN245L-CRTSKA (2015)
Toyota Tacoma
ILLUST NO. 2 OF10(1508- )
TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-04020 |
GRN305,310,325,330,TRN245,265..6FC |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-04020 |
GRN305,310,325,330,TRN245,265..6FC |
1 | ||
| Common parts | ||||
| 90105-T0070 | ||||
| 90119-08C62 | ||||
| 90119-A0406 | ||||
| 90430-18008 | ||||
| 90430-18032 | ||||
ILLUST NO. 4 OF 9(1508-1711)
ENGINE ROOM
| Part # | Description | Qty | Price |
|---|

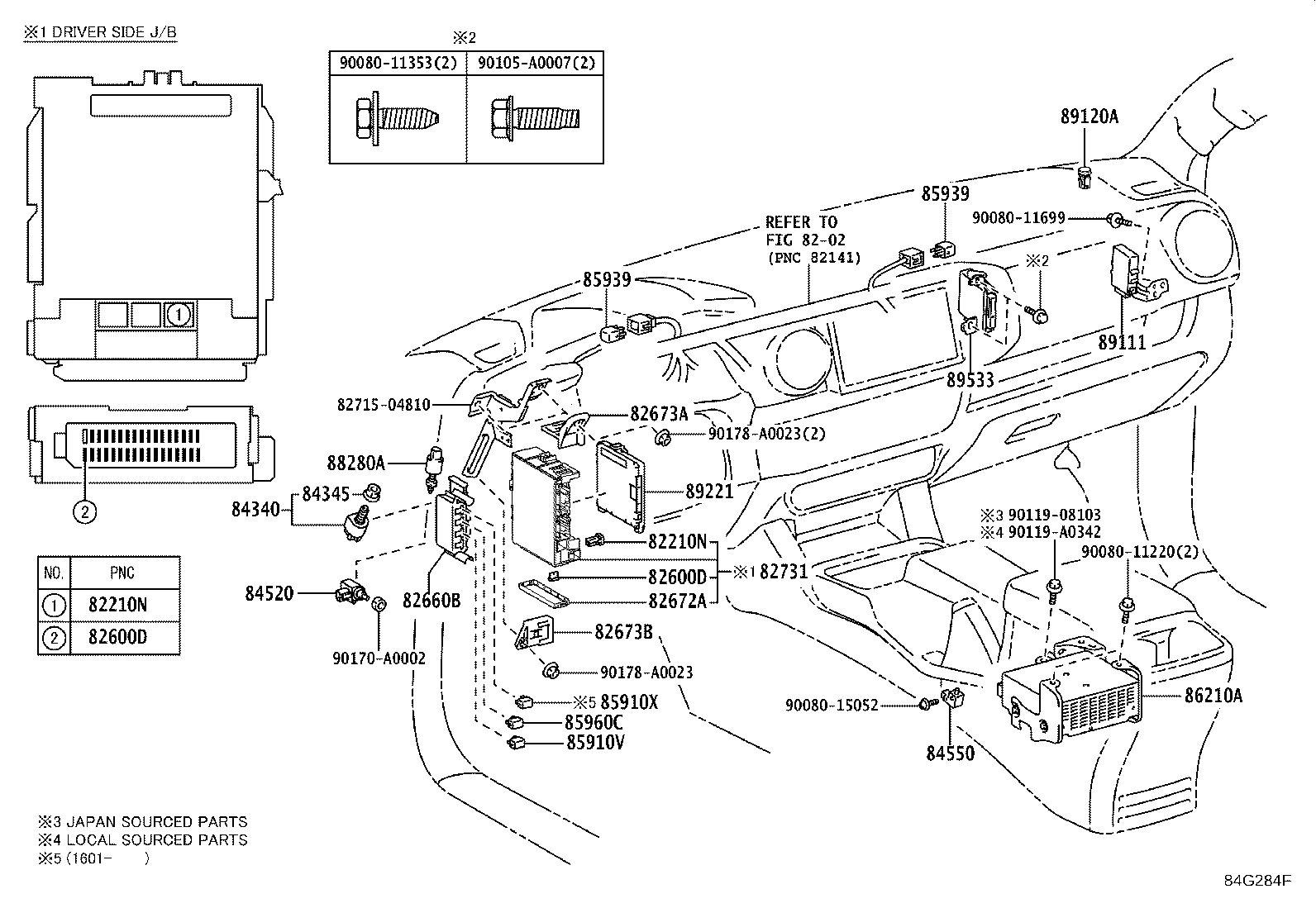

ILLUST NO. 5 OF10(1508- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GRN305,310,325,330,TRN245,265 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GRN305,310,325,330,TRN245,265 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09023 |
GRN305,310,325,330,TRN245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRN305,310,325,330,TRN245,265 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GRN305,310,325,330,TRN245,265 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GRN305,310,325,330,TRN245,265 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRN305,310,325,330,TRN245,265 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GRN305,310,325,330,TRN245,265 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09025 |
GRN305,310,325,330,TRN245,265 30A,MINI FUSE,GRN |
1 | ||
| 90982-09019 |
GRN305,310,325,330,TRN245,265 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
GRN305,310,325,330,TRN245,265 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRN305,310,325,330,TRN245,265 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GRN305,310,325,330,TRN245,265 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09023 |
GRN305,310,325,330,TRN245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-04010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-04062 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 82730-04060 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 82730-04061 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
GRN305,TRN245..5F,6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-04030 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90080-87026 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-14030 |
GRN305,TRN245..5F,6F |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-04020 |
GRN305,310,325,330,TRN245,265..SR5 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-04020 |
GRN305,310,325,330,TRN245,265..6FC..SR5 PUERTO RICO SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04040 |
GRN305,310,325,330,TRN245,265..6FC..SR5 HAWAII SPEC |
1 | ||
| 89220-04040 |
GRN305,310,325,330,TRN245,265..6FC..SR5 PUERTO RICO SPEC |
1 | ||
| 89220-04020 |
GRN305,310,325,330,TRN245,265..6FC..SR5 HAWAII SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04020 |
GRN305,310,325,330,TRN245,265..6FC..SR5 USA POSSESSION SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04040 |
GRN305,310,325,330,TRN245,265..6FC..SR5 USA POSSESSION SPEC |
1 | ||
| 89220-04070 |
GRN305,310,325,330,TRN245,265..6FC..SR5 CANADA SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04090 |
TRN245,265..6FC CANADA SPEC&ANTI-THEFT SYSTEM-*IM |
1 | ||
| 89220-04190 |
GRN305,310,325,330,TRN245,265..6FC..SR5 ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04240 |
GRN305,TRN245..5F,6F HAWAII SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04240 |
GRN305,TRN245..5F,6F USA POSSESSION SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04240 |
GRN305,TRN245..5F,6F PUERTO RICO SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04260 |
GRN305,TRN245..5F,6F HAWAII SPEC |
1 | ||
| 89220-04260 |
GRN305,TRN245..5F,6F PUERTO RICO SPEC |
1 | ||
| 89220-04290 |
GRN305,TRN245..5F,6F CANADA SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04210 |
GRN305,310,325,330,TRN245,265..6FC..SR5 |
1 | ||
| 89220-04260 |
GRN305,TRN245..5F,6F USA POSSESSION SPEC |
1 | ||
| 89220-04390 |
GRN305,TRN245..5F,6F ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 89220-04410 |
GRN305,TRN245..5F,6F |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-04030 |
GRN305,310,TRN245 |
1 | ||
| Common parts | ||||
| 82715-04810 | ||||
| 90080-11220 | ||||
| 90080-11353 | ||||
| 90080-11699 | ||||
| 90080-15052 | ||||
| 90105-A0007 | ||||
| 90119-08103 | ||||
| 90119-A0342 | ||||
| 90170-A0002 | ||||
| 90178-A0023 | ||||
| Linked diagrams | ||||
| 8202 | ||||

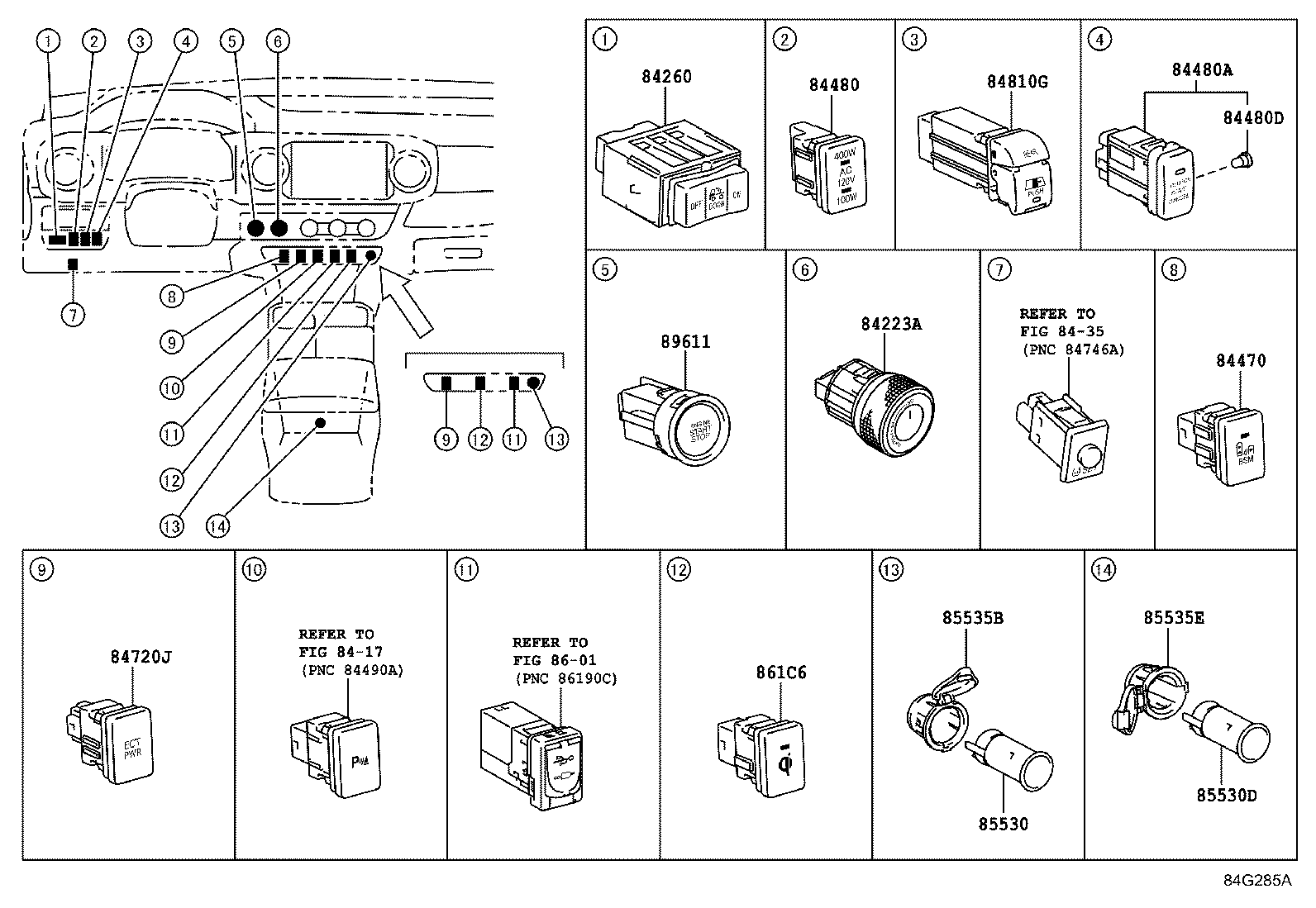

ILLUST NO. 6 OF 9(1508-1711)
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-0C010 |
GRN305,310,TRN245 |
1 | ||
| 84480A - SWITCH ASSY, CLUTCH START CANCEL | ||||
| 84480-04020 |
GRN305,TRN245..5F,6F |
1 | ||
| 84480D - BULB, CLUTCH START CANCEL SWITCH ASSY | ||||
| 90011-01018 |
GRN305,TRN245..5F,6F 14V 0.91W,W(SOCKET) |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84721-04010 |
GRN305,310,325,330,TRN245,265..6FC |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-AE010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-AE010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-0C050 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
| 8601 | ||||

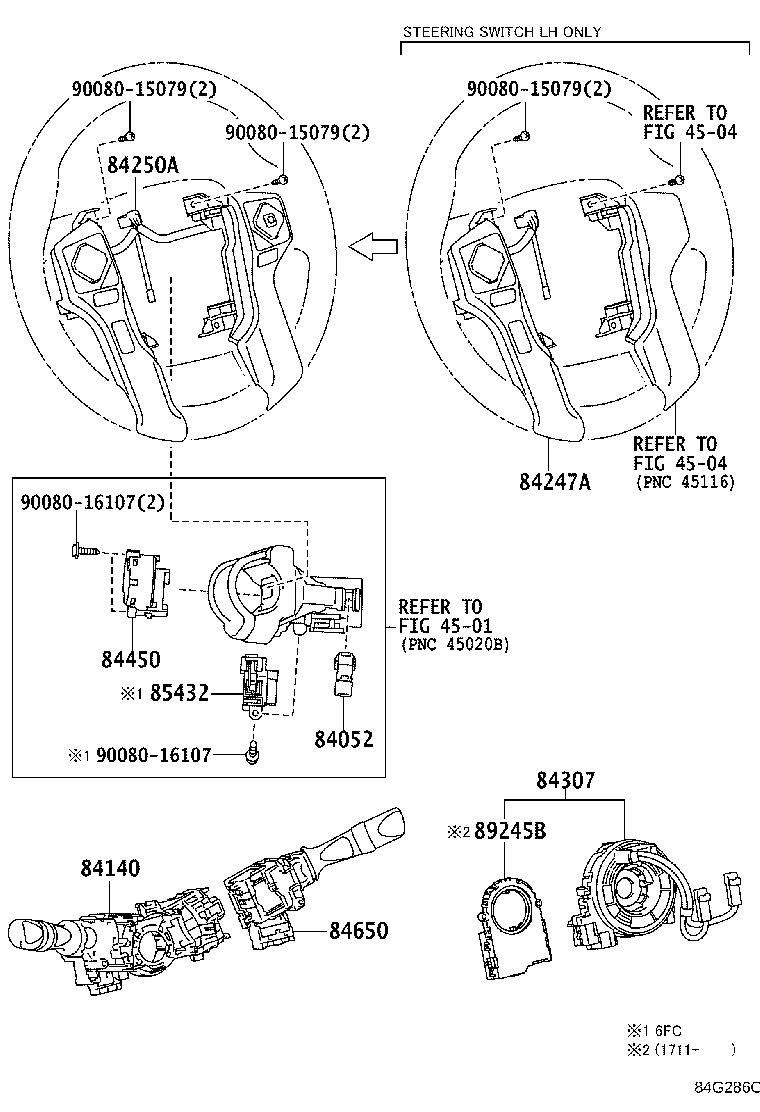

ILLUST NO. 7 OF10(1508- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0R030 |
GRN305,310,325,330,TRN245,265..SR5 HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)&FRONT FOG LAMP-WITHOUT |
1 | ||
| 84140-0R060 |
GRN305,310,325,330,TRN245,265..SR5 CANADA SPEC&HEADLAMP-HALOGEN(CHROME BEZEL)&WITH(PARKING BULB)&FRONT FOG LAMP-WITHOUT |
1 | ||
| 84140-0R020 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 84140-0R050 |
GRN305,310,325,330,TRN245,265..SR5 CANADA SPEC |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-04020C1 |
GRN305,310,325,330,TRN245,265..SR5 SR PACKAGE&AUDIO-*DA & 6SPEAKER,MATTE BLACK,TRIM1# |
1 | ||
| 84247-04020C1 |
TRN245,265..LCB B-MAX PACKAGE&AUDIO-*DA & 4SPEAKER,MATTE BLACK,TRIM1# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-04050B1 |
TRN245,265 METALLIC SILVER,TRIM1#,2# |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-0R050 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-0R010 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-04170 |
GRN305,310,325,330,TRN245,265..SR5 CANADA SPEC&INTERMITTENT WIPER-WITH(MIST) & WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-04160 |
GRN305,310,325,330,TRN245,265..SR5 INTERMITTENT WIPER-WITH(MIST) & WITHOUT(TIME ADJUSTMENT) |
1 | ||
| 84652-06340 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 84652-06240 |
GRN305,310,325,330,TRN245,265 CANADA SPEC |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-06030 |
GRN305,310,325,330,TRN245,265..6FC..SR5 |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||

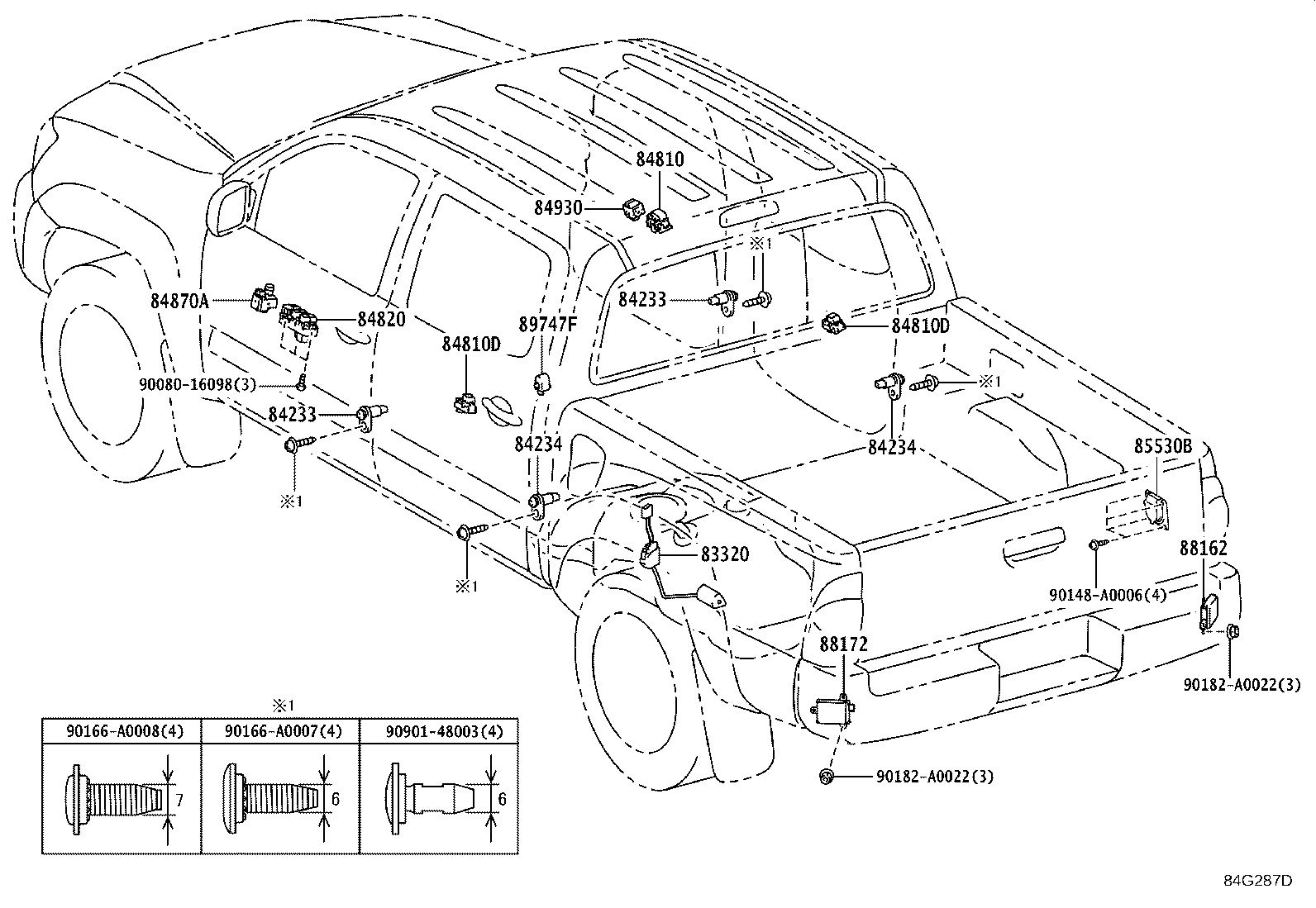

ILLUST NO. 8 OF10(1508- )
DOOR & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-04050 |
TRN245,265 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
GRN305,310,325,330,TRN245,265 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-0E050 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-04080 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-0E020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0E160 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90148-A0006 | ||||
| 90166-A0007 | ||||
| 90166-A0008 | ||||
| 90182-A0022 | ||||
| 90901-48003 | ||||

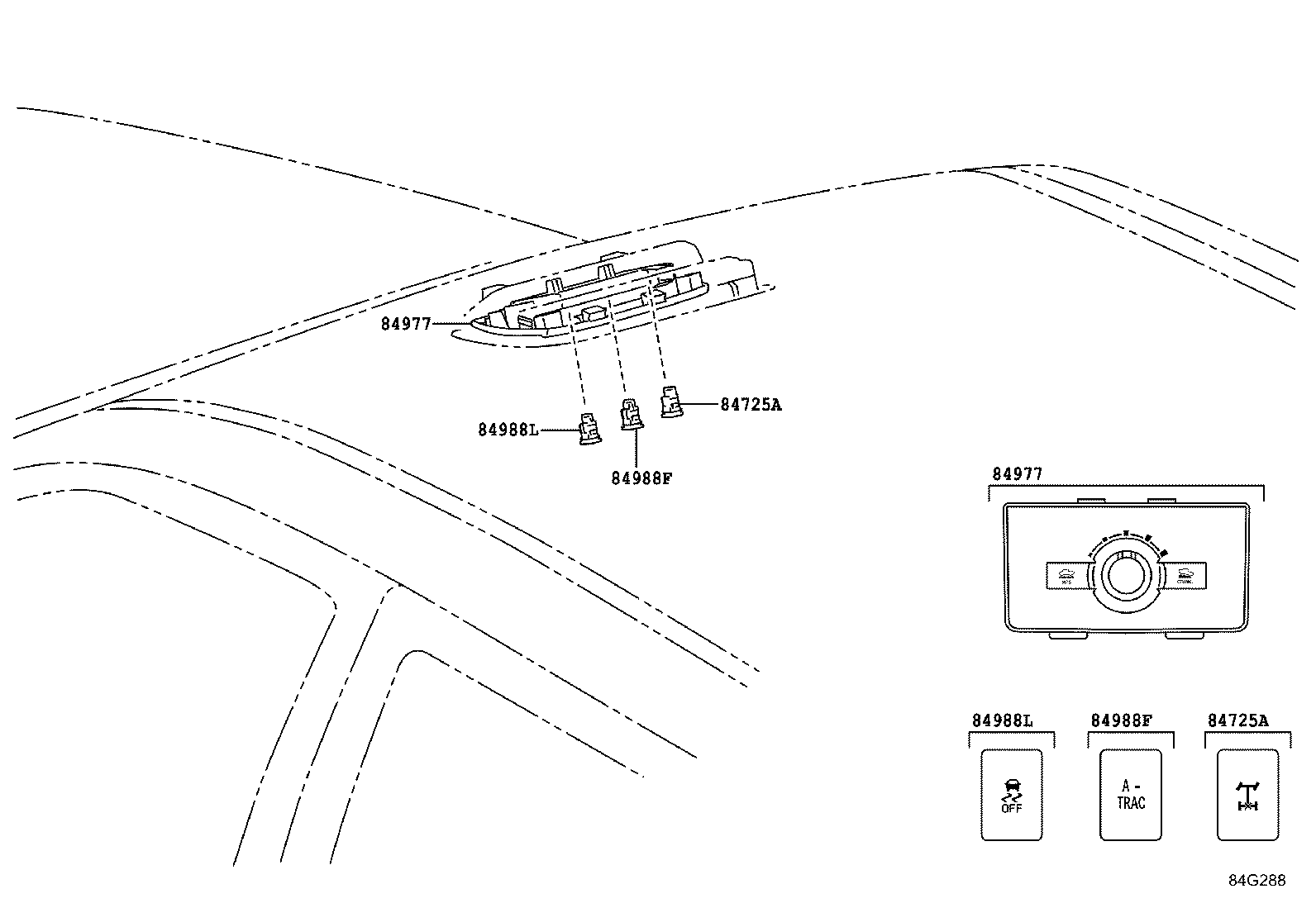

ILLUST NO.10 OF10(1508- )
ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0C031 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-0C031 |
GRN305,310,325,330,TRN245,265 |
1 | ||

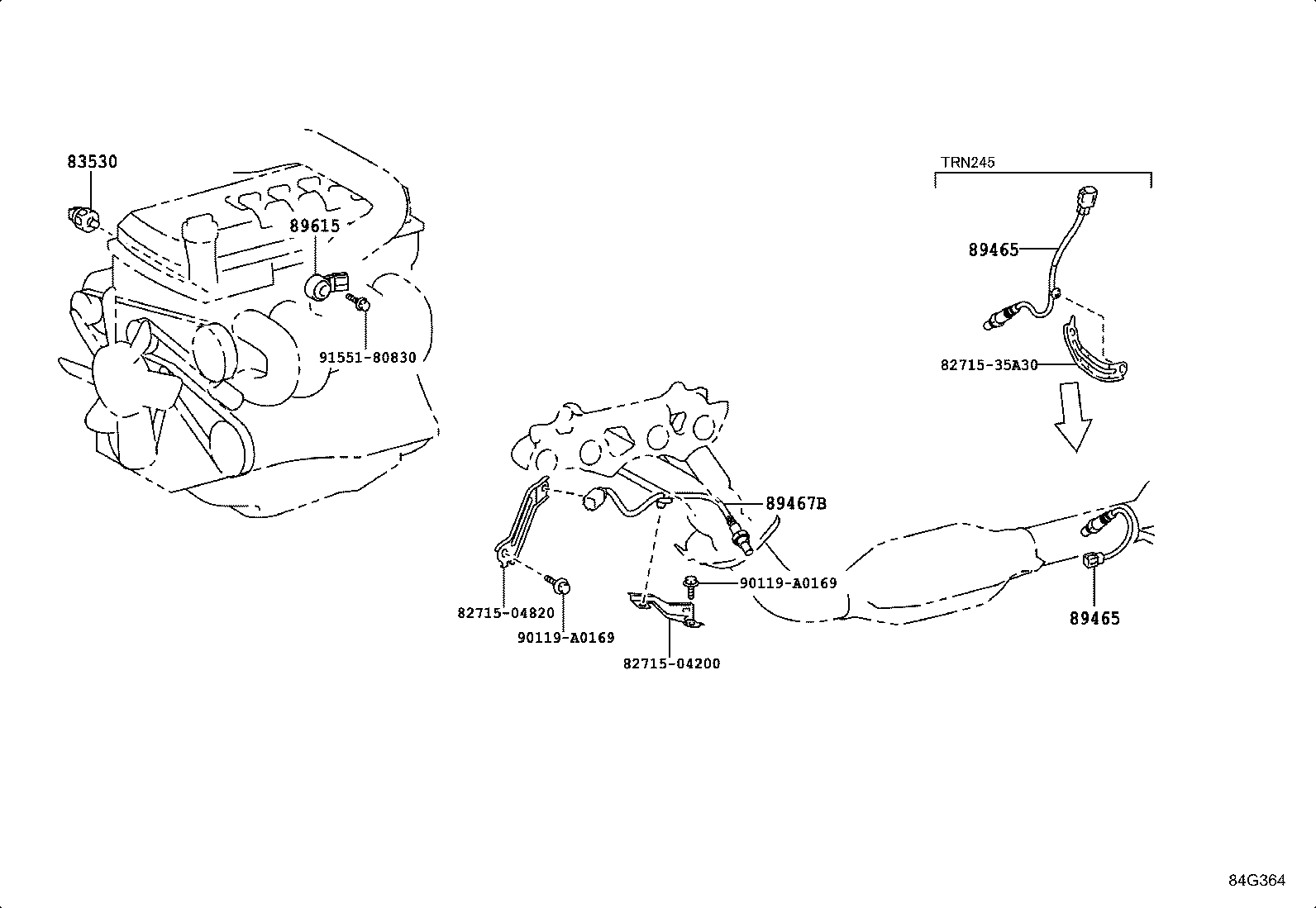

ILLUST NO. 1 OF10(1508- )TRN245,265
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRN305,310,325,330,TRN245,265 (J),DENSO |
1 | ||
| 83530-60020 |
GRN305,310,325,330,TRN245,265 (J),YAZAKI |
1 | ||
| 83530-0E010 |
GRN305,310,325,330,TRN245,265 (L) |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04460 |
TRN245 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04460 |
TRN245 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-04140 |
TRN245,265 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRN245,265 |
1 | ||
| Common parts | ||||
| 82715-04200 | ||||
| 82715-04820 | ||||
| 82715-35A30 | ||||
| 90119-A0169 | ||||
| 91551-80830 | ||||

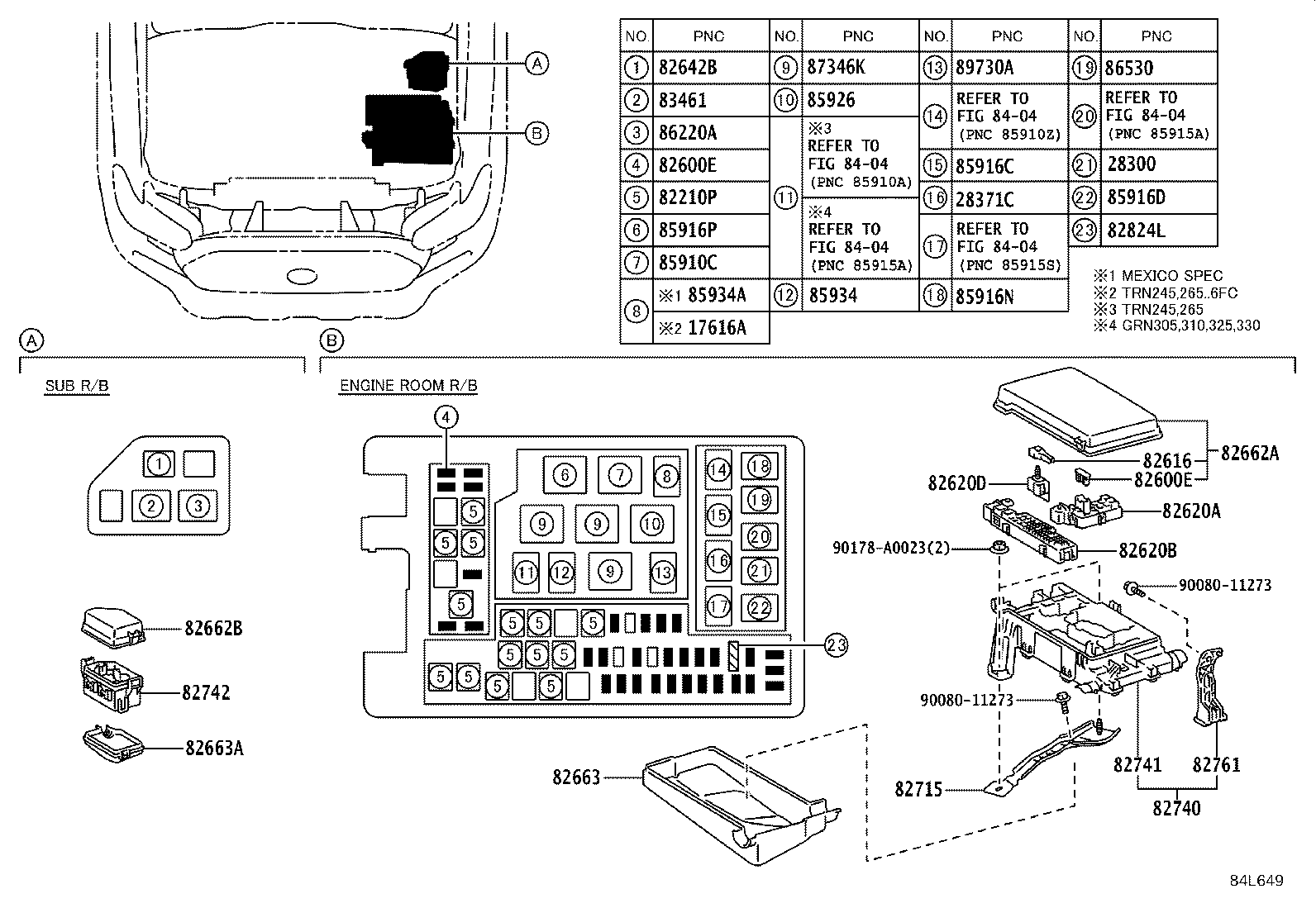

ILLUST NO. 4 OF 9(1508-1711)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17616A - RELAY, AIR PUMP | ||||
| 90080-87026 |
2TRFE..TRN245,265..6FC |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A010 |
2GRFKS,2TRFE..GRN305,310,325,330,TRN245,265 |
1 | ||
| 28300-0A011 |
2GRFKS,2TRFE..GRN305,310,325,330,TRN245,265 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90080-87026 |
2GRFKS,2TRFE..GRN305,310,325,330,TRN245,265 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
GRN305,310,325,330,TRN245,265 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08298 |
GRN305,310,325,330,TRN245,265 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08254 |
GRN305,310,325,330,TRN245,265 120A,TERM.:MALE,WHT |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90080-82052 |
GRN305,310,325,330,TRN245,265 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82051 |
GRN305,310,325,330,TRN245,265 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
GRN305,310,325,330,TRN245,265 25A,MINI FUSE |
1 | ||
| 90080-82054 |
GRN305,310,325,330,TRN245,265 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82053 |
GRN305,310,325,330,TRN245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90080-82052 |
GRN305,310,325,330,TRN245,265 15A,MINI FUSE,BLUE |
1 | ||
| 90080-82051 |
GRN305,310,325,330,TRN245,265 10A,MINI FUSE,RED |
1 | ||
| 90080-82055 |
GRN305,310,325,330,TRN245,265 25A,MINI FUSE |
1 | ||
| 90080-82054 |
GRN305,310,325,330,TRN245,265 30A,MINI FUSE,GREEN |
1 | ||
| 90080-82053 |
GRN305,310,325,330,TRN245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-04010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-04020 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-04030 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-04201 |
TRN245,265 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-04030 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-04670 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82760-04010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-04040 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82761 - BRACKET, RELAY BLOCK, NO.1 | ||||
| 82761-04010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87025 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85916C - RELAY, BACK UP LAMP | ||||
| 90987-02027 |
GRN305,310,325,330,TRN245,265..6FC (J) |
1 | ||
| 90080-87026 |
GRN305,310,325,330,TRN245,265..6FC (L) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GRN305,310,325,330,TRN245,265 (J) |
1 | ||
| 90080-87026 |
GRN305,310,325,330,TRN245,265..SR5 FRONT FOG LAMP-WITHOUT,(L) |
1 | ||
| 90080-87026 |
GRN305,310,325,330,TRN245,265 (L) |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87026 |
GRN305,310,325,330,TRN245,265 (L) |
1 | ||
| 90987-02027 |
GRN305,310,325,330,TRN245,265 (J) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87024 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90080-87026 |
GRN305,310,325,330,TRN245,265..SR5 ANTI-THEFT SYSTEM-*IM & ALARM,(L) |
1 | ||
| 90987-02027 |
GRN305,310,325,330,TRN245,265..SR5 ANTI-THEFT SYSTEM-*IM & ALARM,(J) |
1 | ||
| Common parts | ||||
| 90080-11273 | ||||
| 90178-A0023 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
