TRN245L-CRTSKA (2015)
Toyota Tacoma

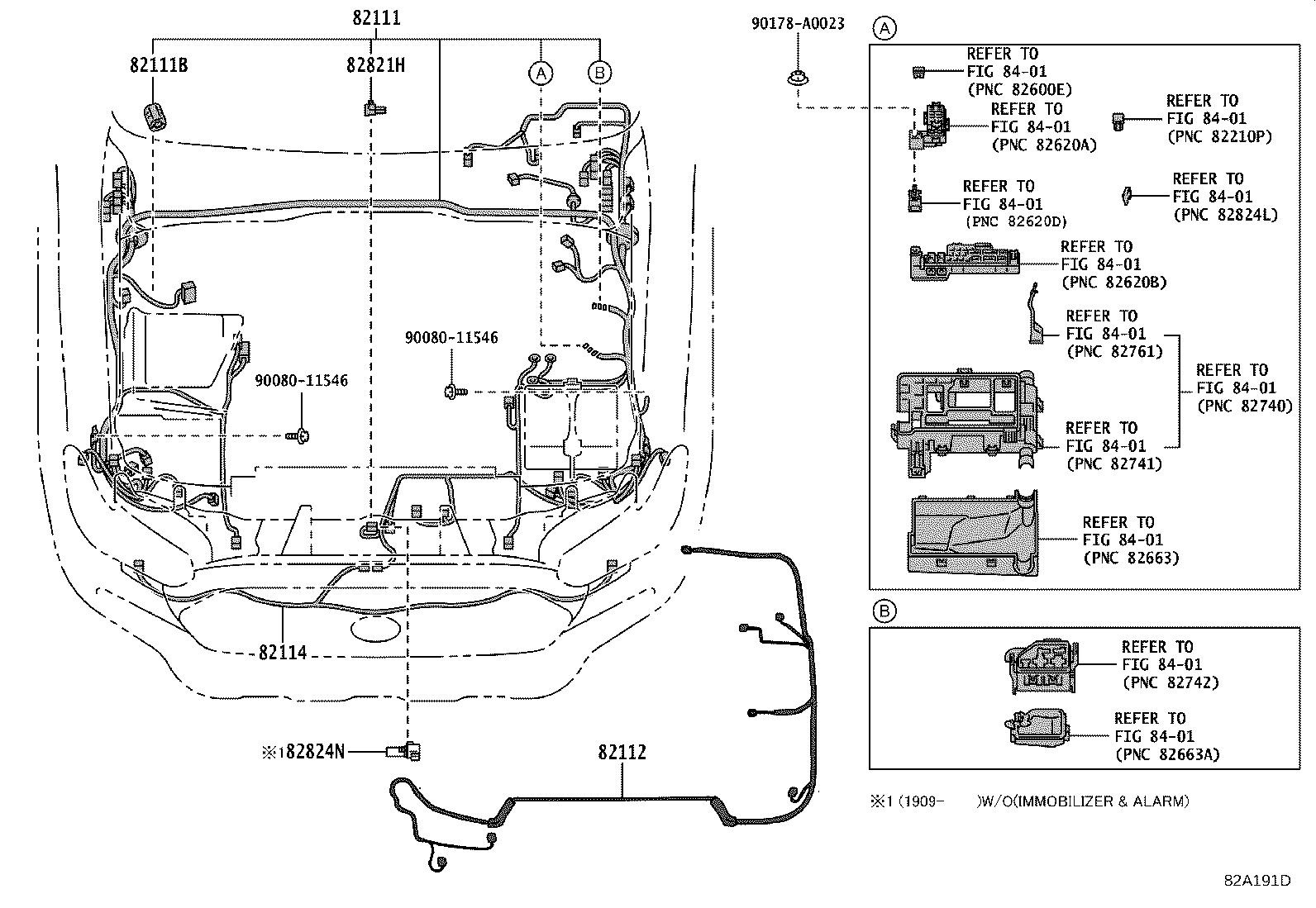

ILLUST NO. 1 OF12(1508- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-04F00 |
TRN245,265 |
1 | ||
| 82111-04F00 |
TRN245,265 |
1 | ||
| 82111B - CONDENSER | ||||
| 90980-04206 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-04050 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-04010 |
GRN305,310,325,330,TRN245,265..SR5 FRONT FOG LAMP-WITHOUT |
1 | ||
| 82114-04010 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 90980-11188 |
TRN245,265;GRN305..6F;GRN305,310,325,330..LIMD |
1 | ||
| Common parts | ||||
| 90080-11546 | ||||
| 90178-A0023 | ||||
| Linked diagrams | ||||
| 8401 | ||||

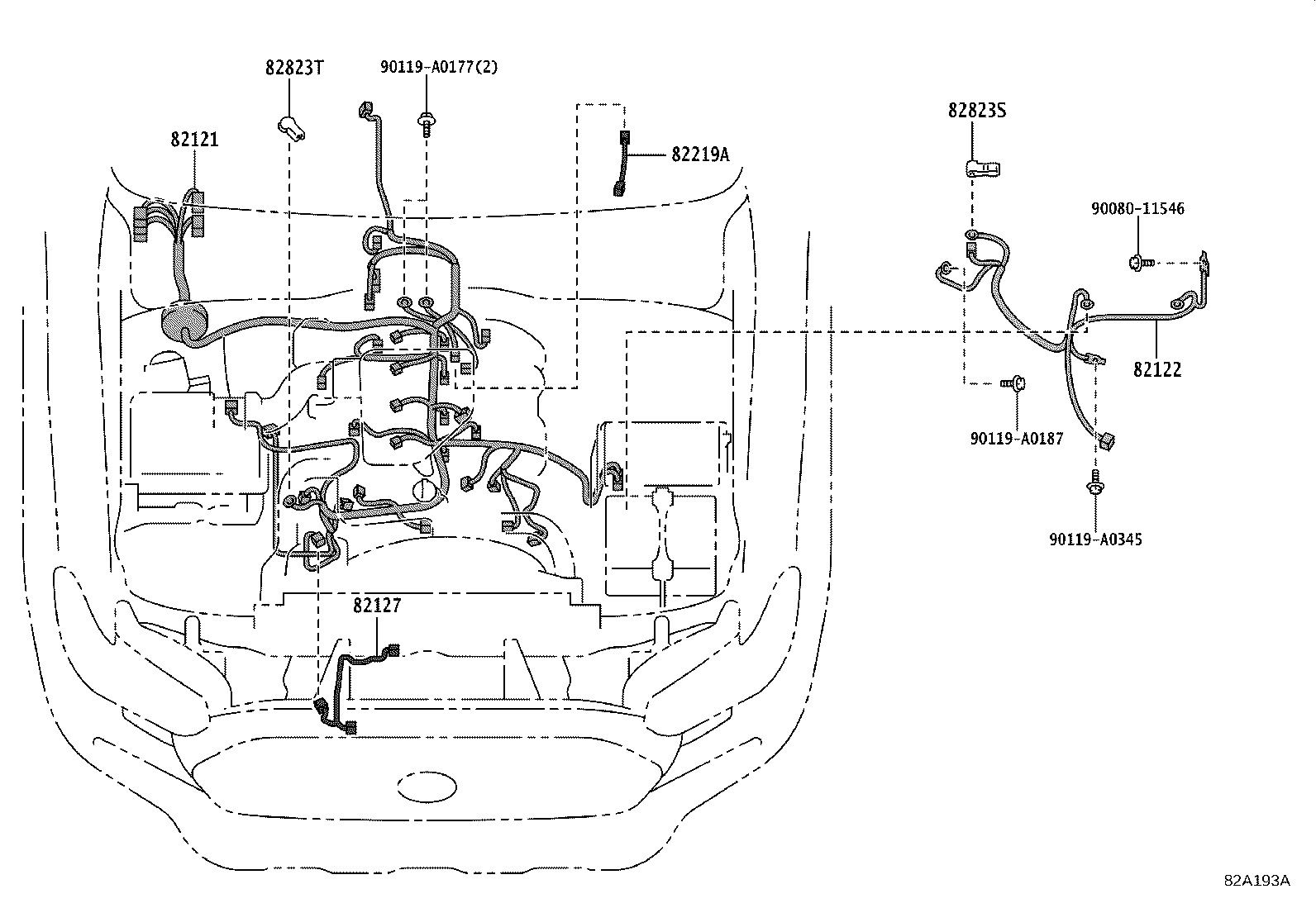

ILLUST NO. 2 OF12(1508- )TRN245,265
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-04821 |
TRN245..6FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-04350 |
TRN245,265 |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-04190 |
GRN305,310,TRN245 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-26190 |
TRN245,265 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35050 |
TRN245,265 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
TRN245,265 |
1 | ||
| Common parts | ||||
| 90080-11546 | ||||
| 90119-A0177 | ||||
| 90119-A0187 | ||||
| 90119-A0345 | ||||

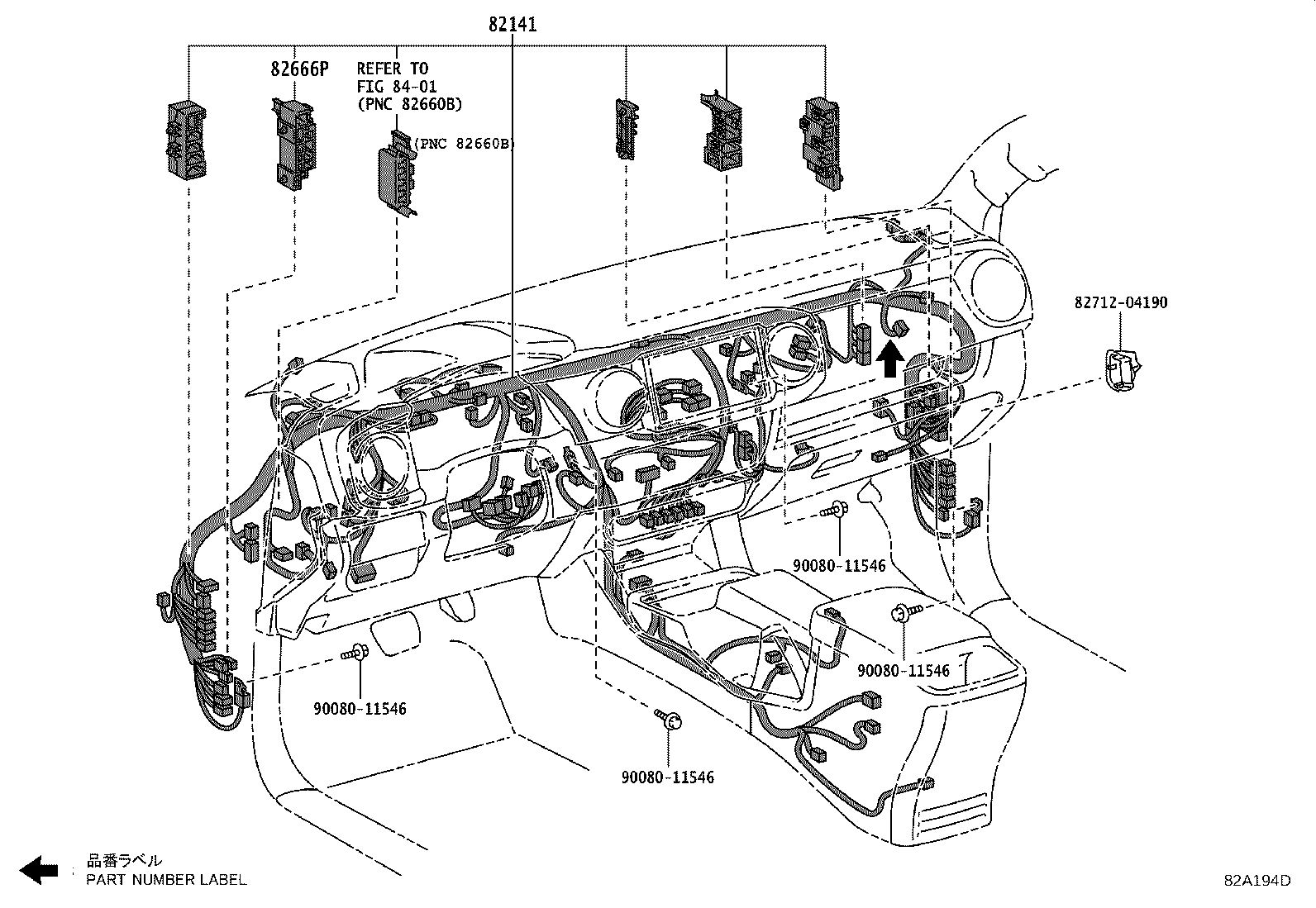

ILLUST NO. 3 OF12(1508- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-04Y30 |
TRN245,265 ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 82141-04Y40 |
TRN245,265..LCB B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Y40 |
TRN245,265 SR PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Y30 |
TRN245,265 ANTI-THEFT SYSTEM-*IM |
1 | ||
| 82141-04Y40 |
TRN245,265 SR PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Y40 |
TRN245,265..LCB B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Z60 |
TRN245,265..LCB B-MAX PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Z60 |
TRN245,265 SR PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Z50 |
TRN245,265 |
1 | ||
| 82141-04Y31 |
TRN245,265 ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 82141-04Y41 |
TRN245,265 SR PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Y31 |
TRN245,265 ANTI-THEFT SYSTEM-*IM |
1 | ||
| 82141-04Y41 |
TRN245,265..LCB B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Y41 |
TRN245,265..LCB B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Y41 |
TRN245,265 SR PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Z51 |
TRN245,265 |
1 | ||
| 82141-04Z61 |
TRN245,265..LCB B-MAX PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Z61 |
TRN245,265 SR PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Y30 |
TRN245,265 ANTI-THEFT SYSTEM-*IM & ALARM;ANTI-THEFT SYSTEM-*IM |
1 | ||
| 82141-04Y40 |
TRN245,265 SR PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER;SR PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Y40 |
TRN245,265..LCB B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER;B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Z60 |
TRN245,265..LCB B-MAX PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Z60 |
TRN245,265 SR PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Z50 |
TRN245,265 |
1 | ||
| 82141-04Y31 |
TRN245,265 ANTI-THEFT SYSTEM-*IM & ALARM;ANTI-THEFT SYSTEM-*IM |
1 | ||
| 82141-04Y41 |
TRN245,265 SR PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER;SR PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Y41 |
TRN245,265..LCB B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM & ALARM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER;B-MAX PACKAGE&ANTI-THEFT SYSTEM-*IM&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82141-04Z51 |
TRN245,265 |
1 | ||
| 82141-04Z61 |
TRN245,265 SR PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 6SPEAKER |
1 | ||
| 82141-04Z61 |
TRN245,265..LCB B-MAX PACKAGE&WIRELESS DOOR LOCK-WITHOUT&AUDIO-*DA & 4SPEAKER |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-04110 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| Common parts | ||||
| 82712-04190 | ||||
| 90080-11546 | ||||
| Linked diagrams | ||||
| 8401 | ||||

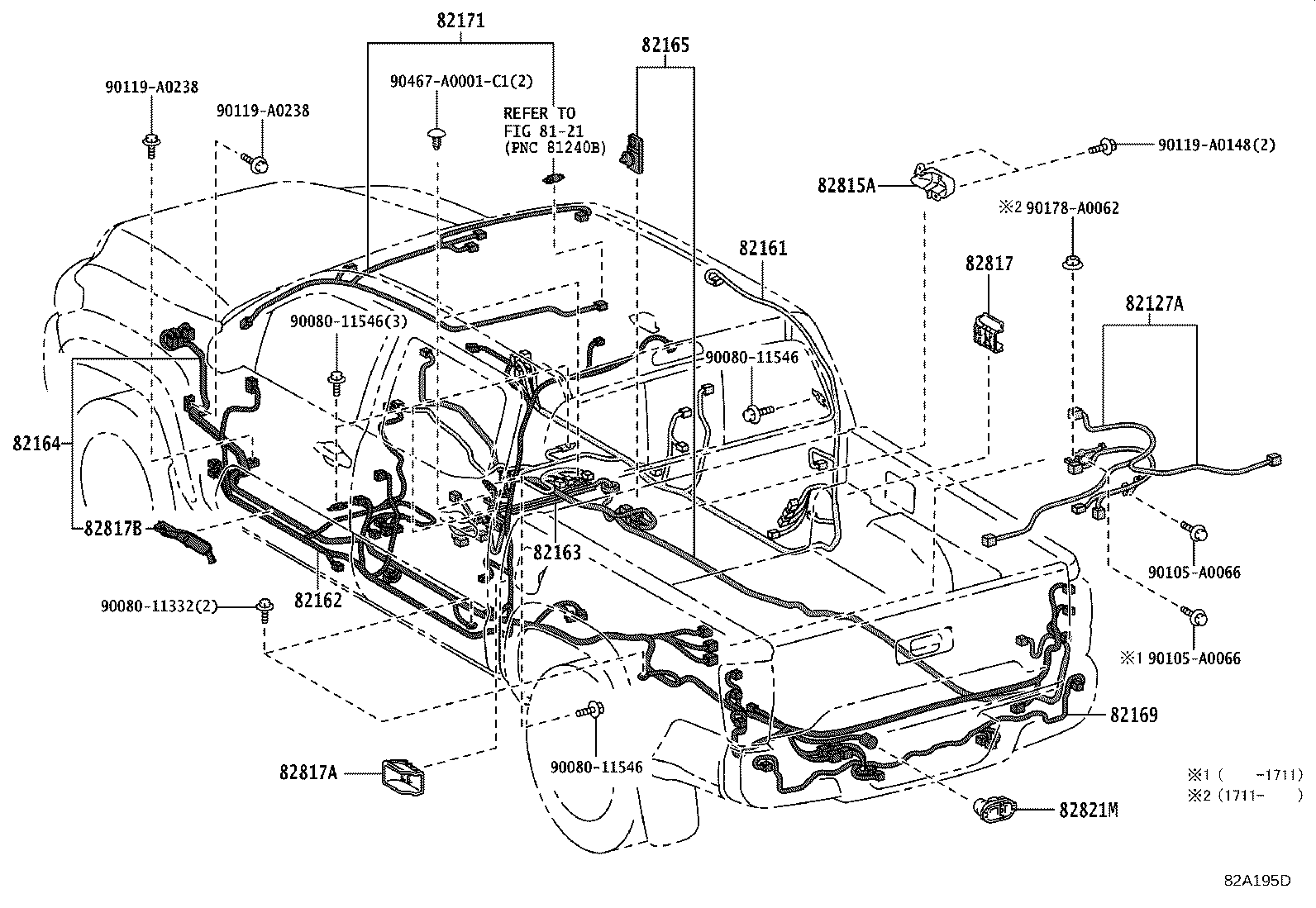

ILLUST NO. 5 OF12(1508- )
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-04360 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82161-04360 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-04590 |
TRN245,265..LCB CANADA SPEC&ANTI-THEFT SYSTEM-*IM & ALARM |
1 | ||
| 82162-04570 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82162-04590 |
TRN245,265..LCB CANADA SPEC&ANTI-THEFT SYSTEM-*IM |
1 | ||
| 82162-04570 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82162-04590 |
TRN245,265..LCB CANADA SPEC&ANTI-THEFT SYSTEM-*IM & ALARM;CANADA SPEC&ANTI-THEFT SYSTEM-*IM |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-04C61 |
TRN245,265 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-04021 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 82169-04041 |
GRN305,310,325,330,TRN245,265..SR5 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82169-04040 |
GRN305,310,325,330,TRN245,265..SR5 CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82169-04020 |
GRN305,310,325,330,TRN245,265..SR5 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-04600 |
GRN305,325,TRN245,265..LCB SR PACKAGE |
1 | ||
| 82171-04600 |
TRN245,265..LCB B-MAX PACKAGE |
1 | ||
| 82171-04620 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-04230 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82817-04230 |
TRN245,265..LCB B-MAX PACKAGE |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-04230 |
TRN245,265..LCB B-MAX PACKAGE |
1 | ||
| 82817-04230 |
GRN305,325,TRN245,265..LCB |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-04280 |
GRN305,310,325,330,TRN245,265 |
1 | ||
| Common parts | ||||
| 90080-11332 | ||||
| 90080-11546 | ||||
| 90105-A0066 | ||||
| 90119-A0148 | ||||
| 90119-A0238 | ||||
| 90178-A0062 | ||||
| 90467-A0001C1 | ||||
| Linked diagrams | ||||
| 8121 | ||||
