TRN245L-CRTSKA (2015)
Toyota Tacoma

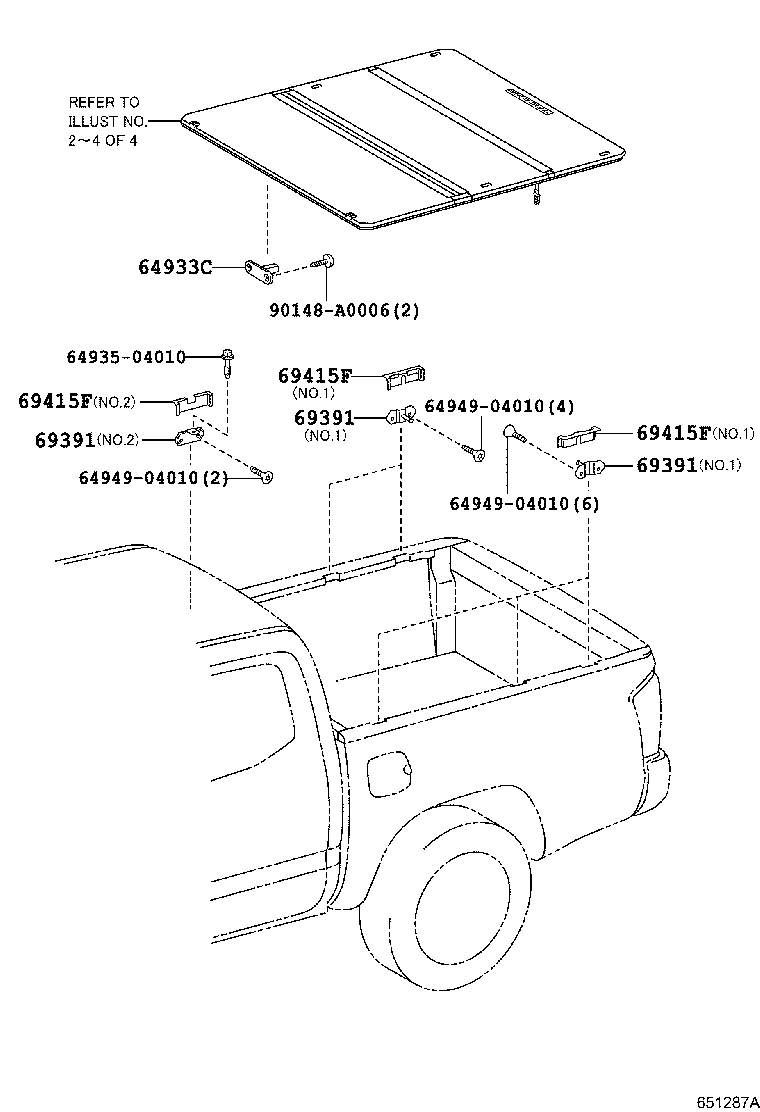

ILLUST NO. 1 OF 4(1508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64933C - PIN, TONNEAU COVER | ||||
| 64933-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 69391 - STRIKER, TOP COVER LOCK | ||||
| 69442-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1 |
5 | ||
| 69442-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2 |
1 | ||
| 69391 - STRIKER, TOP COVER LOCK | ||||
| 69442-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1 |
5 | ||
| 69442-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2 |
1 | ||
| 69391 - STRIKER, TOP COVER LOCK | ||||
| 69442-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1 |
5 | ||
| 69442-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2 |
1 | ||
| 69415F - COVER, TOP COVER LOCK STRIKER | ||||
| 69415-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2 |
1 | ||
| 69415-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1 |
5 | ||
| 69415F - COVER, TOP COVER LOCK STRIKER | ||||
| 69415-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2 |
1 | ||
| 69415-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1 |
5 | ||
| 69415F - COVER, TOP COVER LOCK STRIKER | ||||
| 69415-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2 |
1 | ||
| 69415-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1 |
5 | ||
| Common parts | ||||
| 64935-04010 | ||||
| 64949-04010 | ||||
| 90148-A0006 | ||||

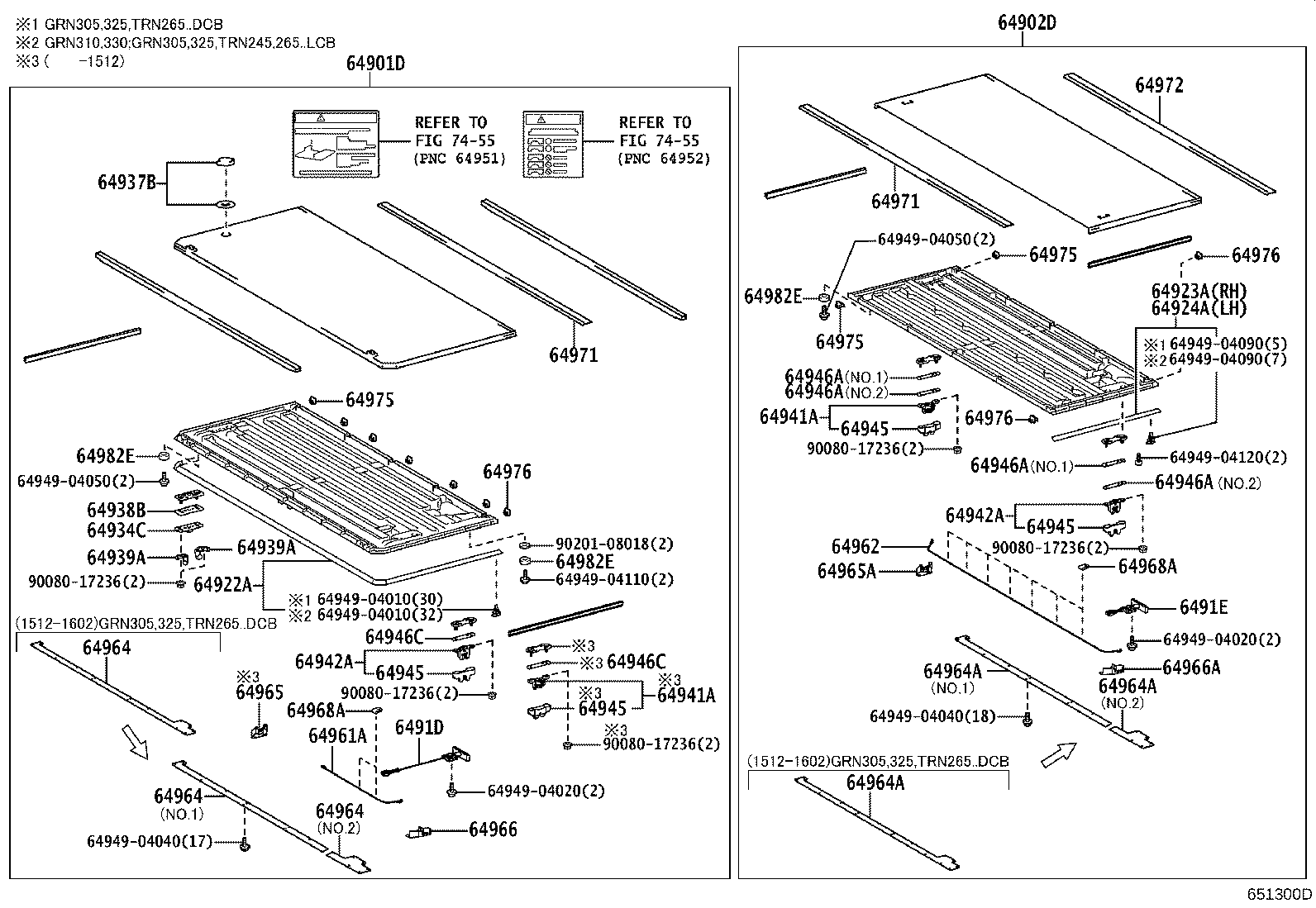

ILLUST NO. 2 OF 4(1508- )
DECK COVER(FRONT & CENTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64901D - PANEL SUB-ASSY, TONNEAU COVER, FRONT | ||||
| 64901-09020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64902D - PANEL SUB-ASSY, TONNEAU COVER, CENTER | ||||
| 64902-09020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 6491D - RELEASE, TONNEAU COVER, FRONT | ||||
| 6491D-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 6491E - RELEASE, TONNEAU COVER, CENTER | ||||
| 6491E-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64922A - WEATHERSTRIP, TONNEAU COVER, FRONT | ||||
| 64922-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64923A - WEATHERSTRIP, TONNEAU COVER, CENTER RH | ||||
| 64923-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64924A - WEATHERSTRIP, TONNEAU COVER, CENTER LH | ||||
| 64924-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64934C - BRACKET, TONNEAU COVER COLLAR | ||||
| 64934-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64937B - CAP, TONNEAU COVER HOLDER | ||||
| 64937-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64938B - SHIM, TONNEAU COVER HOLDER | ||||
| 64938-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64939A - BRACKET, TONNEAU COVER STOPPER | ||||
| 64939-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64939-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64939A - BRACKET, TONNEAU COVER STOPPER | ||||
| 64939-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64939-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64941A - LATCH, TONNEAU COVER, RH | ||||
| 64941-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64941-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64941A - LATCH, TONNEAU COVER, RH | ||||
| 64941-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64941-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64942A - LATCH, TONNEAU COVER, LH | ||||
| 64942-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64942A - LATCH, TONNEAU COVER, LH | ||||
| 64942-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64945 - COVER, TONNEAU COVER LATCH | ||||
| 64945-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
3 | ||
| 64945-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64945 - COVER, TONNEAU COVER LATCH | ||||
| 64945-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
3 | ||
| 64945-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64945 - COVER, TONNEAU COVER LATCH | ||||
| 64945-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
3 | ||
| 64945-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64945 - COVER, TONNEAU COVER LATCH | ||||
| 64945-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
3 | ||
| 64945-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64946A - SHIM, TONNEAU COVER LATCH | ||||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
2 | ||
| 64946-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
2 | ||
| 64946A - SHIM, TONNEAU COVER LATCH | ||||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
2 | ||
| 64946-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
2 | ||
| 64946A - SHIM, TONNEAU COVER LATCH | ||||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
2 | ||
| 64946-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
2 | ||
| 64946A - SHIM, TONNEAU COVER LATCH | ||||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
2 | ||
| 64946-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
2 | ||
| 64946C - SHIM, TONNEAU COVER LATCH, FRONT | ||||
| 64946-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64946C - SHIM, TONNEAU COVER LATCH, FRONT | ||||
| 64946-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64961A - CABLE, TONNEAU COVER RELEASE, FRONT | ||||
| 64961-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64962 - CABLE, TONNEAU COVER RELEASE, CENTER | ||||
| 64963-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64964 - COVER, TONNEAU COVER RELEASE CABLE | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964 - COVER, TONNEAU COVER RELEASE CABLE | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964 - COVER, TONNEAU COVER RELEASE CABLE | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964A - COVER, TONNEAU COVER RELEASE CABLE, CENTER | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964A - COVER, TONNEAU COVER RELEASE CABLE, CENTER | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964A - COVER, TONNEAU COVER RELEASE CABLE, CENTER | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64965 - COVER, TONNEAU COVER RELEASE CABLE EXTENSION, RH | ||||
| 64965-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64965-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64965A - COVER, TONNEAU COVER RELEASE CABLE EXTENSION, CENTER RH | ||||
| 64965-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64966 - COVER, TONNEAU COVER RELEASE CABLE EXTENSION, LH | ||||
| 64966-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64966A - COVER, TONNEAU COVER RELEASE CABLE EXTENSION, CENTER LH | ||||
| 64966-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64968A - RETAINER, TONNEAU COVER RELEASE CABLE | ||||
| 64968-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
16 | ||
| 64968A - RETAINER, TONNEAU COVER RELEASE CABLE | ||||
| 64968-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
16 | ||
| 64971 - COVER, TONNEAU COVER HINGE, FRONT | ||||
| 64971-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64971-04011 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
2 | ||
| 64971 - COVER, TONNEAU COVER HINGE, FRONT | ||||
| 64971-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64971-04011 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
2 | ||
| 64972 - COVER, TONNEAU COVER HINGE, REAR | ||||
| 64972-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64972-04011 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64975 - SEAL, TONNEAU COVER END CAP, NO.1 | ||||
| 64975-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64975 - SEAL, TONNEAU COVER END CAP, NO.1 | ||||
| 64975-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64975 - SEAL, TONNEAU COVER END CAP, NO.1 | ||||
| 64975-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64976 - SEAL, TONNEAU COVER END CAP, NO.2 | ||||
| 64976-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64976 - SEAL, TONNEAU COVER END CAP, NO.2 | ||||
| 64976-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64976 - SEAL, TONNEAU COVER END CAP, NO.2 | ||||
| 64976-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64982E - BUMPER, TONNEAU COVER CORNER | ||||
| 64982-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
12 | ||
| 64982E - BUMPER, TONNEAU COVER CORNER | ||||
| 64982-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
12 | ||
| 64982E - BUMPER, TONNEAU COVER CORNER | ||||
| 64982-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
12 | ||
| Common parts | ||||
| 64949-04010 | ||||
| 64949-04020 | ||||
| 64949-04040 | ||||
| 64949-04050 | ||||
| 64949-04090 | ||||
| 64949-04110 | ||||
| 64949-04120 | ||||
| 90080-17236 | ||||
| 90201-08018 | ||||
| Linked diagrams | ||||
| 7455 | ||||

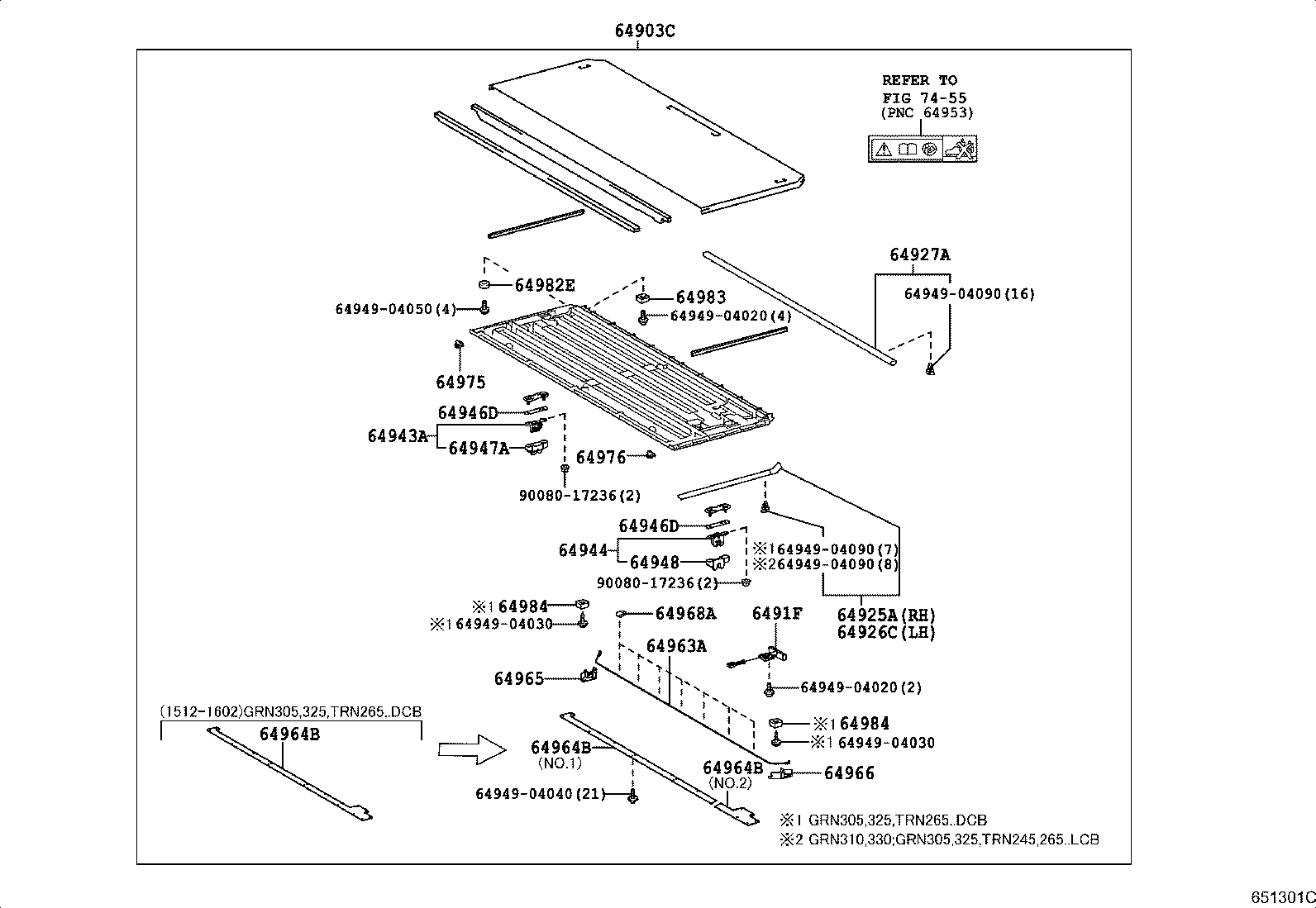

ILLUST NO. 3 OF 4(1508- )
DECK COVER(REAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64903C - PANEL SUB-ASSY, TONNEAU COVER, REAR | ||||
| 64903-09020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 6491F - RELEASE, TONNEAU COVER, REAR | ||||
| 6491F-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64925A - WEATHERSTRIP, TONNEAU COVER, REAR RH | ||||
| 64925-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64926C - WEATHERSTRIP, TONNEAU COVER, REAR LH | ||||
| 64926-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64927A - WEATHERSTRIP, TONNEAU COVER TAIL GATE | ||||
| 64927-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64943A - LATCH, TONNEAU COVER, REAR RH | ||||
| 64943-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64944 - LATCH, TONNEAU COVER, REAR LH | ||||
| 64944-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64946D - SHIM, TONNEAU COVER LATCH, REAR | ||||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64946D - SHIM, TONNEAU COVER LATCH, REAR | ||||
| 64946-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64947A - COVER, TONNEAU COVER LATCH, REAR RH | ||||
| 64947-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64948 - COVER, TONNEAU COVER LATCH, REAR LH | ||||
| 64948-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64963A - CABLE, TONNEAU COVER RELEASE, REAR | ||||
| 64963-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64964B - COVER, TONNEAU COVER RELEASE CABLE, REAR | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964B - COVER, TONNEAU COVER RELEASE CABLE, REAR | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64964B - COVER, TONNEAU COVER RELEASE CABLE, REAR | ||||
| 64964-04030 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.1:REFER ILLUST. |
1 | ||
| 64964-04040 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH,NO.2:REFER ILLUST. |
1 | ||
| 64965 - COVER, TONNEAU COVER RELEASE CABLE EXTENSION, RH | ||||
| 64965-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64965-04010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH |
1 | ||
| 64966 - COVER, TONNEAU COVER RELEASE CABLE EXTENSION, LH | ||||
| 64966-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64968A - RETAINER, TONNEAU COVER RELEASE CABLE | ||||
| 64968-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
16 | ||
| 64975 - SEAL, TONNEAU COVER END CAP, NO.1 | ||||
| 64975-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64976 - SEAL, TONNEAU COVER END CAP, NO.2 | ||||
| 64976-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64982E - BUMPER, TONNEAU COVER CORNER | ||||
| 64982-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
12 | ||
| 64983 - BUMPER, TONNEAU COVER FOLDING | ||||
| 64983-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| Common parts | ||||
| 64949-04020 | ||||
| 64949-04030 | ||||
| 64949-04040 | ||||
| 64949-04050 | ||||
| 64949-04090 | ||||
| 90080-17236 | ||||
| Linked diagrams | ||||
| 7455 | ||||

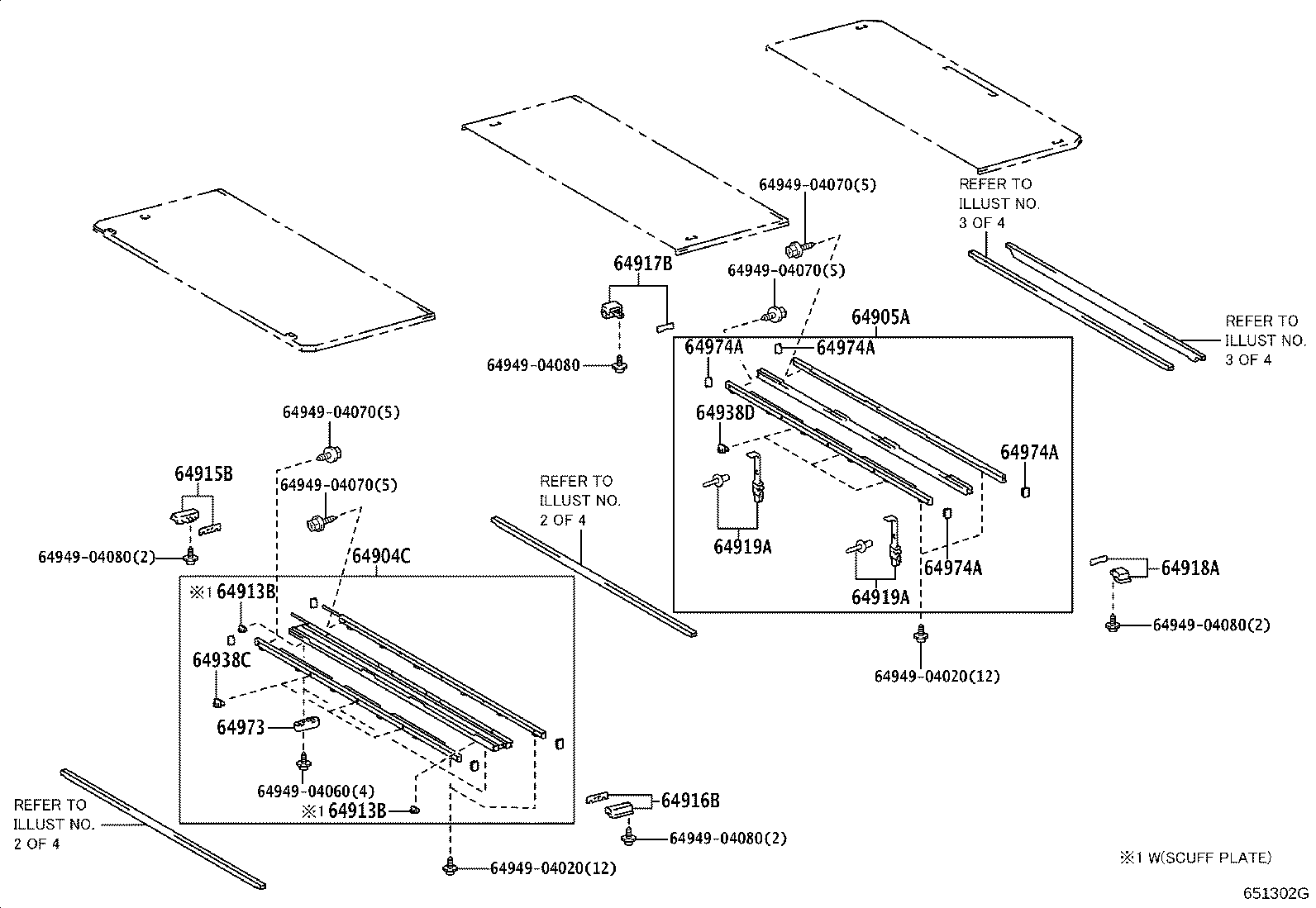

ILLUST NO. 4 OF 4(1508- )
DECK COVER(HINGE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64904C - HINGE SUB-ASSY, TONNEAU COVER, FRONT | ||||
| 64904-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64905A - HINGE SUB-ASSY, TONNEAU COVER, REAR | ||||
| 64905-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64913B - PLATE, SCUFF | ||||
| 64913-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64913B - PLATE, SCUFF | ||||
| 64913-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64915B - CAP, TONNEAU COVER HINGE END, FRONT RH | ||||
| 64915-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64916B - CAP, TONNEAU COVER HINGE END, FRONT LH | ||||
| 64916-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64917B - CAP, TONNEAU COVER HINGE END, REAR RH | ||||
| 64917-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64918A - CAP, TONNEAU COVER HINGE END, REAR LH | ||||
| 64918-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
1 | ||
| 64919A - BUCKLE, TONNEAU COVER | ||||
| 64919-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64919A - BUCKLE, TONNEAU COVER | ||||
| 64919-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64938C - SHIM, TONNEAU COVER HOLDER(FOR FRONT HINGE) | ||||
| 64938-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
3 | ||
| 64938-04020 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=2.0 |
1 | ||
| 64938-04040 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=2.5 |
1 | ||
| 64938-04030 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=1.0 |
1 | ||
| 66442-06010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=0.5 |
1 | ||
| 64938D - SHIM, TONNEAU COVER HOLDER(FOR REAR HINGE) | ||||
| 64938-04020 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
3 | ||
| 64938-04030 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=1.0 |
1 | ||
| 66442-06010 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=0.5 |
1 | ||
| 64938-04040 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=2.5 |
1 | ||
| 64938-04020 |
GRN305,310,325,330,TRN245,265 DECK COVER-WITH,T=2.0 |
1 | ||
| 64973 - PROTECTOR, TONNEAU COVER HINGE | ||||
| 64973-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
2 | ||
| 64974A - PLUG, TONNEAU COVER HINGE | ||||
| 64974-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64974A - PLUG, TONNEAU COVER HINGE | ||||
| 64974-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64974A - PLUG, TONNEAU COVER HINGE | ||||
| 64974-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| 64974A - PLUG, TONNEAU COVER HINGE | ||||
| 64974-04010 |
GRN310,330;GRN305,325,TRN245,265..LCB DECK COVER-WITH |
4 | ||
| Common parts | ||||
| 64949-04020 | ||||
| 64949-04060 | ||||
| 64949-04070 | ||||
| 64949-04080 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
