TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )LCB ; (1508- )GRN310,330

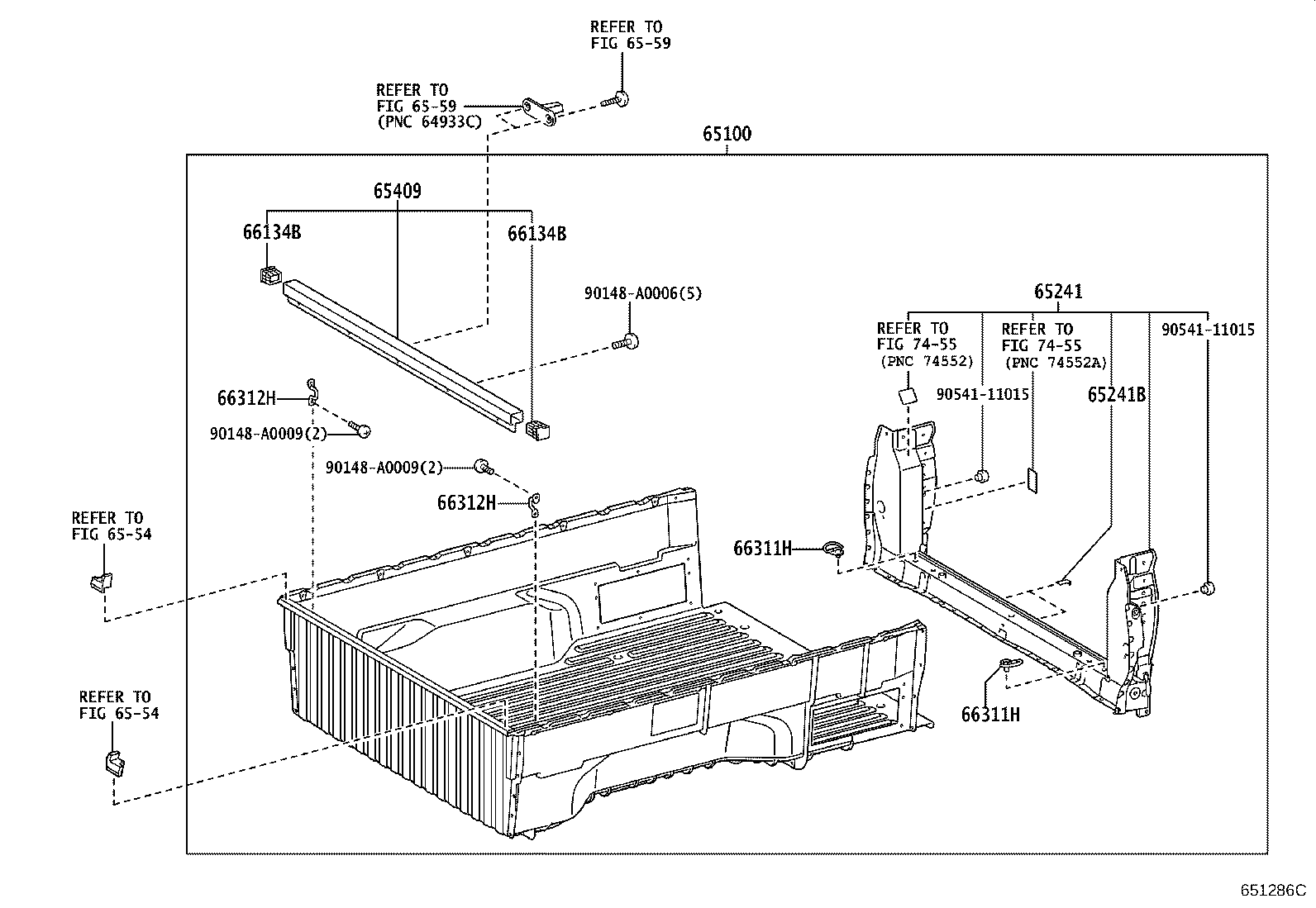

Click highlighted areas on diagram

diagram 65100 65241 65241B 65409 6554 6554 6559 6559 66134B 66134B 66311H 66311H 66312H 66312H 7455 7455 90148A0006 90148A0009 90148A0009 9054111015 9054111015
Part # Description Qty Price
65100 - FLOOR ASSY, REAR BODY
65100-04510

GRN310,330;GRN305,325,TRN245,265..LCB

 1
65241 - SILL, REAR CROSS
65204-04010

GRN305,310,325,330,TRN245,265

 1
65241B - SHEET, REAR CROSS SILL SILENCER
67813-04020

GRN305,310,325,330,TRN245,265

 2
65409 - RAIL SUB-ASSY, HEADER BOARD
65409-04010

GRN305,310,325,330,TRN245,265

 1
66134B - CAP, SIDE GATE SUPPORT
66134-04030

GRN305,310,325,330,TRN245,265

 2
66134B - CAP, SIDE GATE SUPPORT
66134-04030

GRN305,310,325,330,TRN245,265

 2
66311H - HOOK, ROPE
66310-04010

GRN305,310,325,330,TRN245,265

 2
66311H - HOOK, ROPE
66310-04010

GRN305,310,325,330,TRN245,265

 2
66312H - HOOK, ROPE
66312-0C010

GRN305,310,325,330,TRN245,265

 2
66312H - HOOK, ROPE
66312-0C010

GRN305,310,325,330,TRN245,265

 2
Common parts
90148-A0006
90148-A0009
90541-11015
Linked diagrams
6554
6559
7455
