TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

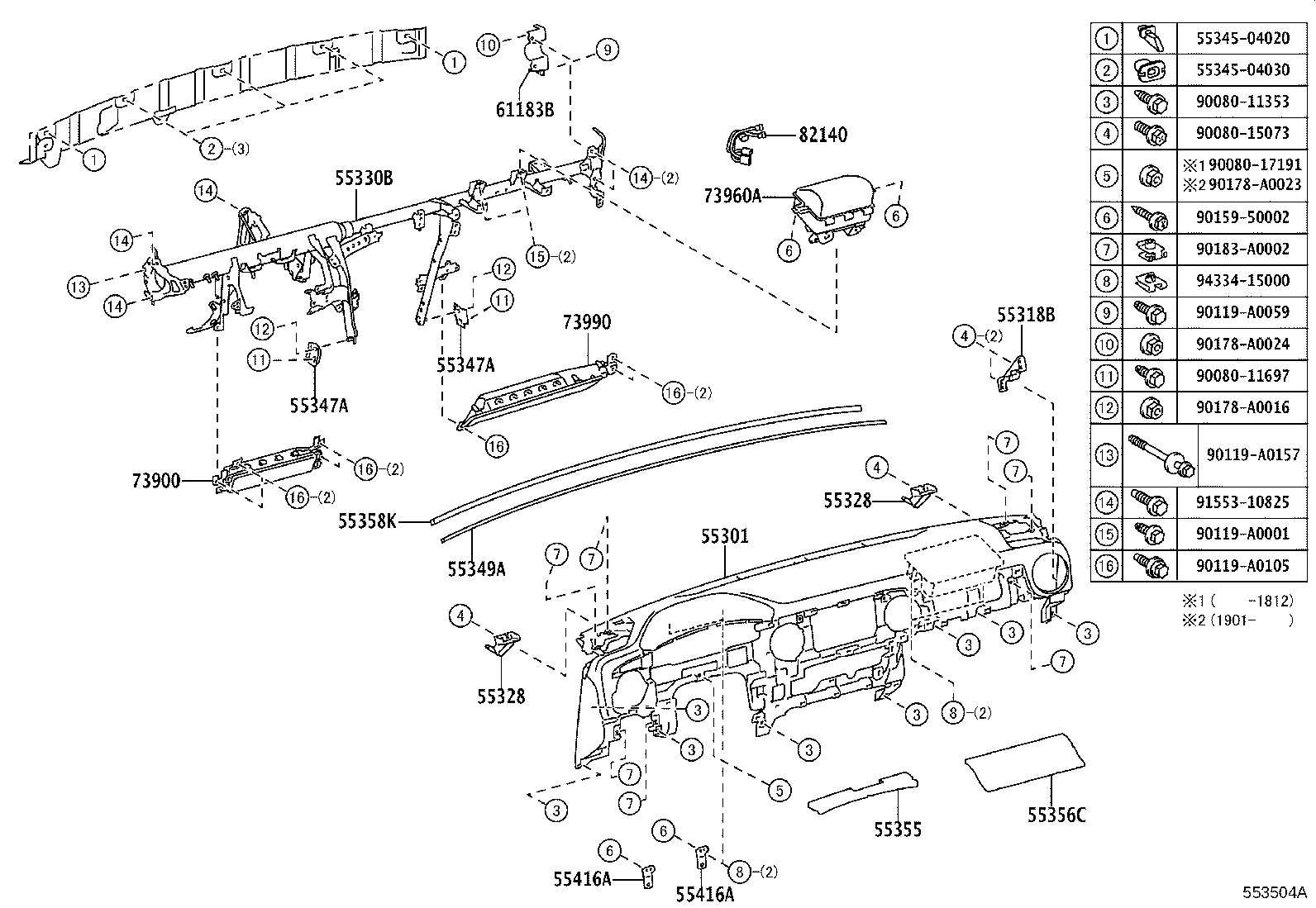

ILLUST NO. 1 OF 2(1508- )

Click highlighted areas on diagram

diagram 55301 55318B 55328 55328 55330B 5534504020 5534504030 55347A 55347A 55349A 55355 55356C 55358K 55416A 55416A 61183B 73900 73960A 73990 82140 9008011353 9008011697 9008015073 9008017191 90119A0001 90119A0059 90119A0105 90119A0157 9015950002 90178A0016 90178A0023 90178A0024 90183A0002 9155310825 9433415000
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-04080C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55318B - EXTENSION, INSTRUMENT PANEL
55318-04020

GRN305,310,325,330,TRN245,265

 1
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-04040

GRN305,310,325,330,TRN245,265

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-04040

GRN305,310,325,330,TRN245,265

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-04131

GRN305,310,325,330,TRN245,265

 1
55330-04132

GRN305,310,325,330,TRN245,265

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-04040

GRN305,310,325,330,TRN245,265

 2
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-04040

GRN305,310,325,330,TRN245,265

 2
55349A - CUSHION, INSTRUMENT PANEL
55349-04010

GRN305,310,325,330,TRN245,265

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-04050

GRN305,310,325,330,TRN245,265

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-04020

GRN305,310,325,330,TRN245,265

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-04020

GRN305,310,325,330,TRN245,265

 1
55416A - RETAINER, METER HOOD, NO.1
55416-04010

GRN305,310,325,330,TRN245,265

 2
55416A - RETAINER, METER HOOD, NO.1
55416-04010

GRN305,310,325,330,TRN245,265

 2
61183B - BRACKET, INSTRUMENT PANEL SIDE, NO.2 RH
61183-04020

GRN305,310,325,330,TRN245,265

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-04010C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-04060

GRN305,310,325,330,TRN245,265

 1
73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2
73990-04010C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
82140 - WIRE ASSY, INSTRUMENT PANEL
82140-04020

GRN305,310,325,330,TRN245,265

 1
Common parts
55345-04020
55345-04030
90080-11353
90080-11697
90080-15073
90080-17191
90119-A0001
90119-A0059
90119-A0105
90119-A0157
90159-50002
90178-A0016
90178-A0023
90178-A0024
90183-A0002
91553-10825
94334-15000

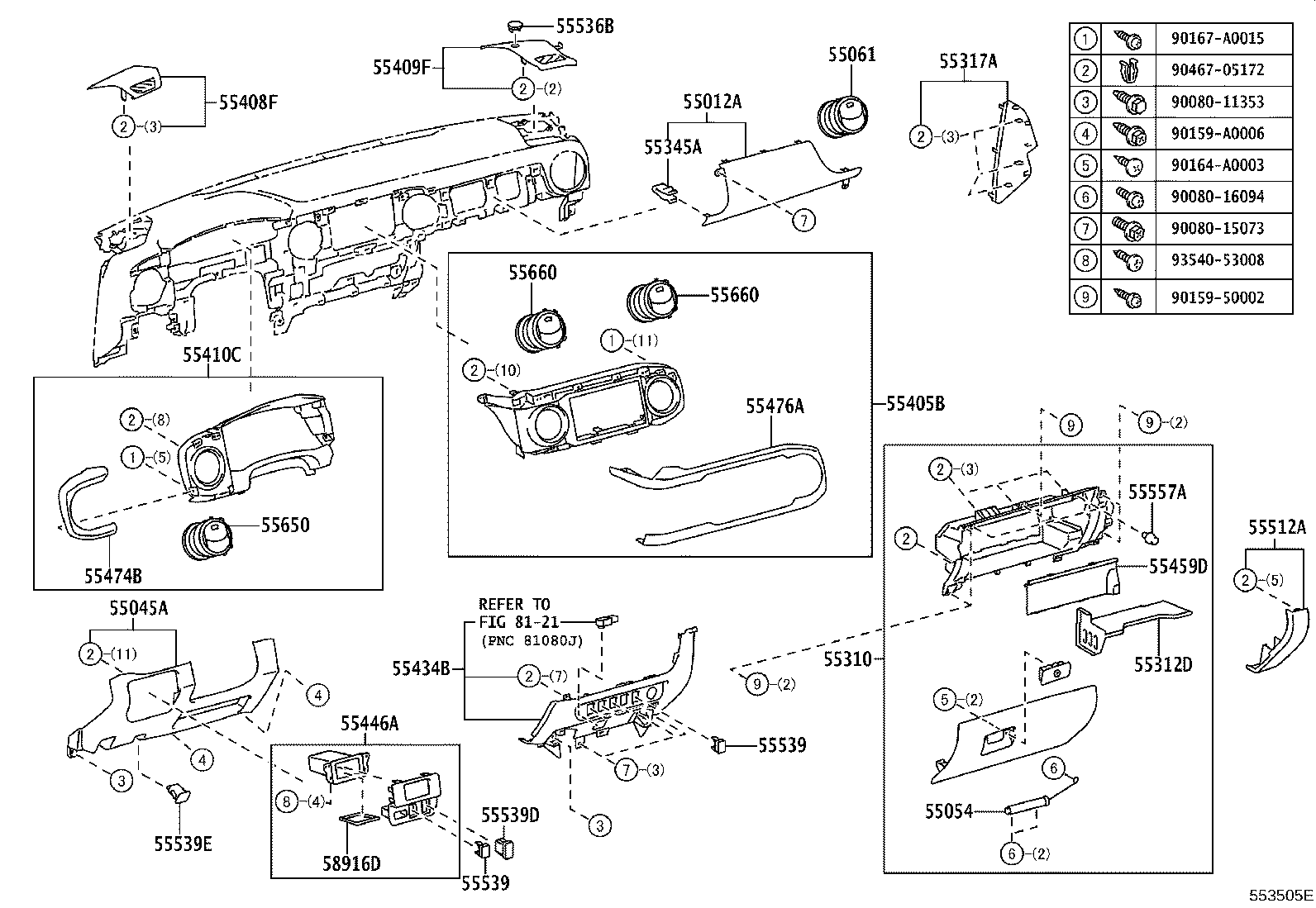

ILLUST NO. 2 OF 2(1508-1711)

Click highlighted areas on diagram

diagram 55012A 55045A 55054 55061 55310 55312D 55317A 55345A 55405B 55408F 55409F 55410C 55434B 55446A 55459D 55474B 55476A 55512A 55536B 55539 55539 55539D 55539E 55557A 55650 55660 55660 58916D 8121 9008011353 9008015073 9008016094 9015950002 90159A0006 90164A0003 90167A0015 9046705172 9354053008
Part # Description Qty Price
55012A - GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2
55012-04010C0

TRN245,265..LCB

B-MAX PACKAGE,BLACK,TRIM1#

 1
55012-04020B0

TRN245,265

CEMENT GRAY,TRIM1#

 1
55012-04010C0

GRN305,310,325,330,TRN245,265..SR5

SR PACKAGE,BLACK,TRIM1#

 1
55012-04020E1

GRN305,310,325,330,TRN245,265..SR5

CARAMEL,TRIM22

 1
55012-04020E0

GRN305,310,325,330,TRN245,265..SR5

RED,TRIM23

 1
55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH
55045-04050C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-04030

GRN305,310,325,330,TRN245,265

 1
55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
55061-04040C0

TRN245,265..LCB

B-MAX PACKAGE,BLACK,TRIM1#

 1
55061-04040C0

GRN305,310,325,330,TRN245,265..SR5

SR PACKAGE,BLACK,TRIM1#

 1
55061-04050C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55310 - PANEL ASSY, INSTRUMENT, LOWER
55320-04010C1

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55320-04010C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55312D - PLATE, GLOVE COMPARTMENT
55512-04010

GRN305,310,325,330,TRN245,265

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-04050C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55345A - CLIP, INSTRUMENT PANEL, NO.1
90467-A0011

TRN245,265..LCB

B-MAX PACKAGE,YELLOW

 8
90467-A0011

GRN305,310,325,330,TRN245,265..SR5

SR PACKAGE,YELLOW

 8
90467-13082A0

GRN305,310,325,330,TRN245,265

MELLOW WHITE

 8
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-04110C1

TRN245,265..LCB

B-MAX PACKAGE&AUDIO-*DA & 4SPEAKER,MATTE BLACK,TRIM1#

 1
55405-04110C1

TRN245,265

SR PACKAGE&AUDIO-*DA & 6SPEAKER,MATTE BLACK,TRIM1#

 1
55405-04120C5

TRN245,265

BLACK,TRIM1#,2#

 1
55405-04130C5

TRN245,265

AUDIO-AVN & 6SPEAKER,BLACK,TRIM1#,2#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55408-04120C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55409-04010C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-04010C1

GRN305,310,325,330,TRN245,265..SR5

SR PACKAGE,MATTE BLACK,TRIM1#

 1
55410-04010C1

TRN245,265..LCB

B-MAX PACKAGE,MATTE BLACK,TRIM1#

 1
55410-04020C5

TRN245,265

BLACK,TRIM1#,2#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-04060C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55434-04070C0

GRN305,310,325,330,TRN245,265..SR5

CLEARANCE & BACK SONAR-WITH,BLACK,TRIM1#,2#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-04020C0

GRN305,325,TRN245,265..LCB

BLACK,TRIM1#,2#

 1
55459D - COVER, INSTRUMENT, LOWER LH
55459-04010

GRN305,310,325,330,TRN245,265

 1
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55474-04020B0

TRN245,265

METALLIC SILVER,TRIM1#,2#

 1
55474-04020C1

GRN305,310,325,330,TRN245,265..SR5

SR PACKAGE,MATTE BLACK,TRIM1#

 1
55474-04020C1

TRN245,265..LCB

B-MAX PACKAGE,MATTE BLACK,TRIM1#

 1
55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3
55476-04010B0

TRN245,265

METALLIC SILVER,TRIM1#,2#

 1
55476-04010C1

TRN245,265

SR PACKAGE&AUDIO-*DA & 6SPEAKER,MATTE BLACK,TRIM1#

 1
55476-04010C1

TRN245,265..LCB

B-MAX PACKAGE&AUDIO-*DA & 4SPEAKER,MATTE BLACK,TRIM1#

 1
55512A - PLATE, GLOVE COMPARTMENT
55312-04010C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55536B - COVER, LIGHT CONTROL SWITCH HOLE
55536-60020C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-52060C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55539-52060C4

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-52060C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55539-52060C4

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
55539D - COVER, SPARE SWITCH HOLE
55539-AE010C0

TRN265;GRN305,325,TRN245..LCB..6FC

BLACK,TRIM1#,2#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-0E010

GRN305,310,325,330,TRN245,265..SR5

CANADA SPEC

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

GRN305,310,325,330,TRN245,265

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-0C060C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0C060C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 2
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0C060C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 2
58916D - MAT, BOX BOTTOM
58916-04060C0

GRN305,310,325,330,TRN245,265..SR5

BLACK,TRIM1#,2#

 1
Common parts
90080-11353
90080-15073
90080-16094
90159-50002
90159-A0006
90164-A0003
90167-A0015
90467-05172
93540-53008
Linked diagrams
8121
