TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1508- )

Click highlighted areas on diagram

diagram 53301 53381 53381A 53384A 53393B 53394 53801 53802 53825G 53826E 53827K 53828J 53882K 75395H 76181 76182 76183 76184 9008011220 9008011220 9008011220 9008011220 9008011220 9008017189 9016750063 9046707215 90467A0006 91631B0614
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-04220

GRN305,310,325,330,TRN245,265

 1
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-04050

GRN305,310,325,330,TRN245,265

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90080-46010

GRN305,310,325,330,TRN245,265

 7
53384A - BUMPER, FENDER TO HOOD
53384-04040

GRN305,310,325,330,TRN245,265

 2
53393B - PROTECTOR, HOOD, FRONT
53393-04010

GRN305,310,325,330,TRN245,265

 2
53394 - PROTECTOR, HOOD, FRONT
58743-0C040

GRN305,310,325,330,TRN245,265

 1
53801 - FENDER SUB-ASSY, FRONT RH
53811-04110

TRN245,265

 1
53811-04120

GRN305,310,325,330,TRN245,265..SR5

SR5 UPGRADE PACKAGE

 1
53811-04120

TRN245,265

TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY

 1
53811-04120

TRN245,265

TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-04110

TRN245,265

 1
53812-04120

GRN305,310,325,330,TRN245,265..SR5

SR5 UPGRADE PACKAGE

 1
53812-04120

TRN245,265

TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM ACCESSORY

 1
53812-04120

TRN245,265

TIRE & DISC WHEEL-P245/75R16 7J+25 ALUMINUM

 1
53825G - PROTECTOR, FRONT FENDER, UPPER RH
53825-04010

GRN305,310,325,330,TRN245,265

 1
53826E - PROTECTOR, FRONT FENDER, UPPER LH
53826-04010

GRN305,310,325,330,TRN245,265

 1
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-04020

GRN305,310,325,330,TRN245,265

 1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-04020

GRN305,310,325,330,TRN245,265

 1
53882K - SEAL, FRONT FENDER
53882-30030

GRN305,310,325,330,TRN245,265

 2
Common parts
90080-11220
90080-17189
90167-50063
90467-07215
90467-A0006
91631-B0614

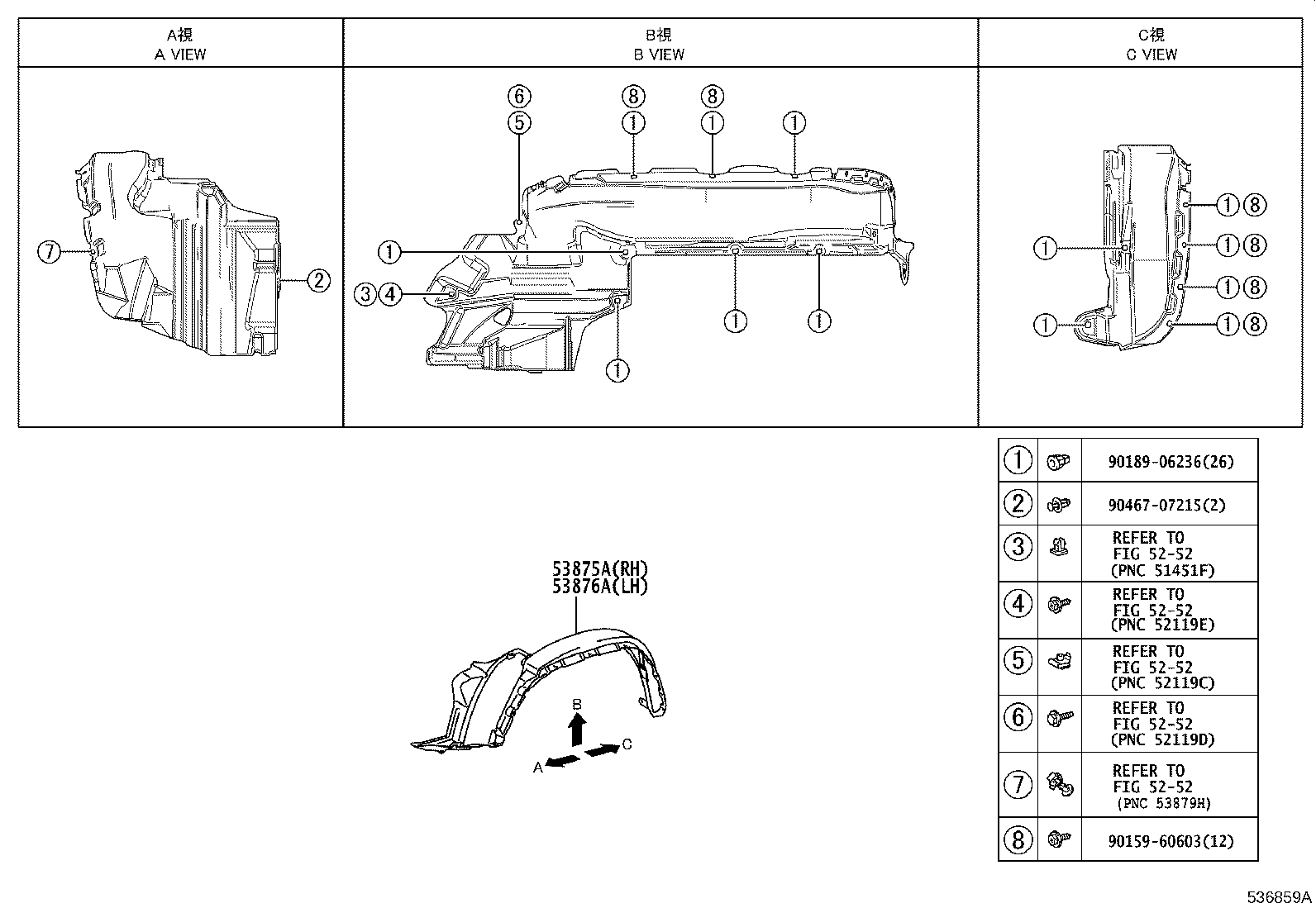

ILLUST NO. 2 OF 2(1508- )

Click highlighted areas on diagram

FENDER LINER

diagram 5252 5252 5252 5252 5252 53875A 53876A 9015960603 9018906236 9046707215
Part # Description Qty Price
53875A - LINER, FRONT FENDER, RH
53875-04080

GRN305,310,325,330,TRN245,265

 1
53876A - LINER, FRONT FENDER, LH
53876-04080

GRN305,310,325,330,TRN245,265

 1
Common parts
90159-60603
90189-06236
90467-07215
Linked diagrams
5252
