TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )

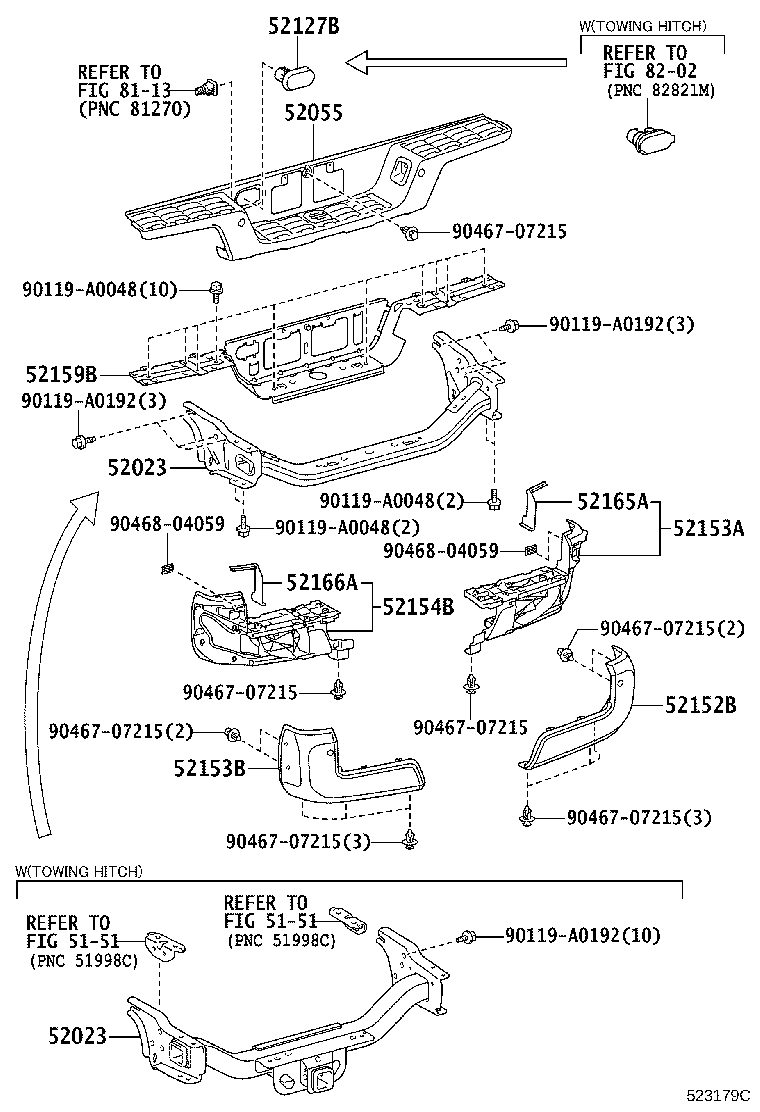

Click highlighted areas on diagram

diagram 5151 5151 52023 52023 52055 52127B 52152B 52153A 52153B 52154B 52159B 52165A 52166A 8113 8202 90119A0048 90119A0048 90119A0048 90119A0192 90119A0192 90119A0192 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046707215 9046804059 9046804059
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-04010

GRN305,310,325,330,TRN245,265

 1
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-04010

GRN305,310,325,330,TRN245,265

 1
52055 - PAD SUB-ASSY, REAR BUMPER
52057-04030

GRN305,310,325,330,TRN245,265..SR5

REAR BUMPER-PAINTED&CLEARANCE & BACK SONAR-WITH

 1
52057-04020

GRN305,310,325,330,TRN245,265..SR5

 1
52057-04030

GRN305,310,325,330,TRN245,265..SR5

CLEARANCE & BACK SONAR-WITH

 1
52127B - COVER, REAR BUMPER HOLE, RH
82821-0C070

GRN305,310,325,330,TRN245,265

 1
52152B - EXTENSION, REAR BUMPER, RH
52155-04010

TRN245,265..LCB

REAR BUMPER-MATERIAL COLOR

 1
52155-04020

GRN305,310,325,330,TRN245,265..SR5

 1
52155-04010

GRN305,310,325,330,TRN245,265..SR5

REAR BUMPER-PAINTED

 1
52155-04050

GRN305,310,325,330,TRN245,265..SR5

CLEARANCE & BACK SONAR-WITH

 1
52155-04900

GRN305,310,325,330,TRN245,265..SR5

REAR BUMPER-PAINTED&CLEARANCE & BACK SONAR-WITH

 1
52153A - STAY, REAR BUMPER SIDE, RH
52153-04010

GRN305,310,325,330,TRN245,265

 1
52153B - EXTENSION, REAR BUMPER, LH
52156-04010

TRN245,265..LCB

REAR BUMPER-MATERIAL COLOR

 1
52156-04050

GRN305,310,325,330,TRN245,265..SR5

CLEARANCE & BACK SONAR-WITH

 1
52156-04900

GRN305,310,325,330,TRN245,265..SR5

REAR BUMPER-PAINTED&CLEARANCE & BACK SONAR-WITH

 1
52156-04010

GRN305,310,325,330,TRN245,265..SR5

REAR BUMPER-PAINTED

 1
52156-04020

GRN305,310,325,330,TRN245,265..SR5

 1
52154B - STAY, REAR BUMPER SIDE, LH
52154-04010

GRN305,310,325,330,TRN245,265

 1
52159B - PLATE, REAR BUMPER
52159-04030

GRN305,310,325,330,TRN245,265

 1
52165A - COVER, REAR BUMPER, UPR RH
52165-04010

GRN305,310,325,330,TRN245,265

NO PAINT REQ.

 1
52166A - COVER, REAR BUMPER, UPR LH
52166-04010

GRN305,310,325,330,TRN245,265

NO PAINT REQ.

 1
Common parts
90119-A0048
90119-A0192
90467-07215
90468-04059
Linked diagrams
5151
8113
8202
