TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

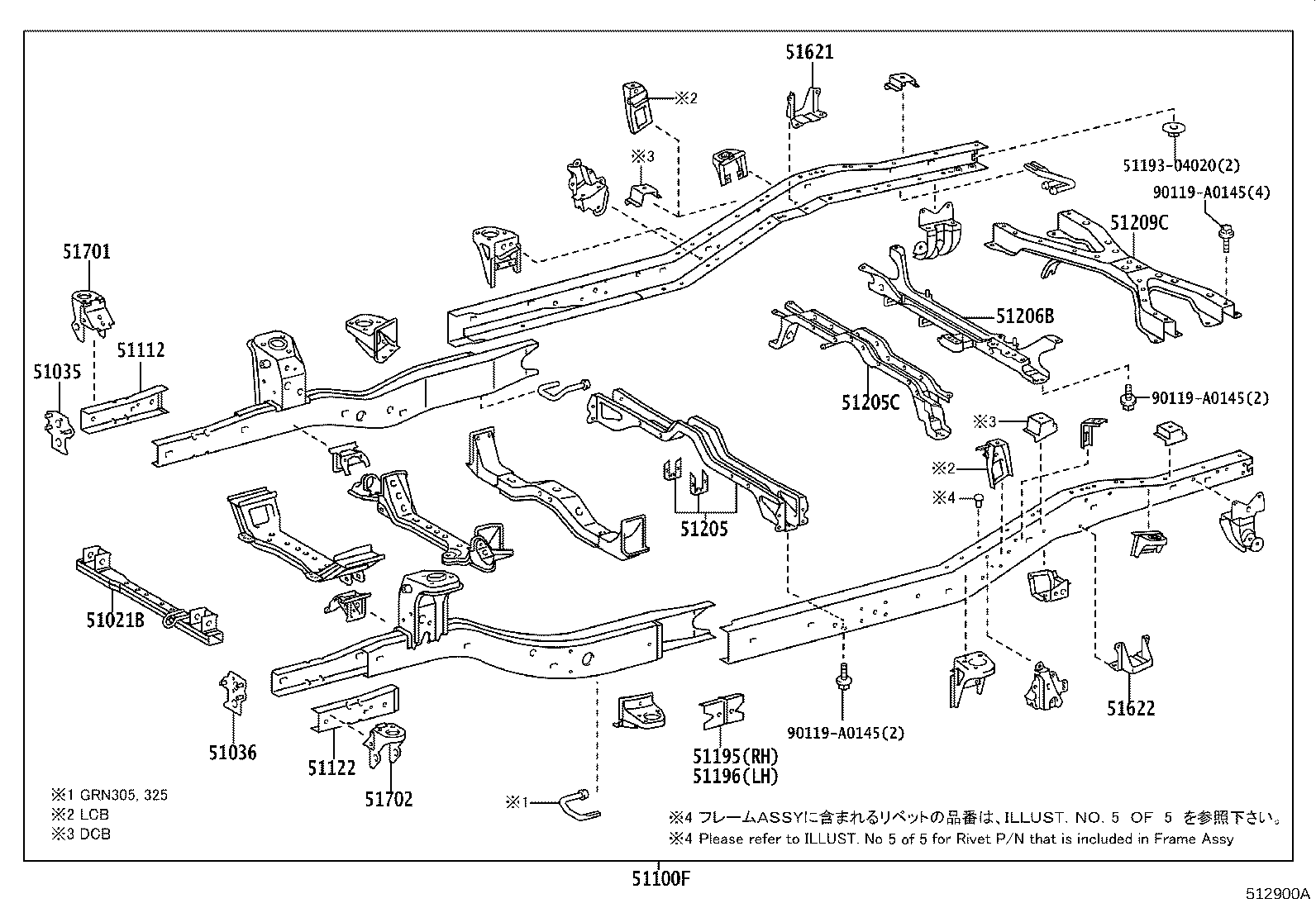

ILLUST NO. 1 OF 5(1508-1605)

Click highlighted areas on diagram

diagram 51021B 51035 51036 51100F 51112 51122 5119304020 51195 51196 51205 51205C 51206B 51209C 51621 51622 51701 51702 90119A0145 90119A0145 90119A0145
Part # Description Qty Price
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-04022

GRN305,310,325,330,TRN245,265

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-04011

GRN305,310,325,330,TRN245,265

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-04011

GRN305,310,325,330,TRN245,265

 1
51100F - FRAME SUB-ASSY
51001-04827

TRN245..6FC

 1
51001-04828

TRN245..6FC

 1
51112 - EXTENSION, SIDE RAIL, RH
51112-04020

GRN305,310,325,330,TRN245,265

 1
51122 - EXTENSION, SIDE RAIL, LH
51122-04020

GRN305,310,325,330,TRN245,265

 1
51195 - PATCH, REAR FRAME RAIL, RH
51195-04010

GRN305,310,325,330,TRN245,265

 1
51196 - PATCH, REAR FRAME RAIL, LH
51195-04010

GRN305,310,325,330,TRN245,265

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-04071

GRN305,TRN245

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-04050

GRN305,310,325,330,TRN245,265

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-04030

GRN305,310,325,330,TRN245,265

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-04045

GRN305,310,325,330,TRN245,265

 1
51621 - BRACKET, REAR BOUND STOPPER, RH
51621-04020

GRN305,310,325,330,TRN245,265

 1
51622 - BRACKET, REAR BOUND STOPPER, LH
51622-04020

GRN305,310,325,330,TRN245,265

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-04011

GRN305,310,325,330,TRN245,265

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-04011

GRN305,310,325,330,TRN245,265

 1
Common parts
51193-04020
90119-A0145

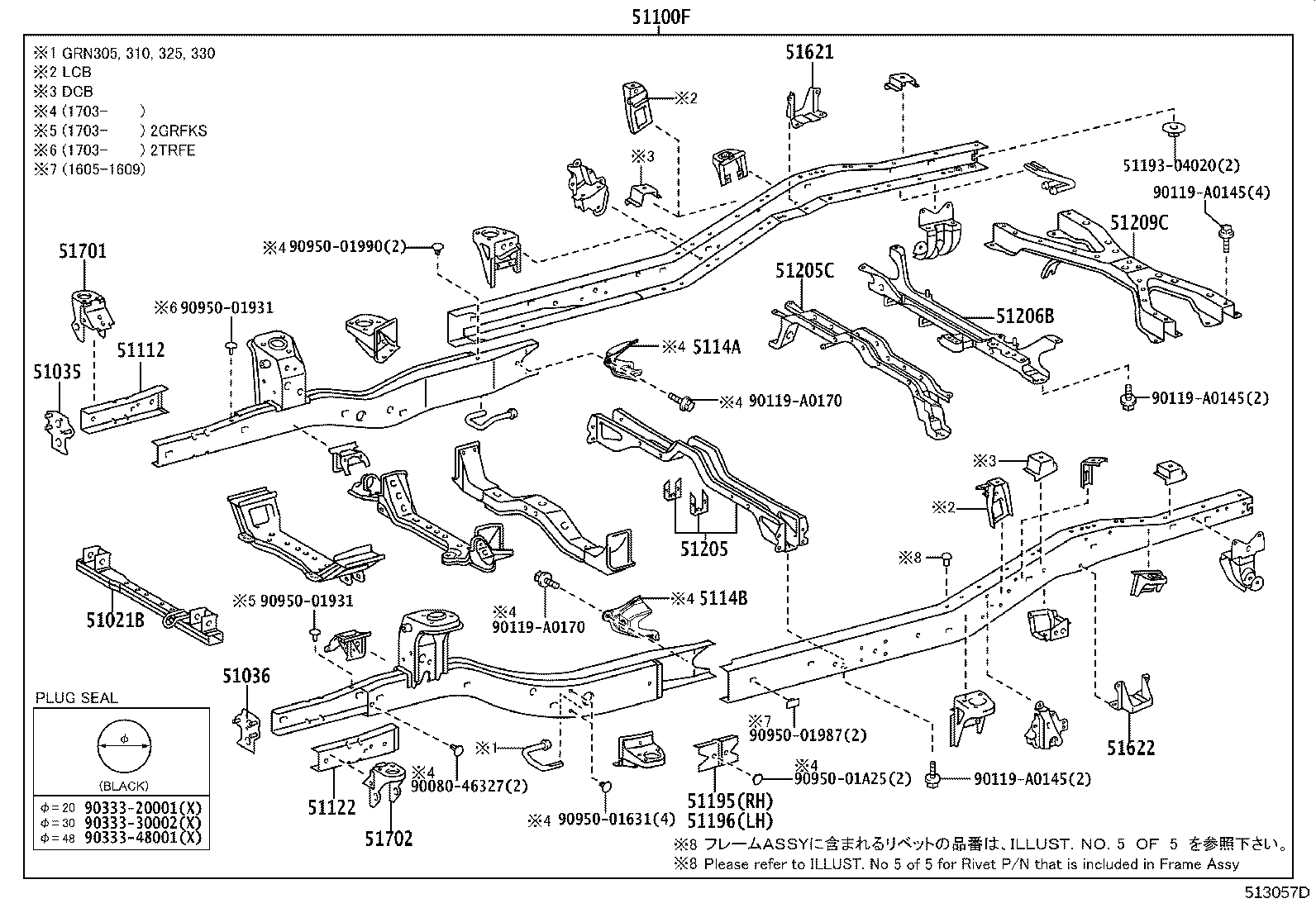

ILLUST NO. 1 OF 5(1605- )

Click highlighted areas on diagram

diagram 51021B 51035 51036 51100F 51112 51122 5114A 5114B 5119304020 51195 51196 51205 51205C 51206B 51209C 51621 51622 51701 51702 9008046327 90119A0145 90119A0145 90119A0145 90119A0170 90119A0170 9033320001 9033330002 9033348001 9095001631 9095001931 9095001931 9095001987 9095001990 9095001A25
Part # Description Qty Price
51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY
51021-04022

GRN305,310,325,330,TRN245,265

 1
51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH
51035-04011

GRN305,310,325,330,TRN245,265

 1
51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH
51036-04011

GRN305,310,325,330,TRN245,265

 1
51100F - FRAME SUB-ASSY
51001-04827

TRN245..6FC

 1
51001-04828

TRN245..6FC

 1
51112 - EXTENSION, SIDE RAIL, RH
51112-04020

GRN305,310,325,330,TRN245,265

 1
51122 - EXTENSION, SIDE RAIL, LH
51122-04020

GRN305,310,325,330,TRN245,265

 1
5114A - SEAL, FRAME SIDE RAIL, RH
5114A-04010

GRN305,310,325,330,TRN245,265

 1
5114B - SEAL, FRAME SIDE RAIL, LH
5114B-04010

GRN305,310,325,330,TRN245,265

 1
51195 - PATCH, REAR FRAME RAIL, RH
51195-04010

GRN305,310,325,330,TRN245,265

 1
51196 - PATCH, REAR FRAME RAIL, LH
51195-04010

GRN305,310,325,330,TRN245,265

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-04071

GRN305,TRN245

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-04050

GRN305,310,325,330,TRN245,265

 1
51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6
51206-04030

GRN305,310,325,330,TRN245,265

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51209-04045

GRN305,310,325,330,TRN245,265

 1
51621 - BRACKET, REAR BOUND STOPPER, RH
51621-04020

GRN305,310,325,330,TRN245,265

 1
51622 - BRACKET, REAR BOUND STOPPER, LH
51622-04020

GRN305,310,325,330,TRN245,265

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-04011

GRN305,310,325,330,TRN245,265

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-04011

GRN305,310,325,330,TRN245,265

 1
Common parts
51193-04020
90080-46327
90119-A0145
90119-A0170
90333-20001
90333-30002
90333-48001
90950-01631
90950-01931
90950-01987
90950-01990
90950-01A25
