TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )

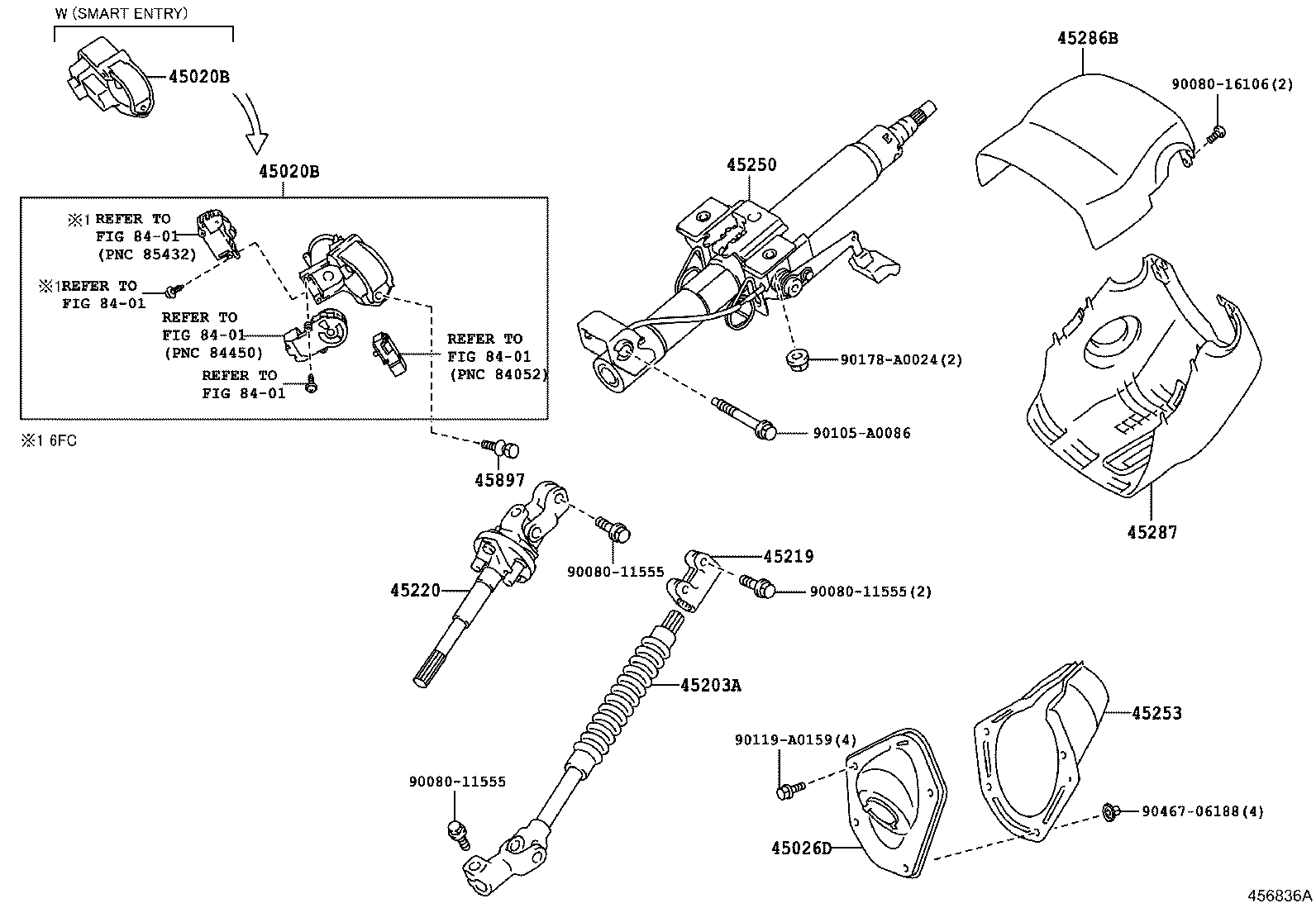

Click highlighted areas on diagram

diagram 45020B 45020B 45026D 45203A 45219 45220 45250 45253 45286B 45287 45897 8401 8401 8401 8401 8401 9008011555 9008011555 9008011555 9008016106 90105A0086 90119A0159 90178A0024 9046706188
Part # Description Qty Price
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02510

GRN305,TRN245..5F,6F

 1
45020-02500

GRN305,310,325,330,TRN245,265..6FC..SR5

 1
45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK
45020-02510

GRN305,TRN245..5F,6F

 1
45020-02500

GRN305,310,325,330,TRN245,265..6FC..SR5

 1
45026D - COVER SUB-ASSY, STEERING COLUMN HOLE
45025-04040

TRN245,265

 1
45203A - SHAFT, STEERING INTERMEDIATE, NO.2
45203-04030

GRN305,310,325,330,TRN245,265

 1
45219 - YOKE, STEERING SLIDING
45219-04030

GRN305,310,325,330,TRN245,265

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-04050

GRN305,310,325,330,TRN245,265

 1
45250 - COLUMN ASSY, STEERING
45250-04230

GRN305,310,325,330,TRN245,265..SR5

 1
45253 - COVER, STEERING COLUMN HOLE
45253-04040

GRN305,310,325,330,TRN245,265

 1
45286B - COVER, STEERING COLUMN, UPR
45286-04130C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-04140C0

TRN265;GRN305,325,TRN245..LCB

BLACK,TRIM1#,2#

 1
45897 - BOLT, STEERING LOCK SET
45897-08010

GRN305,310,325,330,TRN245,265

 1
Common parts
90080-11555
90080-16106
90105-A0086
90119-A0159
90178-A0024
90467-06188
Linked diagrams
8401
