TRN245L-CRTSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )6FC

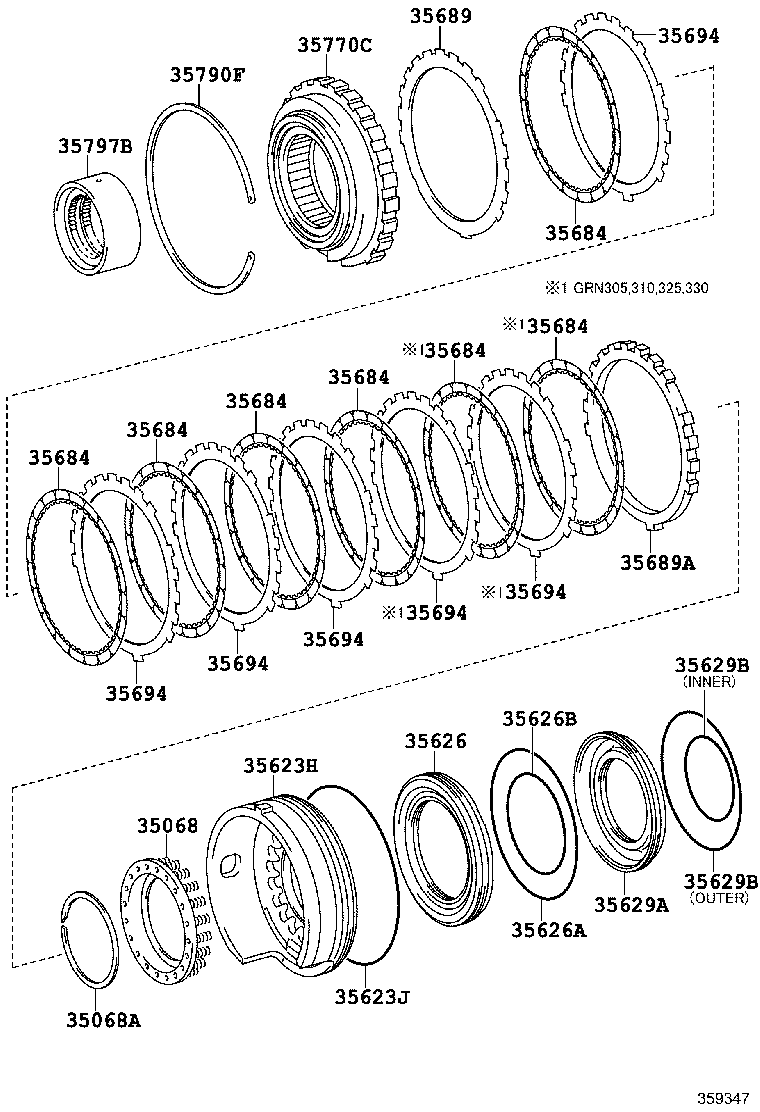

Click highlighted areas on diagram

AC60E,AC60F

diagram 35068 35068A 35623H 35623J 35626 35626A 35626B 35629A 35629B 35629B 35684 35684 35684 35684 35684 35684 35684 35689 35689A 35694 35694 35694 35694 35694 35694 35770C 35790F 35797B
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-0C010

GRN305,310,325,330,TRN245,265..6FC

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-A0025

GRN305,310,325,330,TRN245,265..6FC

 1
35623H - PISTON, 1ST & REVERSE BRAKE
35623-04010

TRN245,265..6FC

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-A0054

GRN305,310,325,330,TRN245,265..6FC

 1
35626 - SLEEVE, BRAKE REACTION
35626-50010

GRN305,310,325,330,TRN245,265..6FC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-A0053

GRN305,310,325,330,TRN245,265..6FC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-A0052

GRN305,310,325,330,TRN245,265..6FC

 1
35629A - PISTON, BRAKE, NO.4
35629-50020

GRN305,310,325,330,TRN245,265..6FC

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-A0050

GRN305,310,325,330,TRN245,265..6FC

INNER

 1
90301-A0051

TRN245,265..6FC

OUTER

 1
35629B - RING, O (FOR BRAKE PISTON NO.4)
90301-A0050

GRN305,310,325,330,TRN245,265..6FC

INNER

 1
90301-A0051

TRN245,265..6FC

OUTER

 1
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35684 - DISC, BRAKE, NO.4
35684-04010

TRN245,265..6FC

 5
35689 - FLANGE, BRAKE, NO.4
35689-0C030

GRN305,310,325,330,TRN245,265..6FC

T=2.2,MARK 4

 1
35689-0C060

GRN305,310,325,330,TRN245,265..6FC

T=2.8,MARK 10

 1
35689-0C010

GRN305,310,325,330,TRN245,265..6FC

T=1.8,MARK 0

 1
35689-0C050

GRN305,310,325,330,TRN245,265..6FC

T=2.6,MARK 8

 1
35689-0C040

GRN305,310,325,330,TRN245,265..6FC

T=2.4,MARK 6

 1
35689-0C080

GRN305,310,325,330,TRN245,265..6FC

T=3.2,MARK 14

 1
35689-0C070

GRN305,310,325,330,TRN245,265..6FC

T=3.0,MARK 12

 1
35689-0C020

GRN305,310,325,330,TRN245,265..6FC

T=2.0,MARK 2

 1
35689A - FLANGE, BRAKE, NO.4
35689-04010

GRN305,310,325,330,TRN245,265..6FC

 1
35694 - PLATE, BRAKE, NO.4
35694-0C010

TRN245,265..6FC

 4
35694 - PLATE, BRAKE, NO.4
35694-0C010

TRN245,265..6FC

 4
35694 - PLATE, BRAKE, NO.4
35694-0C010

TRN245,265..6FC

 4
35694 - PLATE, BRAKE, NO.4
35694-0C010

TRN245,265..6FC

 4
35694 - PLATE, BRAKE, NO.4
35694-0C010

TRN245,265..6FC

 4
35694 - PLATE, BRAKE, NO.4
35694-0C010

TRN245,265..6FC

 4
35770C - CLUTCH ASSY, 1WAY NO.3
35770-04010

GRN305,310,325,330,TRN245,265..6FC

 1
35790F - RING, HOLE SNAP(FOR 1WAY CLUTCH)
90521-99131

GRN305,310,325,330,TRN245,265..6FC

 1
35797B - RACE, 1 WAY CLUTCH, INNER
35797-04010

GRN305,310,325,330,TRN245,265..6FC

 1
