TRN245L-CRTSKA (2015)
Toyota Tacoma
Production
Aug 2015
-
Nov 2017
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1508- )2TRFE

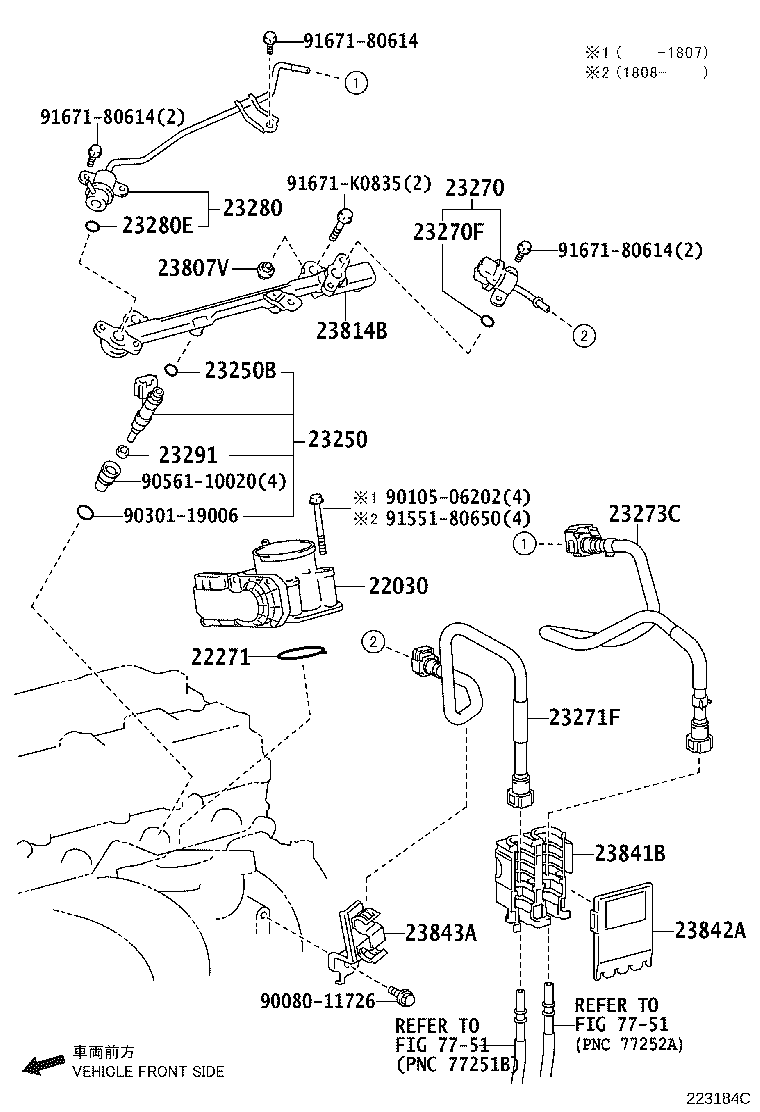

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR | ||||
| 22030-75040 |
2TRFE..TRN245,265 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-75070 |
2TRFE..TRN245,265 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-79215 |
2TRFE..TRN245,265 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
2TRFE..TRN245,265 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-75050 |
2TRFE..TRN245,265 |
1 | ||
| 23270F - RING, O(FOR PULSATION DAMPER) | ||||
| 90301-07037 |
2TRFE..TRN245,265 |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-0C060 |
2TRFE..TRN245,265 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-0C080 |
2TRFE..TRN245,265 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-75110 |
2TRFE..TRN245,265 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07037 |
2TRFE..TRN245,265 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-73010 |
2TRFE..TRN245,265 |
4 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-75020 |
2TRFE..TRN245,265 |
2 | ||
| 23814B - PIPE, FUEL DELIVERY | ||||
| 23814-75110 |
2TRFE..TRN245,265 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-0C050 |
2TRFE..TRN245,265 |
1 | ||
| 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) | ||||
| 23842-0C010 |
2TRFE..TRN245,265 |
1 | ||
| 23843A - CLAMP,FUEL PIPE, NO.3(FOR EFI) | ||||
| 23847-75010 |
2TRFE..TRN245,265 |
1 | ||
| Common parts | ||||
| 90080-11726 | ||||
| 90105-06202 | ||||
| 90301-19006 | ||||
| 90561-10020 | ||||
| 91551-80650 | ||||
| 91671-80614 | ||||
| 91671-K0835 | ||||
| Linked diagrams | ||||
| 7751 | ||||
