TRN245L-CRTSKA (2015)
Toyota Tacoma

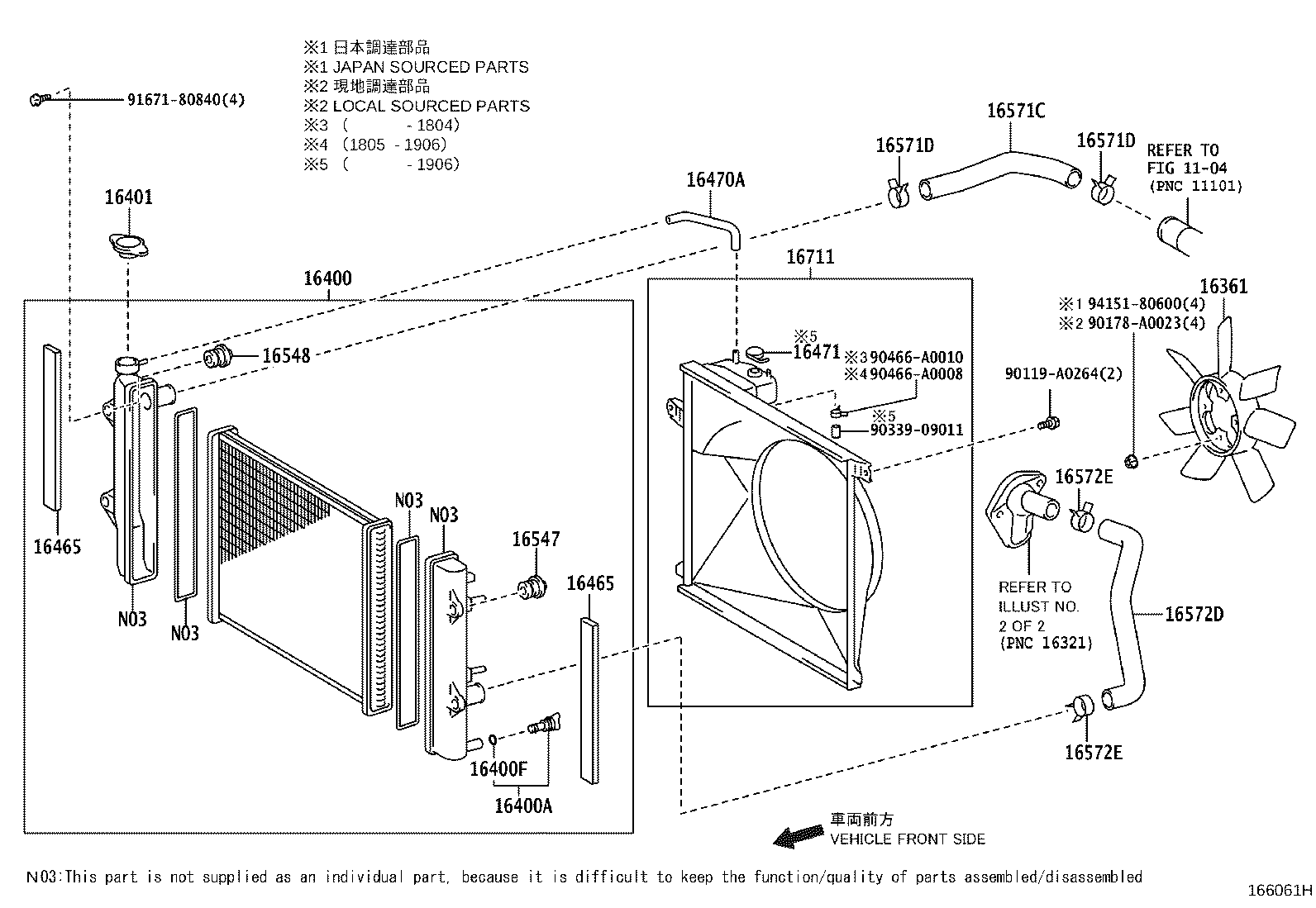

ILLUST NO. 1 OF 2(1508- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-75021 |
2TRFE..TRN245,265 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16410-0C420 |
2TRFE..TRN245,265..6FC |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16417-0C420 |
2TRFE..TRN245,265 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16442-0C420 |
2TRFE..TRN245,265 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36020 |
2TRFE..TRN245,265 |
1 | ||
| 16401-31792 |
2TRFE..TRN245,265 |
1 | ||
| 16401-31830 |
2TRFE..TRN245,265 |
1 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0C420 |
2TRFE..TRN245,265 |
2 | ||
| 16465 - PACKING, RADIATOR | ||||
| 16465-0C420 |
2TRFE..TRN245,265 |
2 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-0C010 |
2TRFE..TRN245,265 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0P030 |
2TRFE..TRN245,265 |
1 | ||
| 16547 - BUSH, RADIATOR SUPPORT, NO.1 | ||||
| 16547-0C420 |
2TRFE..TRN245,265 |
2 | ||
| 16548 - BUSH, RADIATOR SUPPORT, NO.2 | ||||
| 16548-0C420 |
2TRFE..TRN245,265 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0C120 |
2TRFE..TRN245,265 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-A0020 |
2TRFE..TRN245,265 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-A0020 |
2TRFE..TRN245,265 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0C200 |
2TRFE..TRN245,265 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-A0020 |
2TRFE..TRN245,265 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-A0020 |
2TRFE..TRN245,265 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0C290 |
2TRFE..TRN245,265 |
1 | ||
| 16711-0C250 |
2TRFE..TRN245,265 |
1 | ||
| Common parts | ||||
| 90119-A0264 | ||||
| 90178-A0023 | ||||
| 90339-09011 | ||||
| 90466-A0008 | ||||
| 90466-A0010 | ||||
| 91671-80840 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||

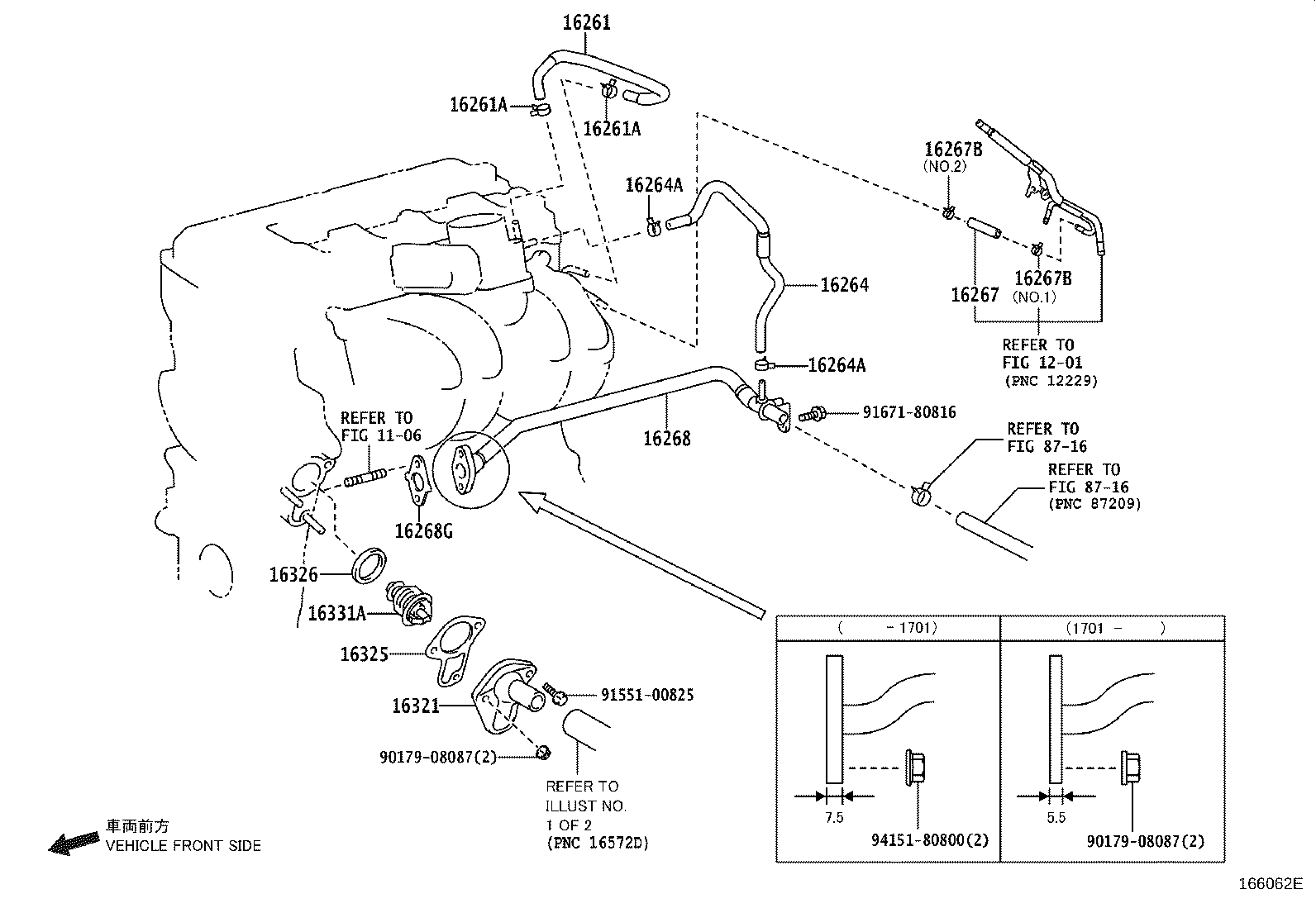

ILLUST NO. 2 OF 2(1508- )2TRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-75270 |
2TRFE..TRN245,265 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
2TRFE..TRN245,265 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
2TRFE..TRN245,265 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-75220 |
2TRFE..TRN245,265 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
2TRFE..TRN245,265 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
2TRFE..TRN245,265 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-75070 |
2TRFE..TRN245,265 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TRN245,265 NO.1 |
1 | ||
| 96136-41501 |
2TRFE..TRN245,265 NO.2 |
1 | ||
| 96136-41501 |
2TRFE..TRN245,265 NO.1 |
1 | ||
| 16267B - CLIP(FOR WATER BY-PASS HOSE) | ||||
| 96137-41501 |
2TRFE..TRN245,265 NO.1 |
1 | ||
| 96136-41501 |
2TRFE..TRN245,265 NO.2 |
1 | ||
| 96136-41501 |
2TRFE..TRN245,265 NO.1 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-75131 |
2TRFE..TRN245,265 |
1 | ||
| 16268-75130 |
2TRFE..TRN245,265 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-75021 |
2TRFE..TRN245,265 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-75020 |
2TRFE..TRN245,265 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-75011 |
2TRFE..TRN245,265 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-76010 |
2TRFE..TRN245,265 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03157 |
2TRFE..TRN245,265 |
1 | ||
| Common parts | ||||
| 90179-08087 | ||||
| 91551-00825 | ||||
| 91671-80816 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1201 | ||||
| 8716 | ||||
