TRN245L-CRTSKA (2015)
Toyota Tacoma
Production
Aug 2015
-
Nov 2017
Engine
2TRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

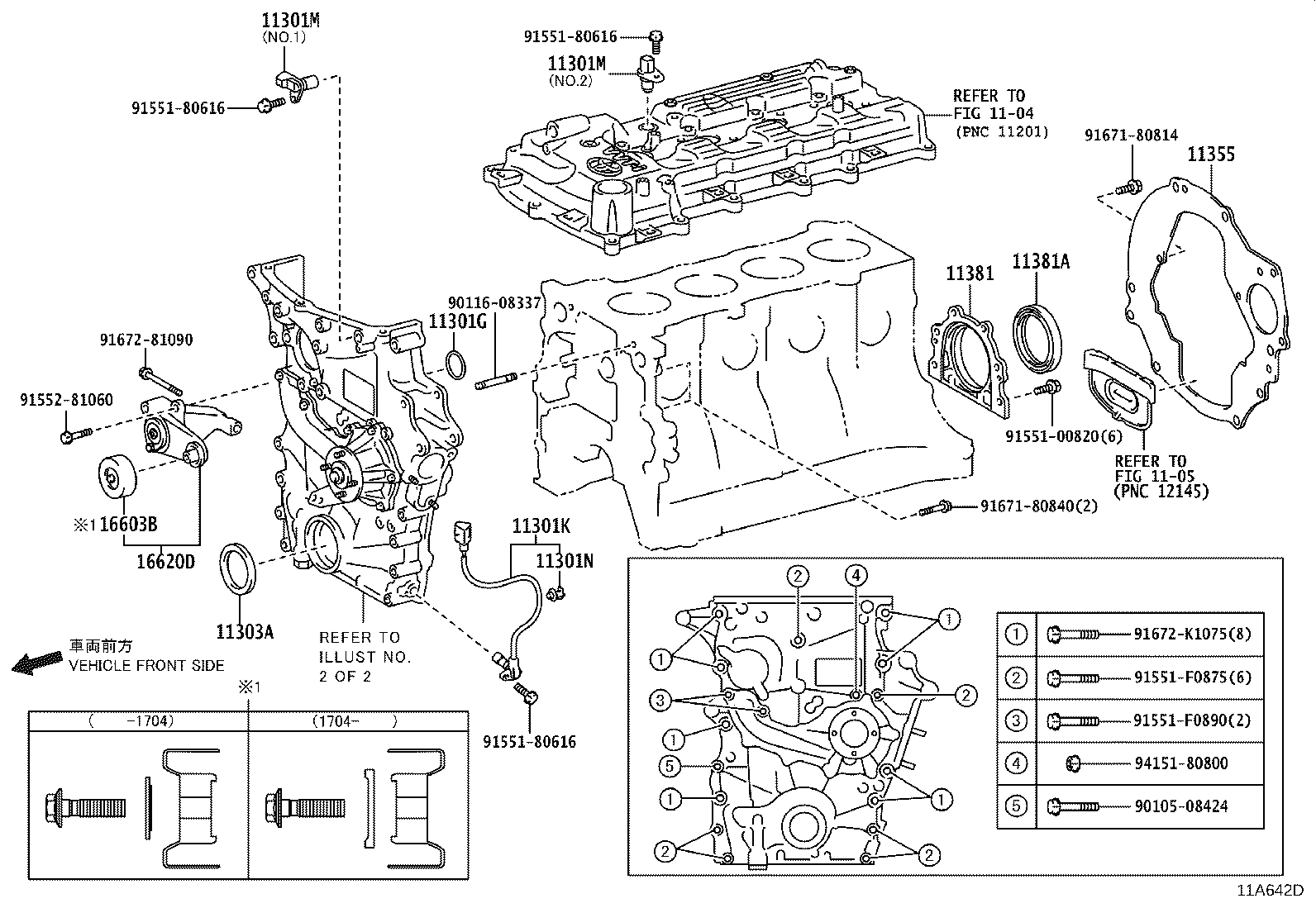

ILLUST NO. 1 OF 2(1508- )2TRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301G - RING, O(FOR TIMING GEAR CASE, UPPER) | ||||
| 90301-25014 |
2TRFE..TRN245,265 |
1 | ||
| 11301K - SENSOR, CRANK POSITION | ||||
| 90919-05059 |
2TRFE..TRN245,265 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2TRFE..TRN245,265 NO.1 |
1 | ||
| 90919-05073 |
2TRFE..TRN245,265 NO.2 |
1 | ||
| 11301M - SENSOR, CAM POSITION | ||||
| 90919-05061 |
2TRFE..TRN245,265 NO.1 |
1 | ||
| 90919-05073 |
2TRFE..TRN245,265 NO.2 |
1 | ||
| 11301N - CLAMP | ||||
| 90469-07018 |
2TRFE..TRN245,265 |
1 | ||
| 11303A - SEAL, OIL(FOR CRANKSHAFT FRONT) | ||||
| 90311-48031 |
2TRFE..TRN245,265 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-75021 |
2TRFE..TRN245,265 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-75012 |
2TRFE..TRN245,265 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-88006 |
2TRFE..TRN245,265 |
1 | ||
| 16603B - PULLEY SUB-ASSY, IDLER | ||||
| 16603-75020 |
2TRFE..TRN245,265 |
1 | ||
| 16603-75021 |
2TRFE..TRN245,265 |
1 | ||
| 16620D - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-75050 |
2TRFE..TRN245,265 |
1 | ||
| 16620-75051 |
2TRFE..TRN245,265 |
1 | ||
| Common parts | ||||
| 90105-08424 | ||||
| 90116-08337 | ||||
| 91551-00820 | ||||
| 91551-80616 | ||||
| 91551-F0875 | ||||
| 91551-F0890 | ||||
| 91552-81060 | ||||
| 91671-80814 | ||||
| 91671-80840 | ||||
| 91672-81090 | ||||
| 91672-K1075 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||

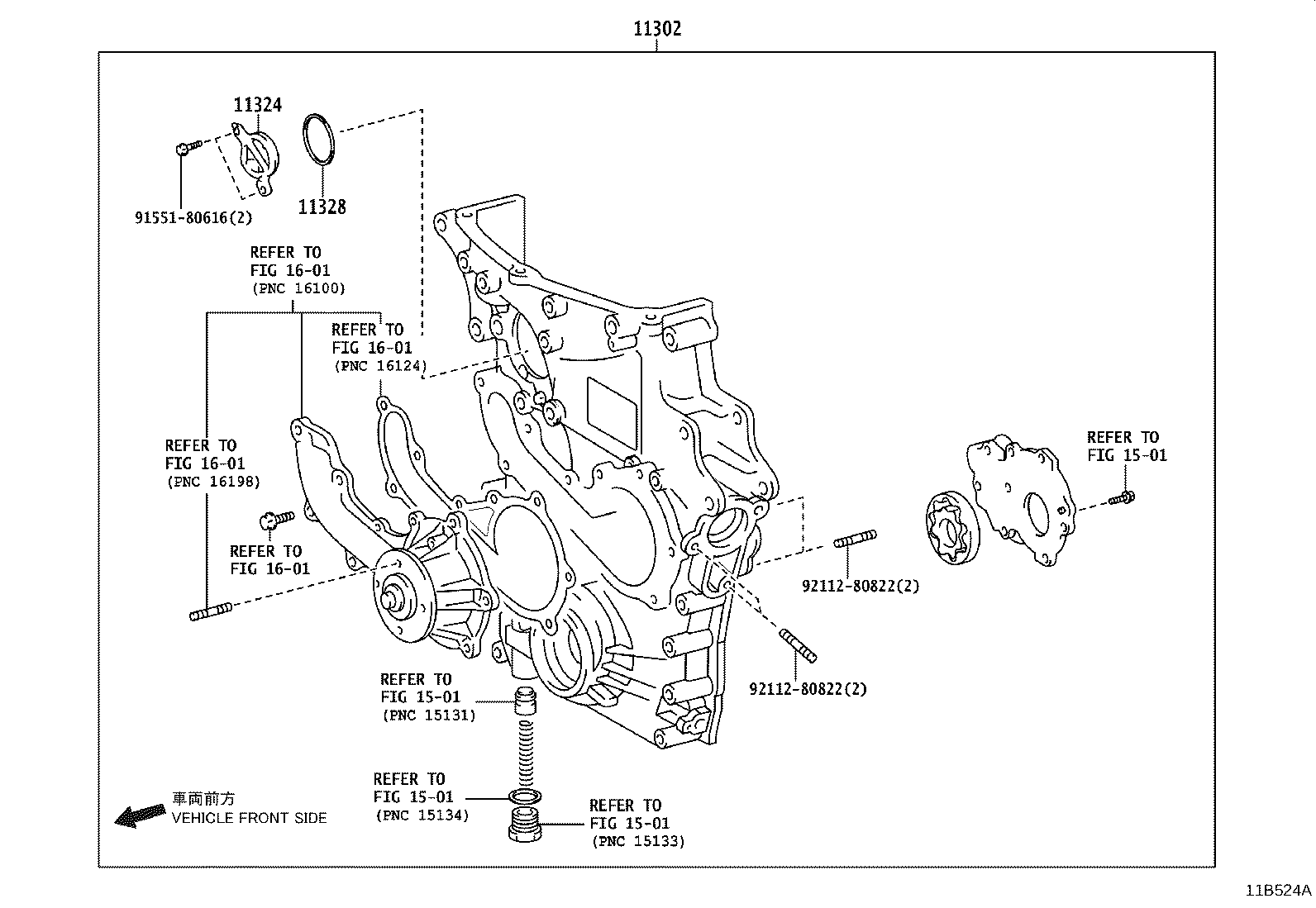

ILLUST NO. 2 OF 2(1508- )2TRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11310-75090 |
2TRFE..TRN245,265 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-75010 |
2TRFE..TRN245,265 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-75030 |
2TRFE..TRN245,265 |
1 | ||
| Common parts | ||||
| 91551-80616 | ||||
| 92112-80822 | ||||
| Linked diagrams | ||||
| 1501 | ||||
| 1601 | ||||
