TRN245L-CRPDKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1109-1508)

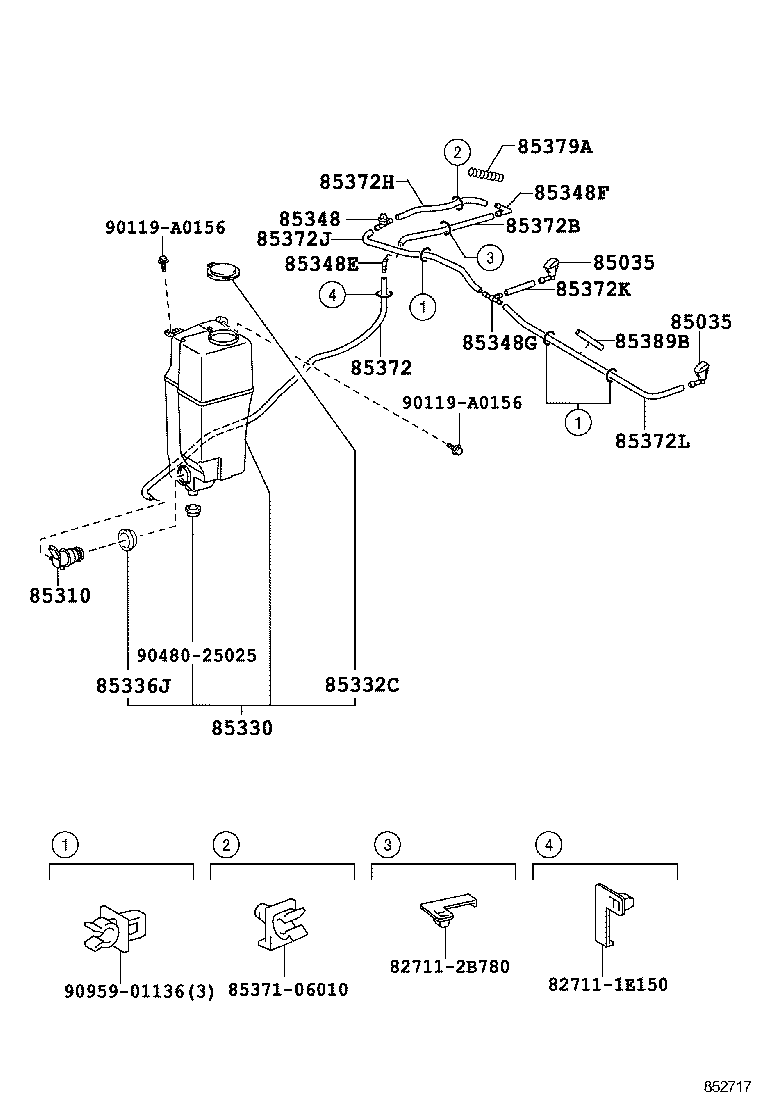

Click highlighted areas on diagram

diagram 827111E150 827112B780 85035 85035 85310 85330 85332C 85336J 85348 85348E 85348F 85348G 8537106010 85372 85372B 85372H 85372J 85372K 85372L 85379A 85389B 90119A0156 90119A0156 9048025025 9095901136
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-04040

GRN225,245,250,265,270,TRN225,245,265

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-04040

GRN225,245,250,265,270,TRN225,245,265

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-AE010

GRN225,245,250,265,270,TRN225,245,265

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-04090

GRN225,245,250,265,270,TRN225,245,265

 1
85332C - CAP, FRONT WASHER TANK
85316-0C060

GRN225,245,250,265,270,TRN225,245,265

 1
85336J - PROTECTOR, WASHER JAR
85336-60300

GRN225,245,250,265,270,TRN225,245,265

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-17050

GRN225,245,250,265,270,TRN225,245,265

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85375-02260

GRN225,245,250,265,270,TRN225,245,265

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-12360

GRN225,245,250,265,270,TRN225,245,265

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85378-32220

GRN225,245,250,265,270,TRN225,245,265

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33041

GRN225,245,250,265,270,TRN225,245,265

L=830

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90068-33040

GRN225,245,250,265,270,TRN225,245,265

L=240

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

GRN225,245,250,265,270,TRN225,245,265

*H,L=280

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90068-33053

GRN225,245,250,265,270,TRN225,245,265

L=450

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90068-33029

GRN225,245,250,265,270,TRN225,245,265

L=90

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90068-33086

GRN225,245,250,265,270,TRN225,245,265

L=650

 1
85379A - SPRING, WINDSHIELD WASHER HOSE
85389-28361

GRN225,245,250,265,270,TRN225,245,265

 1
Common parts
82711-1E150
82711-2B780
85371-06010
90119-A0156
90480-25025
90959-01136
