TRN245L-CRPDKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1508)4FC

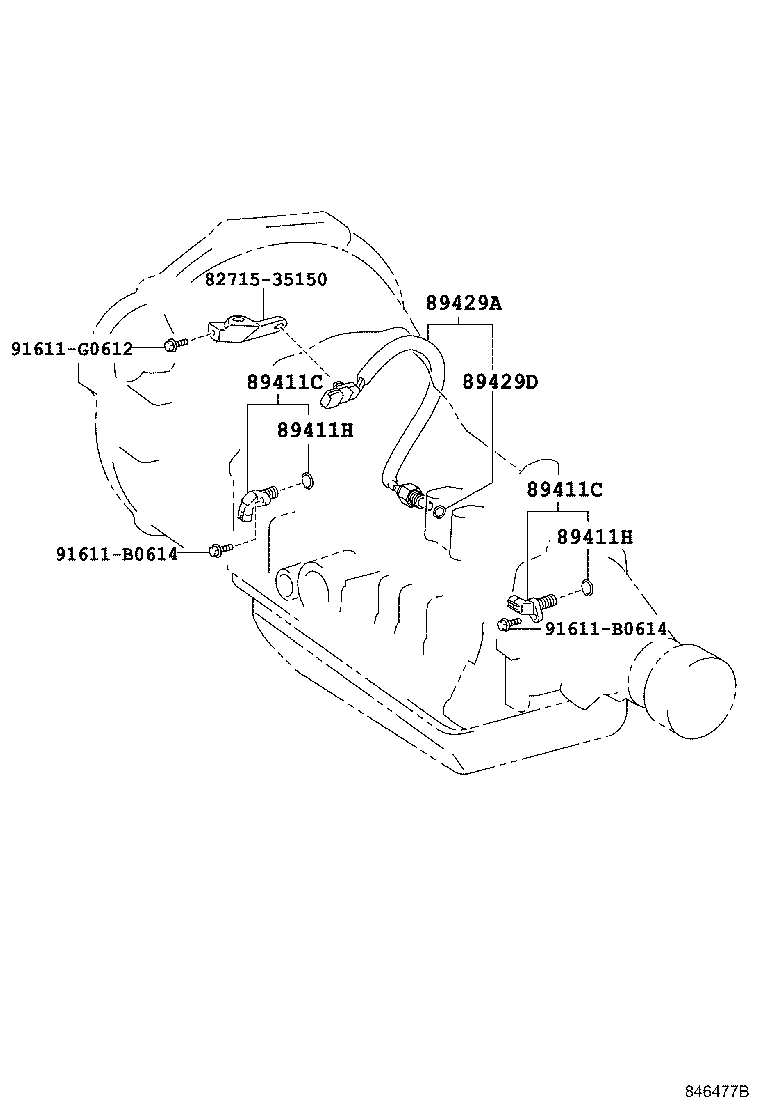

Click highlighted areas on diagram

A340E,A340F

diagram 8271535150 89411C 89411C 89411H 89411H 89429A 89429D 91611B0614 91611B0614 91611G0612
Part # Description Qty Price
89411C - SENSOR, SPEED
89411-50010

TRN225,245,265..4FC

 2
89411C - SENSOR, SPEED
89411-50010

TRN225,245,265..4FC

 2
89411H - RING, O
90301-11008

TRN225,245,265..4FC

 2
89411H - RING, O
90301-11008

TRN225,245,265..4FC

 2
89429A - SENSOR, TEMPERATURE
89429-35090

TRN225,245,265..4FC

 1
89429D - RING, O(FOR TEMPERATURE SENSOR)
90301-11006

TRN225,245,265..4FC

 1
Common parts
82715-35150
91611-B0614
91611-G0612
