TRN245L-CRPDKA (2011)

Toyota Tacoma

Production Sep 2011 - Aug 2015
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1508)4FC

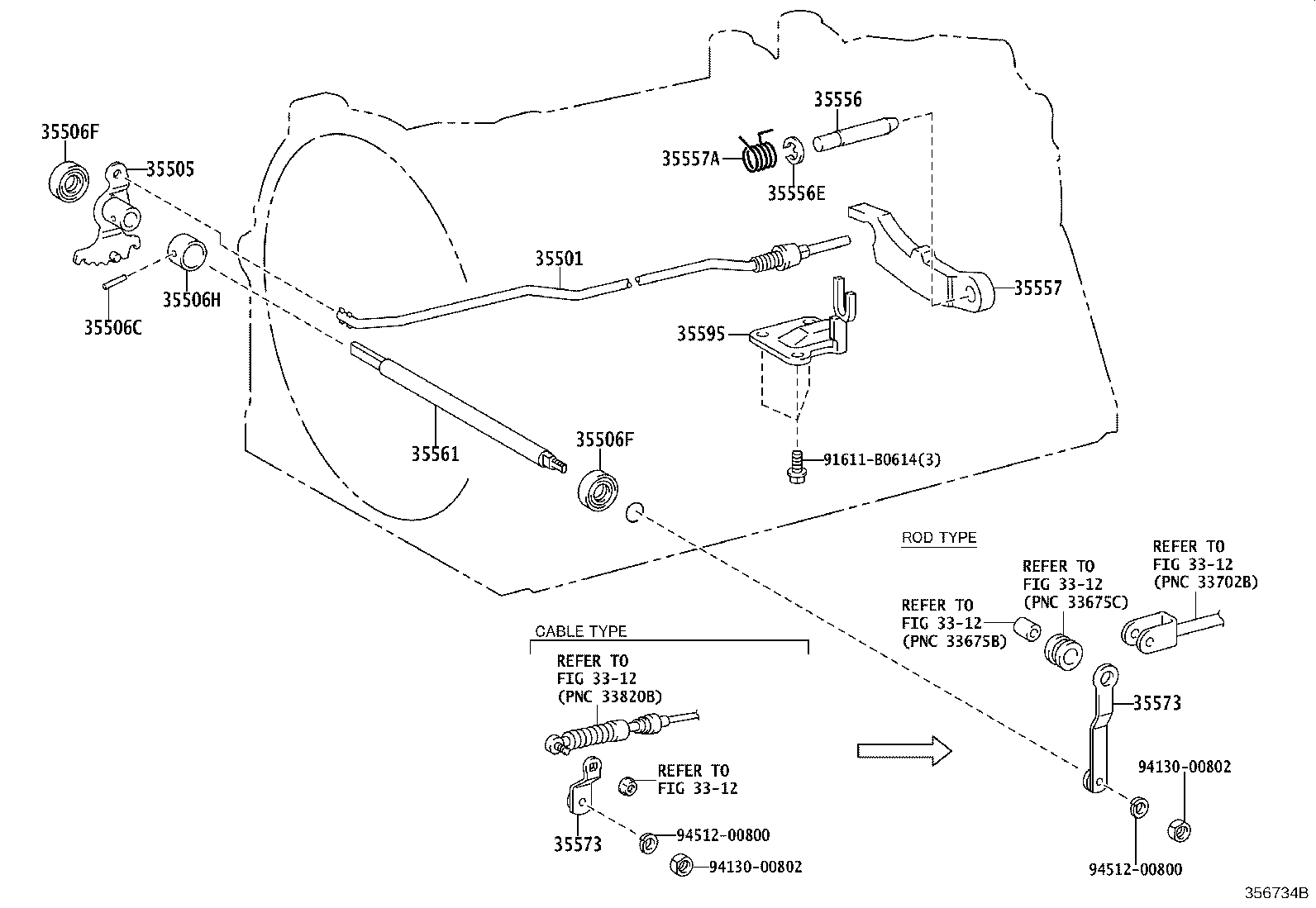

Click highlighted areas on diagram

A340E,A340F

diagram 3312 3312 3312 3312 3312 35501 35505 35506C 35506F 35506F 35506H 35556 35556E 35557 35557A 35561 35573 35573 35595 91611B0614 9413000802 9413000802 9451200800 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-60010

TRN22#,24#,265..4FC

 1
35501-71010

TRN225,245,265..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60030

TRN225,245,265..4FC

 1
35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)
90254-04011

GRN245,250,265,270,TRN225,245,265..4FC,5FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRN245,250,265,270,TRN225,245,265..4FC,5FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

GRN245,250,265,270,TRN225,245,265..4FC,5FC

 2
35506H - SPACER (FOR MANUAL VALVE LEVER SHAFT)
90560-20025

GRN245,250,265,270,TRN225,245,265..4FC,5FC

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-30020

TRN225,245,265..4FC

 1
35556E - RING, E (FOR PARKING LOCK PAWL SHAFT)
90523-08021

GRN245,250,265,270,TRN225,245,265..4FC,5FC

 1
35557 - PAWL, PARKING LOCK
35557-60020

TRN225,245,265..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-21002

TRN225,245,265..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-35010

TRN225,245,265..4FC

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-60020

TRN225,245,265..4FC

CABLE TYPE

 1
35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH
35573-60020

TRN225,245,265..4FC

CABLE TYPE

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-60010

TRN225,245,265..4FC

 1
Common parts
91611-B0614
94130-00802
94512-00800
Linked diagrams
3312
