TRN245L-CRMSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

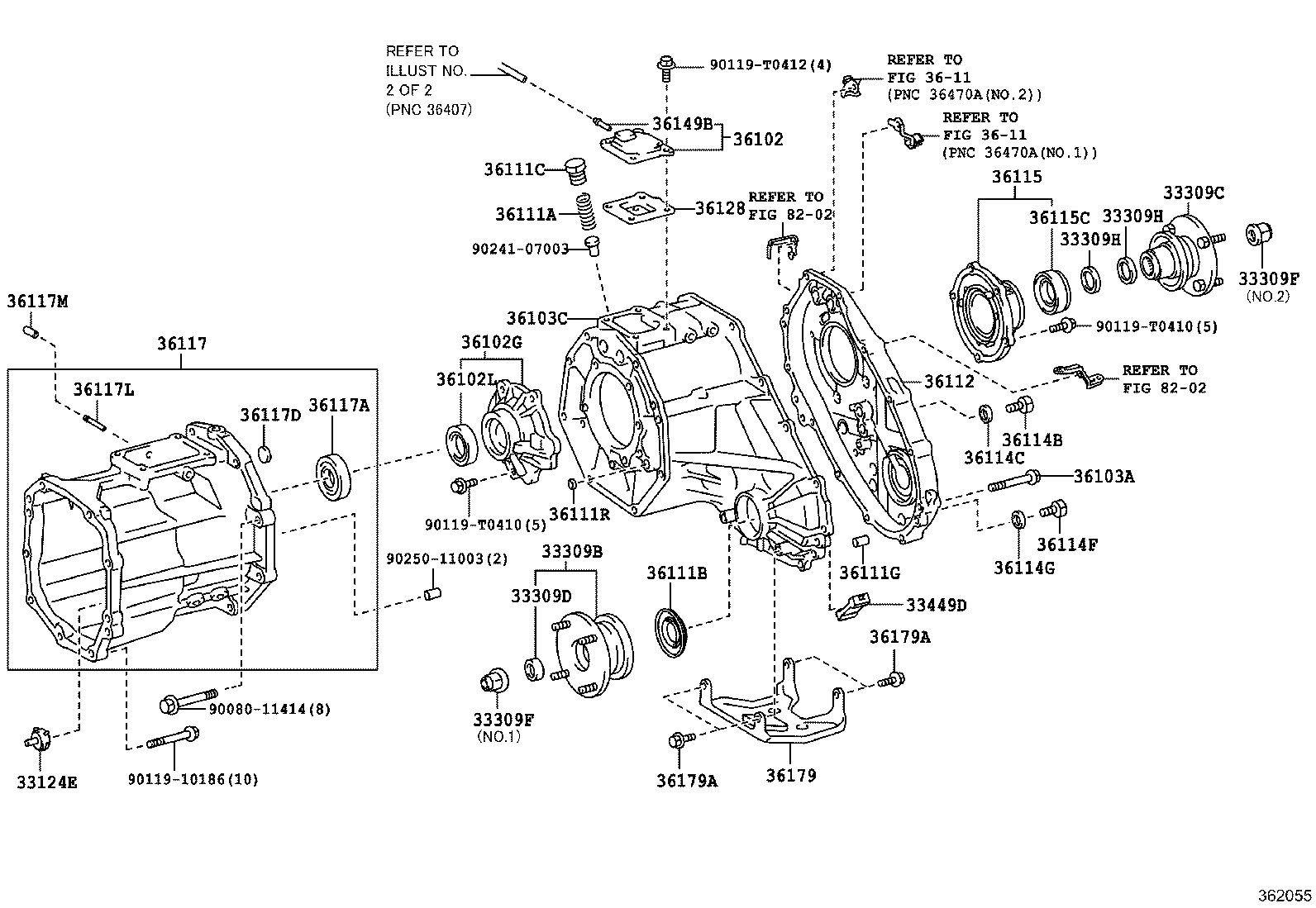

ILLUST NO. 1 OF 2(1508- )5F

Click highlighted areas on diagram

TRANSFER CASE

diagram 33124E 33309B 33309C 33309D 33309F 33309F 33309H 33309H 33449D 36102 36102G 36102L 36103A 36103C 3611 3611 36111A 36111B 36111C 36111G 36111R 36112 36114B 36114C 36114F 36114G 36115 36115C 36117 36117A 36117D 36117L 36117M 36128 36149B 36179 36179A 36179A 8202 8202 9008011414 9011910186 90119T0410 90119T0410 90119T0412 9024107003 9025011003
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33124-35100

TRN245..5F

 1
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-0K011

GRN305,310,TRN245

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-0K030

GRN305,310,TRN245

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-T0004

GRN305,310,TRN245

 1
33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90179-22016

GRN305,310,TRN245

NO.1:REFER ILLUST.

 1
90179-24011

GRN305,310,TRN245

NO.2:REFER ILLUST.

 1
33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90179-22016

GRN305,310,TRN245

NO.1:REFER ILLUST.

 1
90179-24011

GRN305,310,TRN245

NO.2:REFER ILLUST.

 1
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-71010

GRN305,310,TRN245

T=0.8

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-71010

GRN305,310,TRN245

T=0.8

 2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

GRN305,310,TRN245

 1
36102 - COVER SUB-ASSY, TRANSFER CASE
36102-0K020

GRN305,310,TRN245

 1
36102G - RETAINER SUB-ASSY, TRANSFER FRONT BEARING
36102-0K010

GRN305,310,TRN245..5F,6FC

 1
36102L - SEAL, TYPE T OIL(FOR TRANSFER FRONT BEARING)
90311-T0071

GRN305,310,TRN245

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-T0411

GRN305,310,TRN245

*8-1.25PX55-30

 12
36103C - CASE, TRANSFER, FRONT
36111-0K030

GRN305,310,TRN245

 1
36111A - SPRING, COMPRESSION (FOR TRANSFER CASE)
90501-T0034

GRN305,310,TRN245

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-T0082

GRN305,310,TRN245

 1
36111C - PLUG (FOR TRANSFER CASE)
90341-T0013

GRN305,310,TRN245

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-T0026

GRN305,310,TRN245

L=14,OD=10

 2
36111R - PLUG, TIGHT (FOR TRANSFER CASE)
90331-15003

GRN305,310,TRN245

 1
36112 - CASE, TRANSFER, REAR
36112-0K030

GRN305,310,TRN245

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

GRN305,310,TRN245

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-T0021

GRN305,310,TRN245

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18006

GRN305,310,TRN245

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
90430-T0021

GRN305,310,TRN245

 1
36115 - HOUSING, TRANSFER EXTENSION
36105-0K020

GRN305,310,TRN245

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-T0072

GRN305,310,TRN245

 1
36117 - ADAPTER, TRANSFER
36107-60080

TRN245..5F

 1
36117A - SEAL, OIL(FOR TRANSFER ADAPTER)
90311-43007

TRN245..5F

 1
36117D - PLUG(FOR TRANSFER ADAPTER)
90331-21003

TRN245..5F

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

GRN305,310,TRN245..5F,6FC

 1
36117M - CAP(FOR TRANSFER ADAPTER)
90339-04024

GRN305,310,TRN245..5F,6FC

 1
36128 - DEFLECTOR, BREATHER OIL
36128-0K020

GRN305,310,TRN245

 1
36149B - TUBE, TRANSFER BREATHER
90406-T0007

GRN305,310,TRN245

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-04020

GRN305,310,TRN245

 1
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
90080-11251

GRN305,310,TRN245

 4
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
90080-11251

GRN305,310,TRN245

 4
Common parts
90080-11414
90119-10186
90119-T0410
90119-T0412
90241-07003
90250-11003
Linked diagrams
3611
8202

ILLUST NO. 2 OF 2(1508- )GRN305,310,TRN245

Click highlighted areas on diagram

TRANSFER BREATHER HOSE

diagram 3302 3302 3302 3503 3503 3611 3611 3611 3611 36407 36407 36407 36407 36478 36478 36478 36478 9041205002 9041205002 9041205002 9041205002 9041205002 9041205002 9041205002 9041205002 9046400074 9046400074 9046400082 9046400320 9046400320 9092901447 9092901447 9092901447 9092901447 9092901447 9092901447 9092901447 9092901447 9093003207 9093003207 9093003207 9093003207 9093003207 9093003207 9093003207 9093003207
Part # Description Qty Price
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-04050

TRN245..5F

 1
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-04050

TRN245..5F

 1
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-04050

TRN245..5F

 1
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-04050

TRN245..5F

 1
36478 - BRACKET, TRANSFER BREATHER
36478-04050

GRN305,310,TRN245

 1
36478 - BRACKET, TRANSFER BREATHER
36478-04050

GRN305,310,TRN245

 1
36478 - BRACKET, TRANSFER BREATHER
36478-04050

GRN305,310,TRN245

 1
36478 - BRACKET, TRANSFER BREATHER
36478-04050

GRN305,310,TRN245

 1
Common parts
90412-05002
90464-00074
90464-00082
90464-00320
90929-01447
90930-03207
Linked diagrams
3302
3503
3611
