TRN245L-CRMSKA (2015)

Toyota Tacoma

Production Aug 2015 - Nov 2017
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1508- )5F

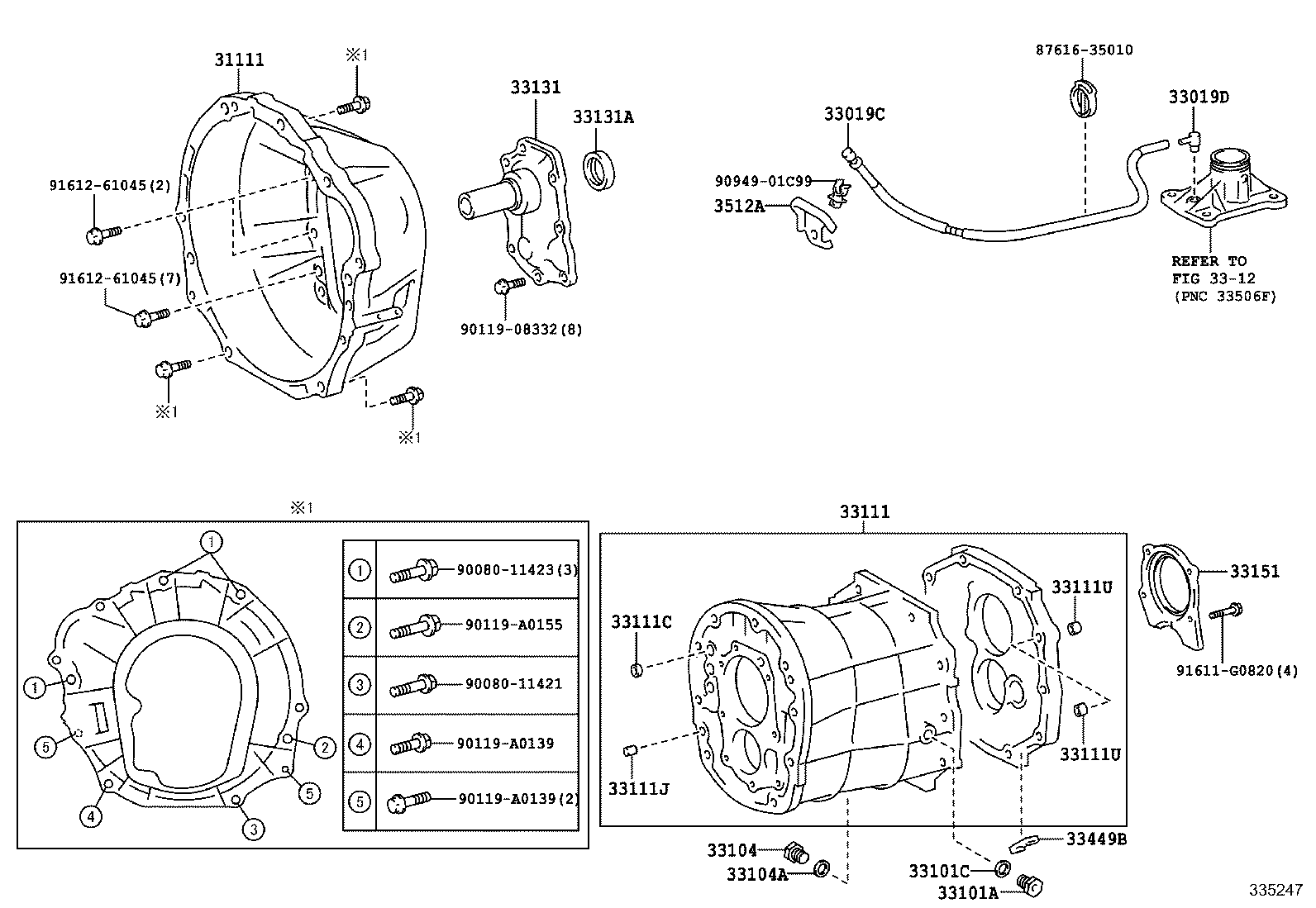

Click highlighted areas on diagram

R156

diagram 31111 33019C 33019D 33101A 33101C 33104 33104A 33111 33111C 33111J 33111U 33111U 3312 33131 33131A 33151 33449B 3512A 8761635010 9008011421 9008011423 9011908332 90119A0139 90119A0139 90119A0155 9094901C99 91611G0820 9161261045 9161261045
Part # Description Qty Price
31111 - HOUSING, CLUTCH
31111-26073

TRN245..5F

 1
33019C - BREATHER SUB-ASSY, TRANSMISSION
33019-35010

TRN245..5F

 1
33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE)
33191-71010

TRN245..5F

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

TRN245..5F

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

TRN245..5F

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

TRN245..5F

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

TRN245..5F

 1
33111 - CASE, MANUAL TRANSMISSION
33101-60041

TRN245..5F

 1
33111C - PLUG(FOR TRANSMISSION CASE)
96411-41800

TRN245..5F

OD=18

 3
90331-14004

TRN245..5F

OD=14

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-12002

TRN245..5F

L=16,OD=12

 2
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

GRN305,TRN245..5F,6F

L=14,OD=15

 4
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-15001

GRN305,TRN245..5F,6F

L=14,OD=15

 4
33131 - RETAINER, BEARING, FRONT(MTM)
33131-35031

TRN245..5F

 1
33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
90311-32022

TRN245..5F

 1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-35020

TRN245..5F

 1
33449B - MAGNET, TRANSMISSION
33449-35030

TRN245..5F

 1
3512A - BRACKET, TRANSMISSION BREATHER, NO.1
3512A-35010

TRN245..5F

 1
Common parts
87616-35010
90080-11421
90080-11423
90119-08332
90119-A0139
90119-A0155
90949-01C99
91611-G0820
91612-61045
Linked diagrams
3312
