TRN245L-CRMDKA (2011)
Toyota Tacoma

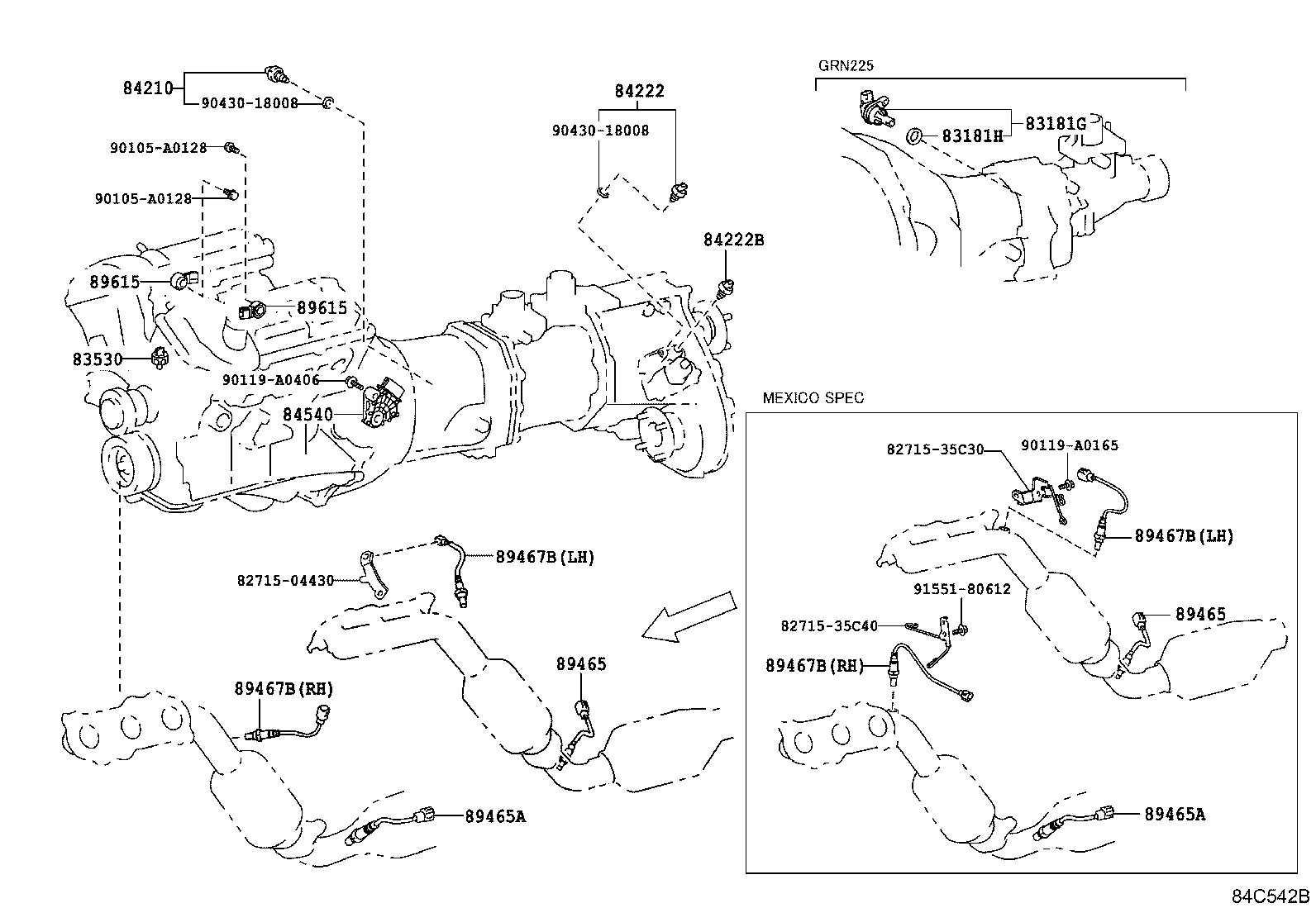

ILLUST NO. 1 OF 7(0409-1508)TRN22#,24#,26#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRN225,245,250,265,270,TRN225,245,265 (J),DENSO |
1 | ||
| 83530-0E010 |
GRN225,245,250,265,270,TRN225,245,265 (L) |
1 | ||
| 83530-60020 |
GRN225,245,250,265,270,TRN225,245,265 (J),YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 84210-12040 |
GRN225,245,TRN22#,24#..5F,6F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
GRN245,250,TRN245 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35121 |
GRN245,250,TRN245 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04330 |
TRN24#..5F |
1 | ||
| 89465-35730 |
GRN225,245,250,265,270 |
1 | ||
| 89465-35750 |
TRN245..5F |
1 | ||
| 89465-04510 |
TRN245..5F |
1 | ||
| 89465-04490 |
GRN225,245,250,265,270 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04330 |
TRN24#..5F |
1 | ||
| 89465-35730 |
GRN225,245,250,265,270 |
1 | ||
| 89465-35750 |
TRN245..5F |
1 | ||
| 89465-04510 |
TRN245..5F |
1 | ||
| 89465-04490 |
GRN225,245,250,265,270 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04330 |
TRN24#..5F |
1 | ||
| 89465-35730 |
GRN225,245,250,265,270 |
1 | ||
| 89465-35750 |
TRN245..5F |
1 | ||
| 89465-04510 |
TRN245..5F |
1 | ||
| 89465-04490 |
GRN225,245,250,265,270 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-04010 |
TRN22#,24#..5F |
1 | ||
| 89467-34030 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-04080 |
TRN225,245,265 |
1 | ||
| 89467-04090 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-0C060 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GRN225,245,250,265,270 |
2 | ||
| 89615-20090 |
TRN225,245,265 |
1 | ||
| Common parts | ||||
| 82715-04200 | ||||
| 82715-04290 | ||||
| 82715-35A30 | ||||
| 82715-35B50 | ||||
| 84549-04011 | ||||
| 90080-11211 | ||||
| 90119-A0169 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91651-40830 | ||||
ILLUST NO. 7 OF 7(0409-1508)
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-04030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 83320-04021 |
GRN225,245,250,265,270,TRN22#,24#,265 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-08030 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-06030 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-04070 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-04070 |
GRN225,245,265,TRN225,245,265..LCB |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0C010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-0C010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-16098 | ||||
| 90084-10034 | ||||
| 90148-A0006 | ||||
| 90430-18008 | ||||
| 90901-48003 | ||||

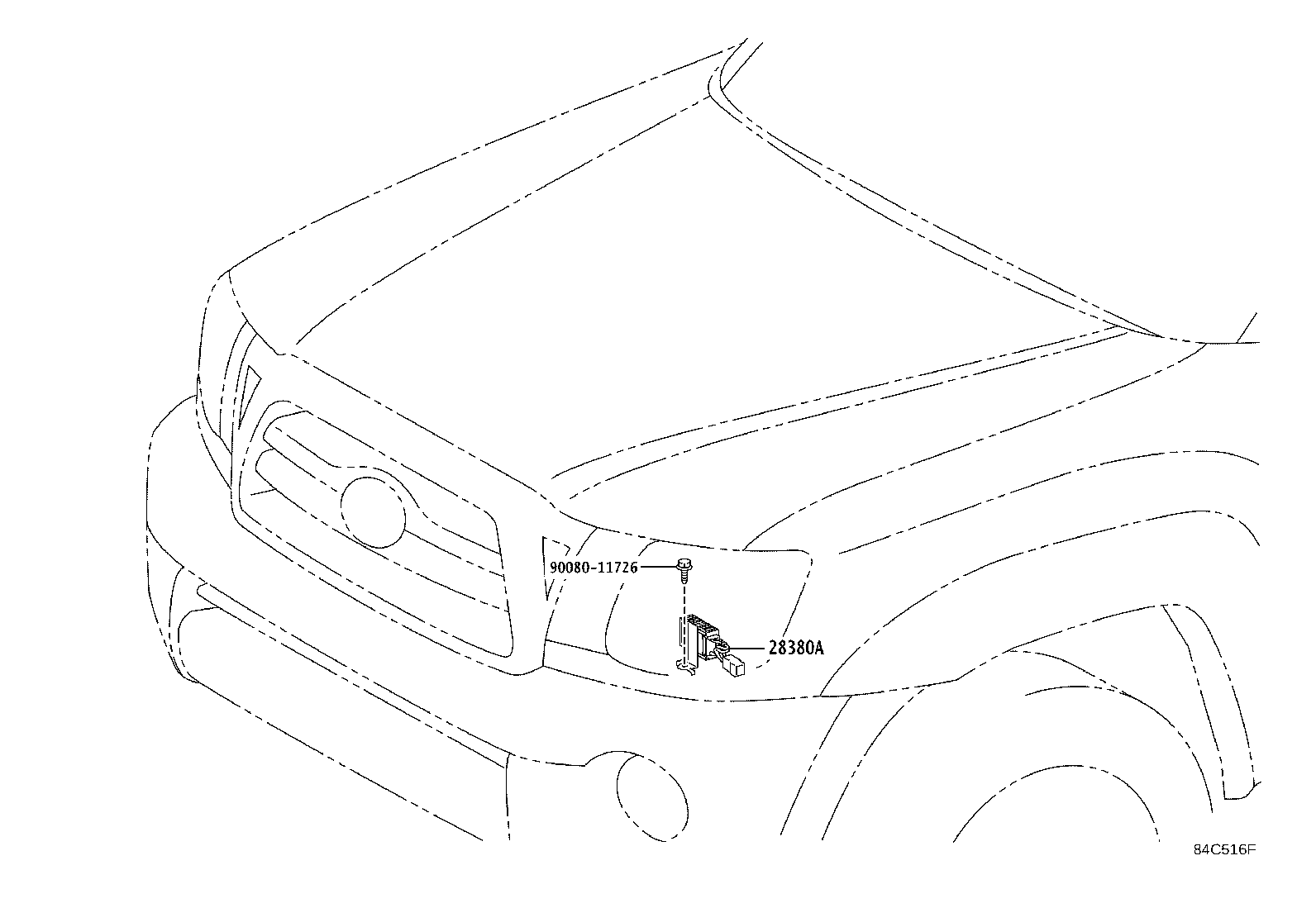

ILLUST NO. 2 OF 7(1109-1508)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-11726 | ||||

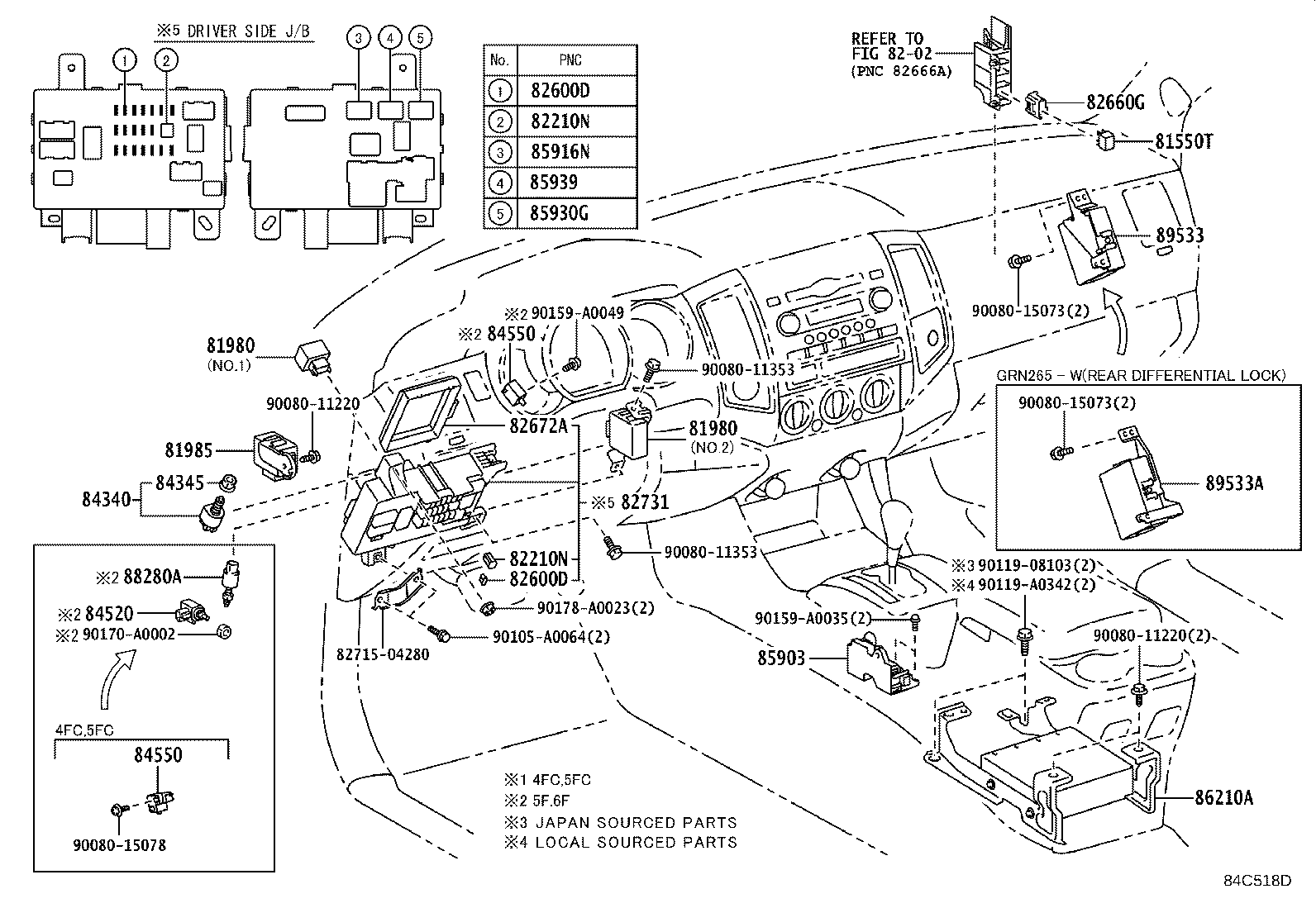

ILLUST NO. 4 OF 7(1109-1508)
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02030 |
GRN225,245,250,265,270,TRN22#,24#,265 NO.1 |
1 | ||
| 81980-04040 |
GRN225,245,250,265,270,TRN22#,24#,265 DAYTIME RUNNING LIGHT SYSTEM-WITH,NO.2 |
1 | ||
| 81980-04040 |
GRN225,245,250,265,270,TRN225,245,265 NO.2 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-02030 |
GRN225,245,250,265,270,TRN22#,24#,265 NO.1 |
1 | ||
| 81980-04040 |
GRN225,245,250,265,270,TRN22#,24#,265 DAYTIME RUNNING LIGHT SYSTEM-WITH,NO.2 |
1 | ||
| 81980-04040 |
GRN225,245,250,265,270,TRN225,245,265 NO.2 |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08283 |
GRN225,245,250,265,270,TRN225,245,265 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08283 |
GRN225,245,250,265,270,TRN225,245,265 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
GRN225,245,250,265,270,TRN225,245,265 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRN225,245,250,265,270,TRN225,245,265 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRN225,245,250,265,270,TRN225,245,265 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRN225,245,250,265,270,TRN225,245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRN225,245,250,265,270,TRN225,245,265 30A,MINI FUSE,GRN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
GRN225,245,250,265,270,TRN225,245,265 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
GRN225,245,250,265,270,TRN225,245,265 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
GRN225,245,250,265,270,TRN225,245,265 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
GRN225,245,250,265,270,TRN225,245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09025 |
GRN225,245,250,265,270,TRN225,245,265 30A,MINI FUSE,GRN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-04053 |
GRN225,245,250,265,270,TRN22#,24#,265 |
1 | ||
| 82730-04053 |
GRN245..6F;GRN225,250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC |
1 | ||
| 82730-04040 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69025 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-08010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-04020 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-04020 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-14030 |
GRN245,TRN225,245..5F,6F CONVINIENCE PACKAGE |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-04021 |
GRN245,250,TRN245 |
1 | ||
| Common parts | ||||
| 82715-04280 | ||||
| 90080-11220 | ||||
| 90080-11353 | ||||
| 90080-15073 | ||||
| 90080-15078 | ||||
| 90105-A0064 | ||||
| 90119-08103 | ||||
| 90119-A0342 | ||||
| 90159-A0035 | ||||
| 90159-A0049 | ||||
| 90170-A0002 | ||||
| 90178-A0023 | ||||
| Linked diagrams | ||||
| 8202 | ||||

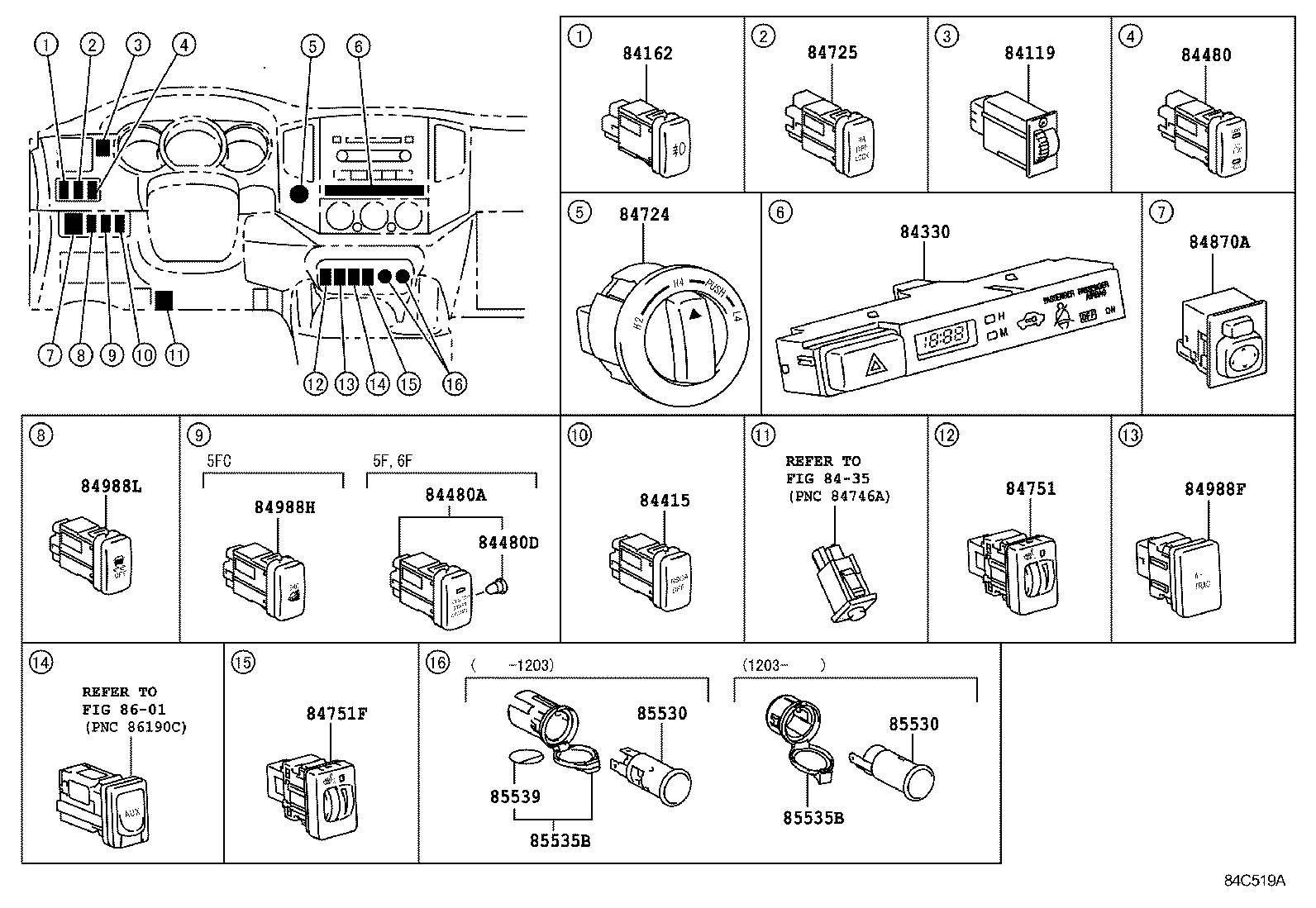

ILLUST NO. 5 OF 7(1109-1508)
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-04100 |
GRN225,245,250,265,270,TRN22#,24#,265 |
1 | ||
| 84332-04110 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-04030 |
GRN245,250,TRN245 |
1 | ||
| 84480A - SWITCH ASSY, CLUTCH START CANCEL | ||||
| 84480-04020 |
GRN245,TRN245..5F,6F |
1 | ||
| 84480D - BULB, CLUTCH START CANCEL SWITCH ASSY | ||||
| 90011-01018 |
GRN245,TRN245..5F,6F 14V 0.91W,W(SOCKET) |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-04030 |
GRN245,250,TRN245 |
1 | ||
| 84724-04020 |
GRN245,250,TRN245 SR5 PACKAGE |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-08010 |
GRN245,265,TRN225,245,265..LCB YOUTH PACKAGE&CONVINIENCE PACKAGE |
1 | ||
| 84870-08010 |
GRN245,265,TRN225,245,265..LCB YOUTH PACKAGE |
1 | ||
| 84870-08010 |
GRN245,265,TRN225,245,265..LCB CONVINIENCE PACKAGE |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-04090 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 85530-06010 |
GRN225,245,250,265,270,TRN22#,24#,265 |
2 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-AE010 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 85530-06010 |
GRN225,245,250,265,270,TRN22#,24#,265 |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-08010 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 85535-0C010C0 |
GRN225,245,250,265,270,TRN22#,24#,265 BLACK |
2 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-08010 |
GRN225,245,250,265,270,TRN225,245,265 |
2 | ||
| 85535-0C010C0 |
GRN225,245,250,265,270,TRN22#,24#,265 BLACK |
2 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRN225,245,250,265,270,TRN22#,24#,265 |
2 | ||
| Linked diagrams | ||||
| 8435 | ||||
| 8601 | ||||

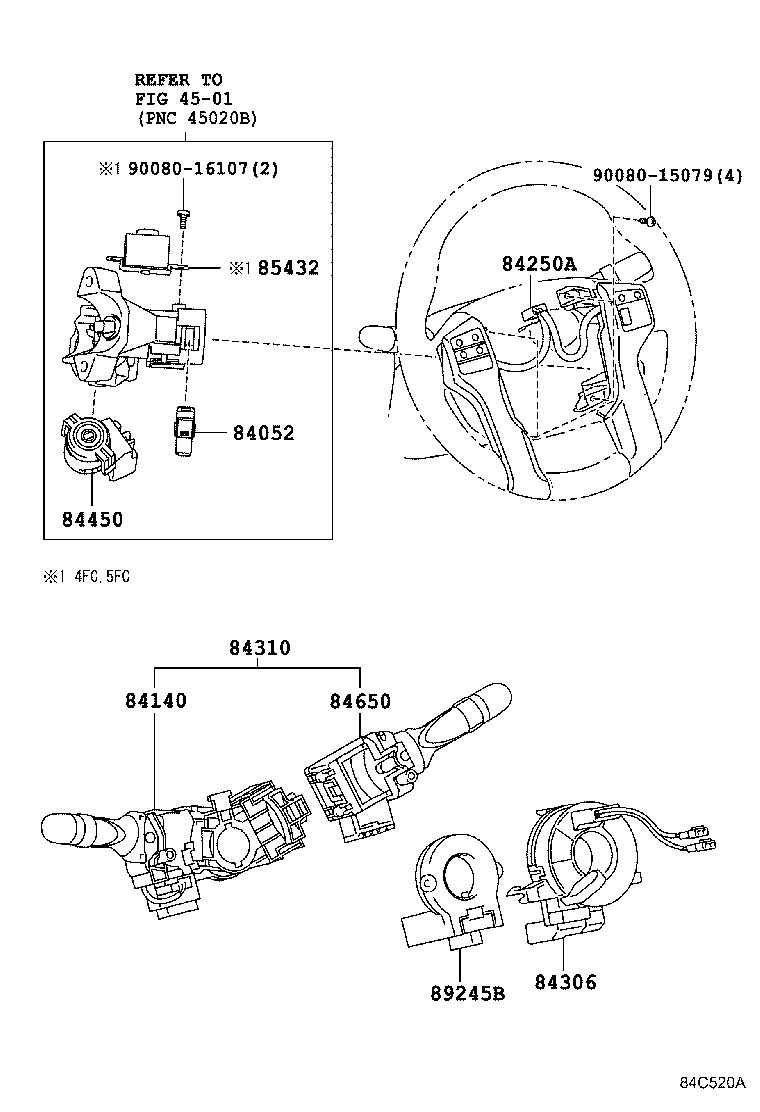

ILLUST NO. 6 OF 7(1109-1508)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-0E070 |
GRN225,245,250,265,270,TRN22#,24#,265 |
1 | ||
| 84140-04070 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84140-02660 |
GRN245..6F;GRN225,250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC |
1 | ||
| 84140-02660 |
GRN245..6F;GRN250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC&SR5 PACKAGE |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-04020B0 |
TRN225,245..LCB AUDIO-USB & SDARS & *BT & 6SPEAKER W(WOOFER),SILVER ME.,TRIM13,4# |
1 | ||
| 84250-04020B0 |
GRN245,265,TRN225,245,265..LCB AUDIO-USB & SDARS & *BT & 6SPEAKER,SILVER ME.,TRIM13,4# |
1 | ||
| 84250-04020C0 |
TRN225,245..LCB AUDIO-USB & SDARS & *BT & 6SPEAKER W(WOOFER),BLACK,TRIM13 |
1 | ||
| 84250-04020C0 |
GRN245,265,TRN225,245,265..LCB AUDIO-USB & SDARS & *BT & 6SPEAKER,BLACK,TRIM13 |
1 | ||
| 84250-04040B0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER,SILVER ME.,TRIM13,43 |
1 | ||
| 84250-04040B0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 CONVINIENCE PACKAGE,SILVER ME.,TRIM13,43 |
1 | ||
| 84250-04030B0 |
GRN245,250,265,270,TRN225,245,265 CONVINIENCE PACKAGE,SILVER ME.,TRIM1#,4# |
1 | ||
| 84250-04040B0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 CONVINIENCE PACKAGE&AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER,SILVER ME.,TRIM13,43 |
1 | ||
| 84250-04040C0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 CONVINIENCE PACKAGE,21BK02,TRIM13,43,BLACK |
1 | ||
| 84250-04040C0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER,21BK02,TRIM13,43,BLACK |
1 | ||
| 84250-04040C0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 CONVINIENCE PACKAGE&AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER,21BK02,TRIM13,43,BLACK |
1 | ||
| 84250-04040C0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 21BK02,TRIM13,43,BLACK |
1 | ||
| 84250-04040B0 |
TRN225..DCB;GRN245,250,265,270,TRN245,265 SILVER ME.,TRIM13,43 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-0E010 |
GRN245,265,TRN225,245,265..LCB AUDIO-USB & SDARS & *BT & 6SPEAKER |
1 | ||
| 84306-0E010 |
TRN225,245..LCB AUDIO-USB & SDARS & *BT & 6SPEAKER W(WOOFER) |
1 | ||
| 84306-0E010 |
GRN245,250,265,270,TRN225,245,265 CONVINIENCE PACKAGE&AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER |
1 | ||
| 84306-04080 |
GRN245,265,TRN22#,24#,265..LCB,RCB |
1 | ||
| 84306-0E010 |
GRN245,250,265,270,TRN225,245,265 AUDIO-*DA & *BT & EXTENSION BOX & 6SPEAKER |
1 | ||
| 84306-0E010 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 84306-0E010 |
GRN245,250,265,270,TRN225,245,265 CONVINIENCE PACKAGE |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-04270 |
GRN245,250,265,270,TRN22#,24#,265 |
1 | ||
| 84310-04280 |
GRN245,250,265,270,TRN225,245,265 SR5 PACKAGE |
1 | ||
| 84310-04252 |
GRN245..6F;GRN250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC |
1 | ||
| 84310-04290 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 84310-04300 |
GRN245,250,265,270,TRN225,245,265 SR5 PACKAGE |
1 | ||
| 84310-04262 |
GRN245..6F;GRN250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC&SR5 PACKAGE |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-71010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-02610 |
GRN245..6F;GRN250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC&SR5 PACKAGE |
1 | ||
| 84652-02710 |
GRN245,250,265,270,TRN225,245,265 SR5 PACKAGE |
1 | ||
| 84652-04150 |
GRN245,250,265,270,TRN225,245,265 |
1 | ||
| 84652-04132 |
GRN245..6F;GRN250,TRN245;GRN245,TRN225..LCB..(4FC,5F,5FC) CANADA SPEC |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-0R020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-15079 | ||||
| 90080-16107 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 1 OF 7(1109-1508)GRN225,245,250,265,270
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
GRN225,245,250,265,270,TRN225,245,265 (J),DENSO |
1 | ||
| 83530-0E010 |
GRN225,245,250,265,270,TRN225,245,265 (L) |
1 | ||
| 83530-60020 |
GRN225,245,250,265,270,TRN225,245,265 (J),YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52050 |
GRN225,245,TRN225,245..5F,6F |
1 | ||
| 84210-12040 |
GRN225,245,TRN22#,24#..5F,6F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
GRN245,250,TRN245 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-35121 |
GRN245,250,TRN245 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04330 |
TRN24#..5F |
1 | ||
| 89465-35730 |
GRN225,245,250,265,270 |
1 | ||
| 89465-35750 |
TRN245..5F |
1 | ||
| 89465-04510 |
TRN245..5F |
1 | ||
| 89465-04490 |
GRN225,245,250,265,270 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-04330 |
TRN24#..5F |
1 | ||
| 89465-35730 |
GRN225,245,250,265,270 |
1 | ||
| 89465-35750 |
TRN245..5F |
1 | ||
| 89465-04510 |
TRN245..5F |
1 | ||
| 89465-04490 |
GRN225,245,250,265,270 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-35740 |
GRN225,245,250,265,270 |
1 | ||
| 89465-04500 |
GRN225,245,250,265,270 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-35740 |
GRN225,245,250,265,270 |
1 | ||
| 89465-04500 |
GRN225,245,250,265,270 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-04010 |
TRN22#,24#..5F |
1 | ||
| 89467-34030 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-04080 |
TRN225,245,265 |
1 | ||
| 89467-04090 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-0C060 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-04010 |
TRN22#,24#..5F |
1 | ||
| 89467-34030 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-04080 |
TRN225,245,265 |
1 | ||
| 89467-04090 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-0C060 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-04010 |
TRN22#,24#..5F |
1 | ||
| 89467-34030 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-04080 |
TRN225,245,265 |
1 | ||
| 89467-04090 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-0C060 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-04010 |
TRN22#,24#..5F |
1 | ||
| 89467-34030 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-04080 |
TRN225,245,265 |
1 | ||
| 89467-04090 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89467-0C060 |
GRN225,245,250,265,270 RH & LH |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GRN225,245,250,265,270 |
2 | ||
| 89615-20090 |
TRN225,245,265 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GRN225,245,250,265,270 |
2 | ||
| 89615-20090 |
TRN225,245,265 |
1 | ||
| Common parts | ||||
| 82715-04430 | ||||
| 82715-35C30 | ||||
| 82715-35C40 | ||||
| 90105-A0128 | ||||
| 90119-A0165 | ||||
| 90119-A0406 | ||||
| 90430-18008 | ||||
| 91551-80612 | ||||

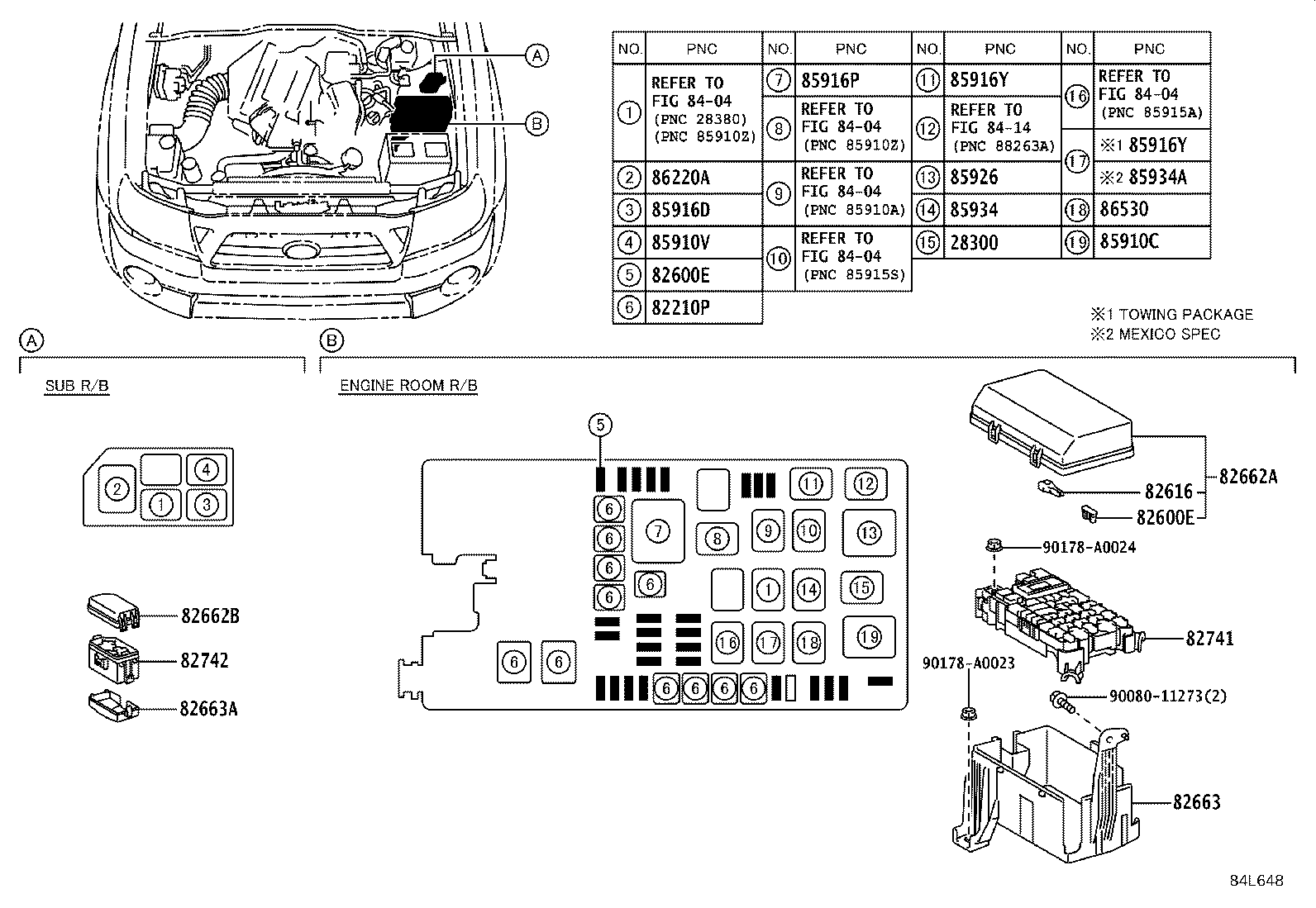

ILLUST NO. 3 OF 7(1109-1508)
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-0A010 |
1GRFE,2TRFE..GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08246 |
GRN225,245,250,265,270,TRN225,245,265 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08254 |
GRN225,245,250,265,270,TRN225,245,265 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08283 |
GRN225,245,250,265,270,TRN225,245,265 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
GRN225,245,250,265,270,TRN225,245,265 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GRN225,245,250,265,270,TRN225,245,265 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRN225,245,250,265,270,TRN225,245,265 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRN225,245,250,265,270,TRN225,245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRN225,245,250,265,270,TRN225,245,265 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRN225,245,250,265,270,TRN225,245,265 15A,MINI FUSE,BLUE |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
GRN225,245,250,265,270,TRN225,245,265 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GRN225,245,250,265,270,TRN225,245,265 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GRN225,245,250,265,270,TRN225,245,265 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
GRN225,245,250,265,270,TRN225,245,265 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GRN225,245,250,265,270,TRN225,245,265 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-04140 |
TRN22#,24#,265 |
1 | ||
| 82662-04121 |
GRN225,245,250,265,270 |
1 | ||
| 82662-04141 |
TRN225,245,265 |
1 | ||
| 82662-04120 |
GRN225,245,250,265,270 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-04110 |
GRN225,245,250,265,270 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-04010 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-04040 |
GRN225,245,250,265,270 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-04020 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-04010 |
GRN225,245,250,265,270 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90080-87025 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90080-87024 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90080-87025 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90080-87026 |
GRN225,245,250,265,270,TRN225,245,265 |
1 | ||
| Common parts | ||||
| 90080-11273 | ||||
| 90178-A0023 | ||||
| 90178-A0024 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
