TRN245L-CRMDKA (2008)

Toyota Tacoma

Production May 2008 - Sep 2011
Engine 2TRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0409-1508)LCB,RCB

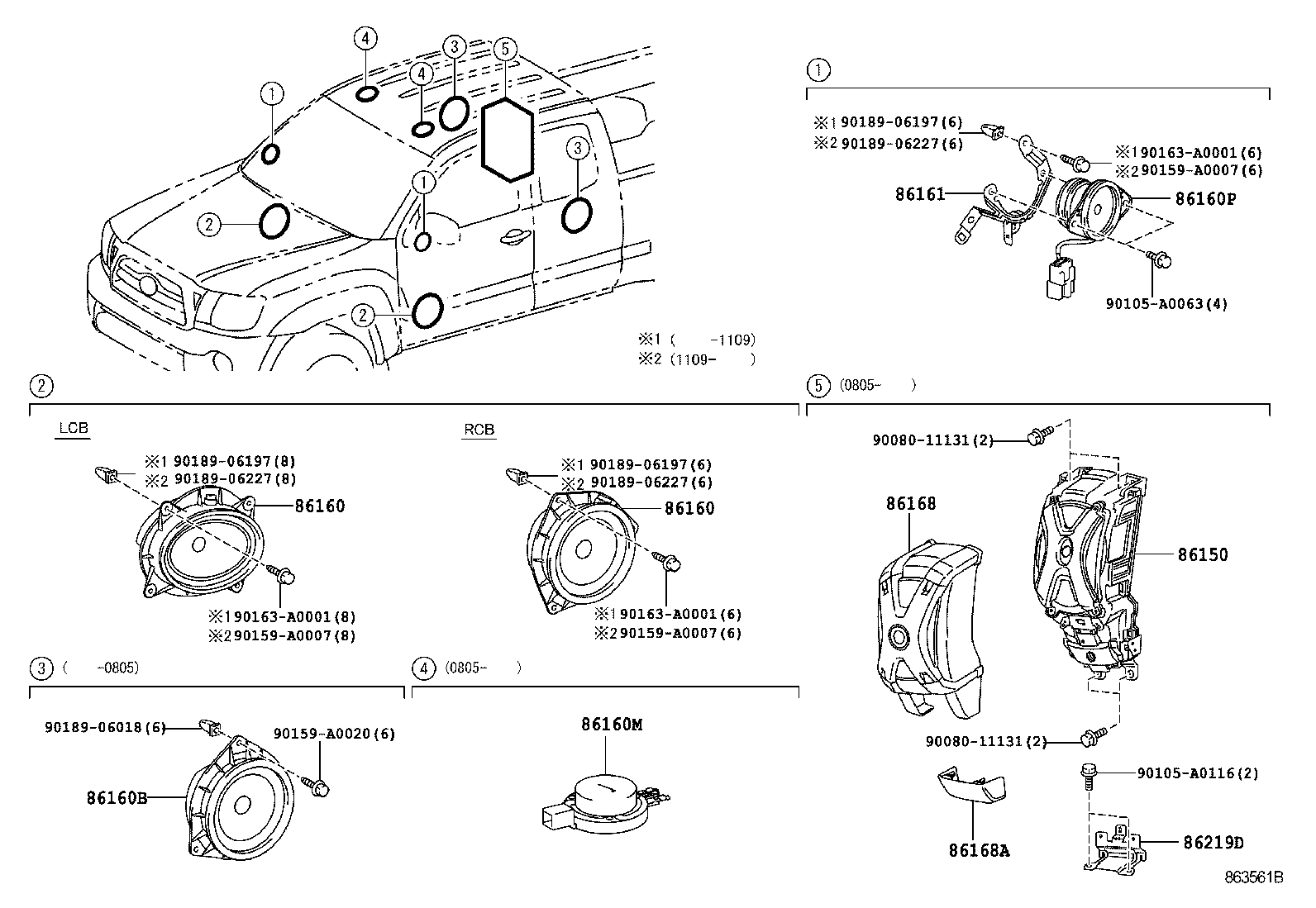

Click highlighted areas on diagram

diagram 86150 86160 86160 86160B 86160M 86160P 86161 86168 86168A 86219D 9008011131 9008011131 90105A0063 90105A0116 90159A0007 90159A0007 90159A0007 90159A0020 90163A0001 90163A0001 90163A0001 9018906018 9018906197 9018906197 9018906197 9018906227 9018906227 9018906227
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-04050

GRN245,265,TRN225,245,265..LCB

AUDIO-AM/FM/CD 7SPEAKER

 1
86150-04050

GRN245,265,TRN225,245,265..LCB

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER

 1
86150-04051

GRN265..LCB..5FC;GRN245,TRN225,245..LCB

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER

 1
86150-04051

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM/CD 7SPEAKER

 1
86150-04051

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER SDARS

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-AA440

GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-AA440

GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN225,245

 2
86160M - SPEAKER ASSY, ROOF
86150-04060

GRN225,245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-04140

GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#

 2
86161 - BRACKET, SPEAKER, FRONT NO.1
86161-04010

GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#

RH

 1
86161-04020

GRN265,TRN265..4FC,5FC;GRN225,245,250,270,TRN22#,24#

LH

 1
86168 - COVER, SPEAKER MOUNTING
86168-04010

GRN265..LCB..5FC;GRN245,TRN225,245..LCB

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER

 1
86168-04010

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER SDARS

 1
86168-04010

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM/CD 7SPEAKER

 1
86168A - COVER, SPEAKER MOUNTING, NO.2
86168-04020

GRN265..LCB..5FC;GRN245,TRN225,245..LCB

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER

 1
86168-04020

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER SDARS

 1
86168-04020

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM/CD 7SPEAKER

 1
86219D - BRACKET, SPEAKER, REAR NO.1
86219-04010

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM/CD 7SPEAKER

 1
86219-04010

GRN265..LCB..5FC;GRN245,TRN225,245..LCB

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER

 1
86219-04010

GRN245,TRN225,245..LCB;GRN265,TRN265..LCB..(4FC,5FC)

AUDIO-AM/FM 6CD-CHANGER 7SPEAKER SDARS

 1
Common parts
90080-11131
90105-A0063
90105-A0116
90159-A0007
90159-A0020
90163-A0001
90189-06018
90189-06197
90189-06227
